Projector ZW340e - DLP WXGA 1280x800 3600 LM
ITCurry #: M1514042 | Article #: E9PD7KK11EZ2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

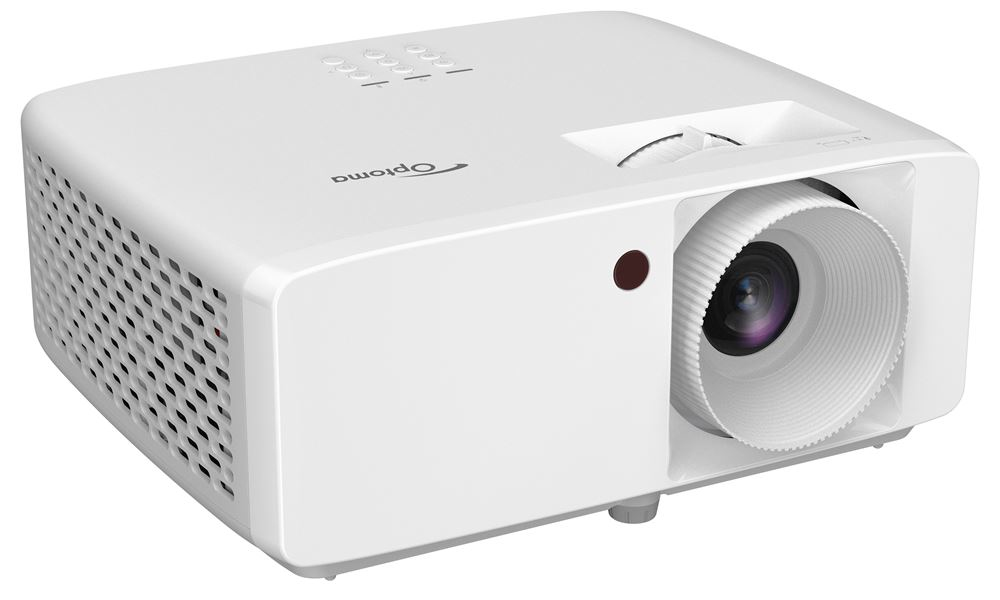

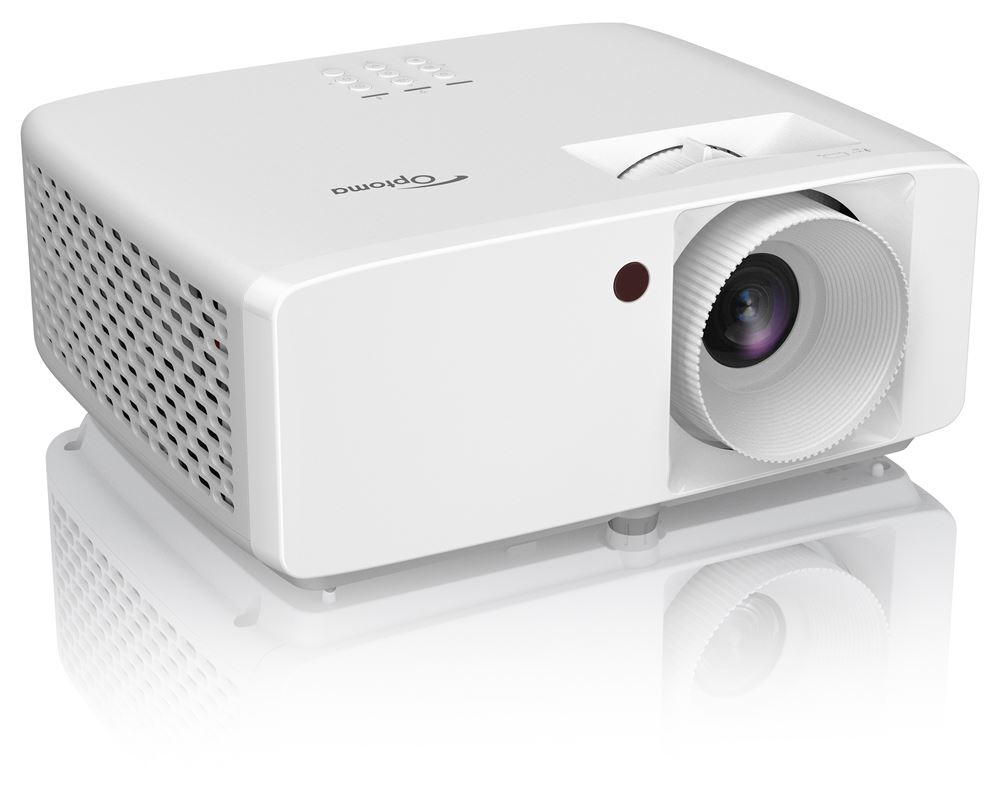

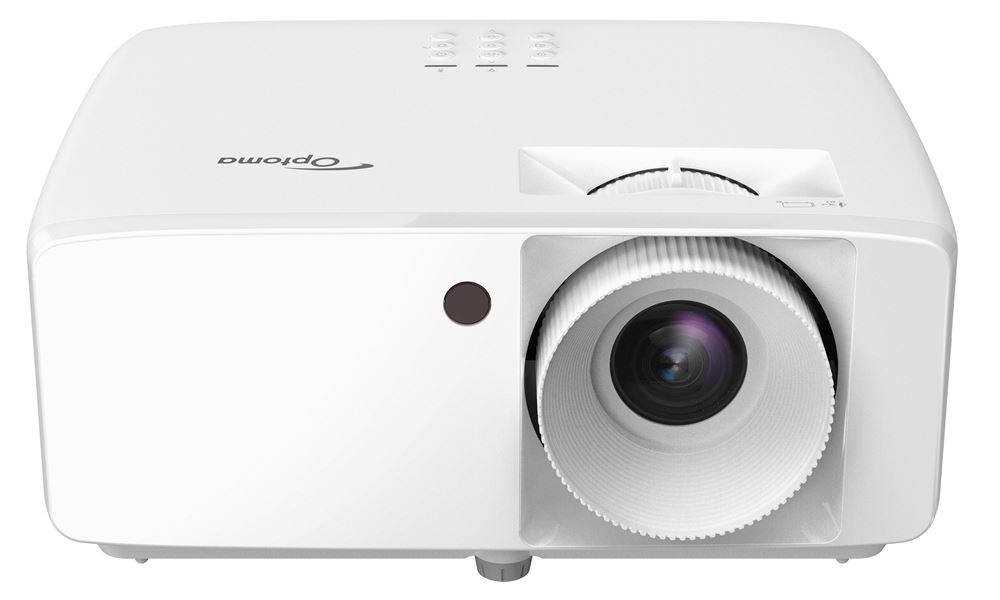

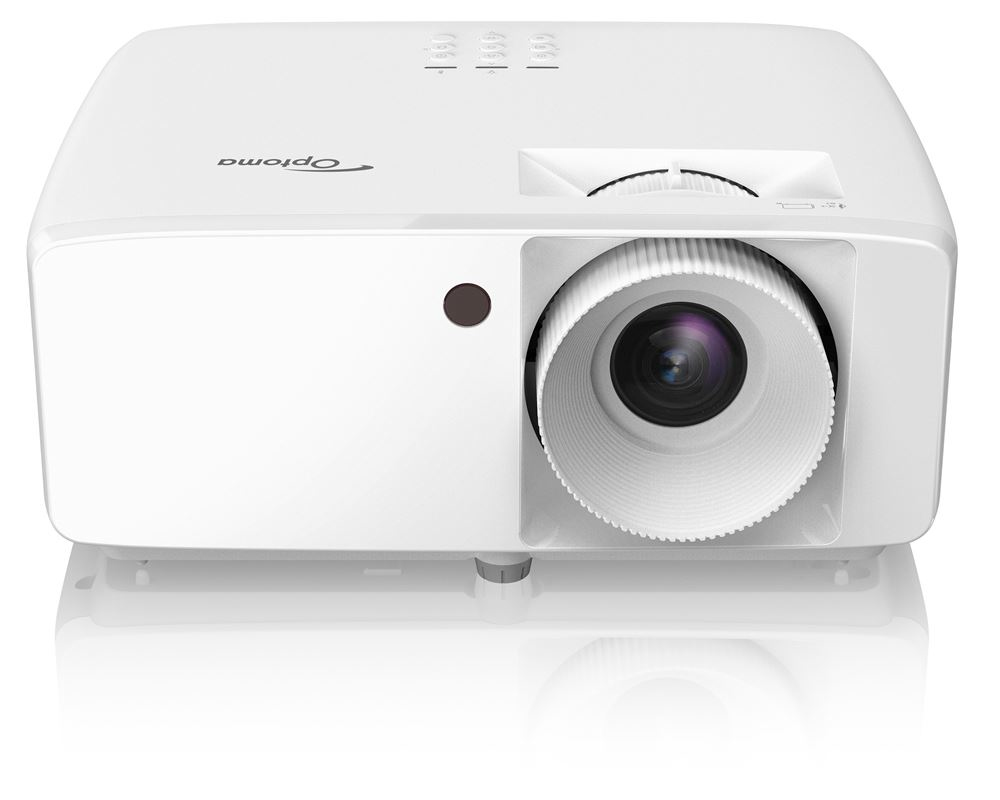

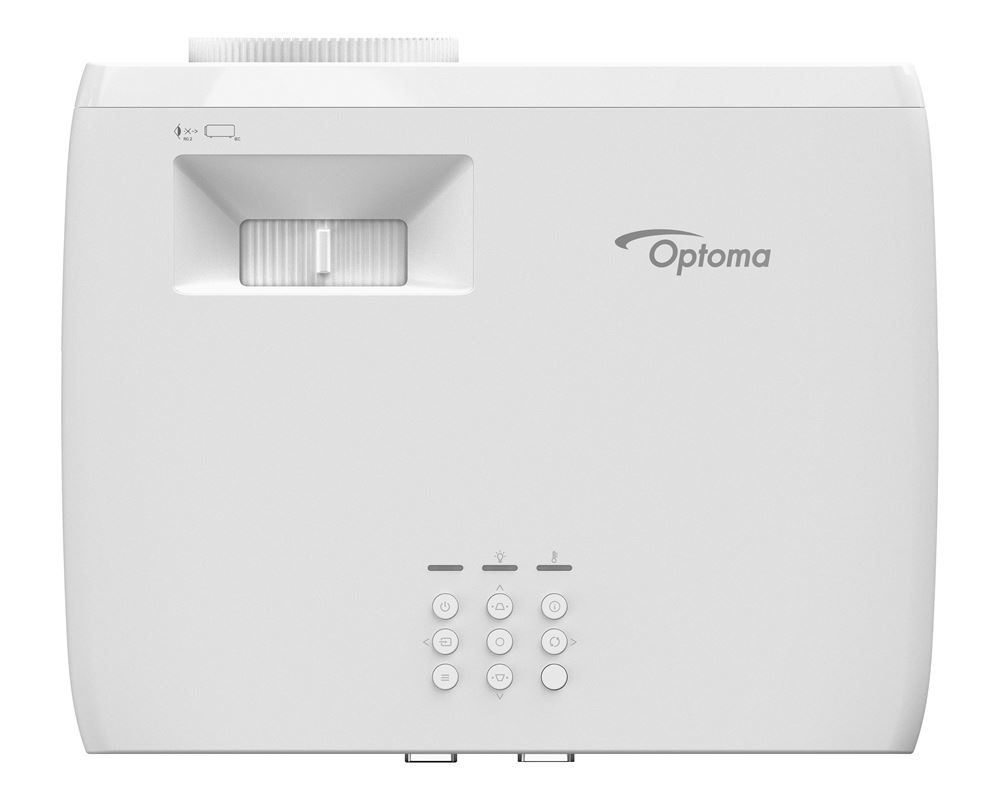

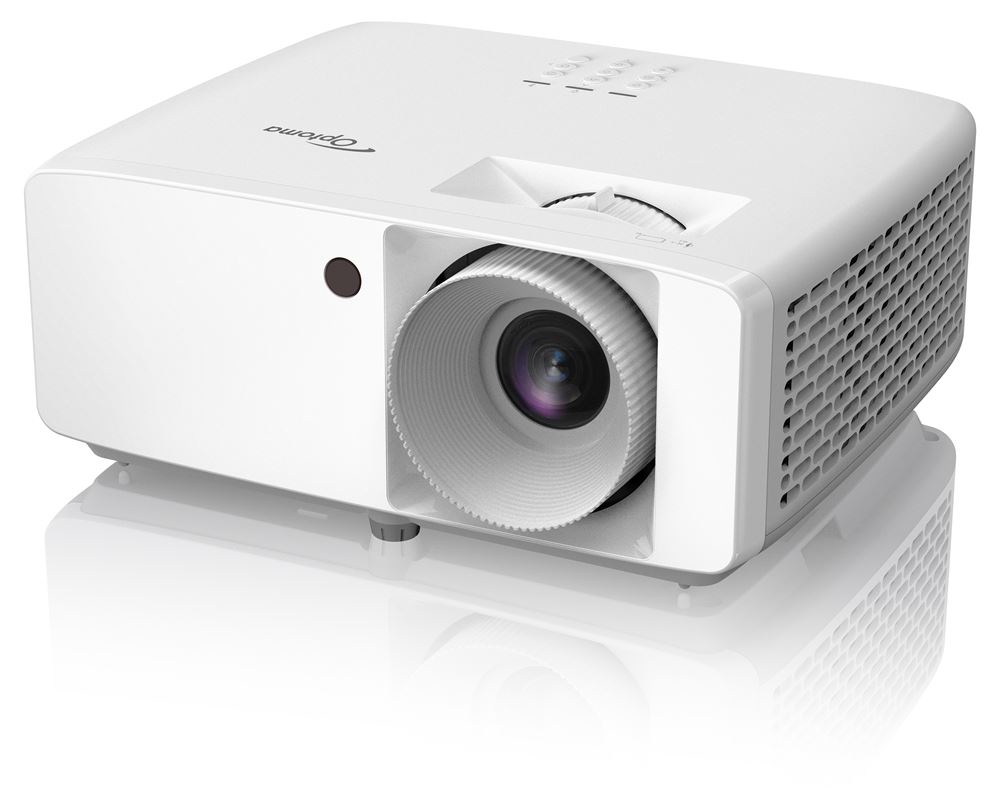

Compact high brightness laser projector

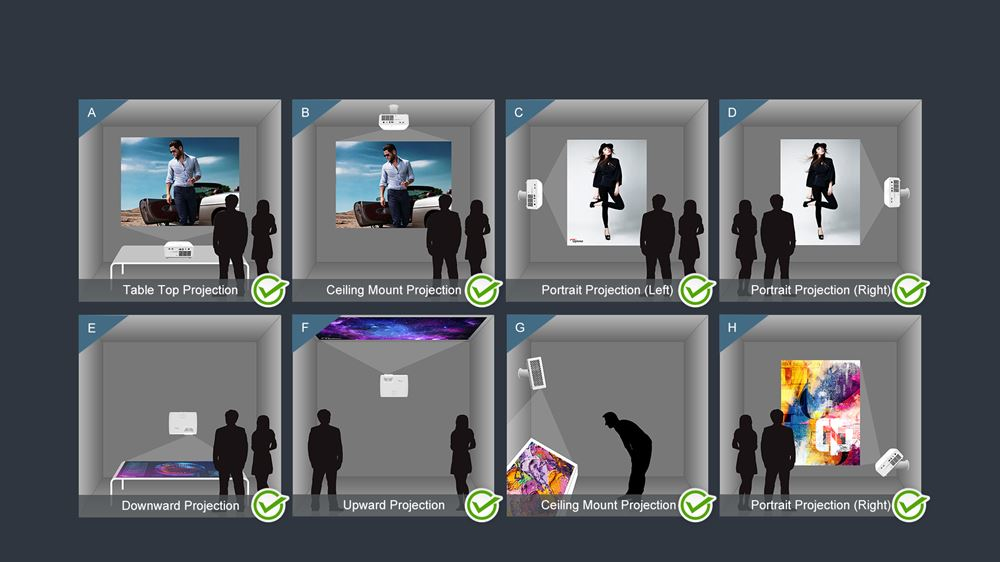

The ZW340e is one of Optoma's most compact and hassle-free WXGA DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3600-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.
To support Optoma’s commitment to sustainability, the ZW340e cuts power consumption by up to 45% compared to Optoma’s lamp-based projectors. Energy-saving DuraCore laser technology ensures a long product lifespan of up to 30,000 hours without the need for additional lamps, requires minimal maintenance, and is mercury-free, further lowering its carbon footprint.
An added benefit, the ZW340e features an external power supply offering more reliability, portability and energy efficiency. Designed with the environment in mind, the eco-friendly packaging contains up to 97% recyclable materials. In addition, the compact product and packaging size of the ZW340e projector allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.
| Projector | |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Screen size compatibility | 508 - 7620 mm (20 - 300") |
| Projection distance | 1 - 10 m |
| Contrast ratio (dynamic) | 2000000:1 |
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 300000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.073 billion colours |
| Uniformity | 75% |
| Horizontal scan range | 15 - 140 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40ø |
| Light source | |
| Light source type | Laser |
| Service life of light source | 30000 h |
| Lens system | |
| Focal length range | 21.85 - 24 mm |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.54 - 1.72:1 |
| Offset | 112% |
| Video | |
| Analog signal format system | NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD | No |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

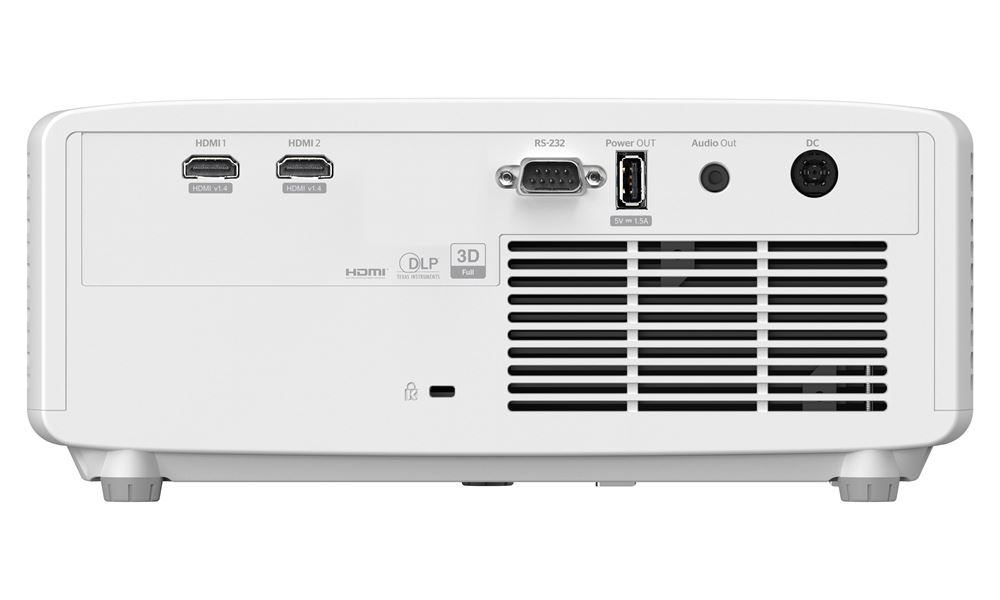

| Ports & interfaces | |
| HDMI version | 1.4a |
| USB 2.0 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
| HDMI ports quantity | 2 |
| DVI port | No |
| Network | |
| Smart TV | No |
| Storage | |
| Card reader integrated | No |
| Features | |
| Interactive | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish, Vietnamese |
| Number of OSD languages | 26 |
| Noise level | 31 dB |
| Password protection | Yes |
| Certification | IP6X |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 15 W |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Business |
| Product type | Standard throw projector |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 139 W |
| Power consumption (economy mode) | 88 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 274 mm |
| Depth | 216 mm |
| Height | 114 mm |
| Weight | 3 kg |
| Package weight | 4.2 kg |
| Packaging content | |

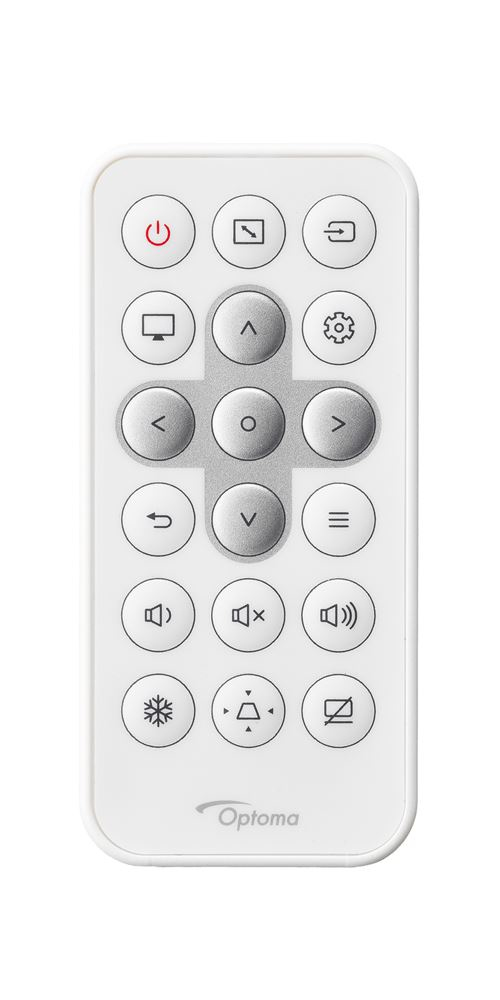

| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC |
| Manual | Yes |
| AC adapter included | Yes |
| Warranty | |
| Base Warranty | Non Non |
