Passive Copper Cable Eth - 40gbs Qsfp+ - 40gbs Qsfp+ - 1.5m
ITCurry #: S0802725 | Article #: MCP1700-B01AE-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

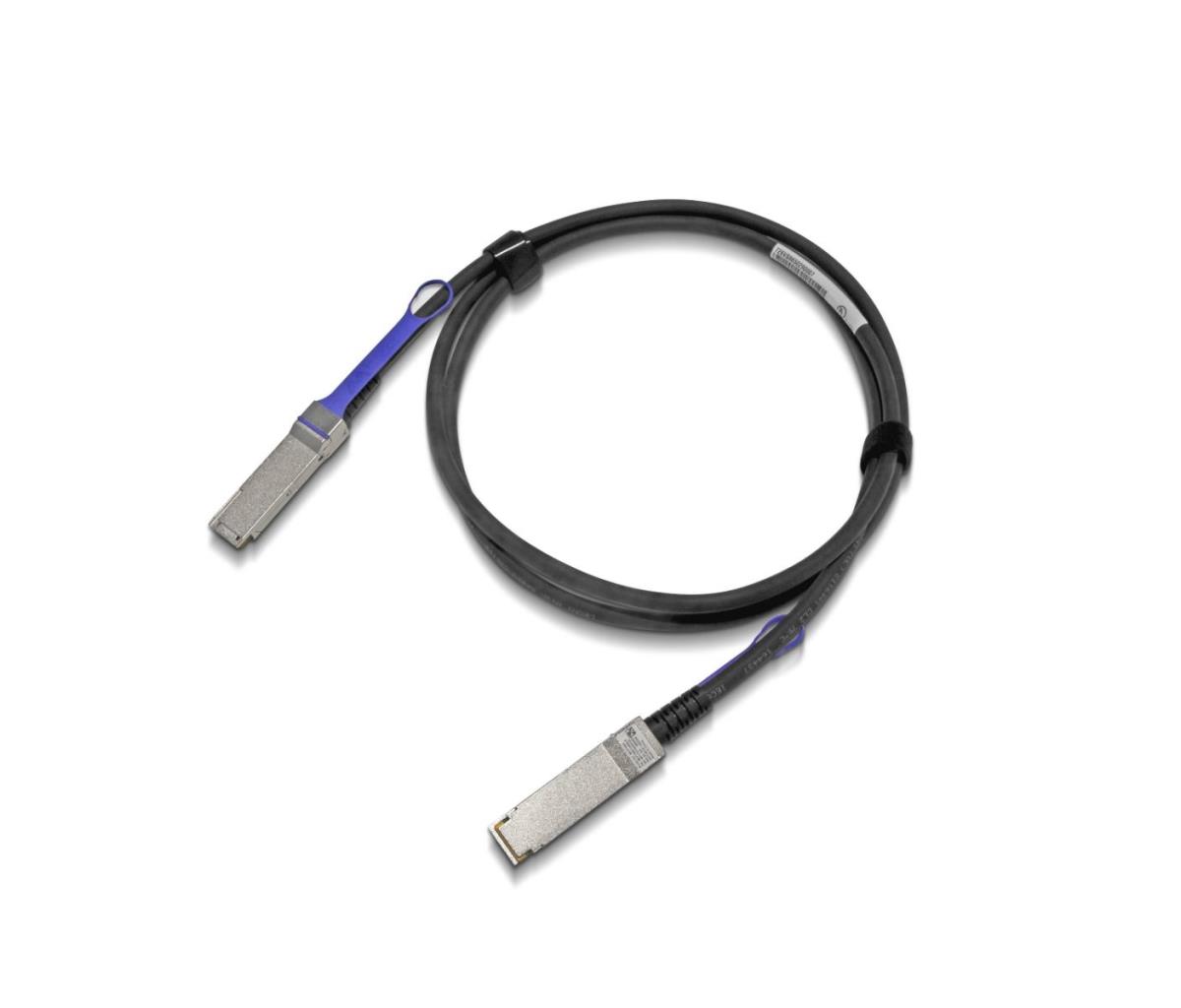

40GbE QSFP+ Direct Attach Copper Cables
NVIDIA Networking MCP1700-B01AE QSFP+ direct attach copper (DAC) cables provide robust connections for leading edge 40GbE Ethernet systems. The cables consist of four lanes each operating at data rates of up to 14.0625Gb/s. Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8685 specifications and provide connectivity between devices using QSFP+ ports. Each QSFP+ port comprises an EEPROM providing product information, which can be read by the host system. This integrated cable solution provides reliable transport for aggregate data rates of up to 56Gb/s Virtual Protocol Interconnect (VPI). Optimizing systems to operate with NVIDIA Networking's 56Gb/s passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts. NVIDIA Networking's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
| Features | |
| Cable length | 1.5 m |
| InfiniBand protocol | Yes |
| Connector 1 | QSFP |
| Connector 2 | QSFP |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 40 Gbit/s |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Weight & dimensions | |
| Cable diameter | 6.3 mm |
| Bending radius | 11.8 cm |
| Warranty | |
| Base Warranty | Non Non |
