GS110TPv3 Gigabit Smart Managed Pro Switch 8-Port + 2 (Dedicated) 1G SFP Ports
ITCurry #: 20325294 | Article #: GS110TP-300EUS-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

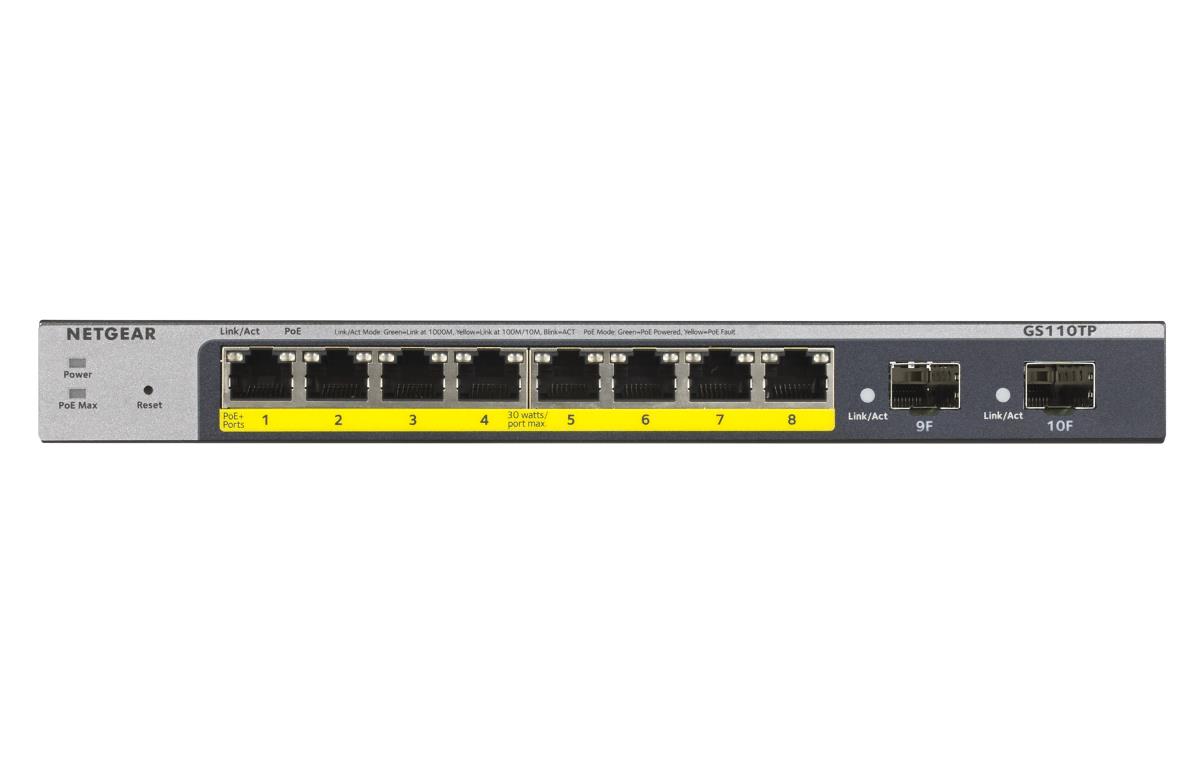

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L3/L4 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| MAC address auto-learning supported | Yes |
| Number of VLANs | 64 |
| Data transmission | |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.5 MB |
| Security | |
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| Multicast features | |
| Multicast support | Yes |
| IPv4 multicast entries | 32 |
| Number of multicast groups filtered | 256 |
| Protocols | |
| Management protocols | SNMP |
| Switching protocols | SNMP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | HTTP, HTTPS |
| Design | |
| Rack mounting | No |
| Product colour | Grey |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Performance | |
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Mean time between failures (MTBF) | 1200041 h |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 54 V |
| Input current | 1.25 A |
| Power consumption (max) | 15.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 55 W |
| Total Power over Ethernet (PoE) budget | 69.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 70 øC |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 237.38 BTU/h |
| Weight & dimensions | |
| Width | 236 mm |
| Depth | 101 mm |
| Height | 27 mm |
| Weight | 610 g |
| Packaging data | |
| Manual | Yes |
| Package type | Box |
| Package width | 161 mm |
| Package depth | 267 mm |
| Package height | 86 mm |
| Package weight | 1.49 kg |
| Logistics data | |
| Master (outer) case width | 274 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 309 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 9.73 kg |
| Products per master (outer) case | 6 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
