Product Information

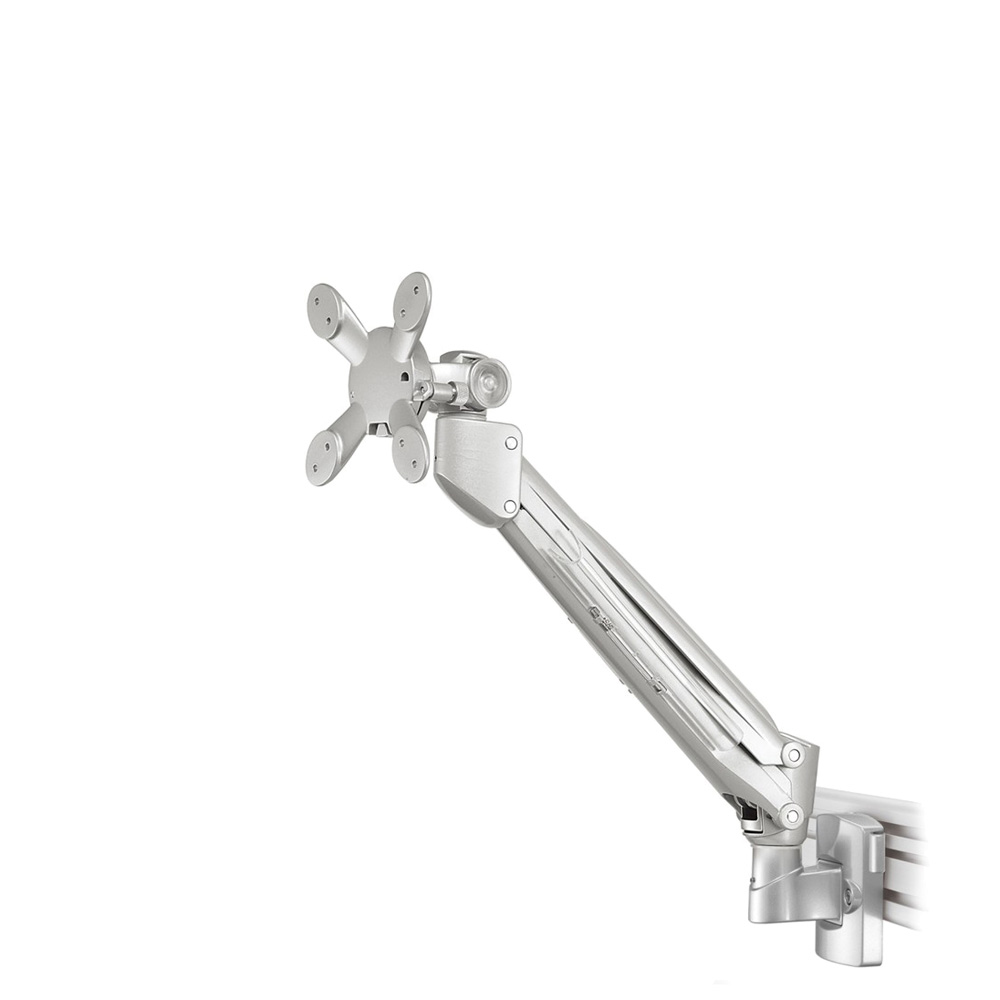

The Neomounts toolbar mount, model FPMA-DTBW940 is a tilt-, swivel and rotatable mount for flat screens up to 30". This mount is a great choice to use in combination with Neomountss' toolbar model FPMA-DTB100, FPMA-DTB200 or FPMA-WTB100.
Neomounts's versatile tilt (180°), rotate (270°) and swivel (260°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 0 to 42 centimetres using a gas spring. Depth adjustable from 0 to 48 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
FPMA-DTBW940 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this mount is 9 kg each screen. The toolbar mount is suitable for screens that meet VESA hole pattern 75x75 %26 100x100. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 9 kg |
| Maximum screen size | 76.2 cm (30") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Distance to the wall (max) | 48 cm |
| Ergonomics | |
| Tilt angle range | 0 - 180ø |
| Swivel angle | 180ø |
| Angle of rotation | 270ø |
| Design | |
| Product colour | Silver |
| Weight & dimensions | |
| Depth | 480 mm |
| Package width | 630 mm |
| Package depth | 130 mm |
| Package height | 330 mm |
| Logistics data | |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 130 mm |
| Master (outer) case height | 330 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 30 pc(s) |
| Other features | |
| Country of origin | China |
| Warranty | |
| Base Warranty | Non Non |
