Product Information

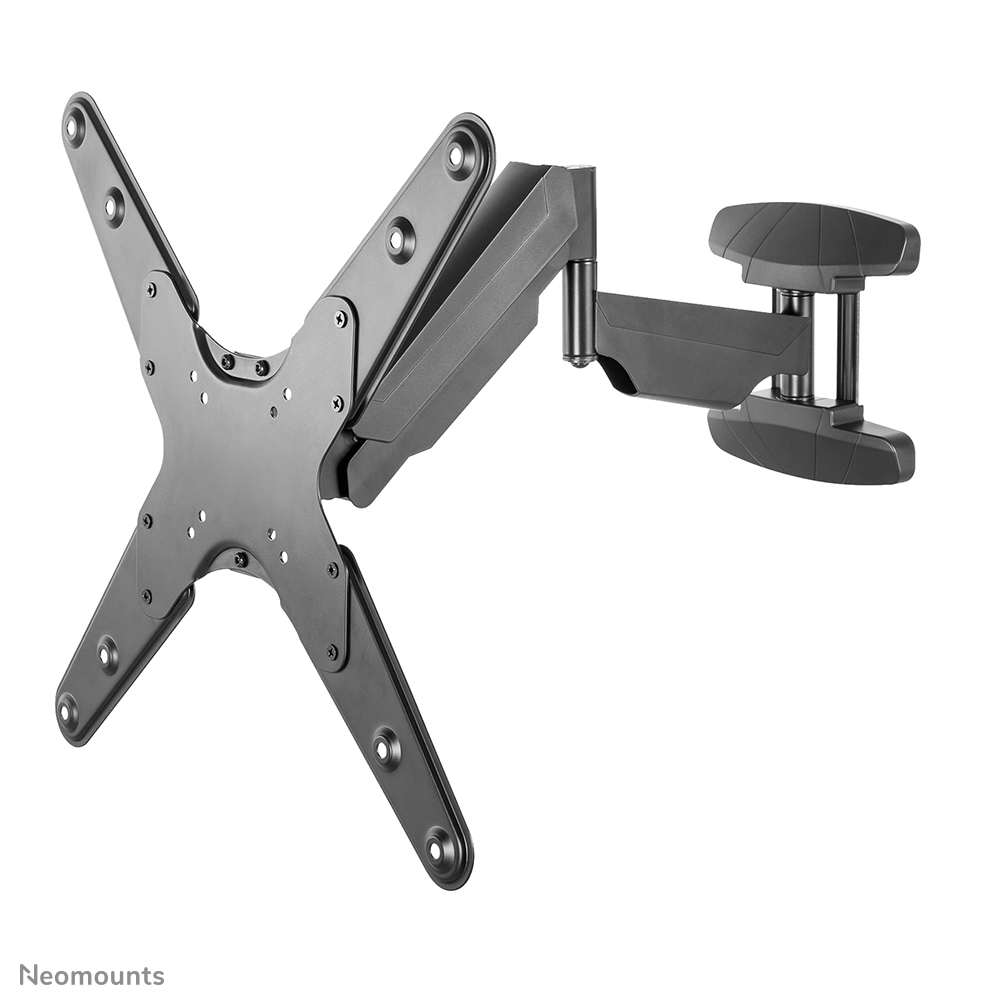

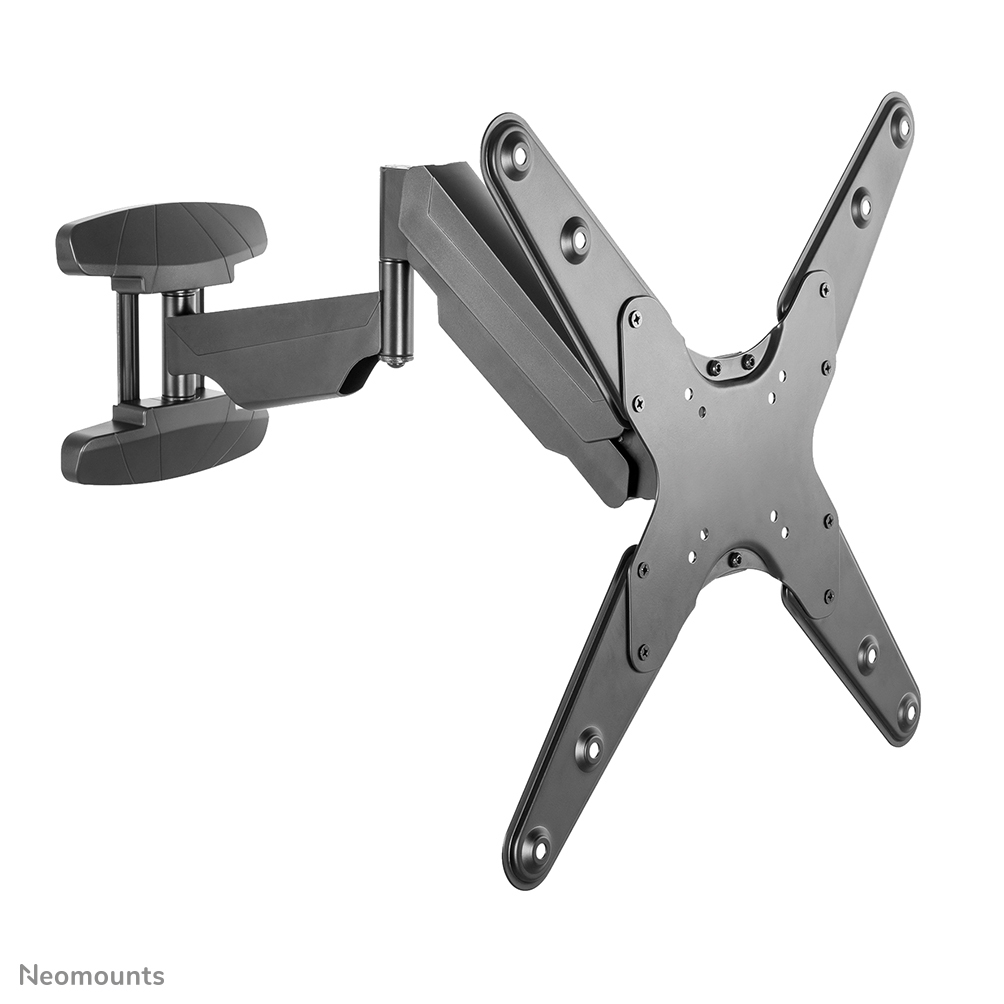

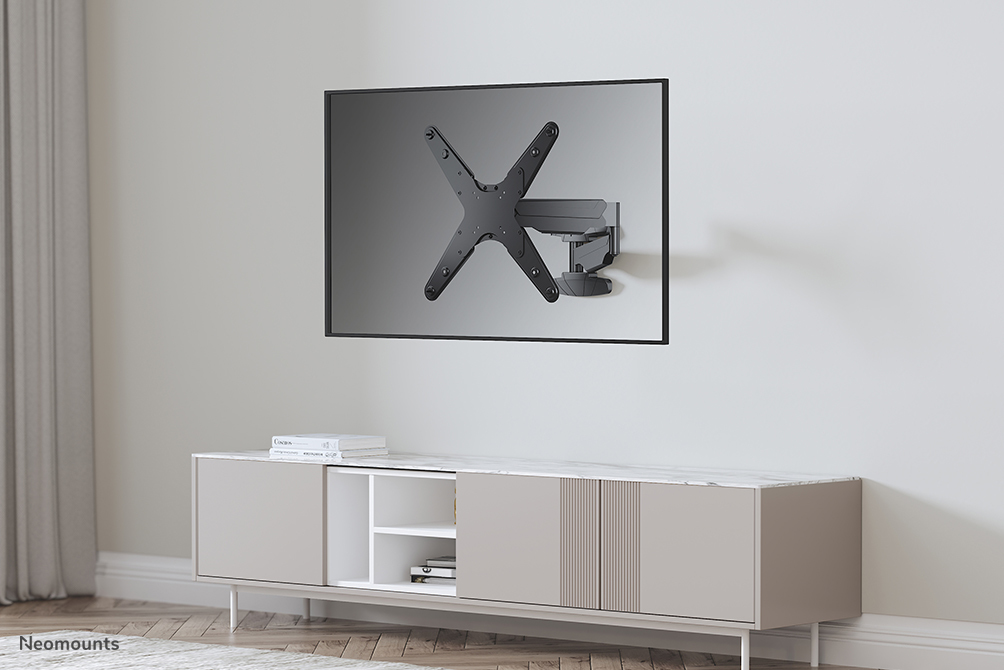

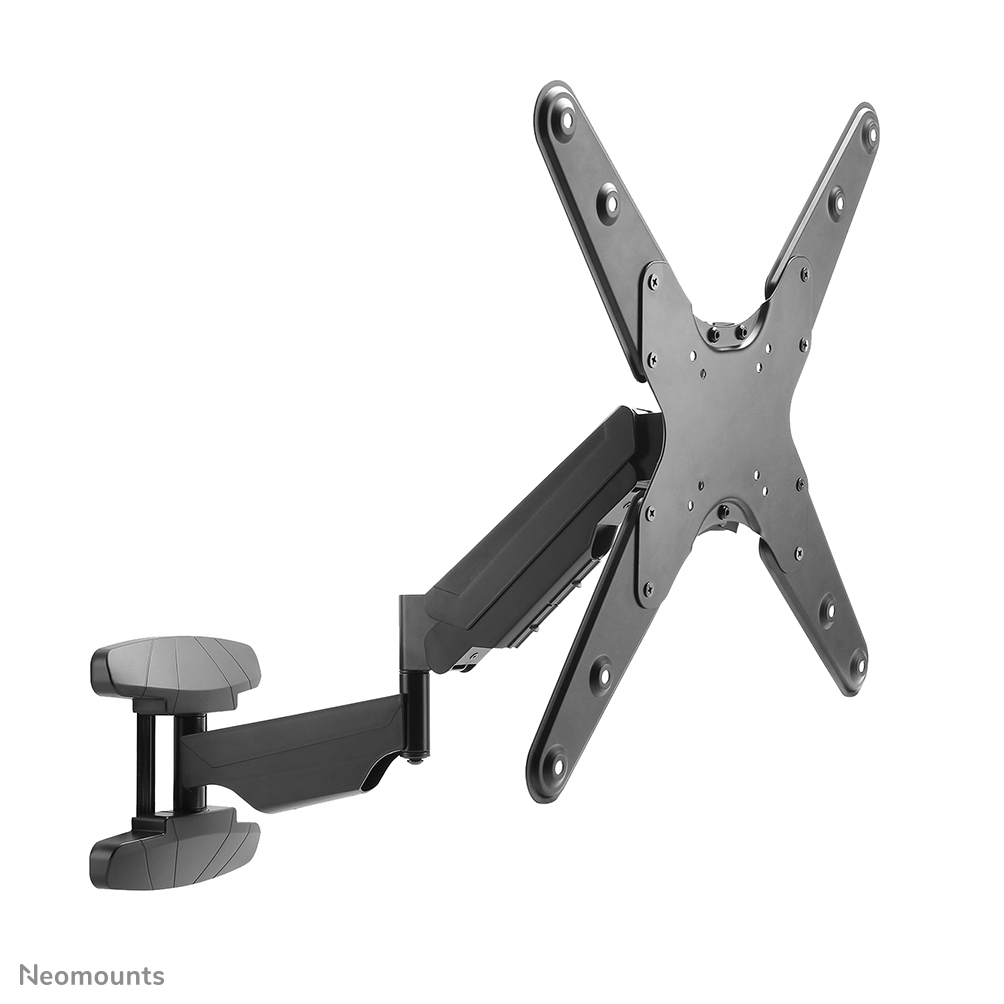

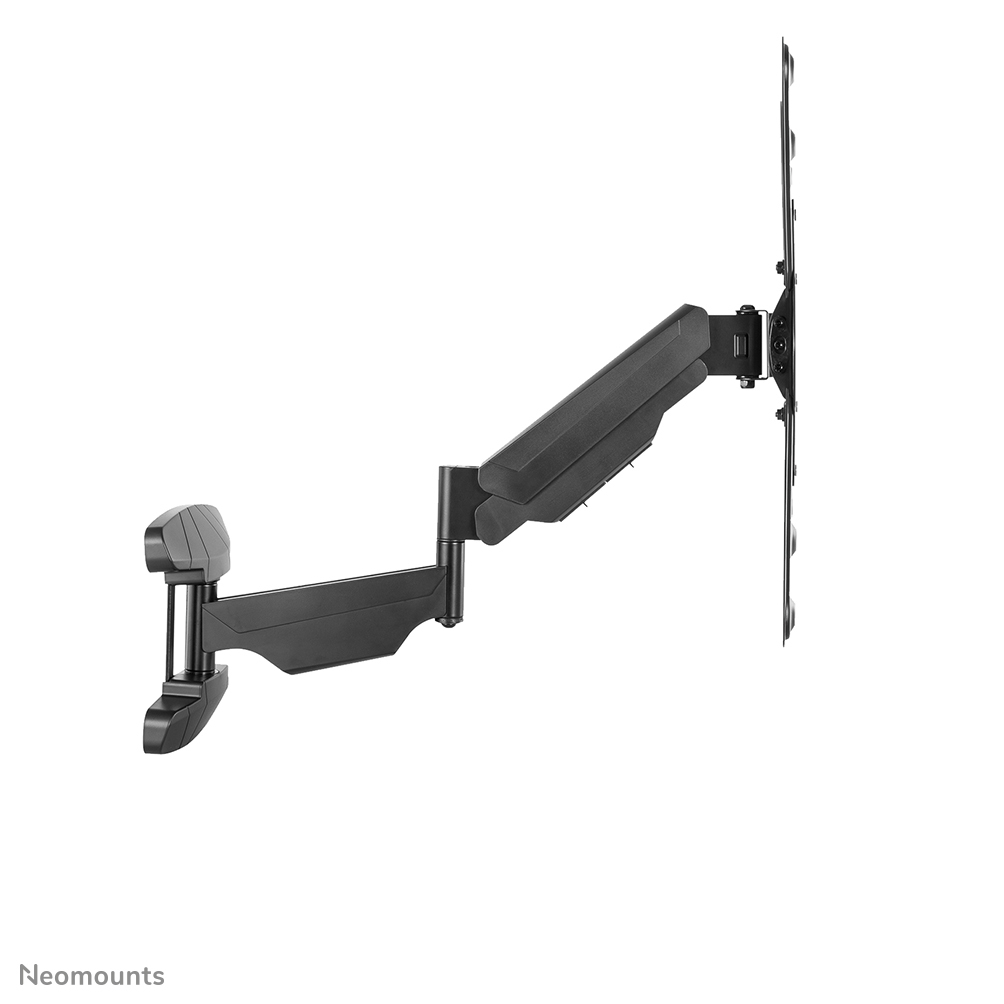

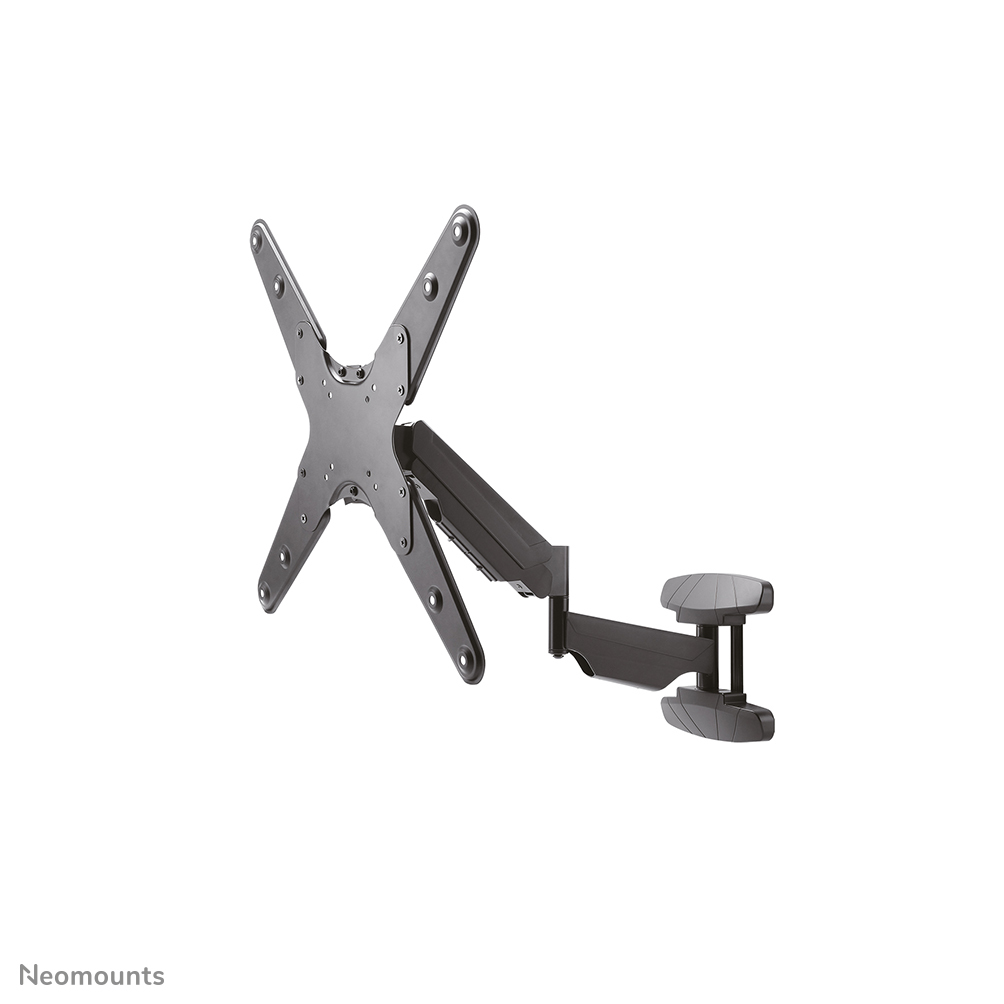

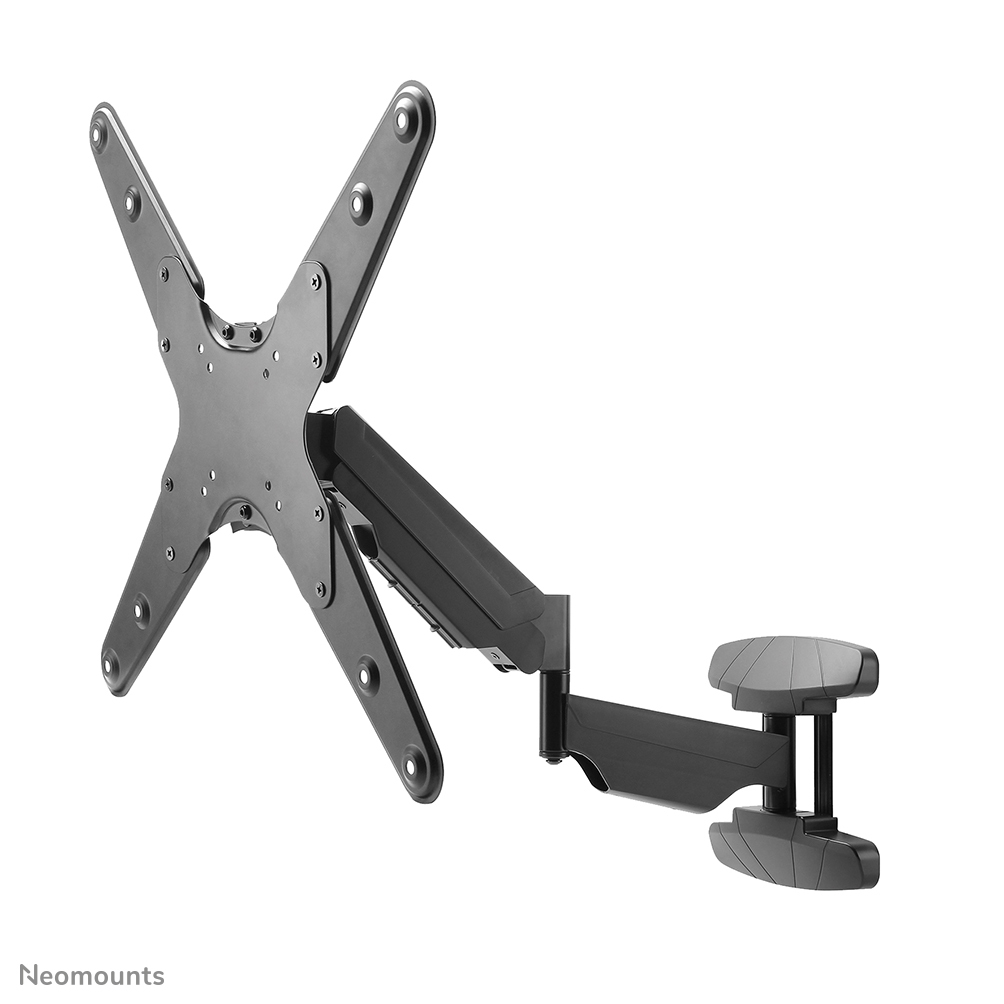

The Neomounts WL70-550BL14 is a full motion wall mount for flat screens up to 55" with a maximum weight capacity of 30 kg. The versatile tilt (20°) and swivel (180°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.

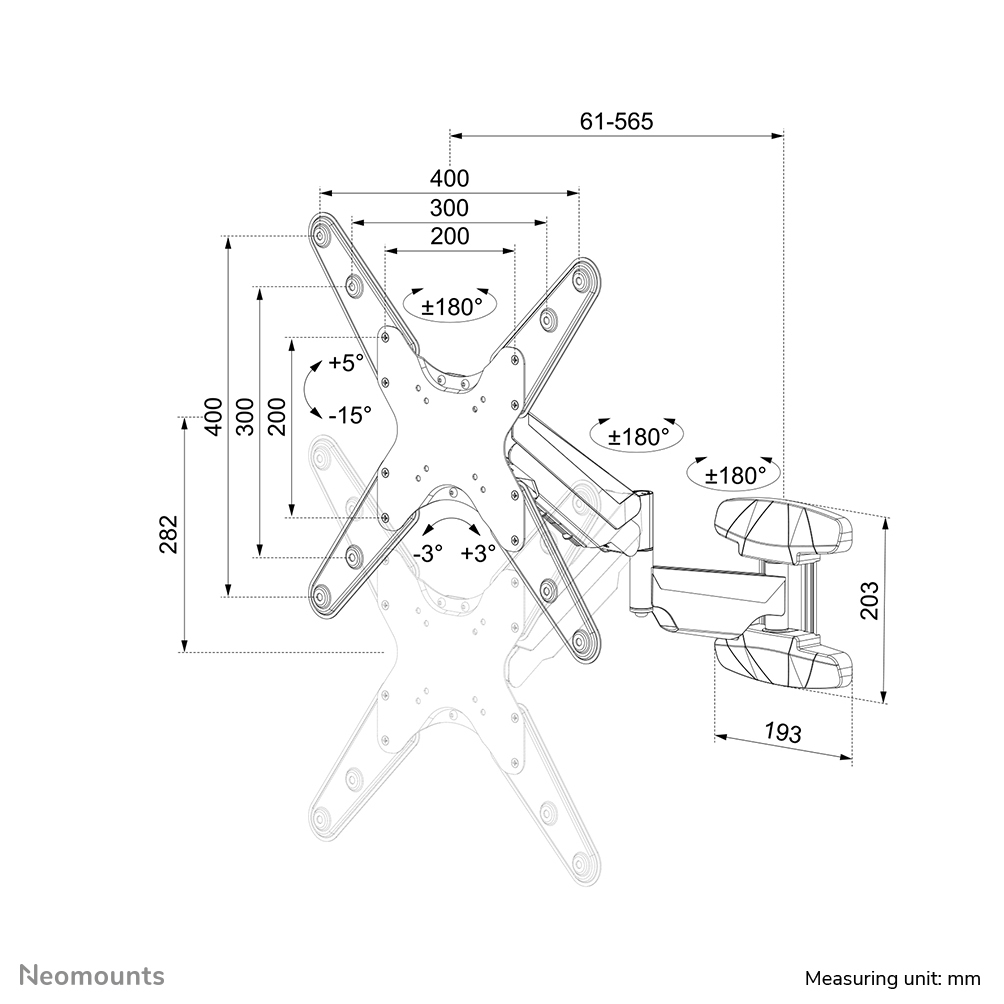

The WL70-550BL14 has a depth of 6,1-56,5 cm and is suitable for screens that meet VESA hole pattern 75x75 to 400x400 mm.

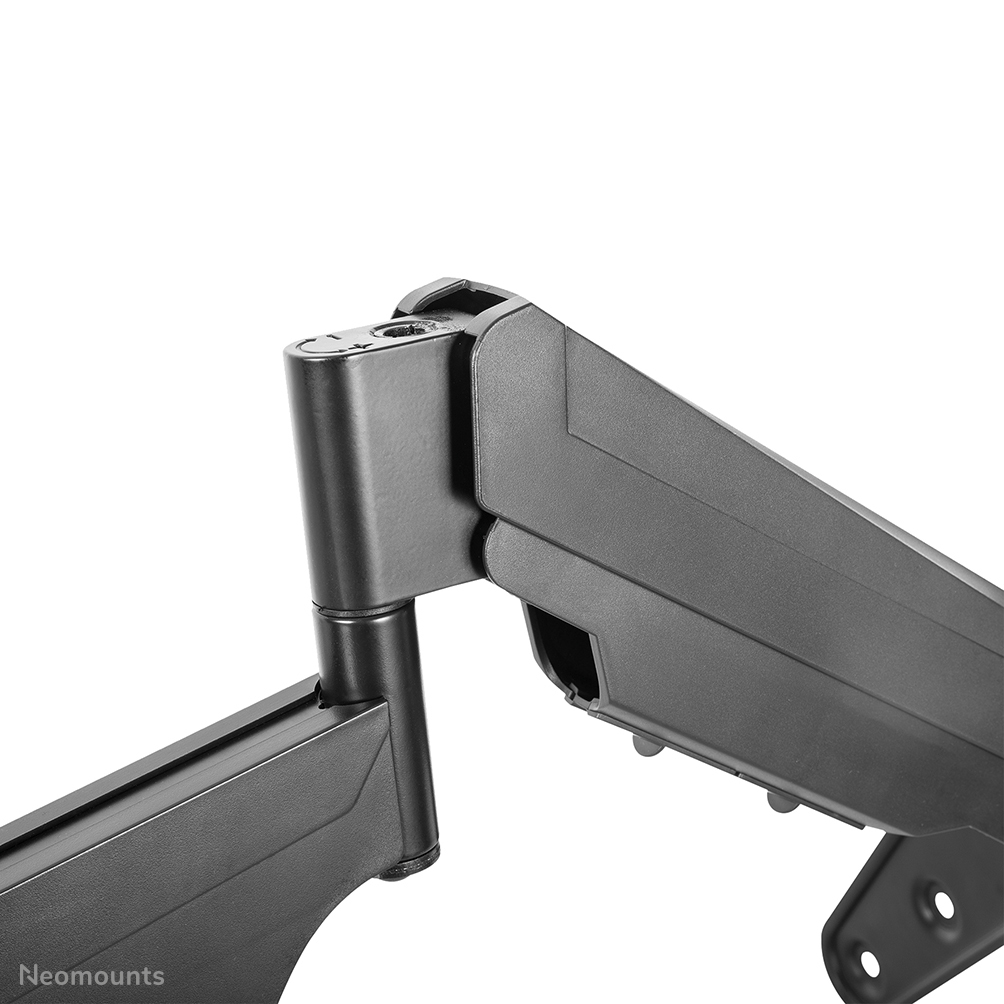

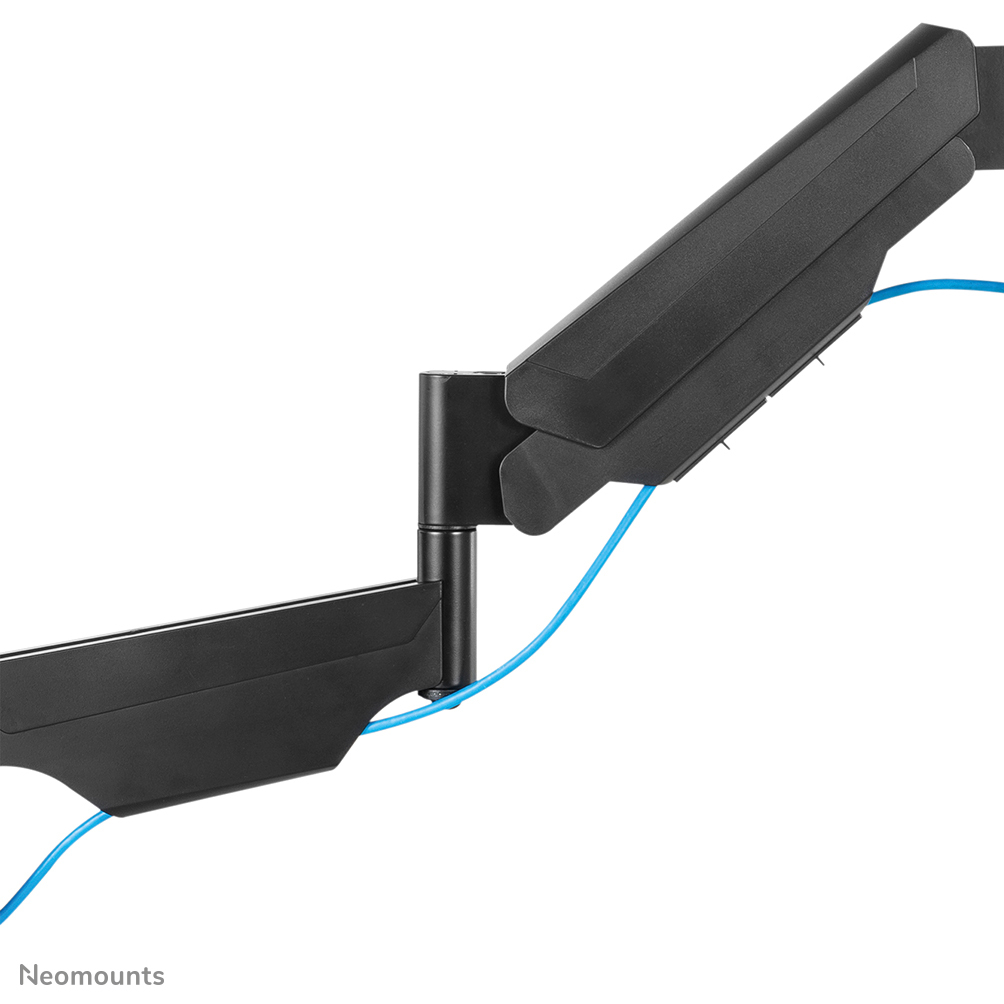

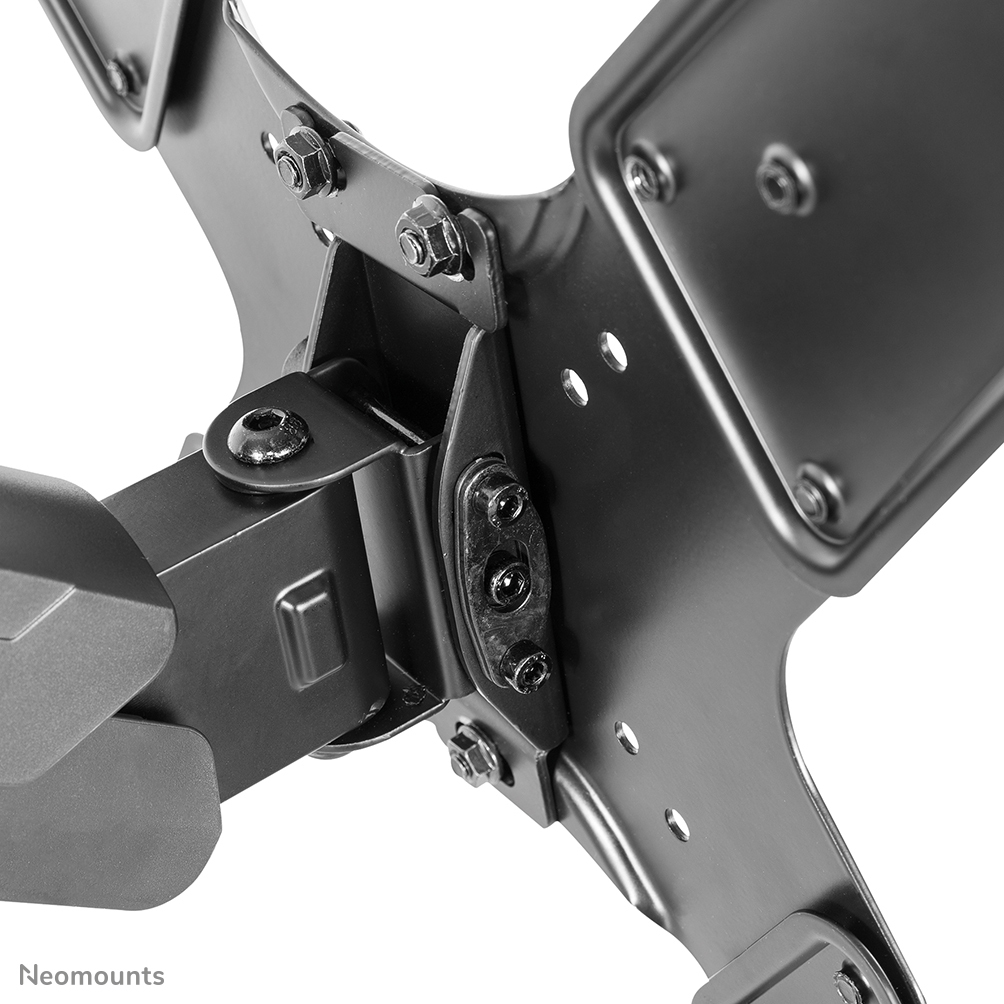

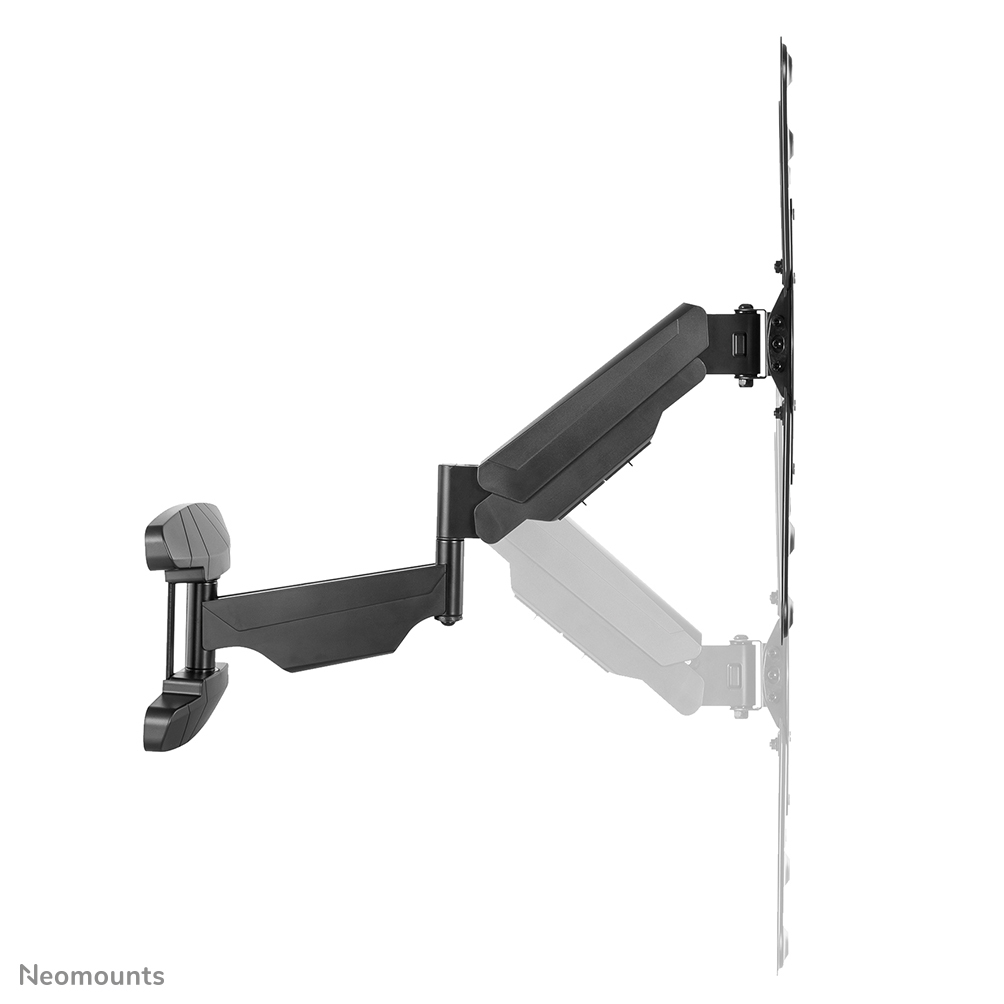

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

Mounting
Maximum weight capacity 30 kg
Minimum screen size 81.3 cm (32")
Number of displays supported 1
Maximum weight capacity (per display) 30 kg
Maximum screen size 139.7 cm (55")
Mounting Screws
Mounting type Wall
Minimum VESA mount 75 x 75 mm
Maximum VESA mount 400 x 400 mm
Panel mounting interface 75 x 75 mm
Distance to the wall (min) 6.1 cm
Distance to the wall (max) 56.5 cm
Ergonomics
Height adjustment Yes
Height adjustment type Gas spring
Height adjustment range 45 - 327 mm
Tilt adjustment Yes
Tilt angle range -15 - 5ø
Swivelling Yes
Swivel angle 180ø
Rotating Yes
Angle of rotation
Pivot angle -3 - 3ø
Cable management Yes
Design
Housing material Steel
Product colour Black
Weight & dimensions
Width 450 mm
Depth 565 mm
Height 450 mm
Weight 4.53 kg
Packaging data
Quantity per pack 1 pc(s)
Package width 365 mm
Package depth 505 mm
Package height 75 mm
Package net weight 5.5 kg
Package weight 5.5 kg
Other features
Minimum weight 5 kg
Logistics data
Master (outer) case width 380 mm
Master (outer) case length 520 mm
Master (outer) case height 345 mm
Master (outer) case gross weight 17.5 kg
Products per master (outer) case 3 pc(s)
Country of origin China
Master (outer) case net weight 13.8 kg
Harmonized System (HS) code 7326909890
Products per pallet (EU) 72 pc(s)
Warranty
Base Warranty Non Non
