Neomounts Flat Screen Desk Mount 10-32in White 18kg
ITCurry #: M3332676 | Article #: NM-D750DWHITE
Related products
Product Information

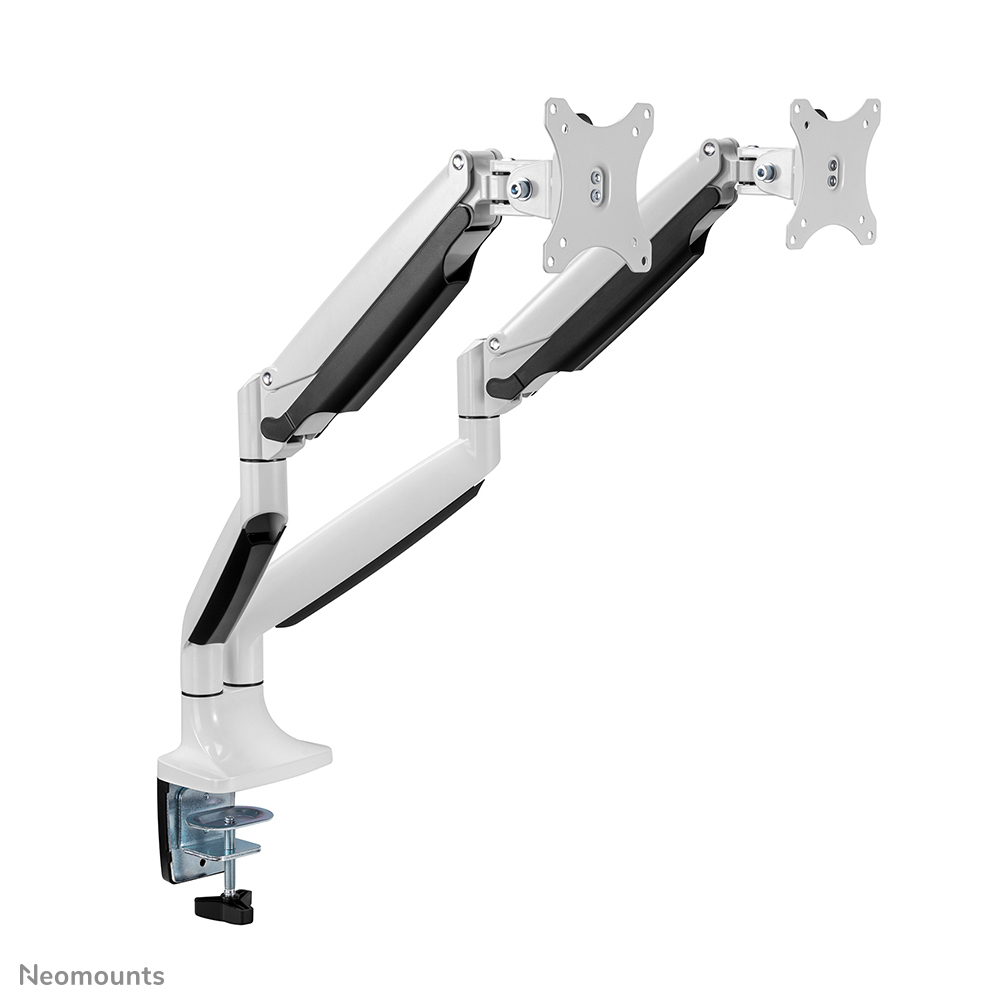

The Neomounts desk mount, model NM-D750DWHITE is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts' unique tilt (180°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable from 17 to 51 centimetres using a gas spring. Depth adjustable from 0 to 61 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D750DWHITE has three pivot points and is suitable for screens up to 32" (82 cm). The weight capacity of this product is 9 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

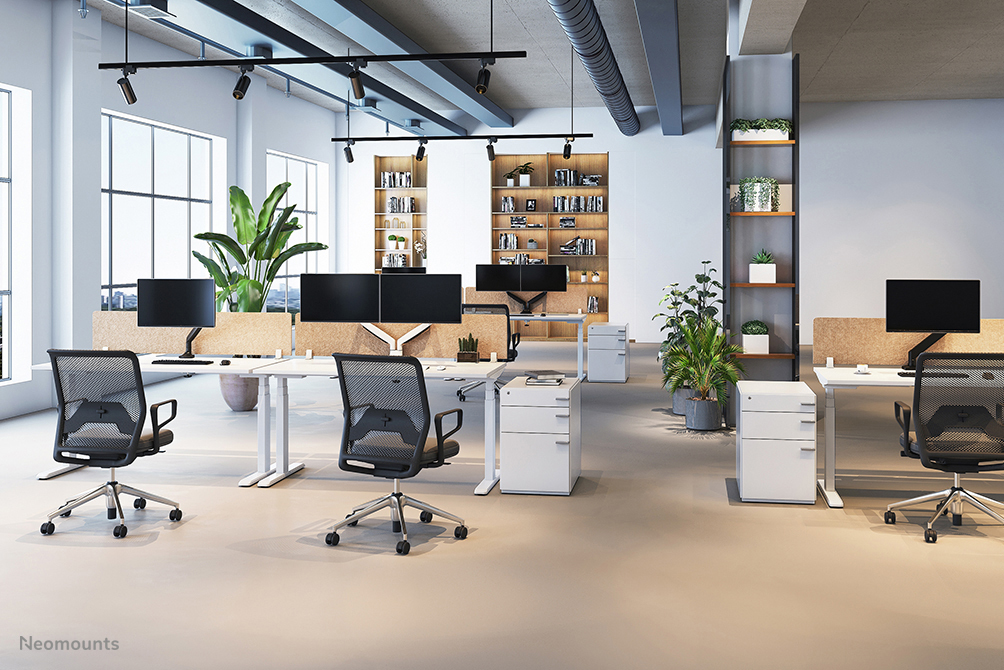

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 9 kg |
| Maximum screen size | 81.3 cm (32") |

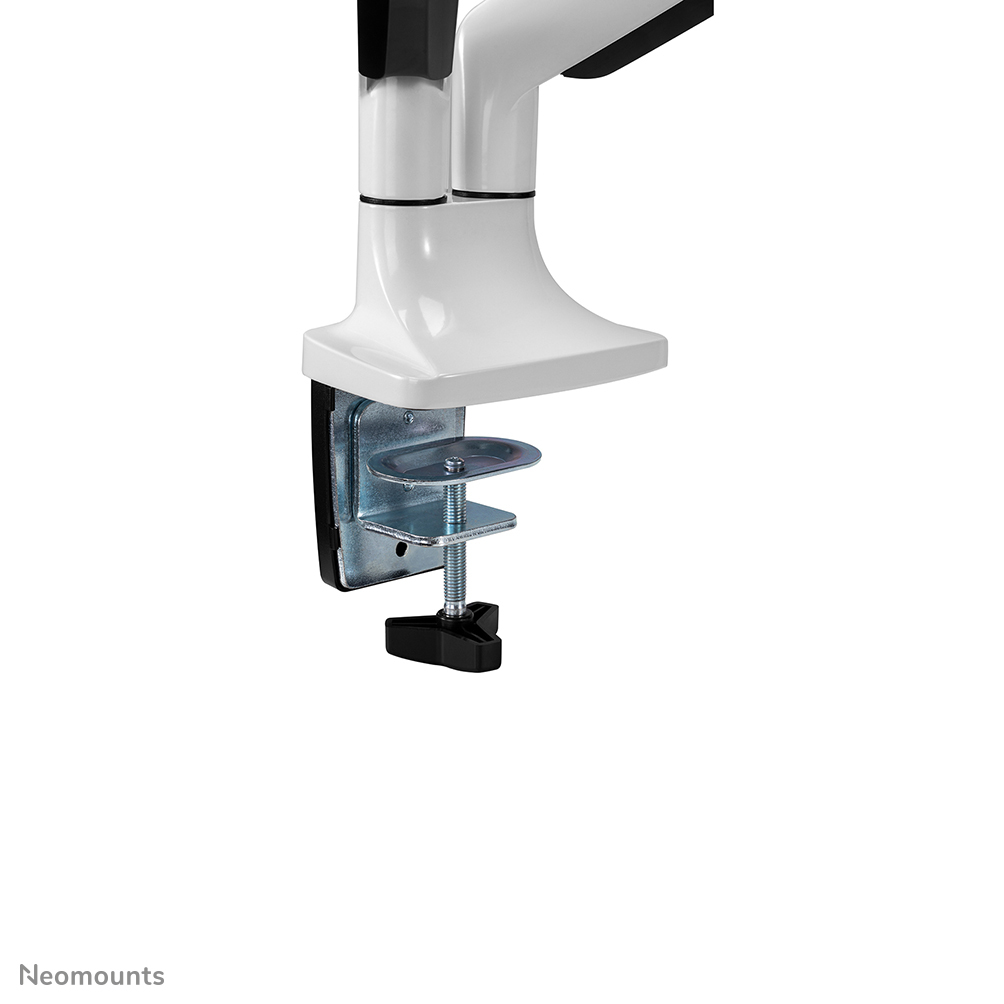

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8.5 cm |
| Distance to the wall (min) | 12.6 cm |
| Distance to the wall (max) | 65.1 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 170 - 505 mm |
| Depth adjustment range | 80 - 605 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90ø |
| Swivelling | Yes |
| Swivel angle | 180ø |
| Swivel angle range | -90 - 90ø |
| Rotating | Yes |
| Angle of rotation | 360ø |
| Pivot angle | -180 - 180ø |
| Design | |
| Housing material | Steel |
| Product colour | White |
| Weight & dimensions | |
| Depth | 615 mm |
| Height | 505 mm |
| Weight | 6.1 kg |
| Packaging data | |
| Package width | 465 mm |
| Package depth | 116 mm |
| Package height | 570 mm |
| Package weight | 6.1 kg |
| Other features | |
| Minimum weight | 1 kg |
| Logistics data | |
| Master (outer) case width | 590 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 250 mm |
| Master (outer) case gross weight | 16.5 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 12.2 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 36 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
