Neomounts Av2-500bl Universal Videobar Kit - Black
ITCurry #: M3333048 | Article #: AV2-500BL-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

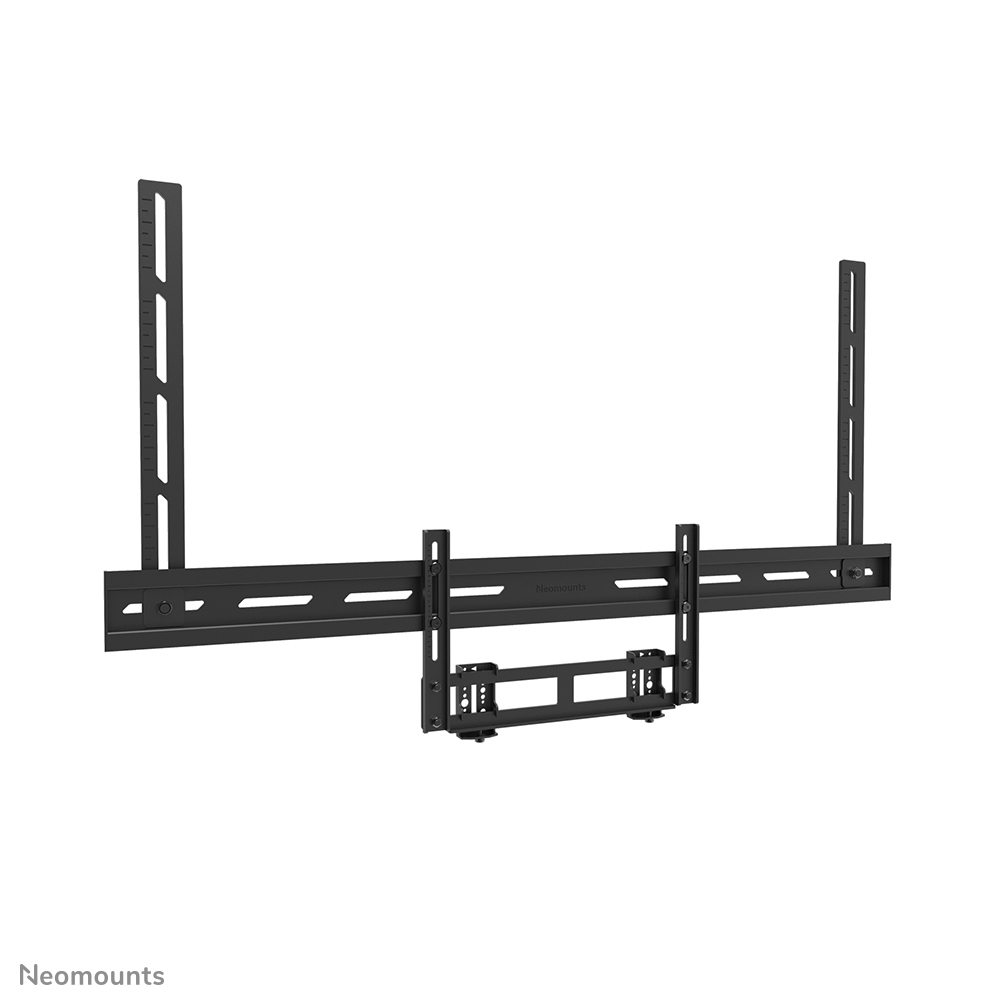

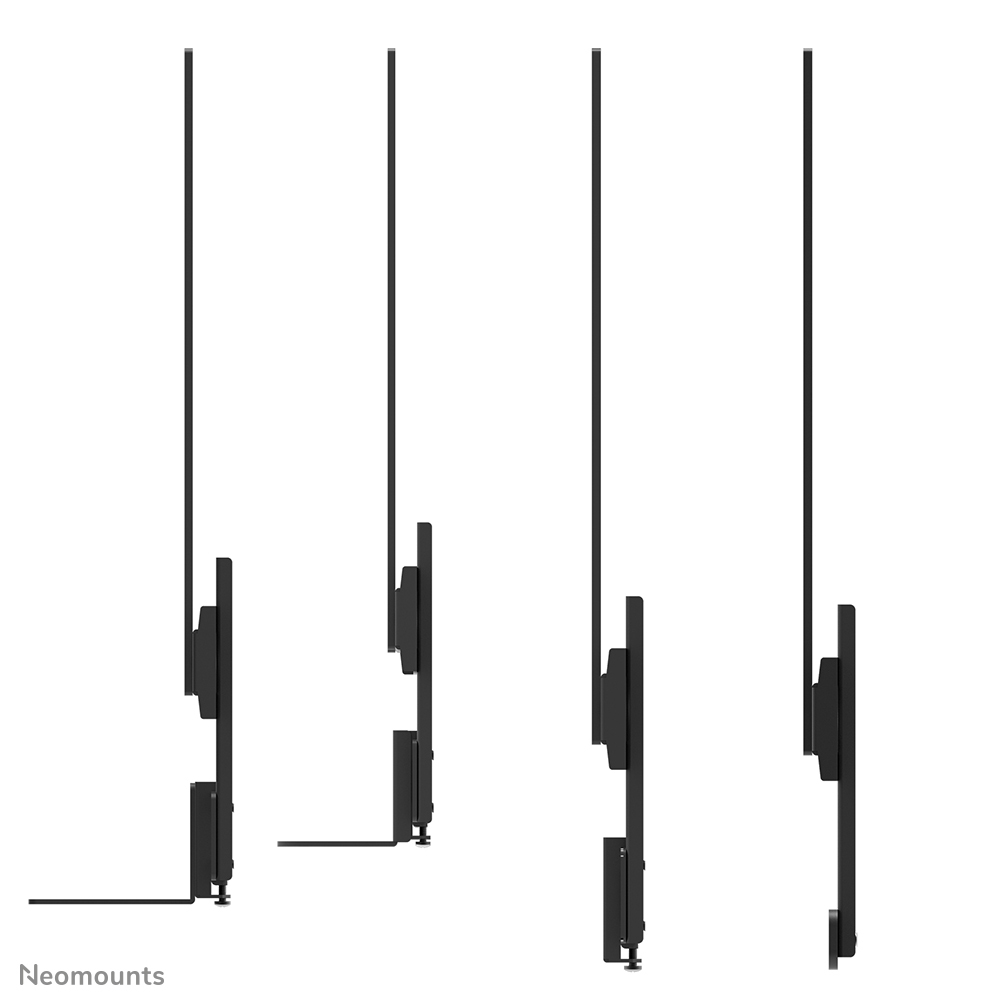

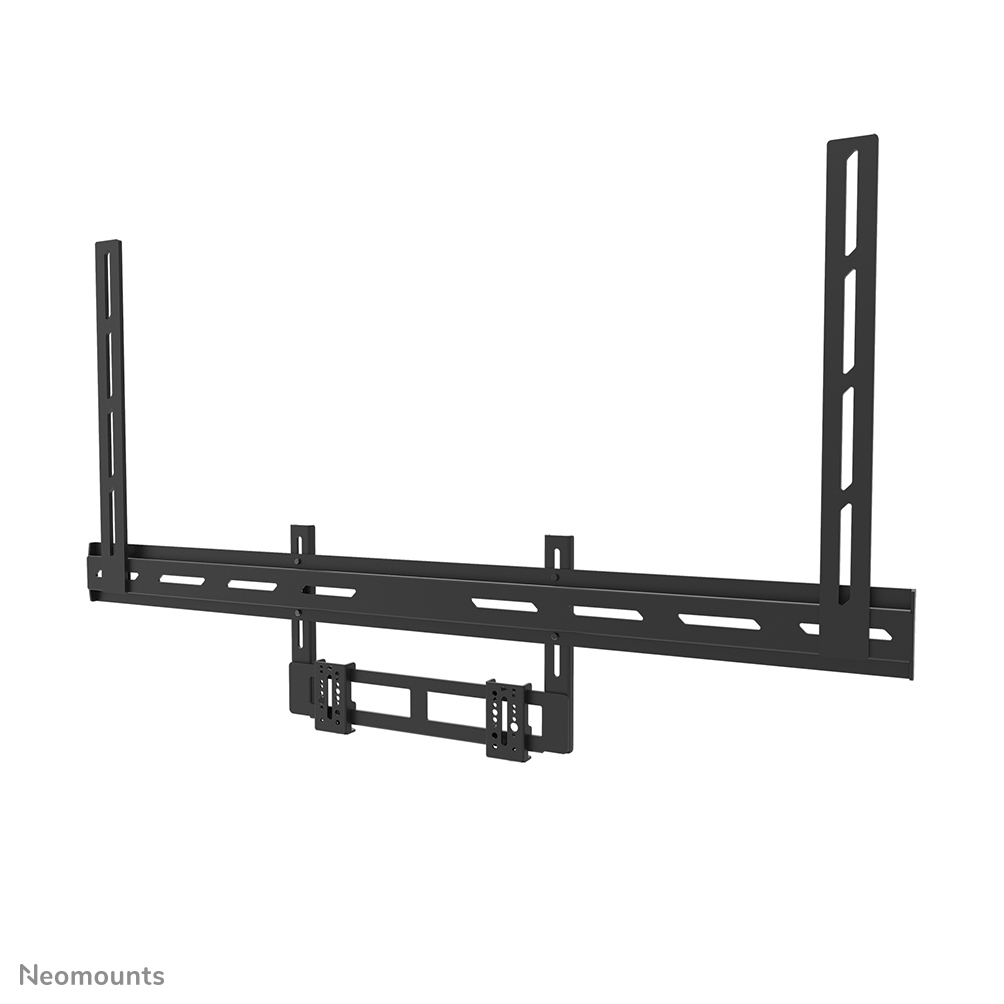

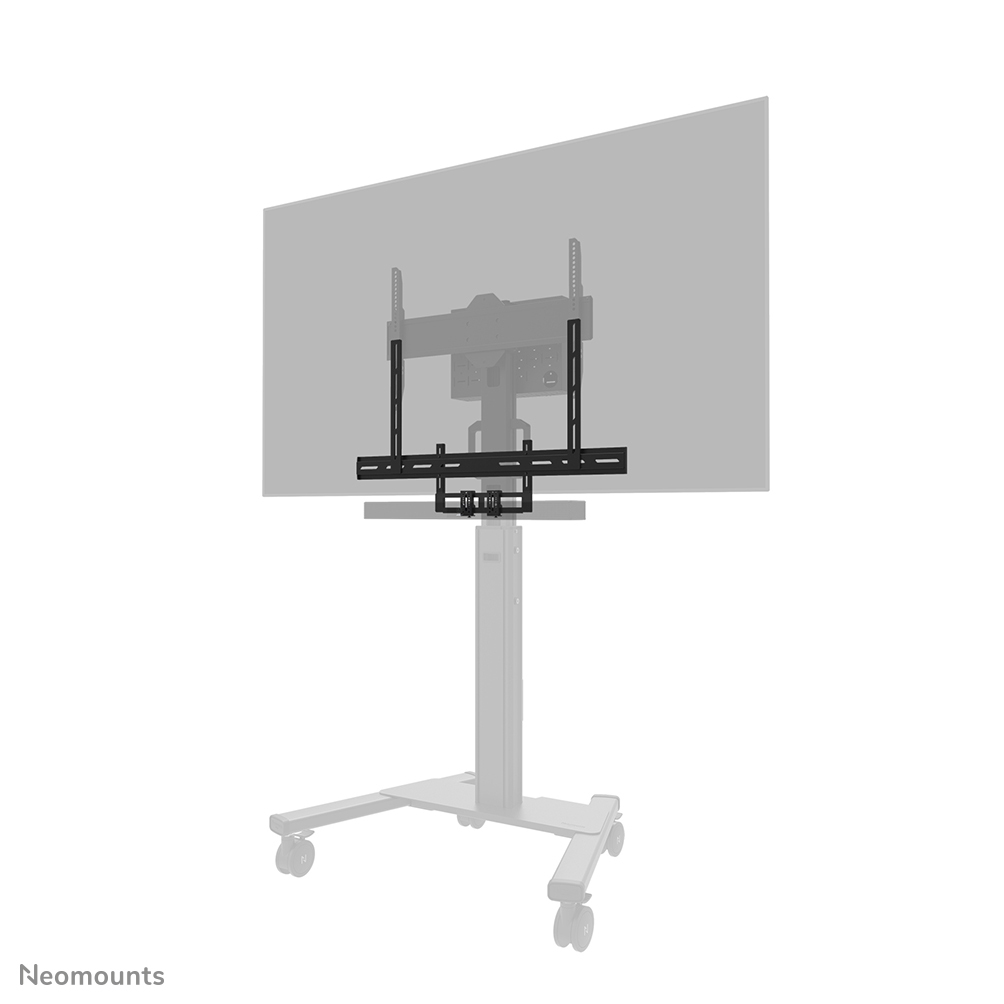

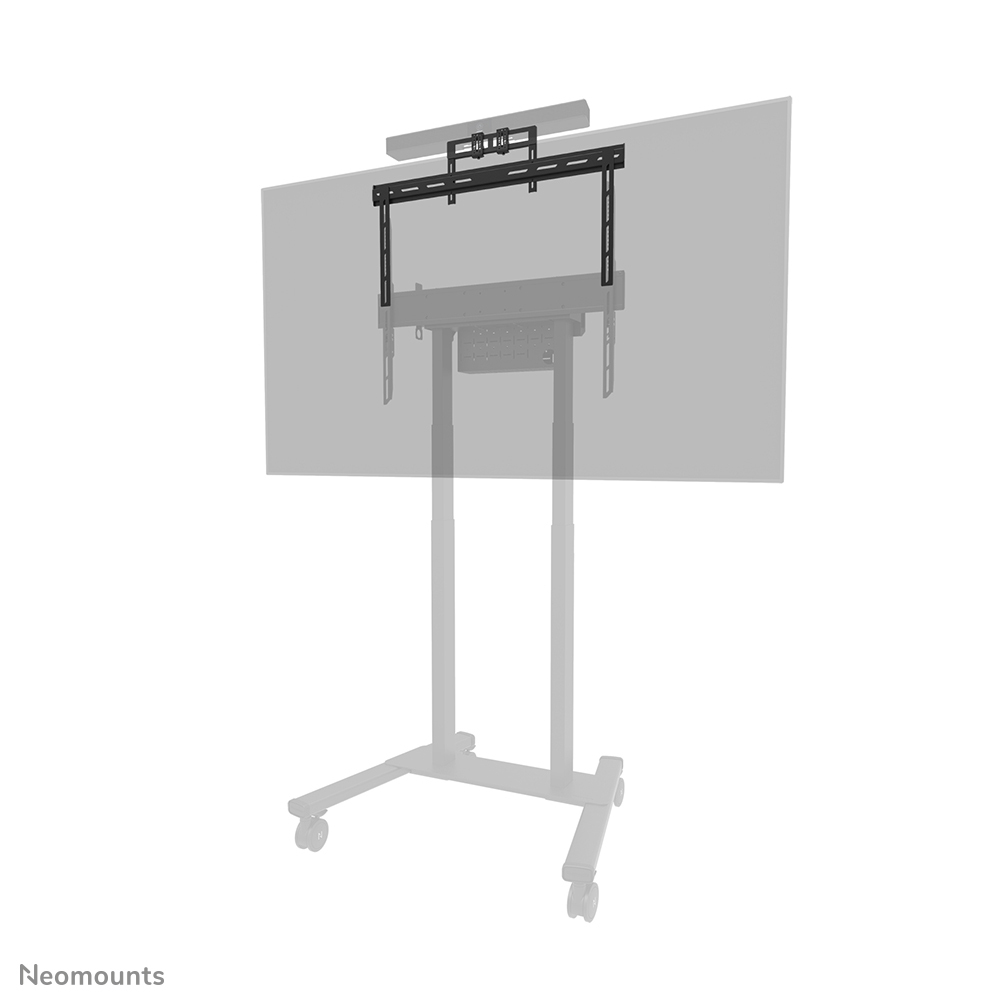

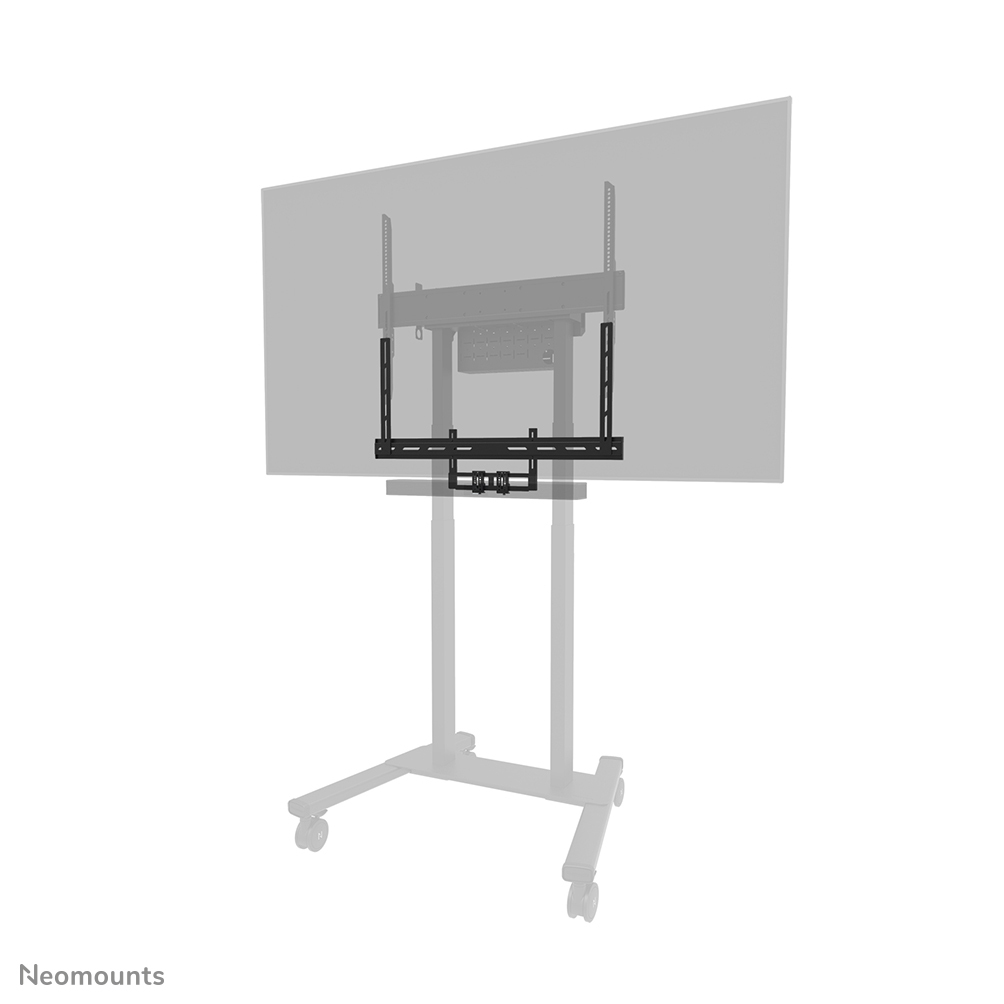

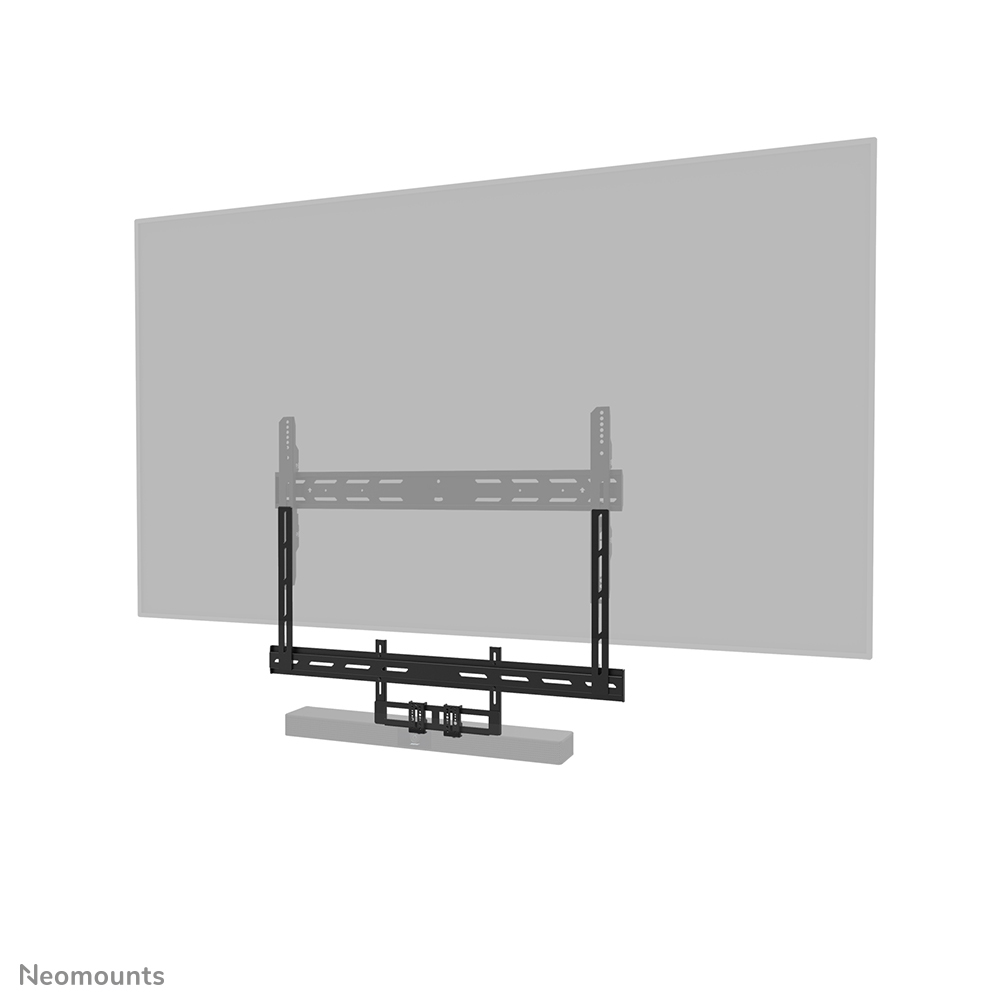

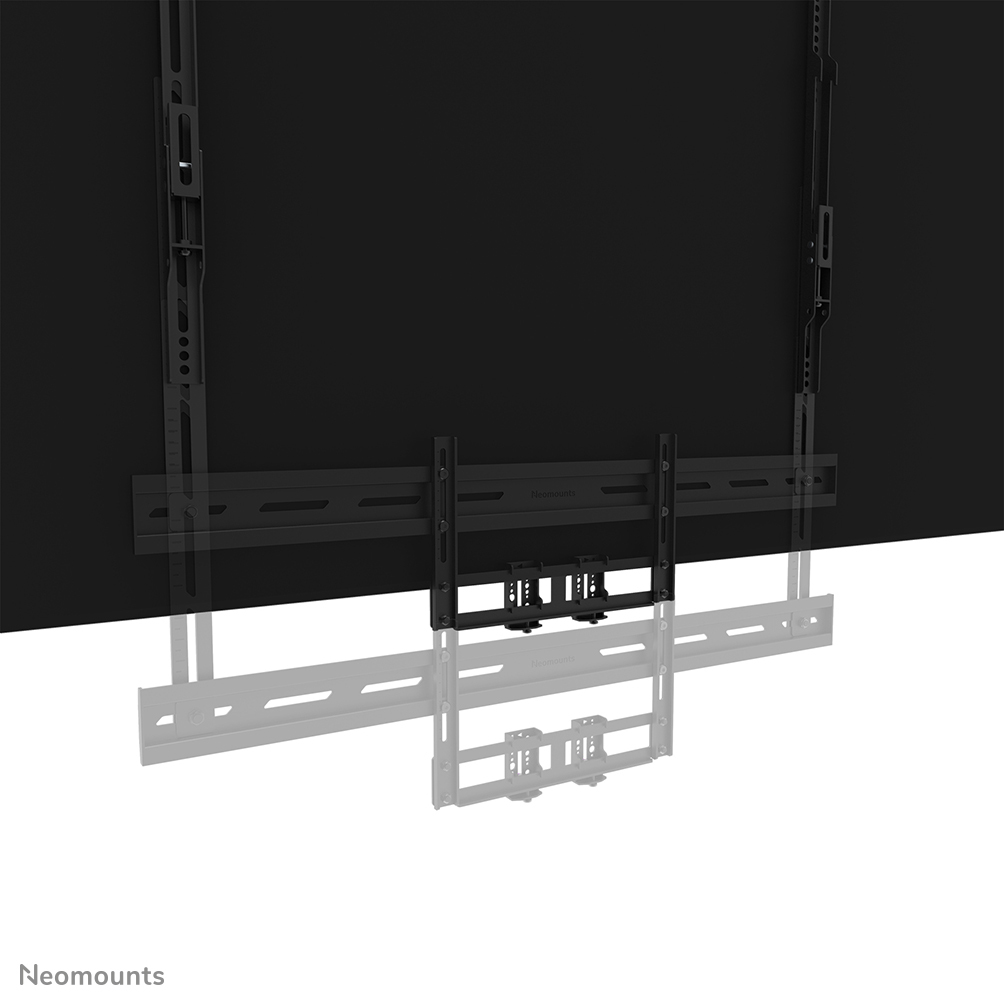

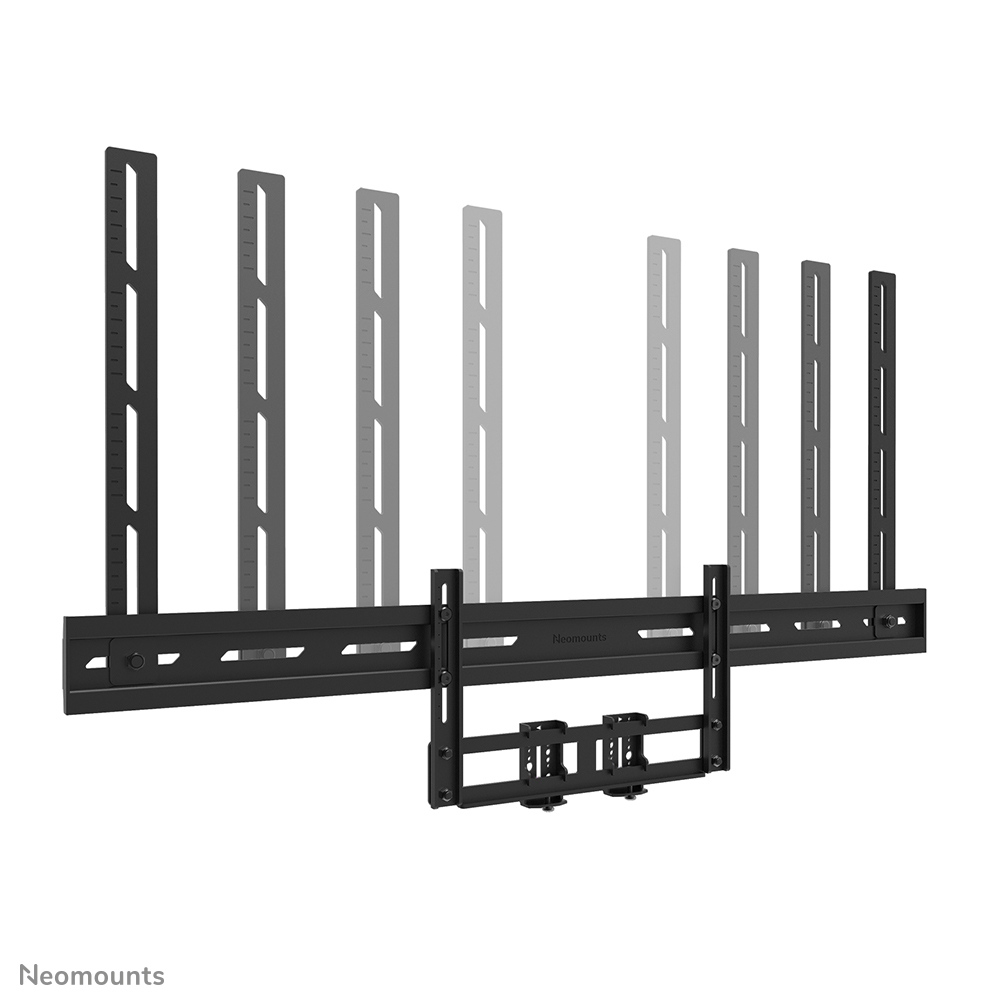

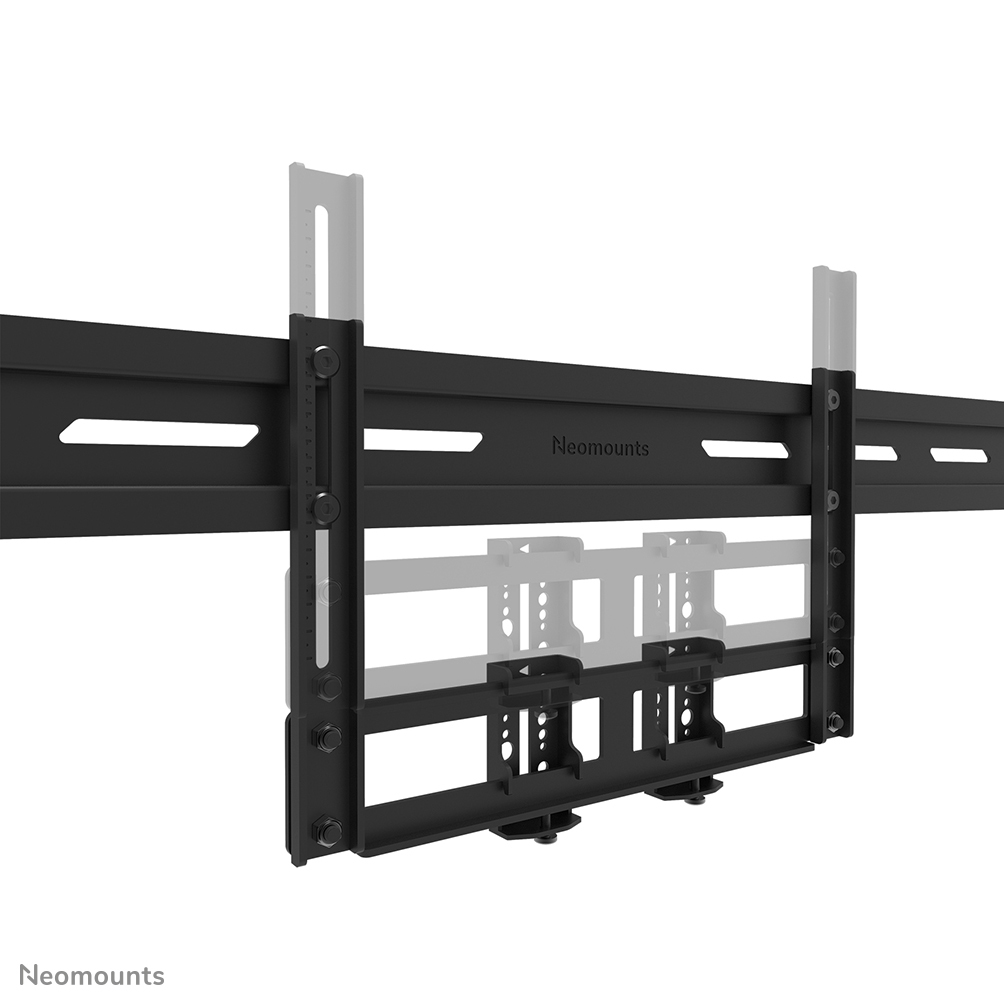

The Neomounts AV2-500BL is a universal videobar kit for screens with a minimal size of 43" and VESA hole pattern ranging from 200x200 to 800x600 mm. The very sturdy, stable and versatile kit has a maximum weight capacity of 10 kg and can be installed either above or below the screen. For maximum adaptability, both the videobar support and the backplate brackets can be independently adjusted in height.

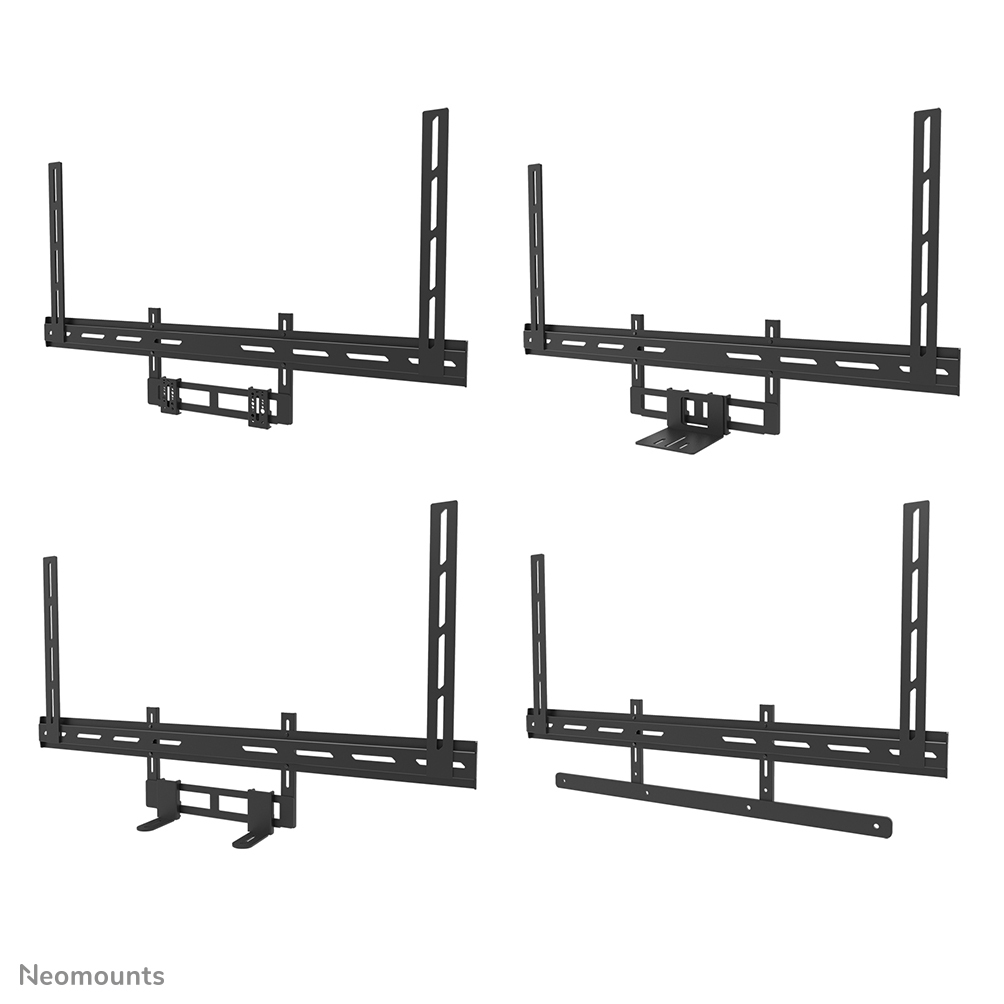

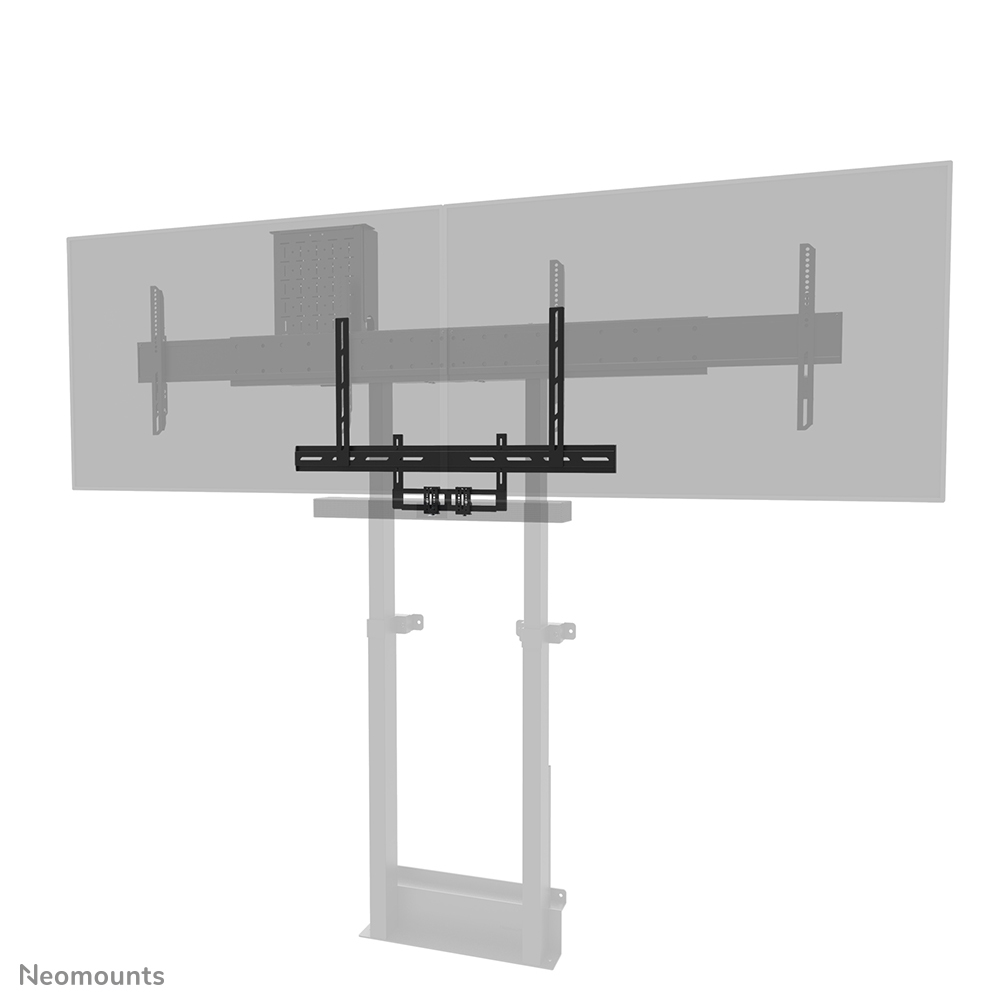

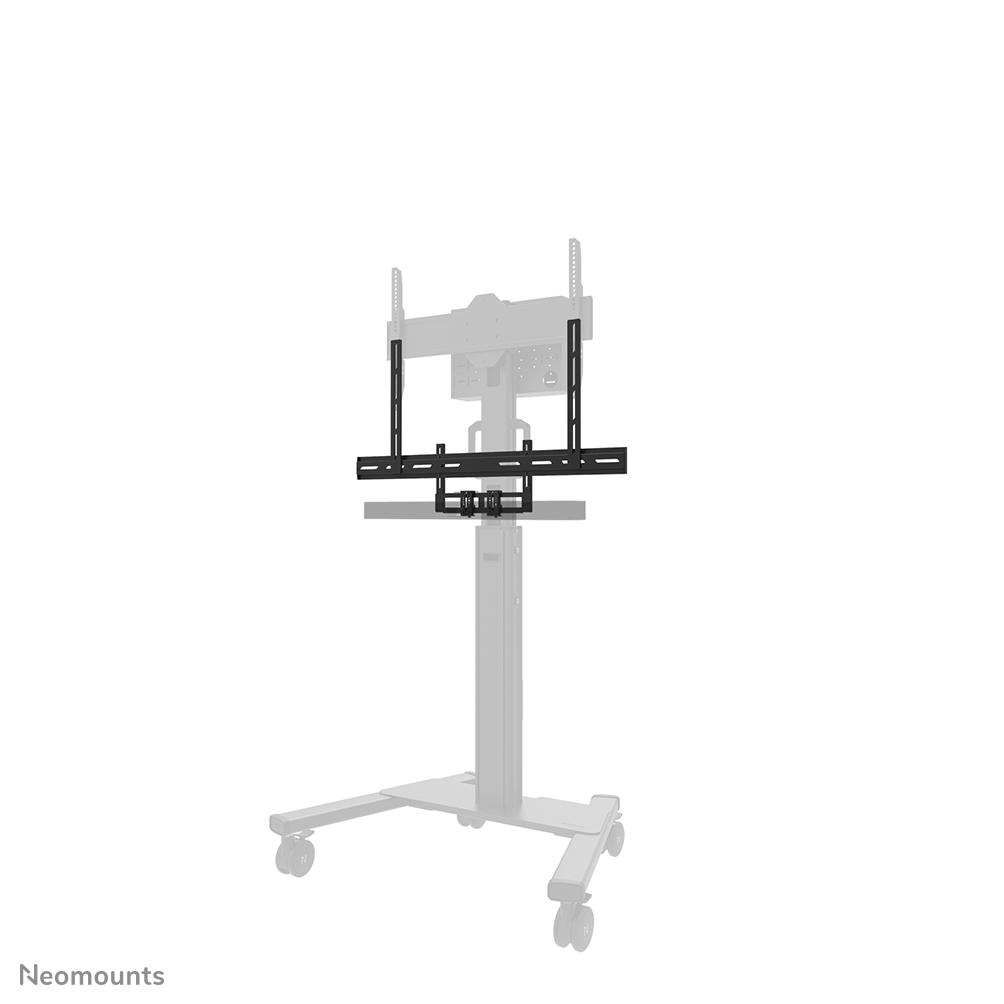

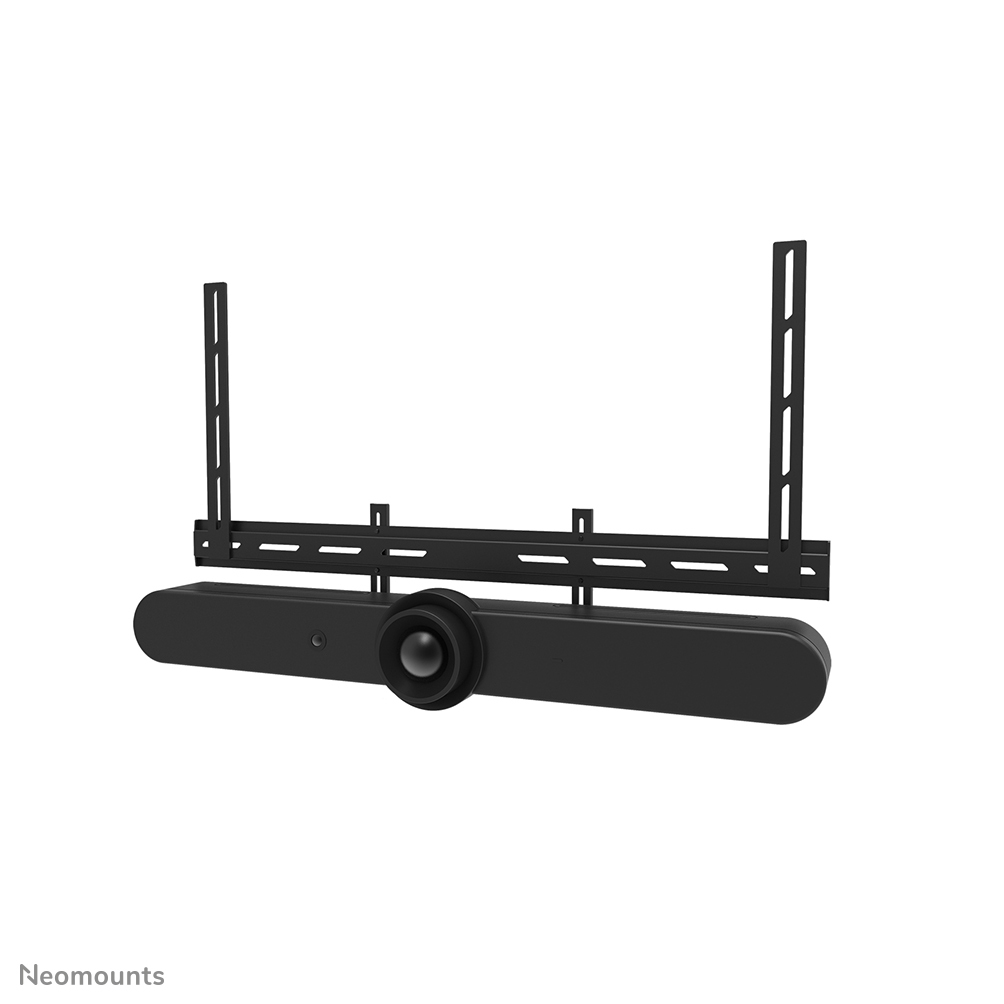

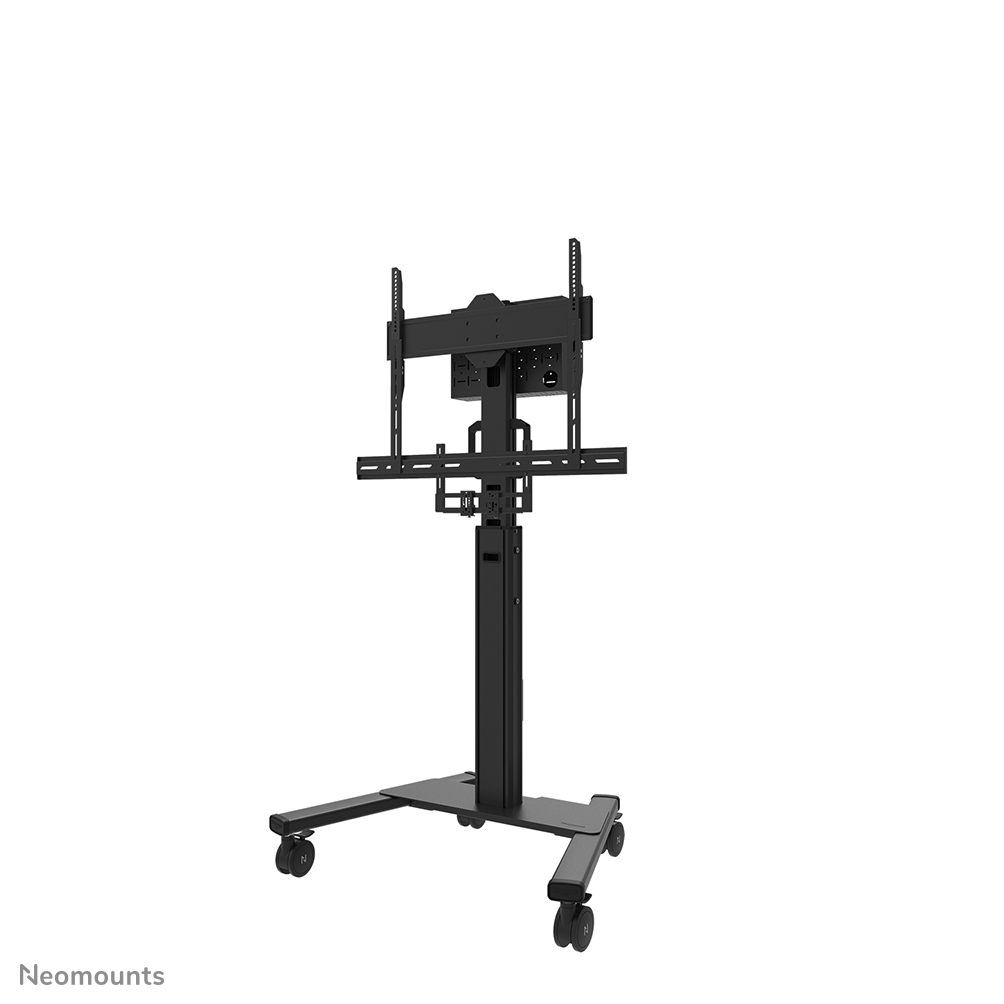

The AV2-500BL videobar kit is compatible with most videobars*, PTZ cams and soundbars, including Logitech Rally Plus speakers. To ensure a wide mounting applicability, the mounting holes can vary in width and height. The VESA frame can be adjusted both in height and width (200/400/600/800) and can be installed on wall, floor and even desk or ceiling mounts. Despite the numerous choices, installation is easy, aided by ruler-guided alignment for a seamless screen installation.
\t

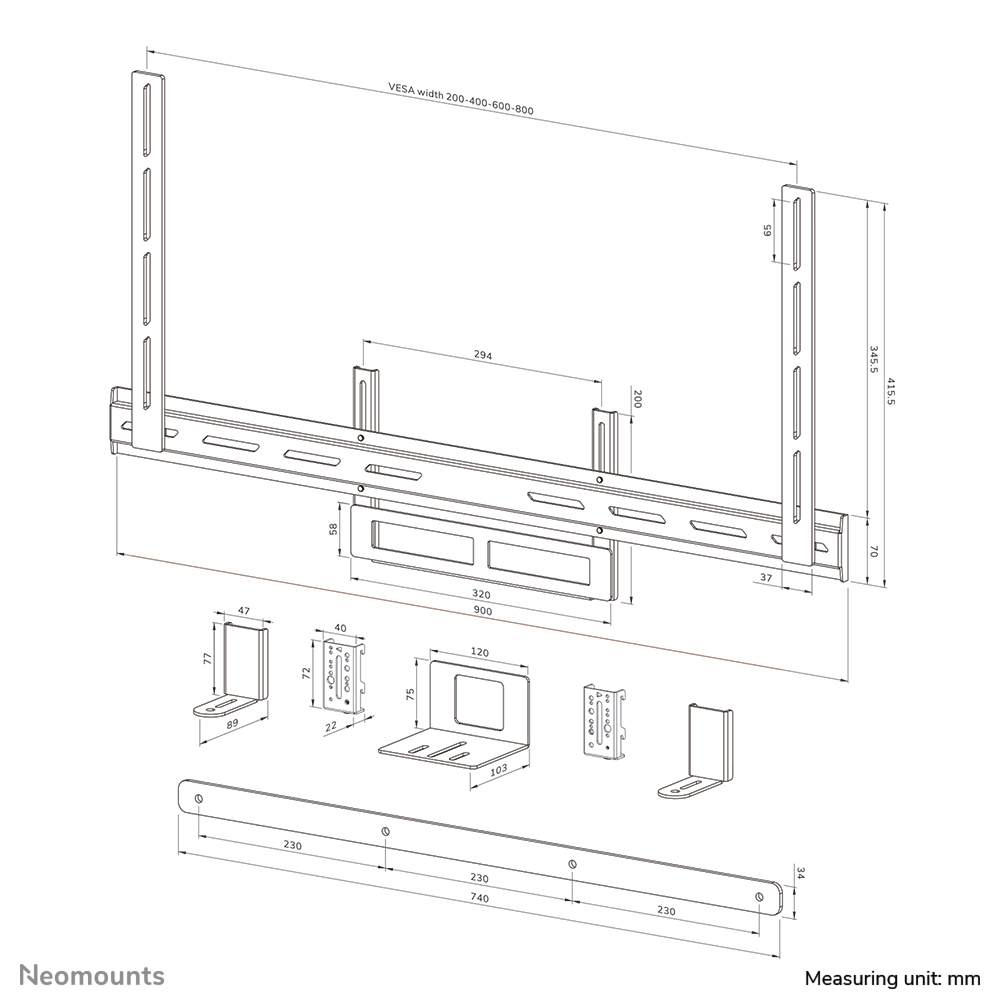

* The Neomounts AV2-500BL videobar kit is universal and suitable for any type of videobar, regardless of make or model, within the range of the mounting bracket (see line drawing). In addition, the AV2-500BL is optimised for the following specific videobars:
- Bose Professional VB1 and VB-S
- Neat Bar and Bar Pro
- Poly Studio, Studio X70 and Studio X30
- Jabra Panacast 50
- Logitech Meetup, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
- Cisco Webex Room Kit Plus
- Yealink MSpeaker II, MeetingBar A30, MeetingEye 400 and MeetingEye 600
Refer to the online manual for specific model or mounting size compatibility.
| Features | |
| Product type | Videobar mount |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,400 x 200,400 x 400,400 x 300,400 x 500,400 x 600,600 x 200,600 x 300,600 x 400,600 x 600,600 x 500,800 x 200,800 x 400,800 x 500,800 x 600,800 x 800 |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.79 m (110") |
| Maximum weight capacity | 10 kg |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Warranty period | 5 year(s) |
| Country of origin | China |
| Weight & dimensions | |
| Width | 900 mm |
| Depth | 31 mm |
| Height | 416 mm |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 84 mm |
| Package height | 926 mm |
| Logistics data | |
| Products per pallet (EU) | 45 pc(s) |
| Master (outer) case width | 263 mm |
| Master (outer) case length | 238 mm |
| Master (outer) case height | 944 mm |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | HS7326909890 |
| Warranty | |
| Base Warranty | Non Non |
