LCD Monitor Arm (fpma-w500) Wall Mount 552mm Length Grey
ITCurry #: M3332015 | Article #: FPMA-W500-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

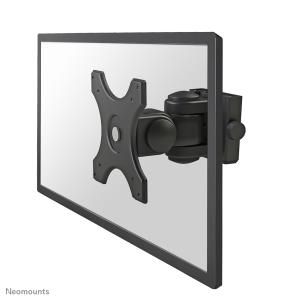

The NewStar wall mount, model FPMA-W500 is a tilt-, swivel and rotatable wall mount for flat screens up to 30" (76 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished.
NewStar's versatile tilt (180°), rotate (270°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily height adjustable from 0 to 45 centimetres using a gas spring. Depth adjustable from 10 to 55 centimetres. Cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.
NewStar FPMA-W500 has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 %26 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.
All installation material is included with the product.
| Mounting | |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 10 kg |
| Maximum screen size | 76.2 cm (30") |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Ergonomics | |
| Height adjustment | Y |
| Height adjustment range | 0 - 450 mm |
| Tilt angle range | 0 - 180ø |
| Swivel angle | 180ø |
| Angle of rotation | 270ø |
| Distance to the wall (max) | 55 cm |
| Design | |
| Product colour | Grey |
| Housing material | Metal |
| Technical details | |
| Package net weight | 4 kg |
| Weight & dimensions | |
| Height | 450 mm |
| Packaging data | |
| Package width | 100 mm |
| Package depth | 460 mm |
| Package height | 260 mm |
| Logistics data | |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 9 kg |
| Master (outer) case net weight | 8 kg |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Products per pallet (EU) | 42 pc(s) |
| Other features | |
| Country of origin | Taiwan |
