LCD Monitor Arm (fpma-d700d4)
ITCurry #: M3332332 | Article #: FPMA-D700D4
Related products
Product Information

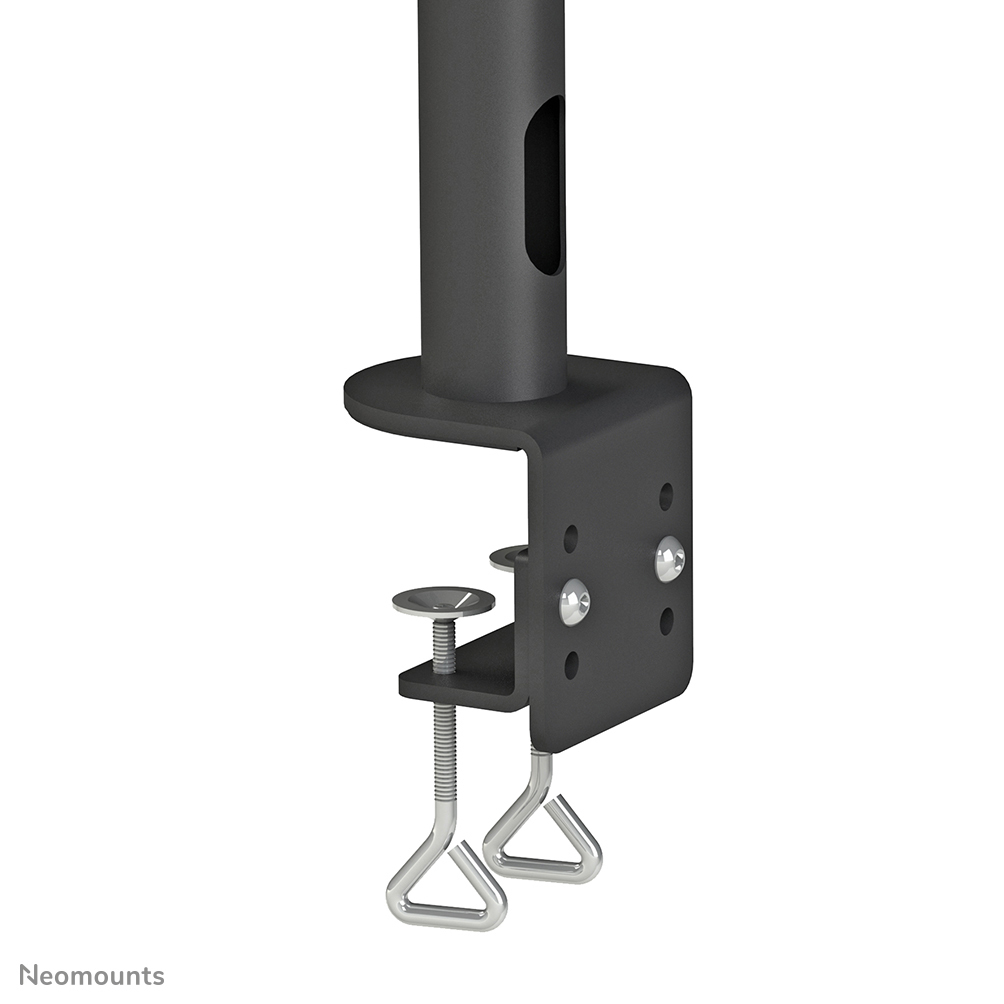

The Neomounts desk mount, model FPMA-D700D4 is a tilt-, swivel and rotatable desk mount for 4 flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 70 centimetres. Depth 15 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D700D4 has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
| Minimum screen size | 48.3 cm (19") |
| Number of displays supported | 4 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 76.2 cm (30") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (max) | 9 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 220 - 700 mm |
| Depth adjustment range | 0 - 150 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180ø |
| Swivelling | Yes |
| Swivel angle | 180ø |
| Rotating | Yes |
| Angle of rotation | 360ø |
| Design | |
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
| Width | 830 mm |
| Depth | 150 mm |
| Height | 700 mm |
| Weight | 13.9 kg |
| Packaging data | |
| Package width | 830 mm |
| Package depth | 555 mm |
| Package height | 180 mm |
| Package weight | 12.6 kg |
| Other features | |
| Width adjustment range | 520 - 830 mm |
| Logistics data | |
| Master (outer) case width | 830 mm |
| Master (outer) case length | 555 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 14.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 12.6 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 14 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
