Lcd/led/TFT Wall Mount 10-24in (fpma-haw200)
ITCurry #: M3332497 | Article #: FPMA-HAW200
Related products
Product Information

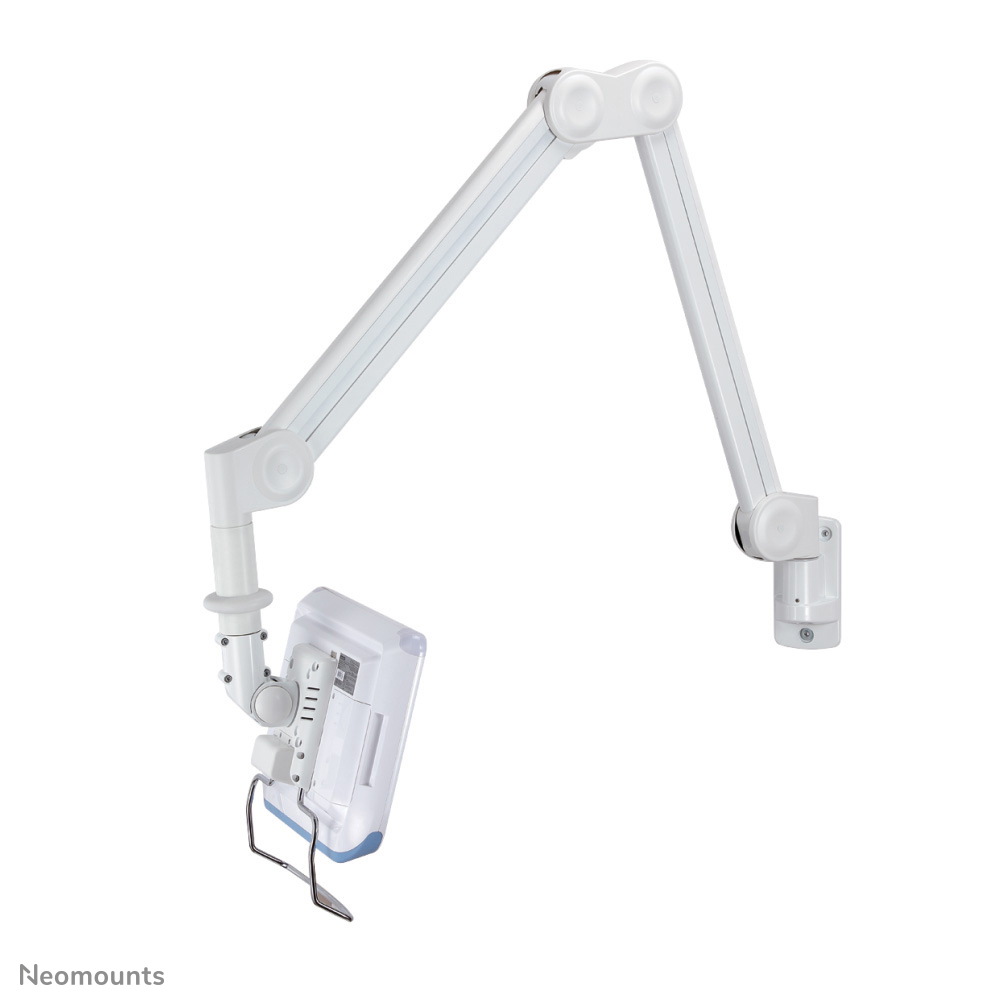

The Neomounts wall mount, model FPMA-HAW200 is a tilt- and swivel wall mount for medical flat screens up to 27". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.
Neomounts versatile tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 149 centimetres using a gas spring. Depth adjustable from 0 to 149 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW200 has two pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 7 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
| Maximum weight capacity | 7 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75 mm |
| Distance to the wall (min) | 0 mm |
| Distance to the wall (max) | 149 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 0 - 1490 mm |
| Depth adjustment range | 0 - 1490 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 55ø |
| Swivelling | Yes |
| Swivel angle | 370ø |
| Rotating | Yes |
| Cable management | Yes |
| Design | |
| Housing material | Aluminium |
| Product colour | White |
| Weight & dimensions | |
| Depth | 1490 mm |
| Height | 1490 mm |
| Weight | 8.55 kg |
| Packaging data | |
| Package width | 1150 mm |
| Package depth | 160 mm |
| Package height | 430 mm |
| Package net weight | 8.55 kg |
| Package weight | 8.6 kg |
| Other features | |
| Minimum weight | 1 kg |
| Logistics data | |
| Master (outer) case width | 1150 mm |
| Master (outer) case length | 160 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 12.2 kg |
| Products per master (outer) case | 1 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 8.6 kg |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 12 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
