Full Motion Desk Mount For 10-49in Curved Monitor Screens Height Adjustable Gas Spring - Silver
ITCurry #: M3332885 | Article #: NM-D775SILVERPLUS
Related products
Product Information

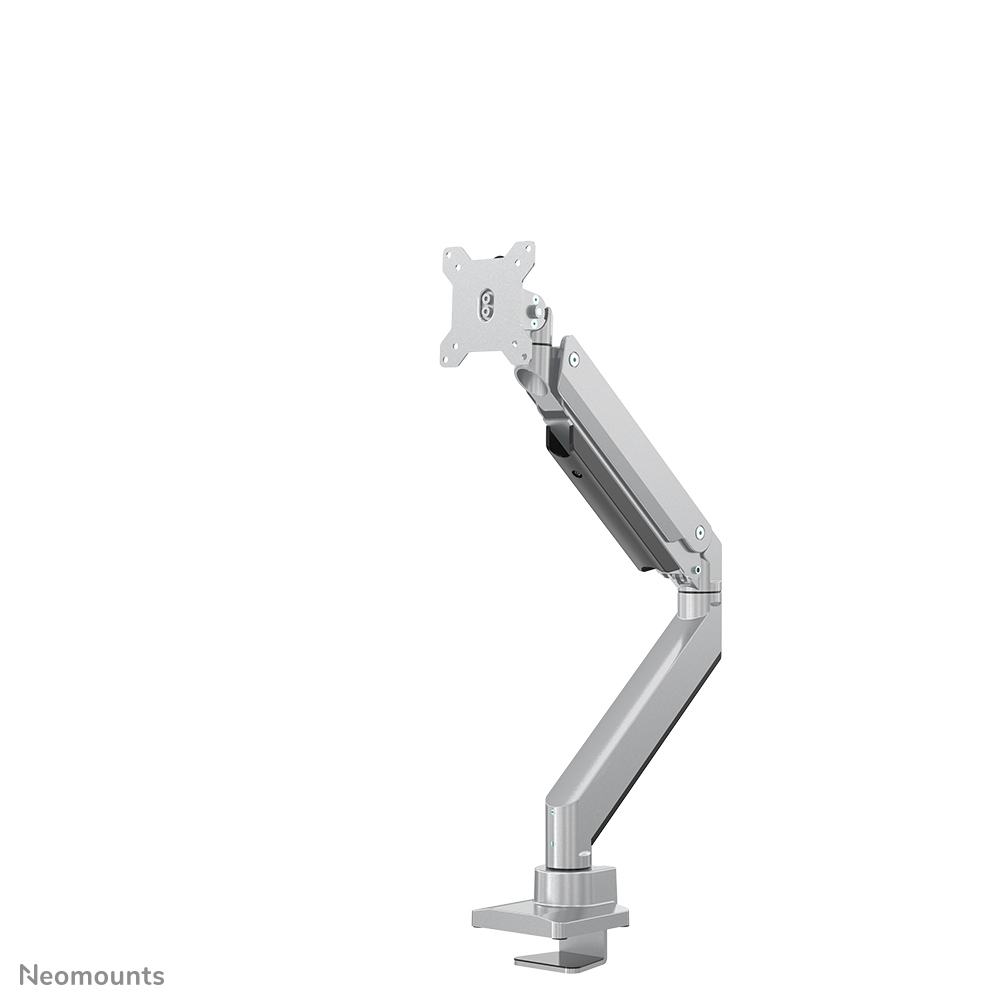

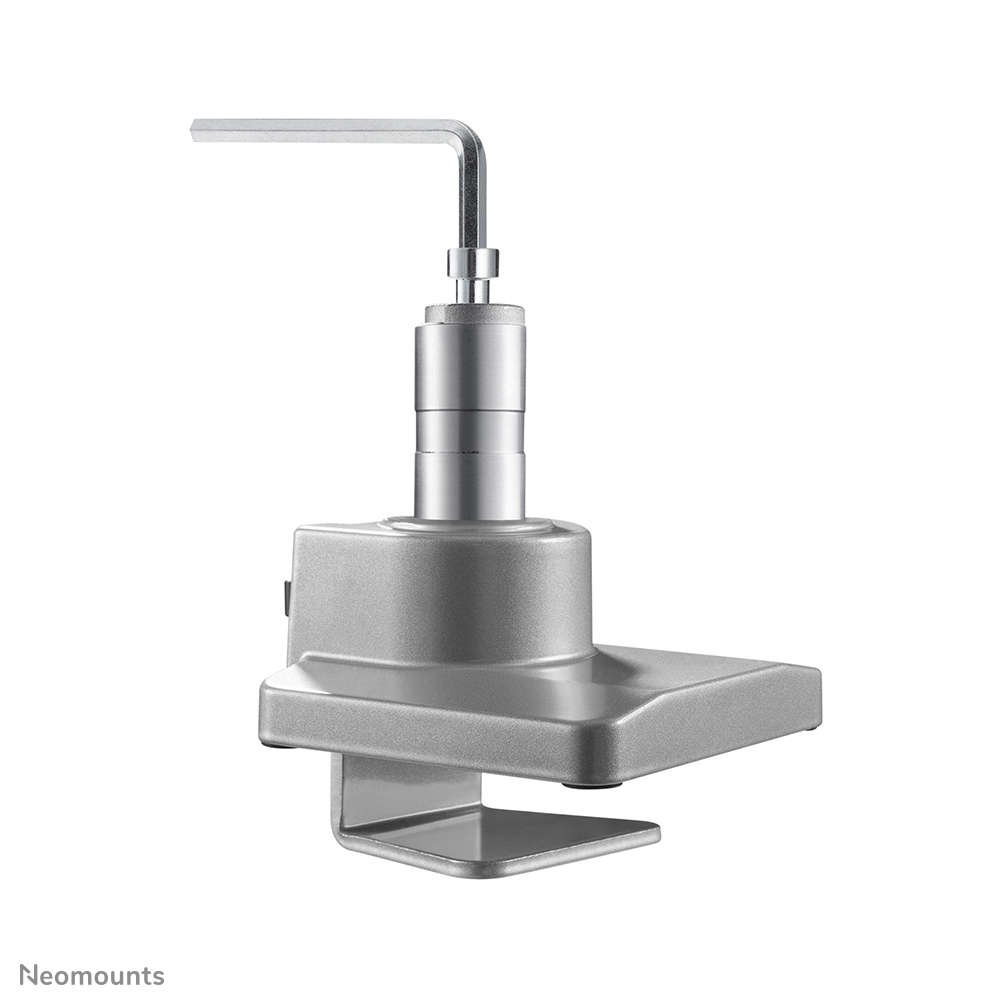

The Neomounts NM-D775SILVERPLUS is a tilt-, swivel and rotatable desk mount for curved screens up to 49". This mount is a great choice for space saving placement on desks using a top-fix desk clamp or grommet mount.
The NM-D775SILVERPLUS mounts are specifically designed to support curved screens. They feature a strengthened head for curved screens and are designed to support a higher total capacity up to 49" and a maximum weight of 18 kg.
Neomounts unique tilt (180°), rotate (360°) and swivel (180°/ 360°) technology allows the NM-PLUS mounts to change to any viewing angle for optimal use of the capabilities of the ultra-wide screen. The mount is equipped with a 180° stop mechanism. The mounts are easily adjustable in height to 60 centimetres, using a gas spring. Additionally, the mounts are also adjustable in depth, from 0 to 63 centimetres.

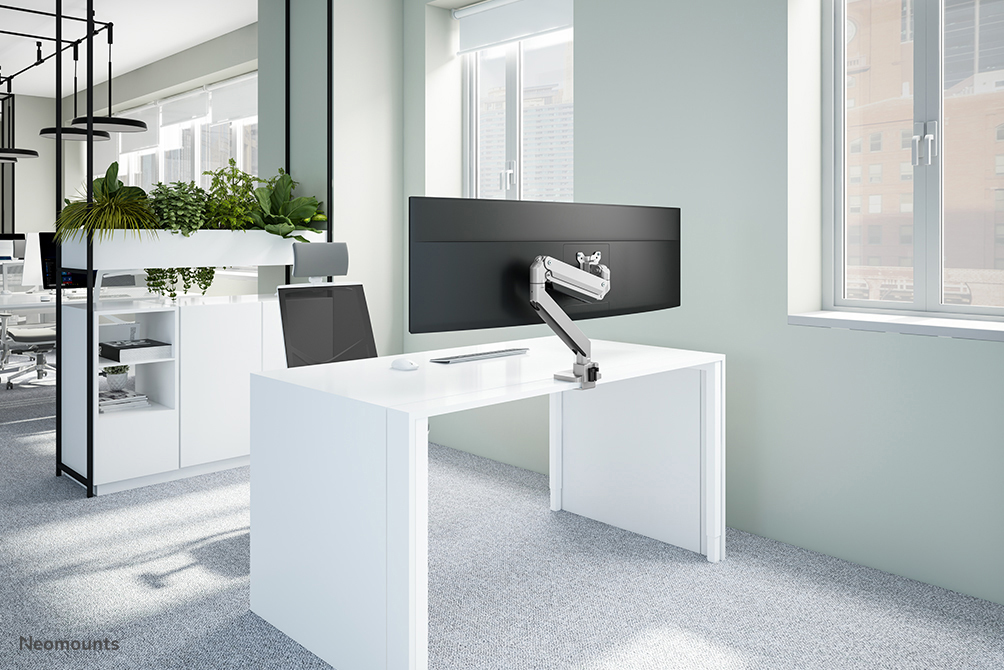

A unique cable management conceals and routes cables from mount to the ultra-wide screen. The NM-D775SILVERPLUS desk mounts are ideal for use in offices, on counters and in reception areas.
All installation material is included with the product.

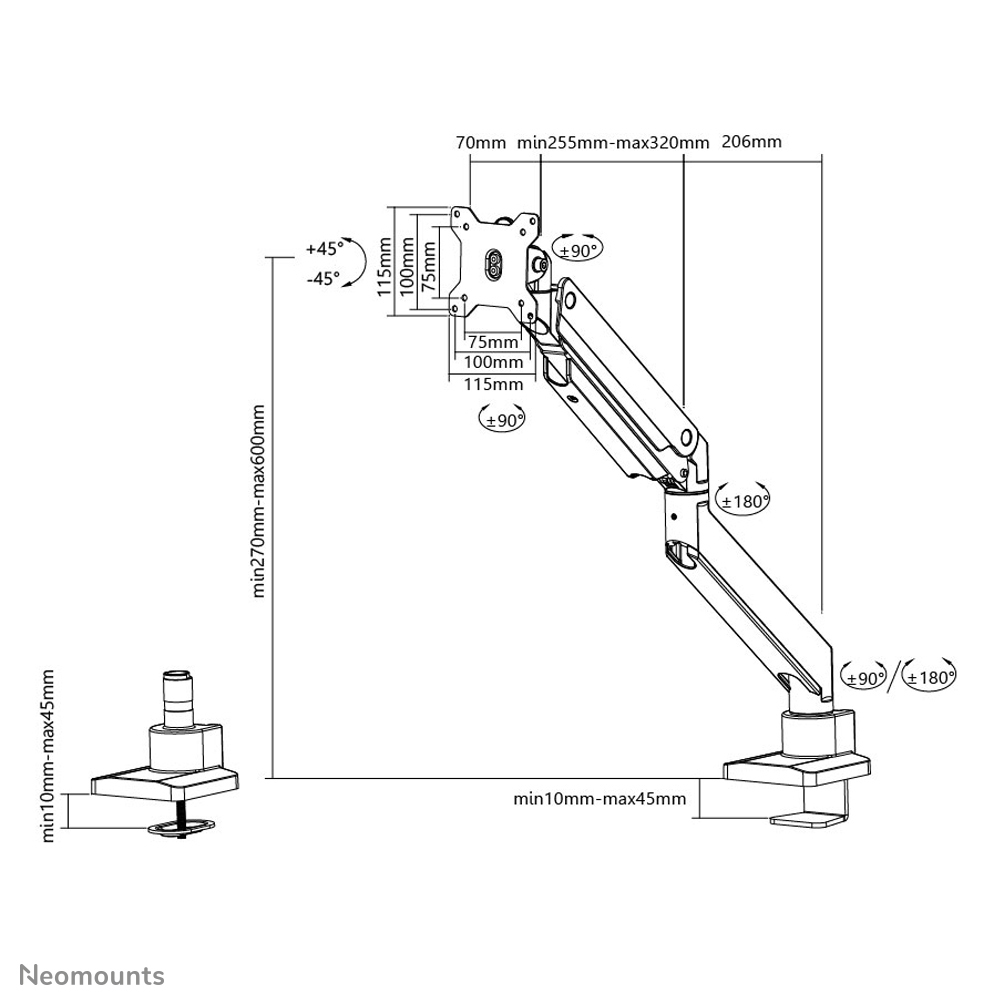

| Mounting | |
| Maximum weight capacity | 18 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 18 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 14 kg |
| Maximum screen size | 124.5 cm (49") |

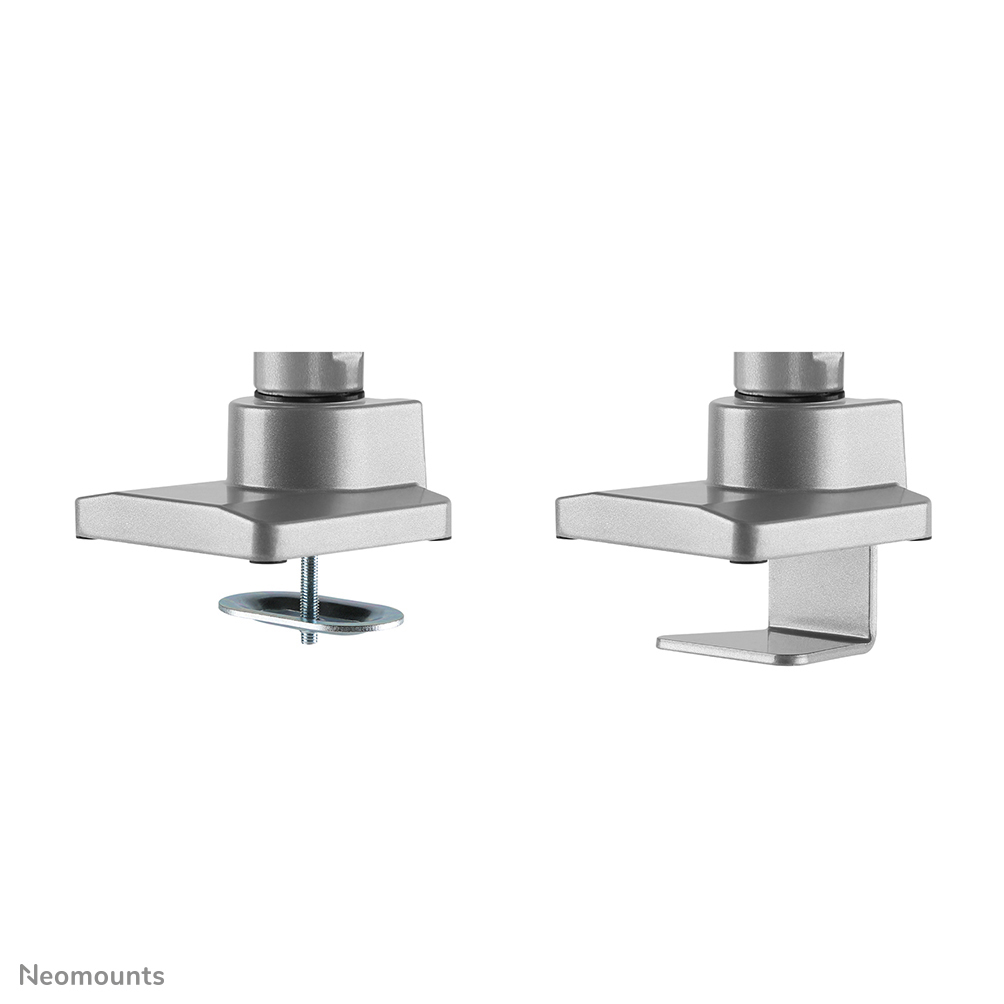

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Gas spring |
| Height adjustment range | 270 - 600 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 0 - 630 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -45 - 45ø |
| Swivelling | Yes |
| Swivel angle | 360ø |
| Rotating | Yes |
| Angle of rotation | 180ø |
| Cable management | Yes |
| Design | |
| Housing material | Steel |
| Product colour | Silver |
| Weight & dimensions | |
| Depth | 630 mm |
| Height | 600 mm |
| Weight | 3.91 kg |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 123 mm |
| Package height | 555 mm |
| Package net weight | 5.2 kg |
| Package weight | 5.2 kg |
| Other features | |
| Minimum weight | 1 kg |
| Logistics data | |
| Master (outer) case width | 500 mm |
| Master (outer) case length | 265 mm |
| Master (outer) case height | 575 mm |
| Master (outer) case gross weight | 5.2 kg |
| Products per master (outer) case | 4 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 4.6 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 72 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
