Flatscreen Ceiling Mount 37-47cm
ITCurry #: M3332602 | Article #: FPMA-C025BLACK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

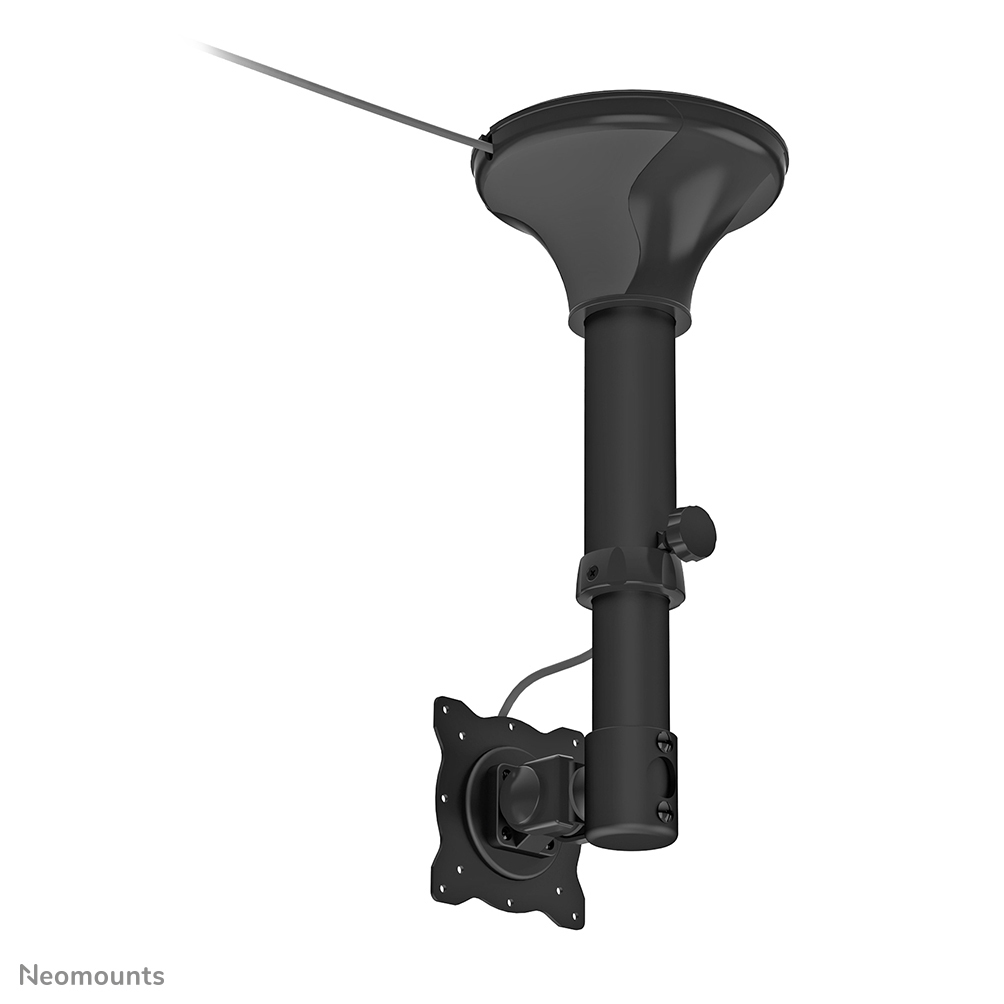

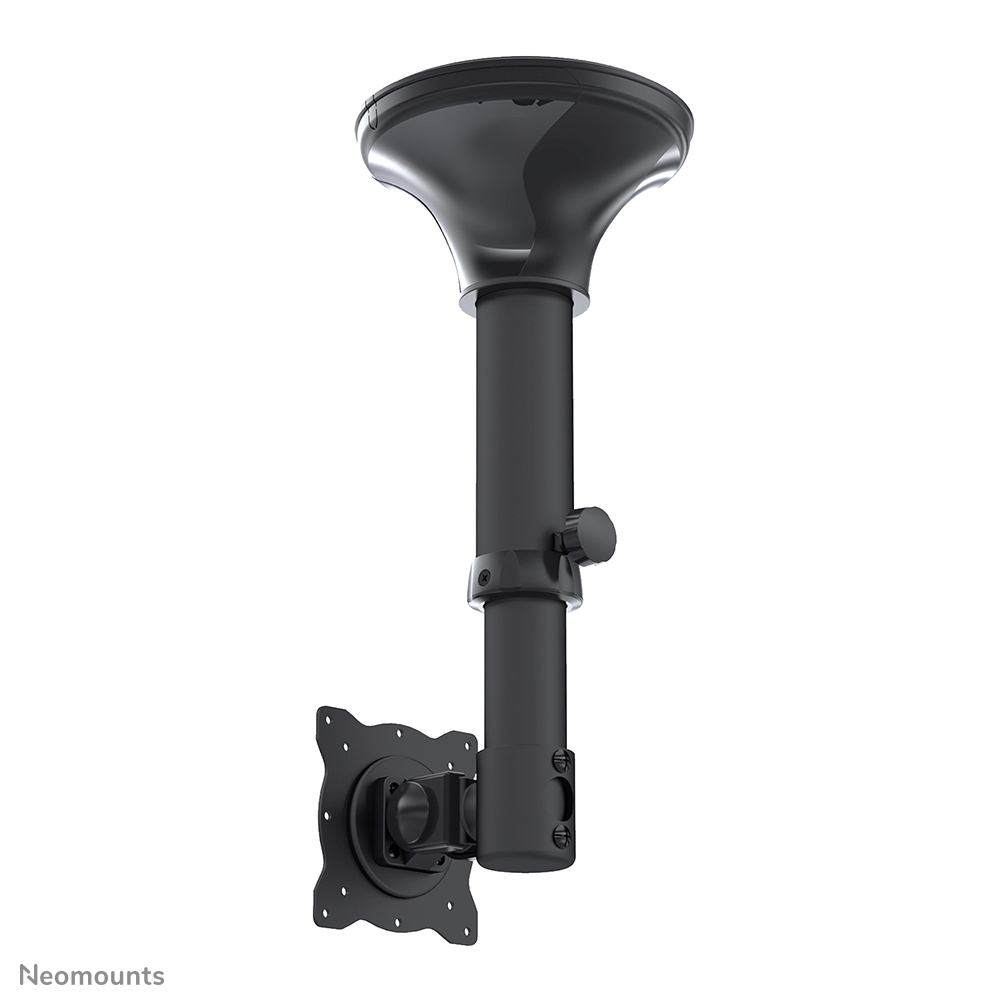

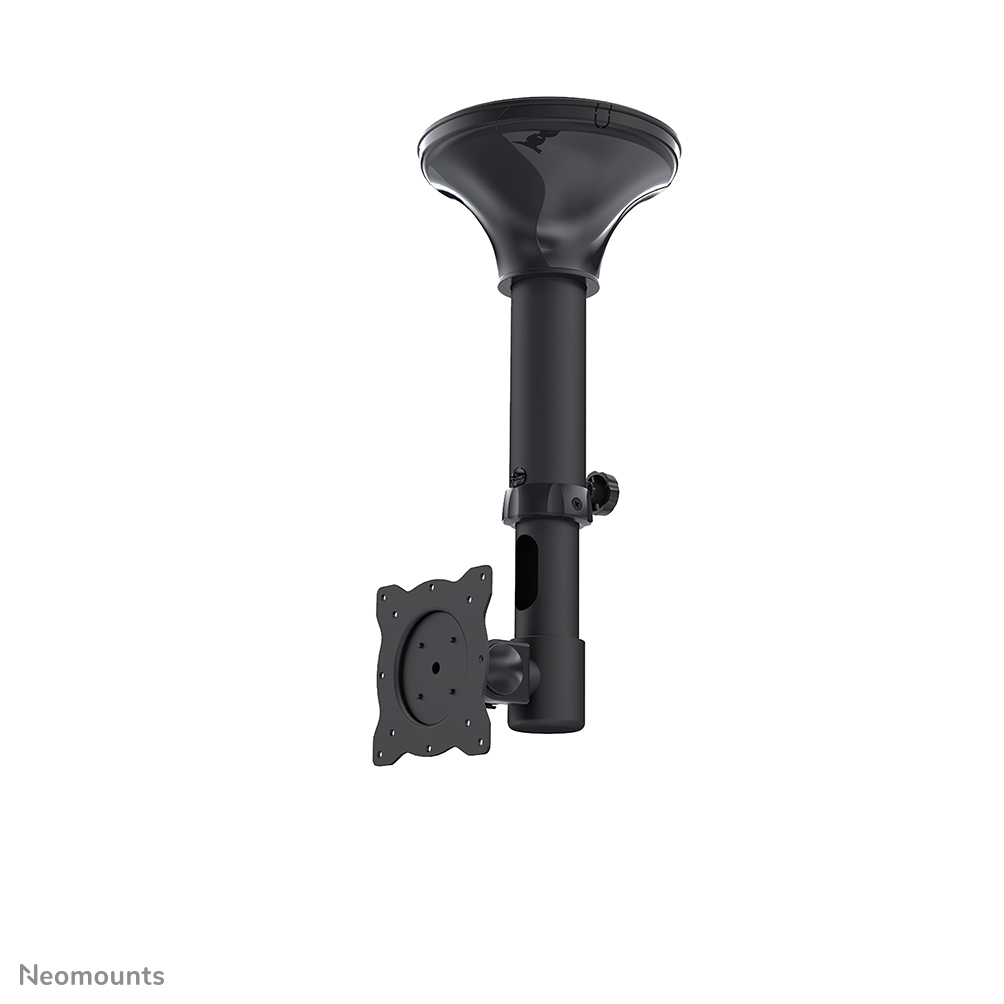

The Neomounts ceiling mount, model FPMA-C025BLACK is a tilt- and rotatable ceiling mount for flat screens up to 30" (76 cm). This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.

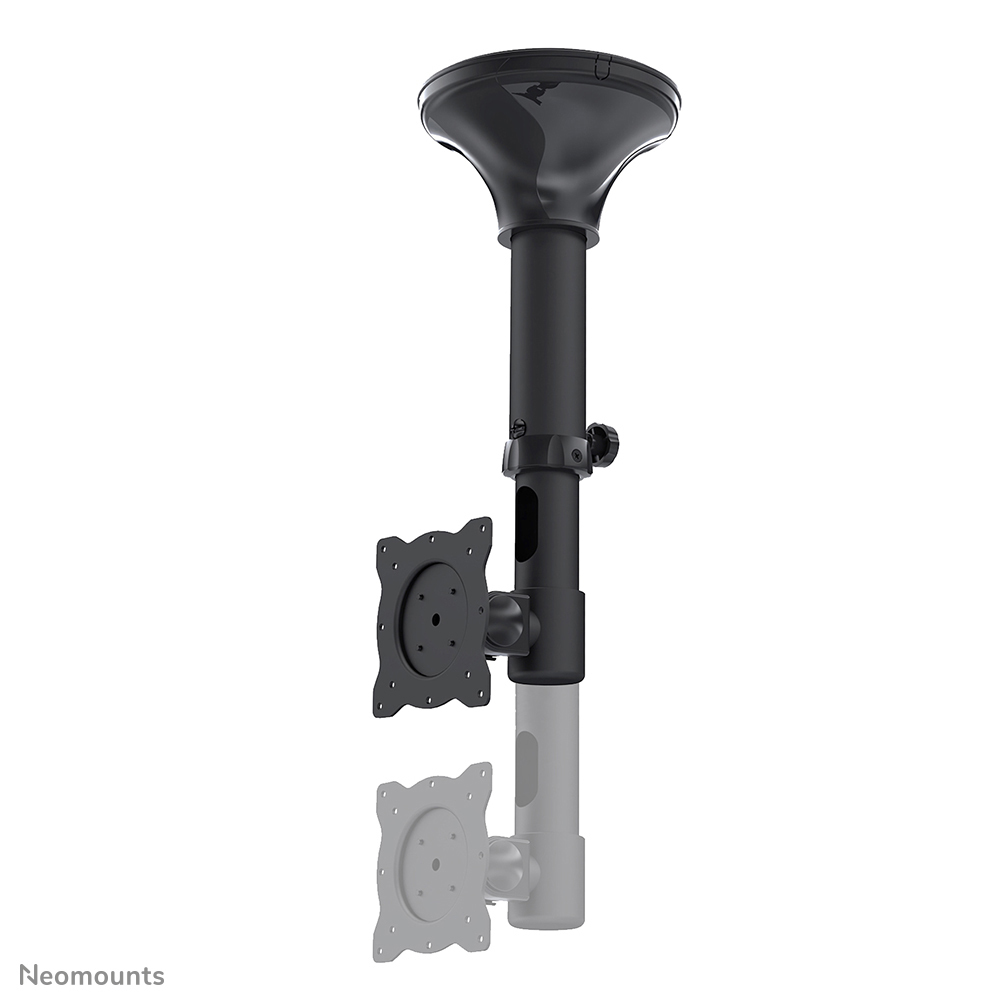

Neomounts versatile tilt (180°) and rotate (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 37 to 47 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.

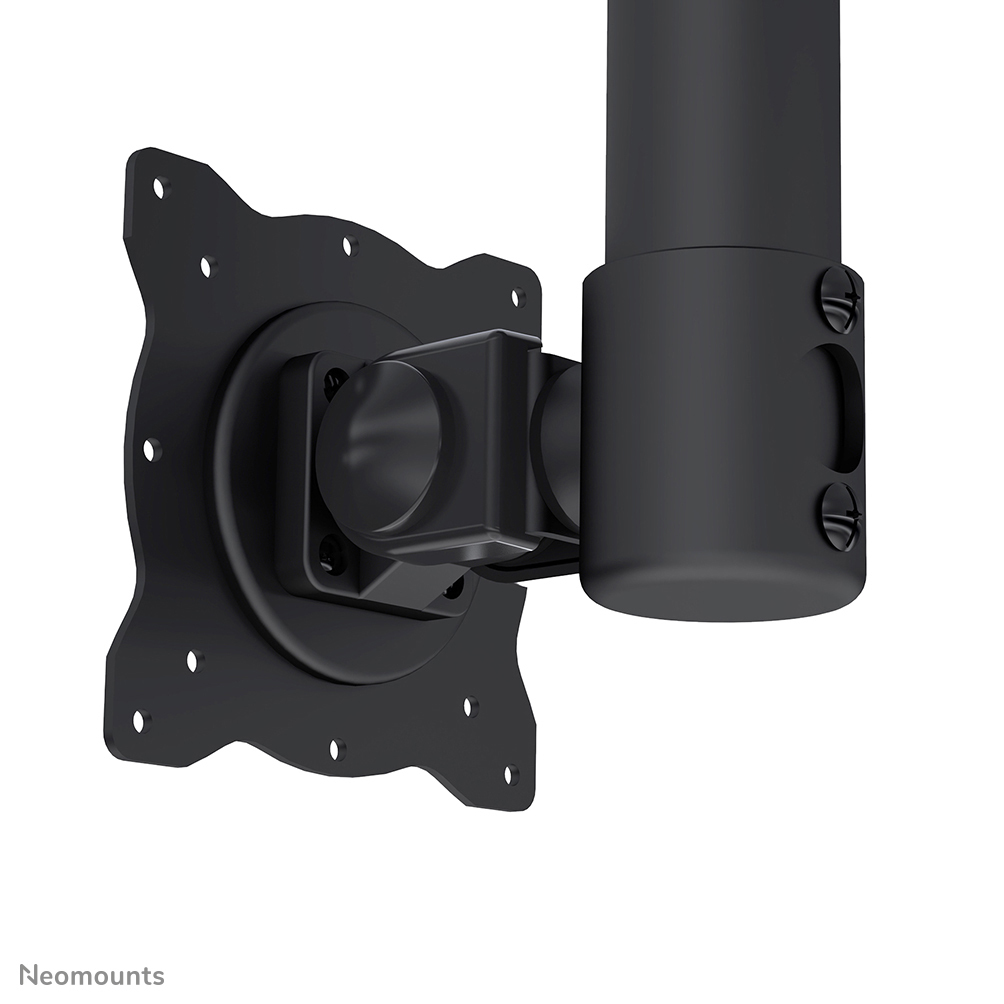

Neomounts FPMA-C025BLACK has one pivot point and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 12 kg |
| Maximum screen size | 76.2 cm (30") |
| Mounting type | Ceiling |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |

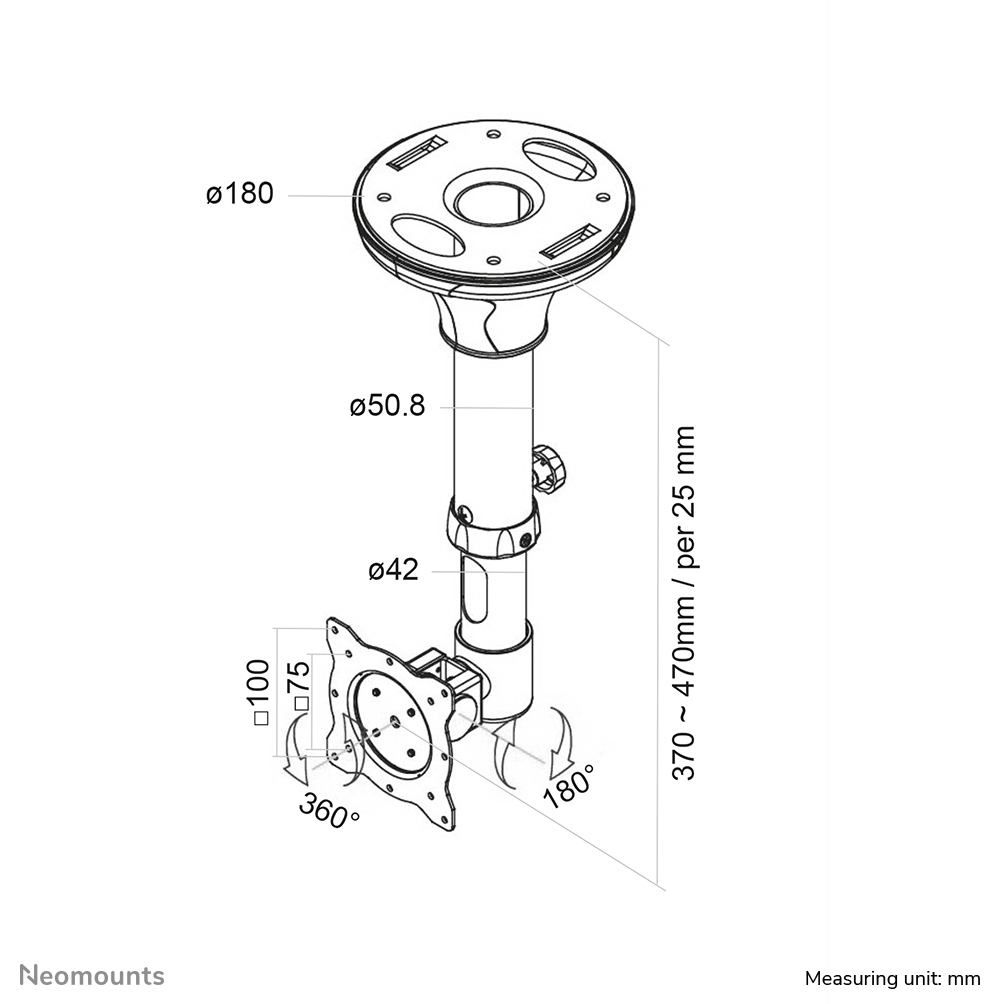

| Height adjustment range | 370 - 470 mm |
| Tilt angle range | 0 - 180ø |
| Angle of rotation | 360ø |
| Tilt adjustment | Yes |
| Tilt angle | 180ø |
| Depth adjustment | 5 cm |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Depth | 50 mm |
| Height | 470 mm |
| Packaging data | |
| Package width | 403 mm |
| Package depth | 182 mm |
| Package height | 191 mm |
| Package weight | 2.8 kg |
| Other features | |
| Country of origin | Taiwan |
| Logistics data | |
| Master (outer) case net weight | 9.3 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 84 pc(s) |
| Quantity per master (outer) case | 3 pc(s) |
| Master (outer) case width | 590 mm |
| Master (outer) case length | 437 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 10.5 kg |
| Products per master (outer) case | 3 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
