Flat Screen Wall Mount For Menu Board - 3 Screens - Landscape
ITCurry #: M3332791 | Article #: NS-WMB300BLACK-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

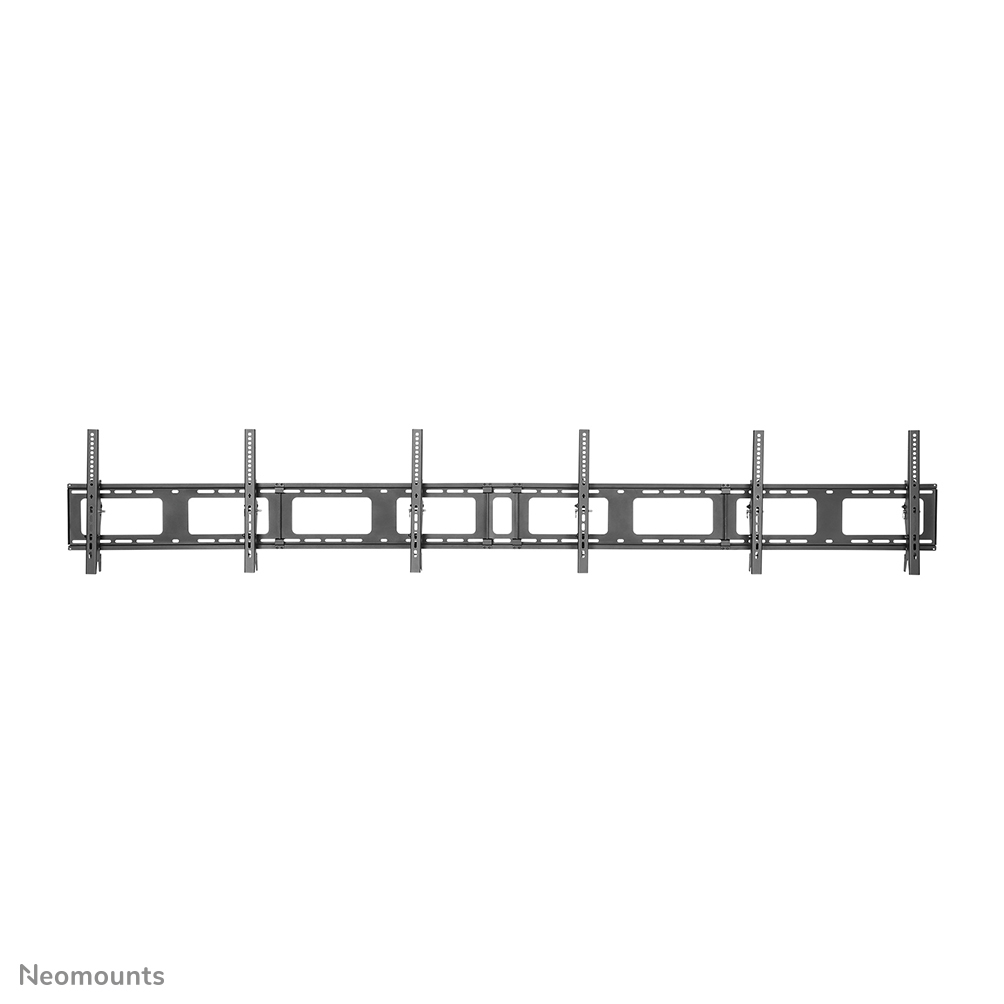

The Neomounts menu board wall mount, model NS-WMB300BLACK is a tiltable wall mount for three flat screens up to 52" (132 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts tilt (0°/-5°/-10°/-15°/-20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 7,6 centimetres.
Neomounts NS-WMB300BLACK is suitable for 3 screens up to 52" (132 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 200x200 to 600x400 mm.
All installation material is included with the product.
Mounting | |
Minimum screen size | 101.6 cm (40") |
Maximum weight capacity | 50 kg |
Maximum screen size | 132.1 cm (52") |
Mounting type | Wall |
Minimum VESA mount | 200 x 200 mm |
Maximum VESA mount | 600 x 400 mm |
Panel mounting interface | 200 x 200,400 x 400,200 x 300,300 x 300,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,400 x 200 |
Number of displays supported | 3 |
Ergonomics | |
Tilt angle range | 0 - 20ø |
Swivel angle | 6ø |
Angle of rotation | 6ø |
Cable management | Yes |
Tilt adjustment | Yes |
Tilt angle | 20ø |
Height adjustment | 48 cm |
Width adjustment | 29 cm |
Distance to the wall (min) | 7.6 cm |
Design | |
Product colour | Black |
Housing material | Steel |
Weight & dimensions | |
Width | 2900 mm |
Height | 48 mm |
Packaging data | |
Package width | 250 mm |
Package depth | 230 mm |
Package height | 740 mm |
Package weight | 16.4 kg |
Technical details | |
Package net weight | 16.4 kg |
Other features | |
Country of origin | China |
Logistics data | |
Master (outer) case net weight | 16.4 kg |
Harmonized System (HS) code | 7326909890 |
Products per pallet (EU) | 30 pc(s) |
Quantity per master (outer) case | 1 pc(s) |
Master (outer) case width | 250 mm |
Master (outer) case length | 230 mm |
Master (outer) case height | 740 mm |
Master (outer) case gross weight | 16.4 kg |
Products per master (outer) case | 1 pc(s) |
Warranty | |
Base Warranty | Non Non |
