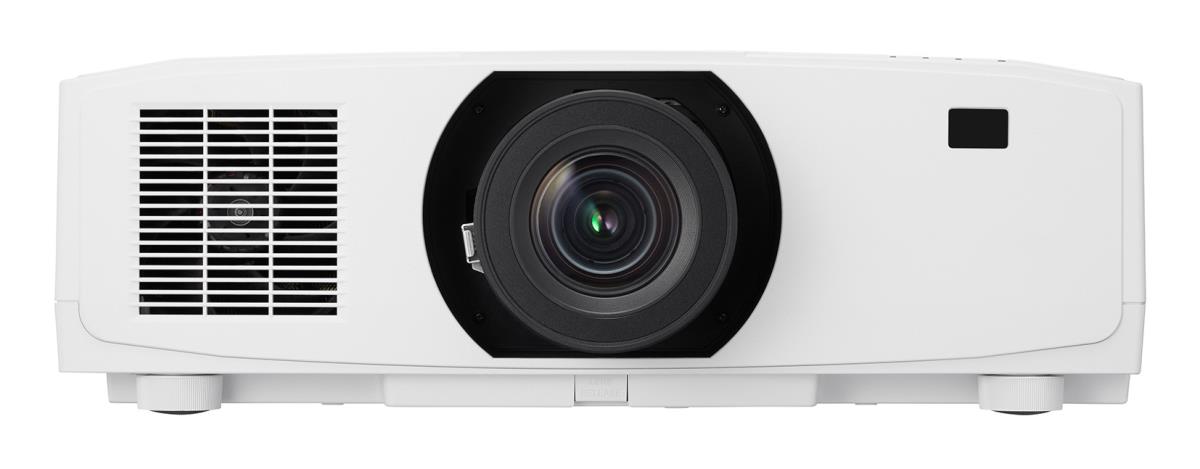

Projector - Xp-v801u-w - 8000lm - 1920x120 (wuxga)
ITCurry #: 38909271 | Article #: 60006249-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Versatile, Value-driven Performance
A highly economical projection solution, the Sharp V Series combines installation flexibility, low maintenance, and long-life laser performance in a compact, cost-efficient design. Using 3LCD technology, it delivers vivid colour and precise white point calibration with 12-bit colour processing for rich saturation and contrast making it suited for education, corporate, leisure, and simulation environments.
Compatible with existing mounts and lenses, the V Series provides a seamless upgrade path from lamp-based or earlier laser models, maximising assets and reducing costs while embracing next-generation efficiencies.
Sharp's ProAssist software enables easy remote setup and adjustment, while advanced features such as geometric correction, edge blending, and wide lens shift support flexible, precise integration.
| Projector | |
| Supported aspect ratios | 16:10 |
| Smart projector | Yes |
| Screen size compatibility | 1016 - 12700 mm (40 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Projector brightness | 8000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Keystone correction, horizontal | 30ø |
| Keystone correction, vertical | 30ø |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Motorized |
| Zoom capability | Yes |
| Zoom type | Auto/Manual |
| Horizontal lens shift range | 0 - 20% |
| Vertical lens shift range | 0 - 50% |
| Video | |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1280 x 768, 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p |
| Video colour modes | DICOM simulation mode |
| Ports & interfaces | |
| HDBaseT port | Yes |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| HDMI ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Web browser | Yes |
| Features | |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Test patterns | Yes |
| Noise level | 42 dB |
| Password protection | Yes |
| Design | |
| Product type | Standard throw projector |
| Product colour | White |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 467 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 421 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -10 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 499 mm |
| Depth | 407 mm |
| Height | 164 mm |
| Weight | 11.2 kg |
| Packaging content | |
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | Power |
| Manual | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Sustainability certificates | ErP |
| Warranty period | 3 year(s) |
| Compliance certificates | CE, EAC, RoHS |
| Warranty | |
| Base Warranty | Non Non |
