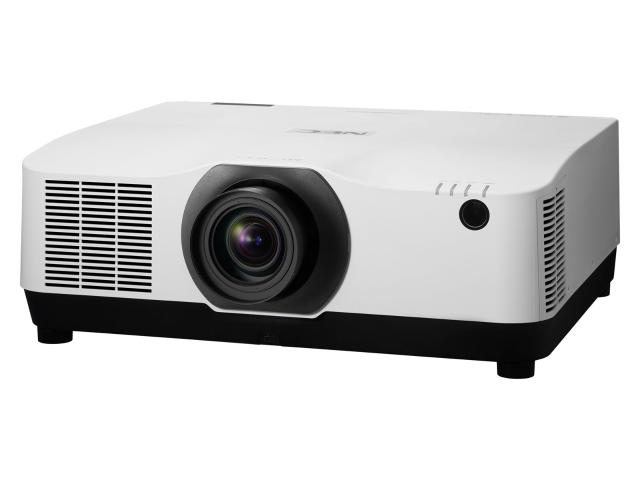

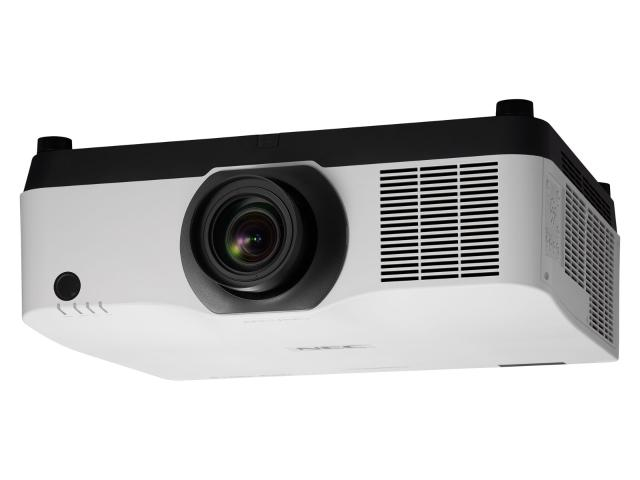

Projector Pa1004ul 1920x1200 (wuxga) 9000lm White + Np41zl Lens
ITCurry #: 38909154 | Article #: 40001458
Related products
Product Information
A new class of silent projection
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 10,000 lumens PA1004UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA1004UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
| Projector | |
| Screen size compatibility | 1270 - 12700 mm (50 - 500") |
| Projection distance | 0.7 - 50.9 m |
| Projector brightness | 10000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Horizontal scan range | 15 - 153 kHz |
| Vertical scan range | 48 - 120 Hz |
| Keystone correction, horizontal | -40 - 40ø |
| Keystone correction, vertical | -40 - 40ø |
| Light source | |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lens system | |
| Focus | Auto |
| Zoom capability | Yes |
| Zoom type | Auto |
| Zoom ratio | 2.3:1 |
| Throw ratio | 1.30-3.02: 1 |
| Horizontal lens shift range | -20 - 20% |
| Vertical lens shift range | -50 - 10% |
| Number of optional lenses supported | 9 |
| Video | |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA), 2048 x 1080, 2560 x 1600 (WQXGA), 4096 x 2160 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

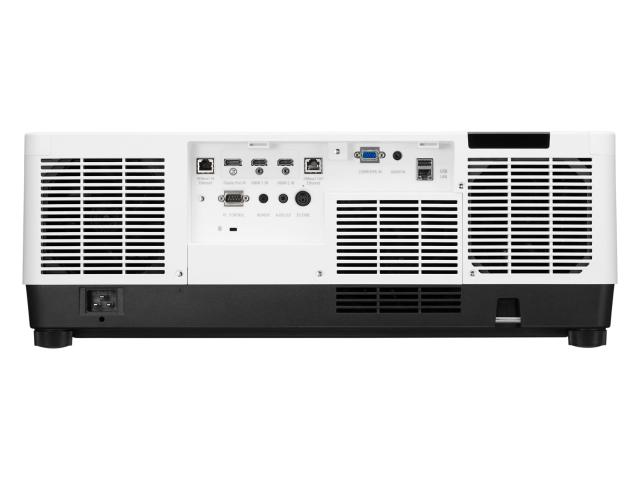

| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDBaseT port | Yes |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| DVI port | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Noise level (economic mode) | 32 dB |
| HDCP | Yes |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 27 |
| Noise level | 35 dB |
| Multimedia | |
| Built-in speaker(s) | No |
| Design | |
| Market positioning | Business |
| Product type | Large venue projector |
| Product colour | White |
| Placement | Desktop |
| Power | |
| Power source | AC |
| Power consumption (typical) | 725 W |
| Power consumption (standby) | 0.28 W |
| Power consumption (economy mode) | 395 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 øC |
| Storage temperature (T-T) | -10 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width | 599 mm |
| Depth | 490 mm |
| Height | 208 mm |
| Weight | 24.4 kg |
| Packaging content | |
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85286200 |
| Warranty | |
| Base Warranty | Non Non |
