Ops-sky-i5-d8/64/w10iot A
ITCurry #: 38908871 | Article #: 100014546
Related products
Product Information
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot
- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel ® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio.
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years.
- Economical - enjoy more performance whilst consuming less power.
| Processor | |
| Processor generation | 6th gen Intel© CoreT i5 |
| Processor frequency | 2.7 GHz |
| Processor family | Intel© CoreT i5 |
| Processor model | i5-6440EQ |
| Processor cores | 4 |
| Processor boost frequency | 3.4 GHz |
| Processor socket | BGA 1440 |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor threads | 4 |
| PCI Express slots version | 3.0 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Stepping | R0 |
| Bus type | DMI3 |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 45 W |
| Processor series | Intel Core i5-6400 Mobile series |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Tcase | 100 øC |
| Tjunction | 100 øC |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 64 GB |
| Storage media | SSD |
| Card reader integrated | No |
| SSD interface | M.2 |
| SSD capacity | 64 GB |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Intel© HD Graphics 530 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x191B |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| Number of displays supported (on-board graphics) | 3 |
| Network | |
| Wi-Fi | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |

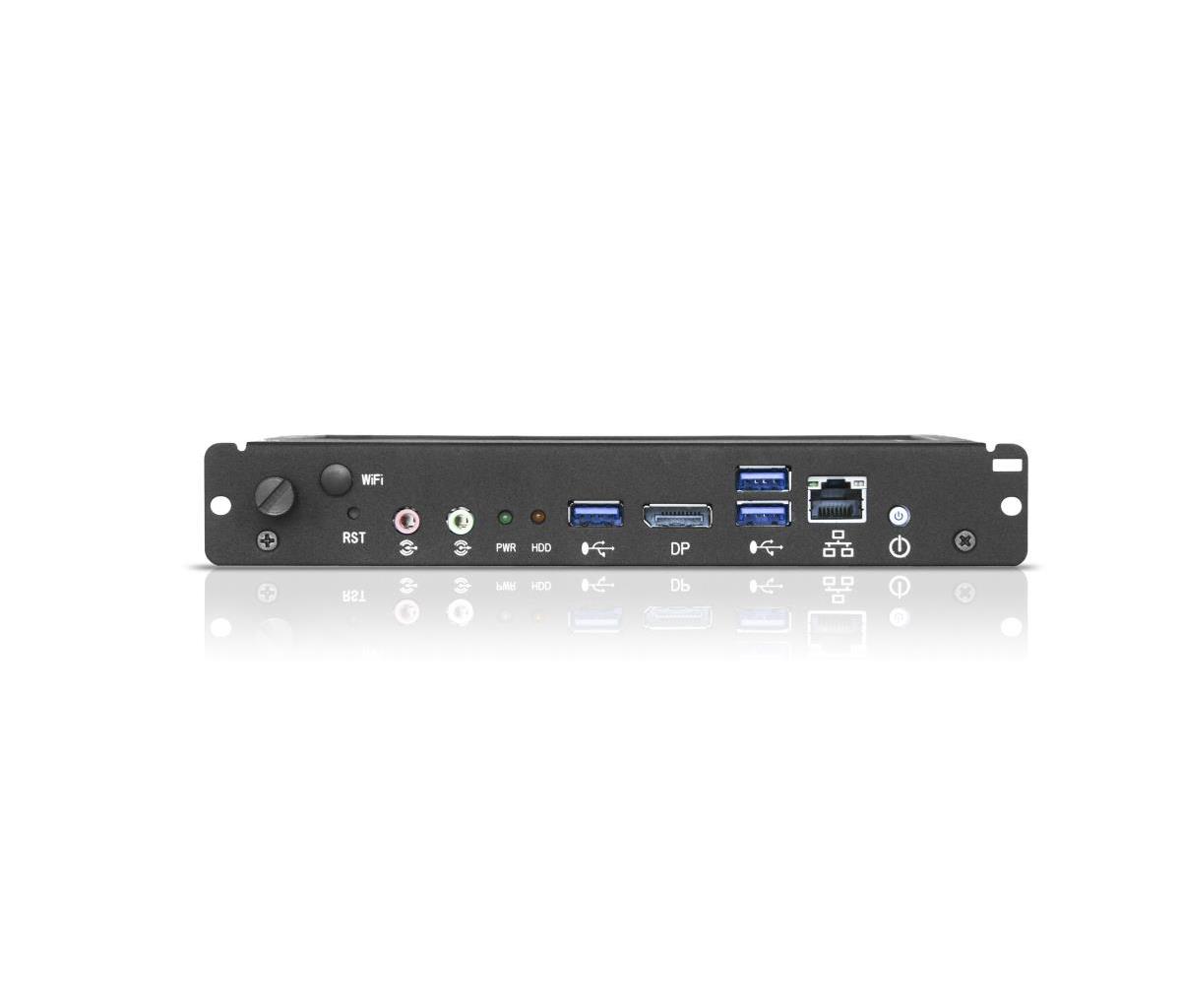

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Performance | |
| Motherboard chipset | Intel© HM170 |
| Product colour | Black |
| Audio chip | Realtek ALC887 |
| Software | |
| Operating system installed | Windows 10 IoT Enterprise |
| Processor special features | |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processor code | SR2DU |
| Intel© Identity Protection Technology (Intel© IPT) | Yes |
| Intel© Hyper Threading Technology (Intel© HT Technology) | No |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Quick Sync Video Technology | Yes |
| Intel© InTruT 3D Technology | Yes |
| Intel© Wireless Display (Intel© WiDi) | Yes |
| Intel© Clear Video HD Technology (Intel© CVT HD) | Yes |
| Intel© InsiderT | Yes |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | Yes |
| Graphics & IMC lithography | 14 nm |
| Intel TSX-NI | Yes |
| Intel© Secure Key | Yes |
| Intel 64 | Yes |
| Intel© OS Guard | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel HD Graphics | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor package size | 42 x 28 mm |
| Processor ARK ID | 90425 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | CE/FCC |
| Weight & dimensions | |
| Width | 120 mm |
| Depth | 190 mm |
| Height | 30 mm |
| Weight | 900 g |
| Package width | 190 mm |
| Package depth | 260 mm |
| Package height | 70 mm |
| Package weight | 1 kg |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Warranty | |
| Base Warranty | Non Non |
