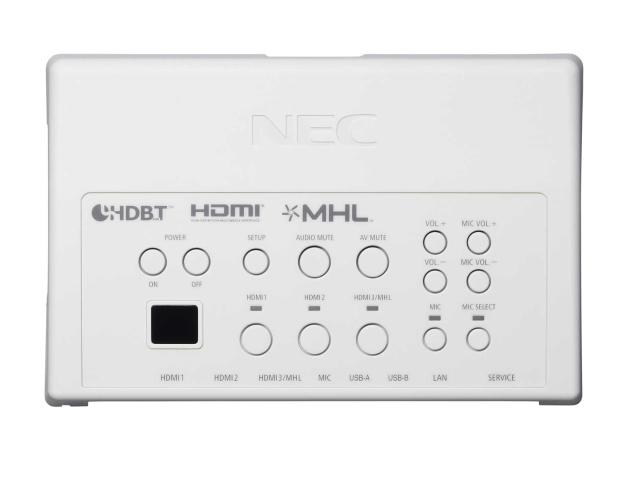

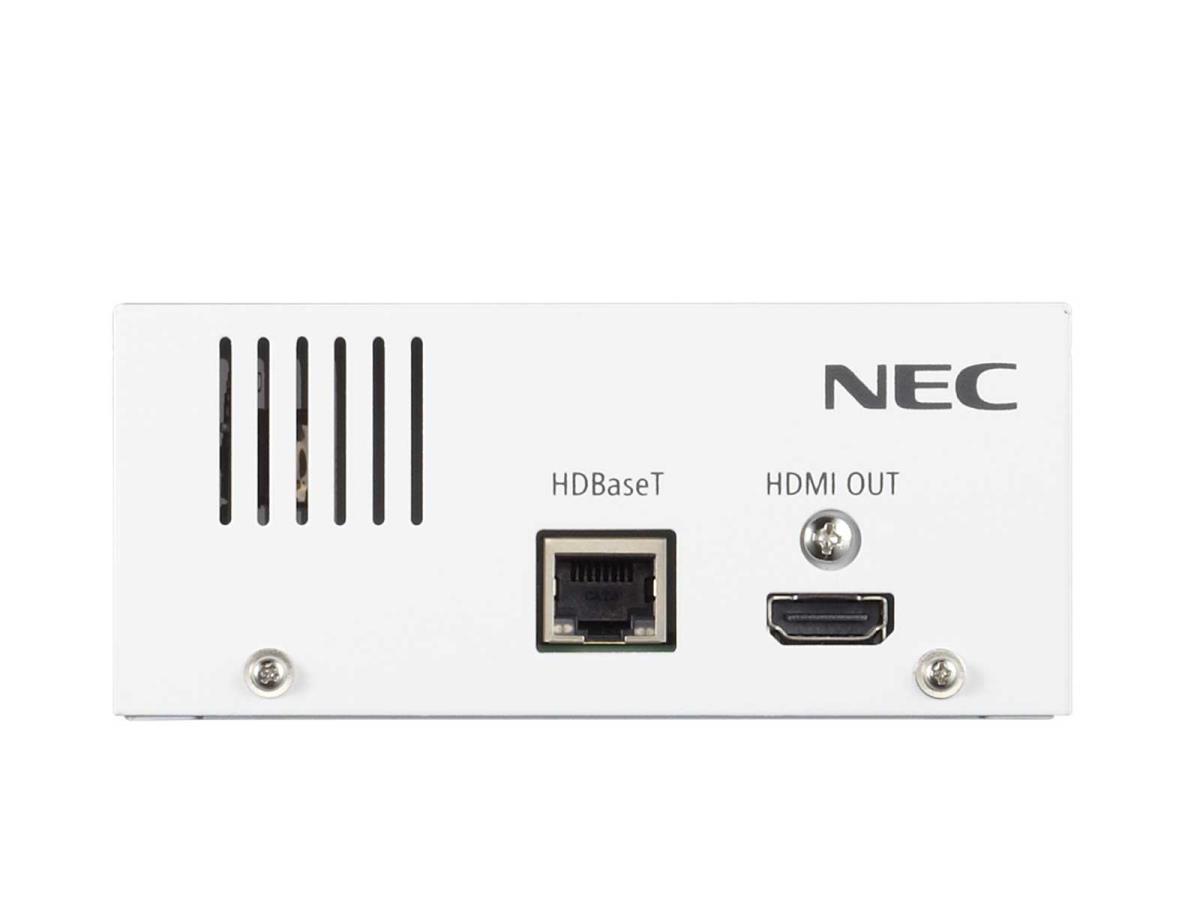

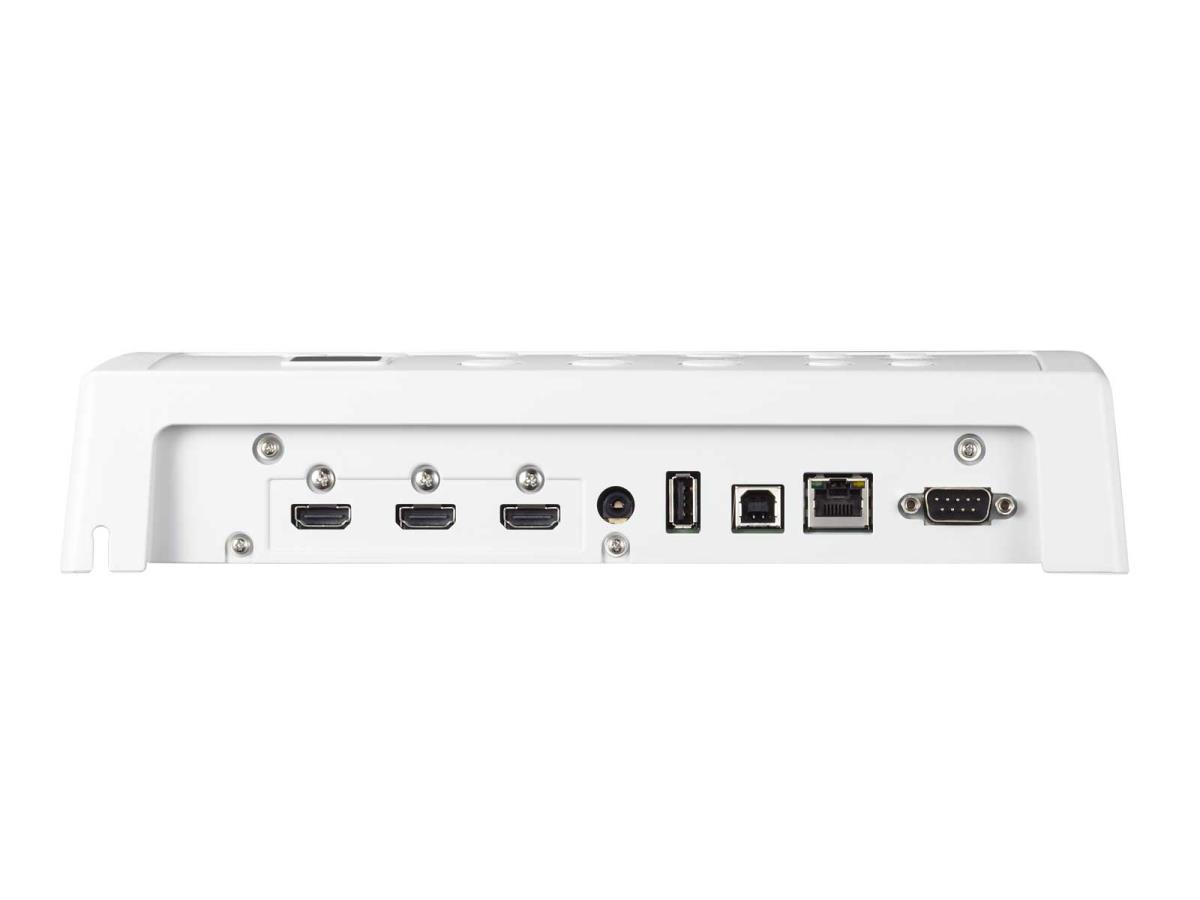

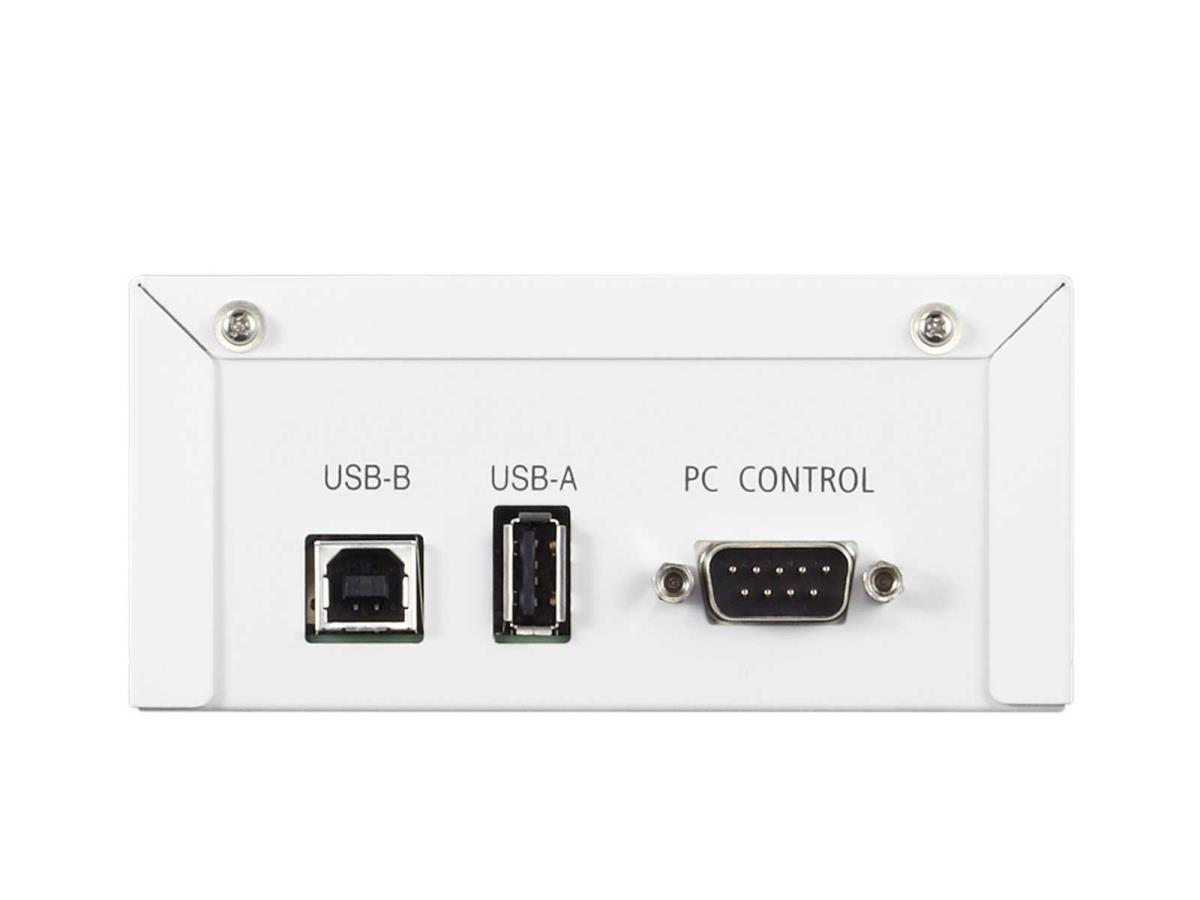

NEC’s HDBaseT Switcher and Receiver is a clever solution that combines the advantages of HDBaseT and an easy to use control box.
| Features | |
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 30 m |
| LED indicators | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| HDCP | Yes |
| Colour depth | 12 bit |
| Product colour | White |
| HDBaseT certified | Yes |
| Certification | CE, FCC, EAC, SASO |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 1 |
| HDBaseT port | Yes |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 4 |
| USB version | 2.0 |
| USB connector type | USB Type-A, USB Type-B |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Remote (IR) input | 1 |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.4 A |
| Power consumption (typical) | 21 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 øC |
| Storage temperature (T-T) | 10 - 50 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Weight | 500 g |
| Receiver dimensions (WxDxH) | 126 x 52 x 119 mm |
| Transmitter dimensions (WxDxH) | 285 x 64 x 187 mm |
| Packaging data | |
| Package dimensions (WxDxH) | 354 x 175 x 333 mm |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | HDMI, RS-232 |
| Manual | Yes |
| Mounting kit | Yes |
| Technical details | |
| Compliance certificates | RoHS |
