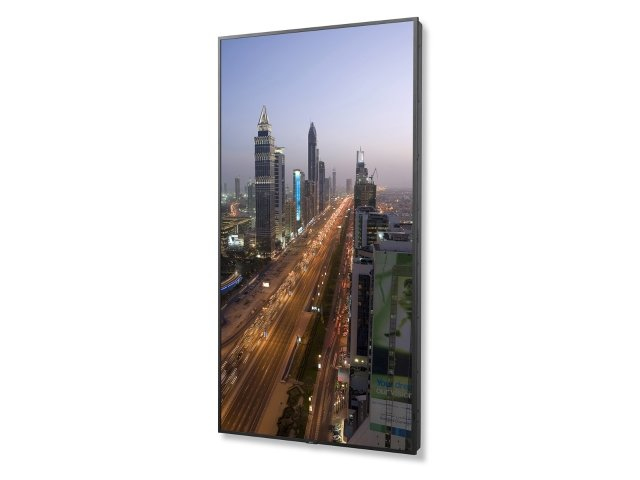

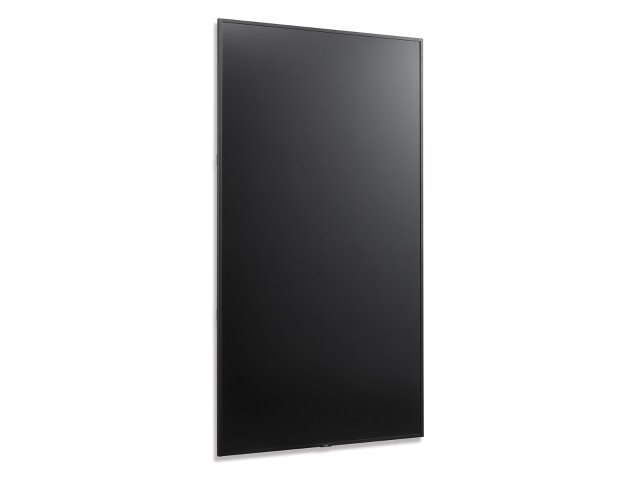

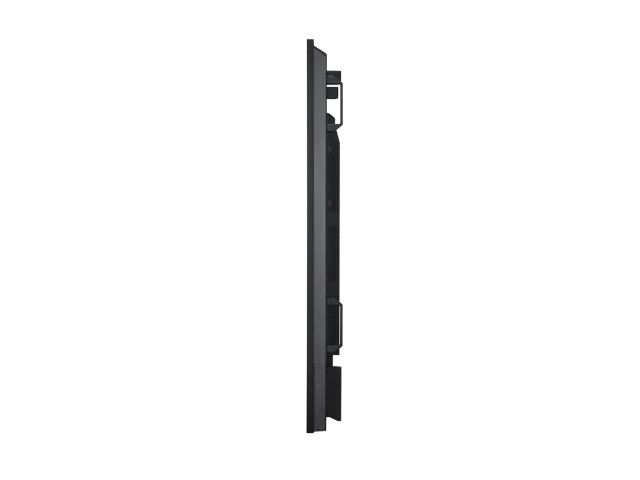

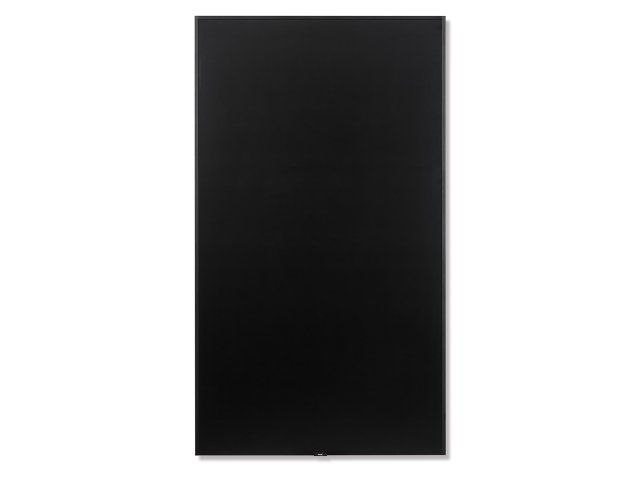

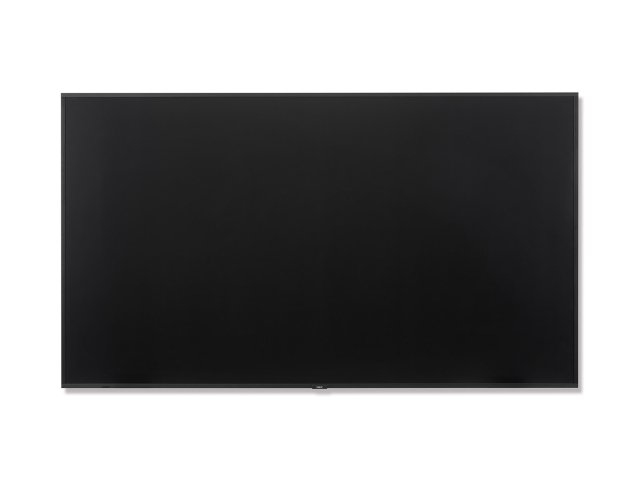

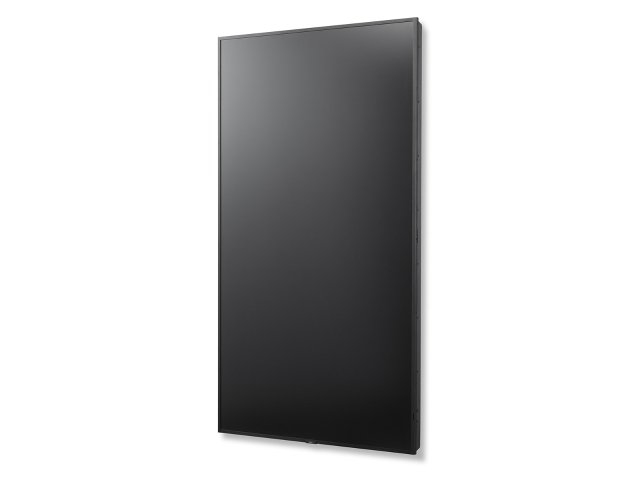

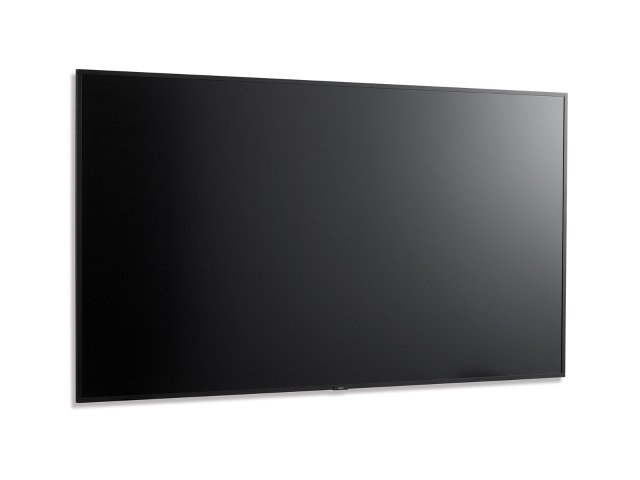

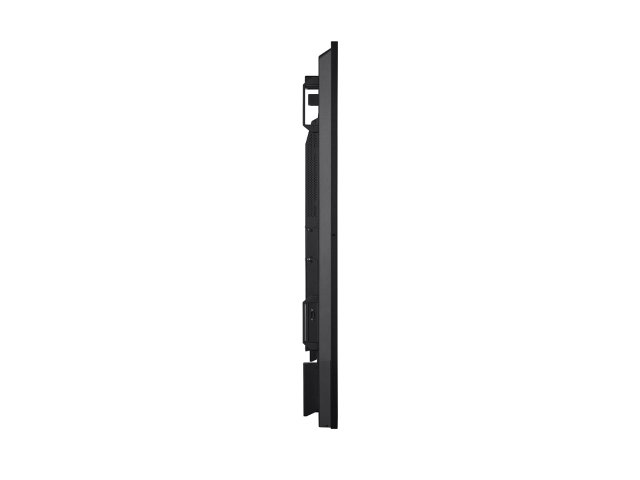

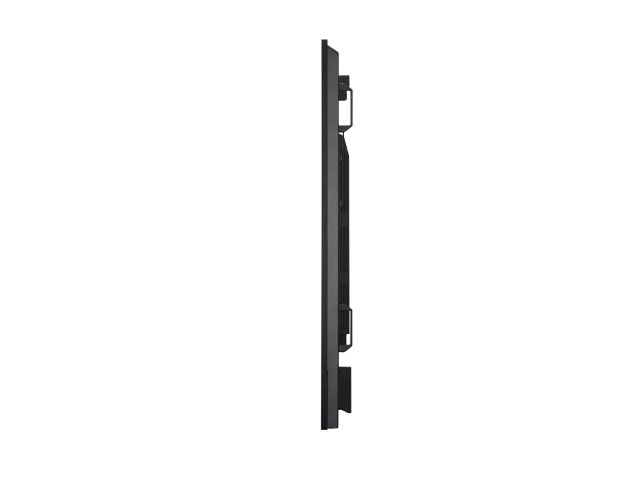

Large Format Monitor - Multisync M751/75 - 75in - 3840x2160 (uhd)
ITCurry #: 38909212 | Article #: 60005064-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Intuitive professional content delivery
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
| Display | |
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.073 billion colours |
| Display diagonal (metric) | 189.3 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| Haze rate | 25% |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| DisplayPorts quantity | 3 |
| DisplayPorts in | 2 |
| DisplayPorts out | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| RS-232 interface | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Bezel width (bottom) | 1.48 cm |
| Bezel width (side) | 1.43 cm |
| Bezel width (top) | 1.43 cm |
| Performance | |
| Purpose | Universal |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Power | |
| Power consumption (typical) | 205 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 145 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Width | 1682.3 mm |
| Depth | 83.2 mm |
| Height | 961.1 mm |
| Weight | 38 kg |
| Packaging data | |
| Package width | 1830 mm |
| Package depth | 225 mm |
| Package height | 1070 mm |
| Package weight | 51.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | HDMI, Power |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 80% |
| Warranty | |
| Base Warranty | Non Non |
