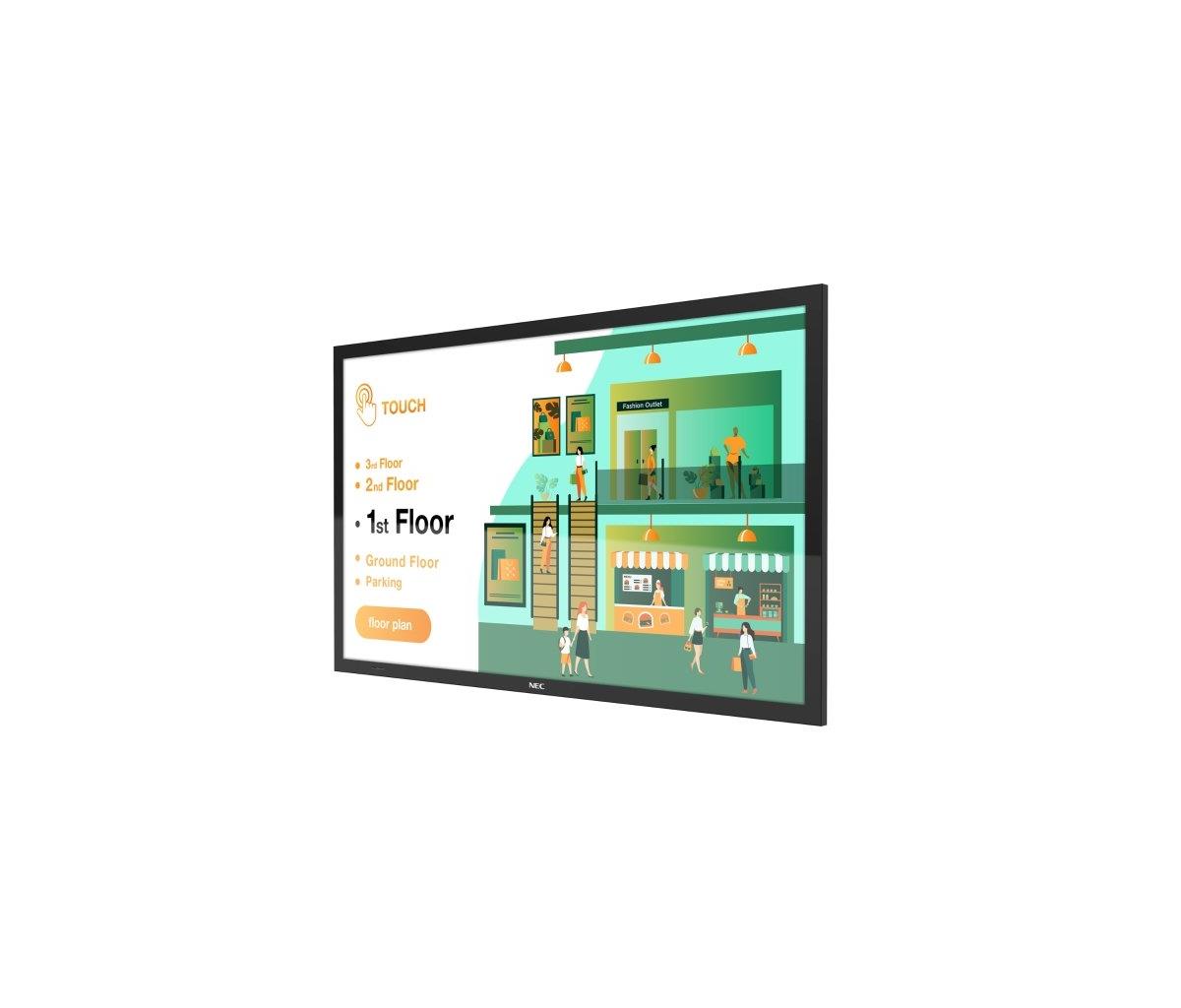

Large Format Display - Multisync M651 Pcap - 65in
ITCurry #: 38909034 | Article #: 60005341-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Superior touch performance for demanding environments
Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With a modern, bezel-free styling, 24/7 operation and reduced reflections when ambient light is high, the NEC MultiSync® M series PCAP touch engages audiences and facilitates collaboration.
With the powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready to provide an exceptional interactive experience to your customers. Perfectly suited to the rigors of public usage, the robust glass surface is resistant to scratches whilst its anti-glare property makes the M series PCAP touch models suitable for use even in areas of high ambient light.
| Display | |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 165.1 cm (65") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Horizontal scan range | 26 - 91.1 kHz |
| Vertical scan range | 23 - 86 Hz |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| DisplayPorts quantity | 2 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 Mbit/s |
| Audio | |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Performance | |
| Purpose | Universal |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| Power | |
| Power consumption (typical) | 120 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 116 kWh |
| Energy consumption (HDR) per 1000 hours | 105 kWh |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Video formats supported | H.263, H.264, HEVC/H.265, MP4, MPG, TS |
| Audio formats supported | MP3 |
| Image formats supported | JPG |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 1493.3 mm |
| Depth | 69.4 mm |
| Height | 870.8 mm |
| Weight | 51.1 kg |
| Packaging data | |
| Package width | 1736 mm |
| Package depth | 280 mm |
| Package height | 1033 mm |
| Package weight | 64 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Warranty | |
| Base Warranty | Non Non |
