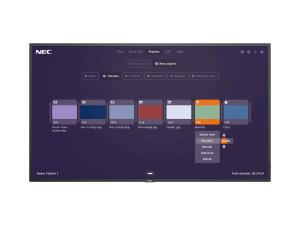

Large Format Display - Multisync M551 Airserver - 55in - 3840x2160 (uhd)
ITCurry #: 38909136 | Article #: 40001582-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Content sharing made simple with native wireless screen mirroring
Initiating effective collaboration in meeting rooms has never been easier to plan, install and operate. Simply share content from your personal device to the large meeting room display.
The MultiSync® ME/M series AirServer models provide a sleek combination of intuitive screen sharing with professional display technology for meeting rooms and huddle spaces.
Future-proof and upgradable, AirServer software is powered by a pre-installed modular SoC Raspberry Pi module which transforms the Sharp/NEC M and ME series large format display into a universal screen mirroring receiver. With AirServer enabled on the Sharp/NEC large format display, users can wirelessly mirror the content on their personal screen (Mac or PC, iPhone, iPad, Android or Chromebook) to the meeting room display, instantly turning the room into a collaborative space.
| Display | |
| LED backlighting type | Edge-LED |
| Display diagonal | 139.7 cm (55") |
| Display technology | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/mý |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 8000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 26 - 91.1 kHz |
| Vertical scan range | 23 - 86 Hz |
| Haze rate | 28% |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | Yes |
| RS-232 interface | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 300 x 300 mm |
| Bezel width (bottom) | 1.56 cm |
| Bezel width (side) | 1.25 cm |
| Bezel width (top) | 1.2 cm |
| Performance | |
| Purpose | Universal |
| Miracast | Yes |
| Apple AirPlay support | Yes |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| International Protection (IP) code | IP5X, IP2X |
| Power | |
| Power consumption (typical) | 110 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | G |
| Energy consumption (SDR) per 1000 hours | 100 kWh |
| Energy consumption (HDR) per 1000 hours | 90 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Video formats supported | H.264, HEVC/H.265, MP4, MPG, TS, WMA, WMV |
| Audio formats supported | MP3 |
| Image formats supported | JPG |
| Google applications | Google Cast |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 1239.6 mm |
| Depth | 61.1 mm |
| Height | 713 mm |
| Weight | 26.4 kg |
| Packaging data | |
| Package width | 1430 mm |
| Package depth | 250 mm |
| Package height | 920 mm |
| Package weight | 36.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Base colour | Black |
| Base material | Metal |
| Wall mountable | Yes |
| Warranty | |
| Base Warranty | Non Non |
