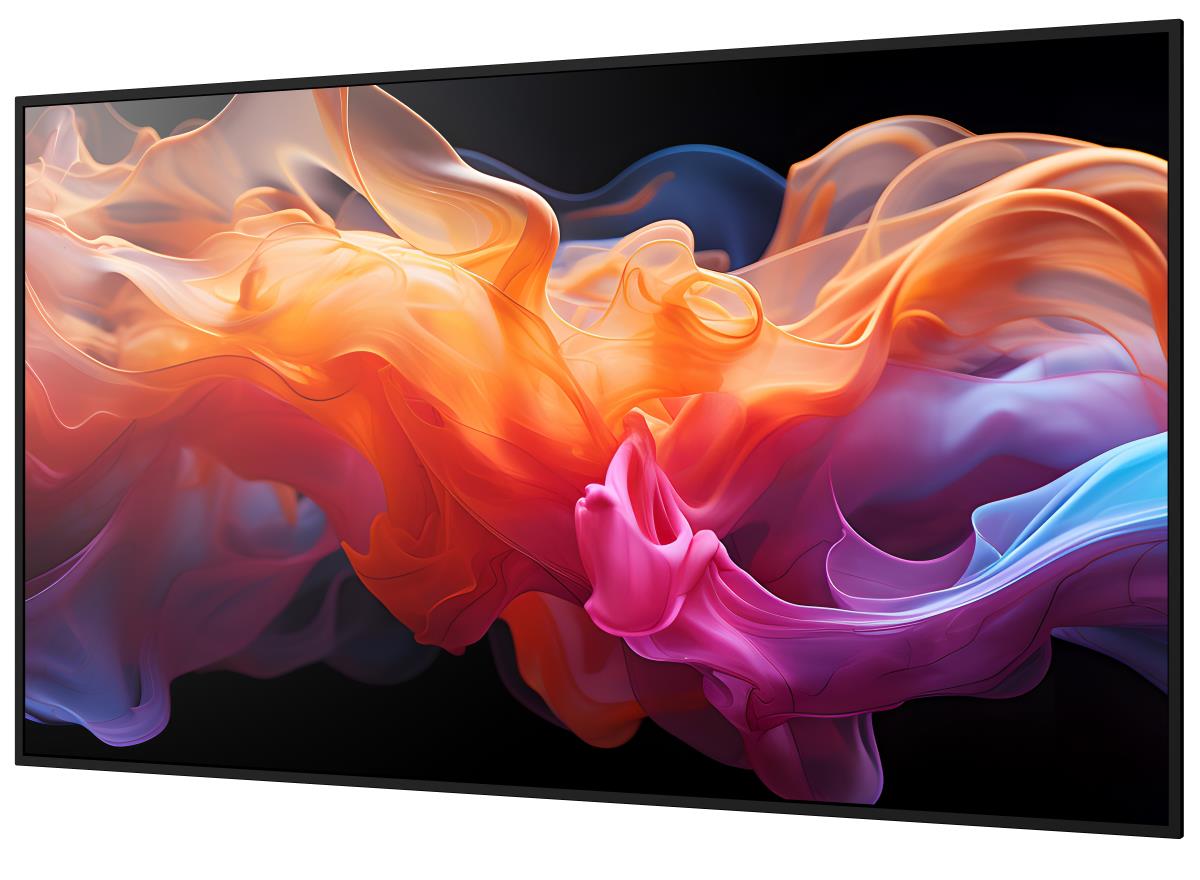

Large Format Display - Multisync E509 - 50in -3840 X 2160 (uhd) - Black
ITCurry #: 38909265 | Article #: 60006182-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Professional performance, affordable value
The entry point for professional display solutions, the Sharp MultiSync® E9 Series is designed for modern business environments that need more than a consumer TV can offer. Combining essential features for meeting rooms and digital signage with commercial-grade reliability, the E9 Series delivers crisp UHD resolution, integrated media playback, and 16/7 operation at an accessible price point. A professional matte high-haze panel ensures superior visual performance in this product category, minimising reflections and glare common with glossy panels.
Designed for seamless integration across the wider Sharp display family, the E9 Series shares the same core identity, including the same remote control and device management for a consistent user experience. A robust metal back cover secures product longevity in commercial settings. Whether for presentations, retail signage, or corporate communication, the E9 Series gives you the professional edge without stretching your budget
| Display | |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 127 cm (50") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 3501 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.285 x 0.285 mm |
| Active display area (W x H) | 1096 x 616 mm |
| Display diagonal (metric) | 125.7 cm |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 76 Hz |
| Haze rate | 25% |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232C | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Bezel width (bottom) | 1.08 cm |
| Bezel width (side) | 1.08 cm |
| Bezel width (top) | 1.08 cm |
| Performance | |
| Purpose | Universal |
| Power | |
| Power consumption (typical) | 99 W |
| Power consumption (standby) | 0.5 W |
| Input voltage | 100 - 240 V |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 90 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Weight & dimensions | |
| Display width | 1120 mm |
| Display depth | 59.9 mm |
| Display height | 641 mm |
| Display weight | 9.2 kg |
| Packaging data | |
| Package width | 1253 mm |
| Package depth | 128 mm |
| Package height | 761 mm |
| Package weight | 13 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 øC |
| Storage relative humidity (H-H) | 10 - 80% |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi | No |
| Warranty | |
| Base Warranty | Non Non |
