Motherboard Pro B850m-p Wi-Fi Am5 Amd B850 4x Ddr5 MATX
ITCurry #: 8632A815 | Article #: PRO B850M-P WIFI-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

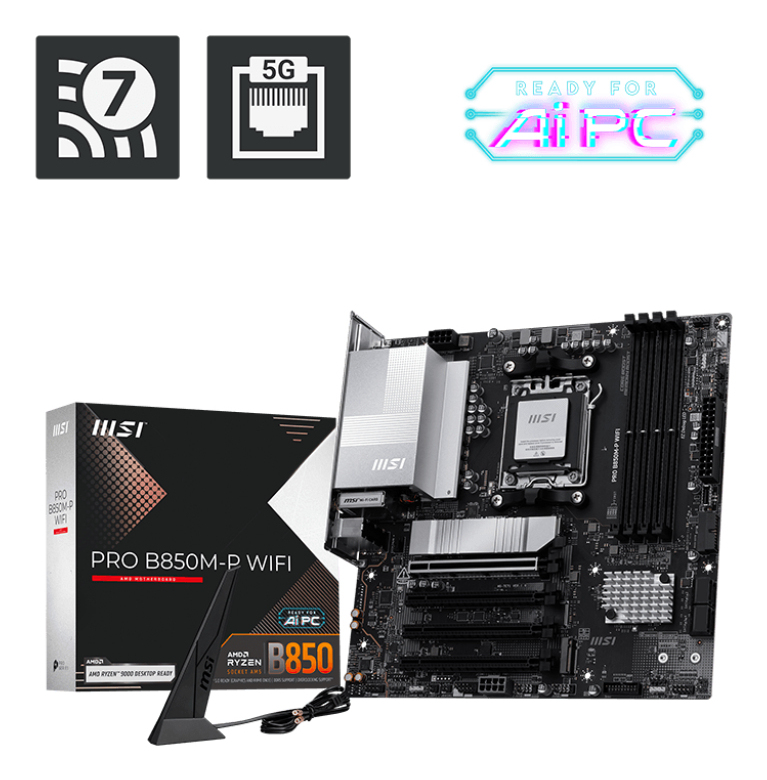

PRO B850M-P WIFI
PRO B850M-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
DIRECT 7+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 7+2+1 digital power phases. With an 8-pin power connector, PRO B850M-P WIFI is ready for the challenge of heavy-loading tasks.
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B850M-P WIFI is ready to deliver the world-class memory performance.
Transient Voltage Suppressors (TVS)
Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
5G LAN
5G LAN
Wi-Fi 7
Wi-Fi 7
EZ Antenna with Magnetic Stand
EZ Antenna with Magnetic Stand
THE NEXT GEN WI-FI SOLUTION – WI-FI 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
*Windows 11 compatibility only
Upgrade to Wi-Fi 7
Higher Order Modulation
Multi-Link Operation
Wi-Fi 7 (802.11be) introduced higher speeds, wider channels, improved efficiency, and reduced latency over Wi-Fi 6 (802.11ax). It also improved battery life and provided better performance in crowded environments.
AI LAN Manager
MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.
MSI AI LAN MANAGER
- Automatically prioritizes games above other applications
- Allows to change applications' traffic priority
- Allows to customize bandwidth for each application
- Analysis Wi-Fi signals to select the best source
Processor | |
Processor manufacturer | AMD |
Processor socket | Socket AM5 |
Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
Supported processor sockets | Socket AM5 |
Memory | |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
ECC ?ompatibility | Non-ECC |
Supported memory clock speeds | 6000,6400,8200 MHz |
Supported memory clock speed (max) | 8200 MHz |
Maximum internal memory | 256 GB |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2 |
Number of HDDs supported | 4 |
Number of storage drives supported | 7 |
RAID support | Yes |
RAID levels | 0, 1, 10 |
Graphics | |
On-board graphics card | No |
Internal I/O | |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
Total number of SATA connectors | 4 |
Front panel audio connector | Yes |
Front panel connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
Number of CPU fan connectors | 2 |
Number of water pump connectors | 1 |
RGB LED pin header | Yes |
Number of RGB LED pin headers | 3 |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | 5 Gigabit Ethernet |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
Bluetooth | Yes |
Bluetooth version | 5.4 |
Features | |
Motherboard chipset | AMD B850 |
Audio chip | Realtek ALC897 |
Audio output channels | 7.1 channels |
Product colour | Black |
Component for | PC |
Motherboard form factor | micro ATX |
Motherboard chipset family | AMD |
Windows operating systems supported | Windows 11 x64 |
Expansion slots | |
PCI Express x4 slots | 1 |
PCI Express x16 slots | 1 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
Number of M.2 (M) slots | 3 |
1st M.2 largest key size | 2280 |
1st M.2 highest PCI Express generation | 5.0 |
2nd M.2 largest key size | 2280 |
2nd M.2 highest PCI Express generation | 5.0 |
3rd M.2 largest key size | 2280 |
3rd M.2 highest PCI Express generation | 4.0 |
BIOS | |
BIOS type | UEFI AMI |
BIOS memory size | 256 Mbit |
ACPI version | 6.5 |
System Management BIOS (SMBIOS) version | 3.7 |
Weight & dimensions | |
Width | 243.8 mm |
Depth | 243.8 mm |
Warranty | |
Base Warranty | Non Non |
