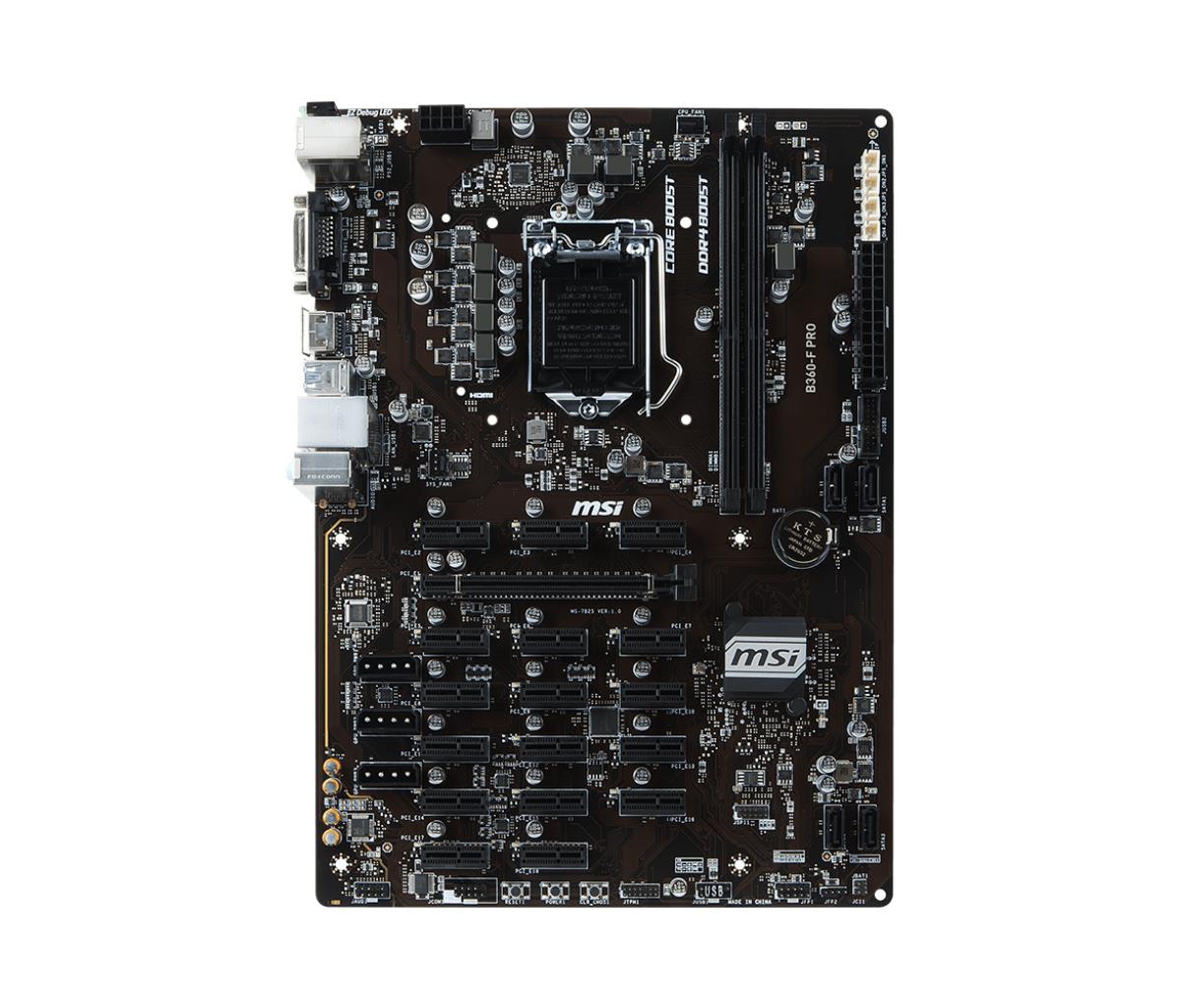

Motherboard B360-f Pro LGA1151 Intel B360 2 X Ddr4 ATX
ITCurry #: 86327555 | Article #: B360-F PRO-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
GENERATE YOUR OWN MONEY
MSI PRO Series motherboards are optimized for crypto currency mining like Bitcoin, Litecoin, Ethereum and more. These motherboards come with more PCI expansion slots, perfectly placed so you can install multiple graphics cards simultaneously with ease. Optimized Power Design and special BIOS options ensure a rock solid system for long mining sessions to maximize efficiency and coin generation.
5X POWER SYNC
MSI Mining motherboard supports up to 5 power connectors to deliver power for your motherboard and GPUs. With MSI exclusive adapters, you can combine with all the power supply effortlessly and boot your mining rig immediately.
SUPERB MINING MACHINE
MSI B360-F PRO motherboard is specifically designed for mining use which supports incredible 18 GPUs, 3 dedicate molex and up to five 24-pin power connectors. Providing you the easiest and the most convenient solution for you mining rig.
MANAGE YOUR MINING BOARD WITHOUT SCREEN
These features assist in trouble shooting, allow you to keep your complete system in check and allow for simple management
MINING GUARD
Debug is a nightmare for every users especially regarding to complex mining rig. MSI Mining motherboard brings you tons of tools to give you immediate assistance even without screen.
Power / Reset / Clear CMOS On Board
These accessible physical buttons help you instantly reset and power up/down your system. Make your mining setting easier.
EZ debug LED
Run into trouble? Onboard LEDs for key components will indicate the source of the problem. You know exactly where to look to get up and running again.
MINING LED
Featuring mining LED for each PCIE slot on the mining motherboard, you can check the status for each GPU by only spot the motherboard.
DISKLESS BOOT SUPPORTS
MSI Mining motherboard supports diskless boot. With diskless boot environment, miners don’t need maintain the operation system for each mining machines and save the money from the hard drives. Furthermore, it is the best security way to store your crypto currency.
INDEPENDENT SLOT POWER
Staying stable is the most important part for your 24/7 mining rig, MSI B360-F PRO motherboard is equipped with 3 dedicate 4-pin power connectors to provide you clean and efficient power for each PCIE slot. These extra power supply maintain GPUs’ reliability and maximize your megahash rates.
DEDICATE FOR 24/7 MINING
MSI B360-F PRO motherboard features dedicate capacitors for each PCI-E slot, offering more stable and smooth voltage for your GPUs. Ensure 24/7 mining performance and longer lifetime for your crypto mining.
DECOUPLING CAPACITOR
A key component in high-end motherboard designs, Decoupling capacitor have lower Equivalent Series Resistance (ESR) and an increased lifespan for over 10 years.
MINING MANAGEMENT
MSI B360-F PRO motherboard featuring customized Mining BIOS and built-in slot detection. One click into Mining mode to maximum your megahash rates by MSI exclusive BIOS setting. Auto detect your PCIE slot status and manage your mining rig with just one glance
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU
STAY COOL
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1151 (Socket H4) |
| Compatible processor series | Intel© Celeron©, Intel© CoreT i3, Intel© CoreT i5, Intel© CoreT i7, Intel© Pentium© |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC ?ompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666 MHz |
| Maximum internal memory | 32 GB |
| Supported memory module capacities | 16GB |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| TPM connector | Yes |
| Serial port headers | 1 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel© I219-V |
| Features | |
| Motherboard chipset | Intel© B360 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 17 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 225 mm |
| Other features | |
| Serial port via internal header | Yes |
| Warranty | |
| Base Warranty | Non Non |
