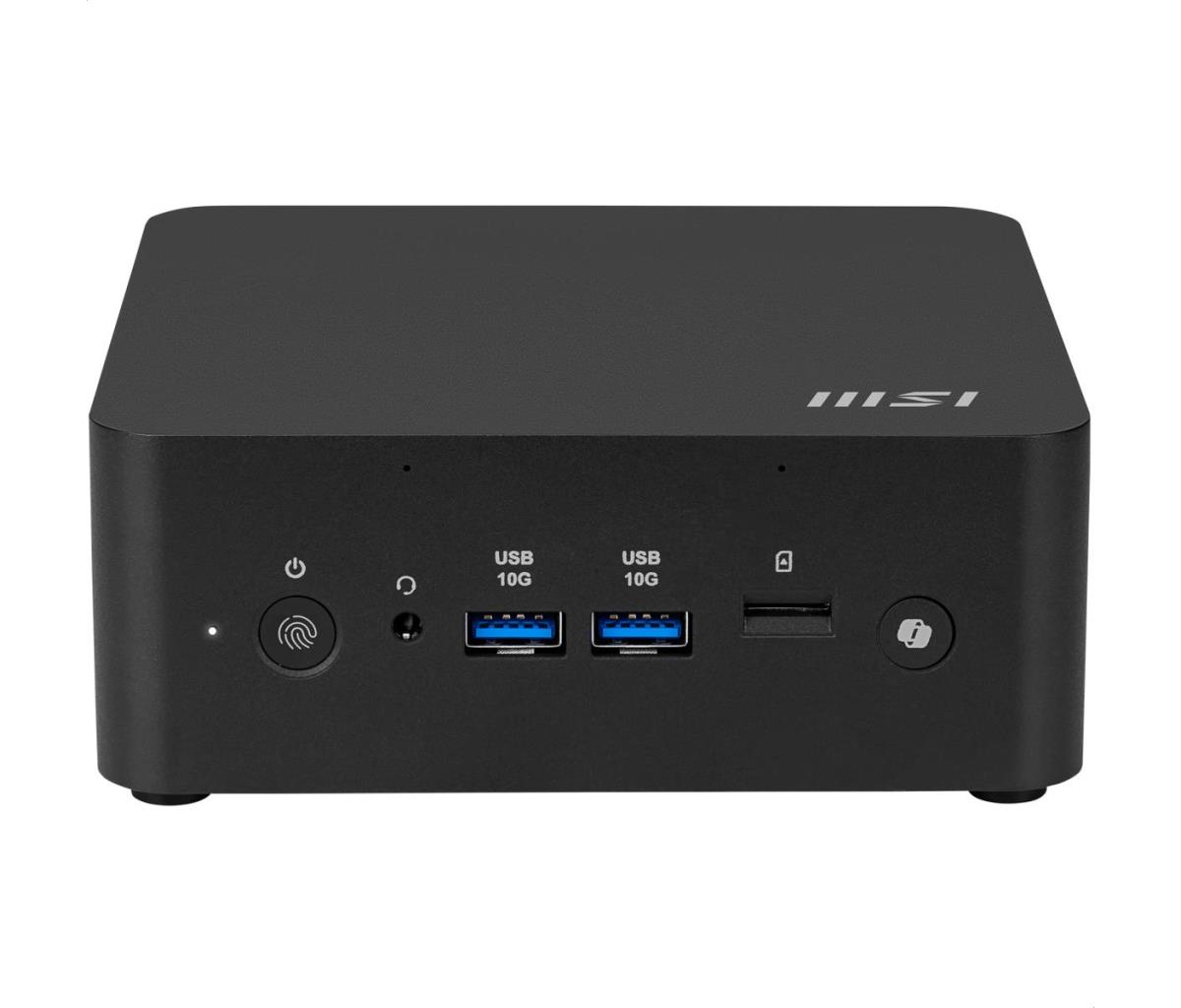

Cubi NUC Ai 2mg-001 - U7 258v - 32GB Ram - 1TB SSD - Intergrated Graphics - Win11 Pro With Air Cooler
ITCurry #: 8632A875 | Article #: CUBINUCAI+2MG001EU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Resilient and Pioneering Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
You sketch it.
Cocreator creates it.
Let your inner artist thrive with guidance from Cocreator.
Built-in D-Mic & Speaker
Enabling voice control for AI applications using the built-in D-Mic & speaker eliminates the need for external audio devices, conserving desk space and reducing clutter.
Intel® AI Playground
Offering various AI capabilities, including image creation, enhancement, and chatbot responses, all functions run locally on the PC, ensuring privacy and control over content and input.
For more information, please refer to the official Intel® website.
Mini Yet Powerful
The Cubi NUC comes with a perfect combination of Mini and Power, featuring a 0.826-liter chassis.
Maximize Space with the Versatile Cubi NUC
The Cubi NUC is perfect for spaces with limited room, featuring a 0.826-liter chassis. It can be mounted behind a monitor, on a wall, or in digital signage, freeing up desk space and creating a tidier workspace.
Tailored for Professional Users
Equipped with up to Intel® Core™ Ultra 9 Processor, it delivers faster and more reliable performance, enabling users to multitask various applications effortlessly.
Wi-Fi 7 Support
Wi-Fi 7 delivers ultra-fast speeds and increased network capacity, which is essential for efficiently managing AI workloads.
LPDDR5X Memory on Package (MOP)
LPDDR5X memory can enhance work efficiency and quality, processing large amounts of data and complex multitasking quickly and reducing waiting times and delays.
Thunderbolt 4:
A Single Cable to Serve All
The Thunderbolt 4 enables rapid data transfer up to 40 Gbps & power delivery input of up to 100W, crucial for handling large datasets in AI applications, making it an excellent choice for both charging and displaying through a single port.
3-Display Support
Supporting up to 3 displays with HDMI™-out and Thunderbolt 4 allows for increased productivity by providing more screen space to manage multiple applications simultaneously.
VESA Mountable Design
With its VESA Mountable design, the Cubi NUC Series can be easily installed in any location, providing users with greater flexibility and efficient space management in both home and office settings.
MSI Power Link
The Cubi NUC Series can be powered on using the power button on the MSI-selected monitor to bring the most convenient user experience
MSI Frozr AI PRO
MSI Frozr AI PRO cooling design enhances airflow, increases static pressure, and effectively lowers system temperatures for improved cooling and performance inside your PC.
Built for Sustainability
The Cubi NUC Series blends business-centric design with environmental responsibility - an embodiment of MSI's dedication to sustainability. By utilizing green material, PCR (Post-Consumer Recycled) plastic, ensures not only the products' durability but also commits to a greener world.
Our commitment extends to incorporating sustainable materials in both our product design and packaging. The Cubi NUC Series embodies sustainable value and heightened productivity.
Sustainably Sourced Wood Pulp with FSC Certification
FSC-certified cartons are made from sustainably sourced wood pulp, ensuring responsible forest management. This certification guarantees that the materials are renewable and low-carbon, promoting environmental sustainability.
By using FSC-certified cartons, MSI supports sustainable practices and contributes to the preservation of forests for future generations
Renewable Energy
Since 2021, MSI has installed solar power systems in its facilities and gradually increased the proportion of purchased renewable energy.
By 2024, it has achieved a carbon reduction of over 70%, with more than 99% of the electricity used in its factories coming from renewable sources.
This demonstrates MSI's commitment to achieving net-zero sustainability by 2050.
MSI Center
The MSI Center allows for easy optimization and resource allocation to enhance software performance.
External Power Switch
The optional external power switch significantly enhances the convenience of turning on the computer. In cases where the computer is situated in a hard-to-reach area, opting for the external power switch on the desk is far superior to bending down to turn it on.
B2B Projects
Over the past years, MSI has successfully supported countless of B2B projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 258V |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 4 |
| Low Power Efficient-cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.2 GHz |
| Low Power Efficient-core Base Frequency | 2200 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 17 W |
| Maximum turbo power | 37 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 115 TOPs |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 64 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics 140V |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Number of USB ports with PowerShare support | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Intel© Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 slots | 1 |
| Design | |
| Chassis type | Mini PC |
| Volume | 0.826 L |
| Placement supported | Horizontal/Vertical |
| Number of 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
| Market positioning | Business |
| Powered by | MSI |
| Motherboard form factor | NUC |
| Audio chip | Realtek ALC256 |
| Audio system | High Definition Audio |
| Audio output channels | 2.0 channels |
| Built-in speaker(s) | Yes |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Copilot+ PC | Yes |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Compliance certificates | CB, Federal Communications Commission (FCC) |
| Weight & dimensions | |
| Width | 135.6 mm |
| Depth | 132.5 mm |
| Height | 50.1 mm |
| Weight | 667 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.68 kg |
| Packaging content | |
| Mouse included | No |
| Keyboard included | No |
| Keyboard backlit | No |
| Display | |
| Display included | No |
| Technical details | |
| Statement of conformance & platform certificate included | Yes |
| Not classified as hazardous under GHS | Yes |
| Other features | |
| Warranty period | 3 year(s) |
| Warranty | |
| Base Warranty | Non Non |
