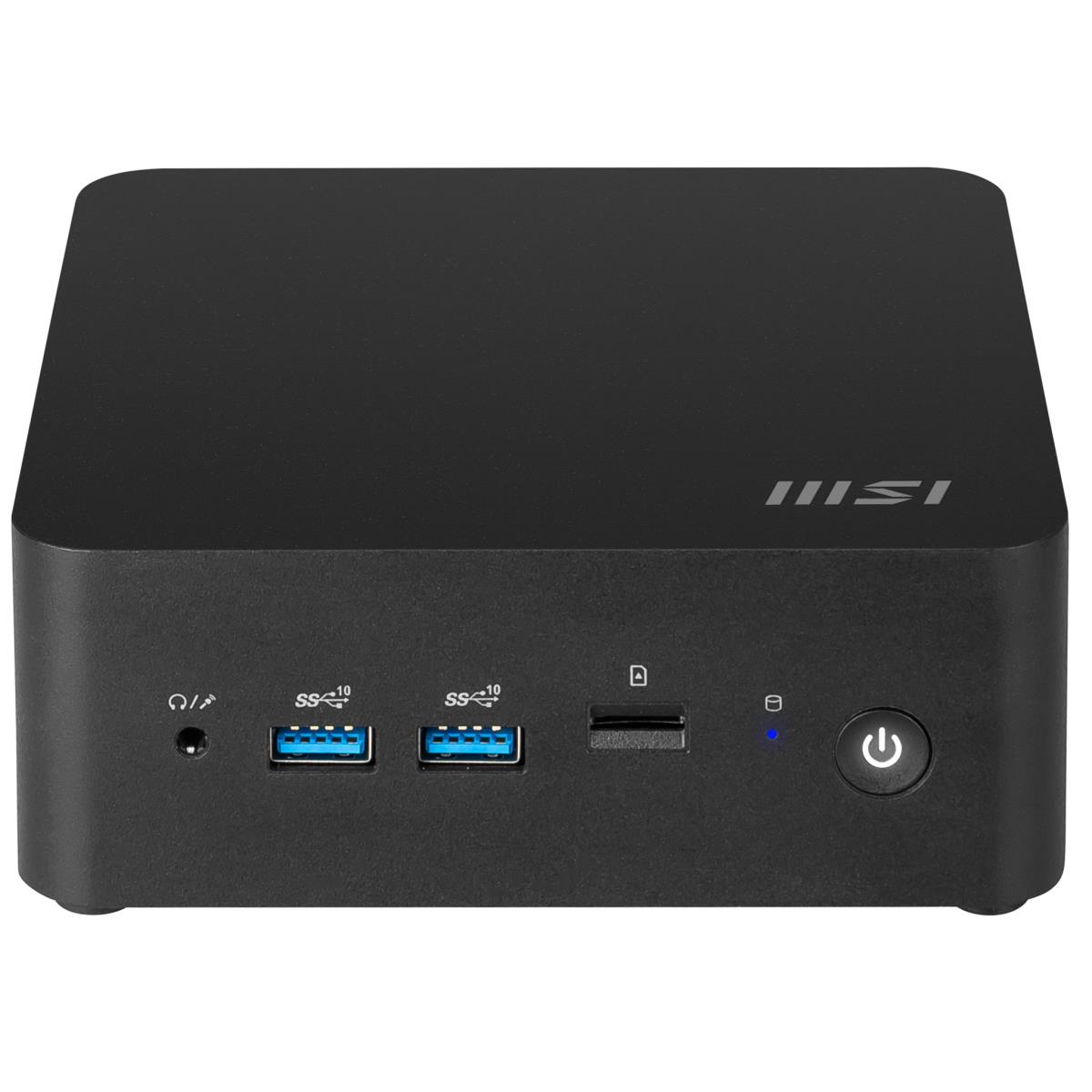

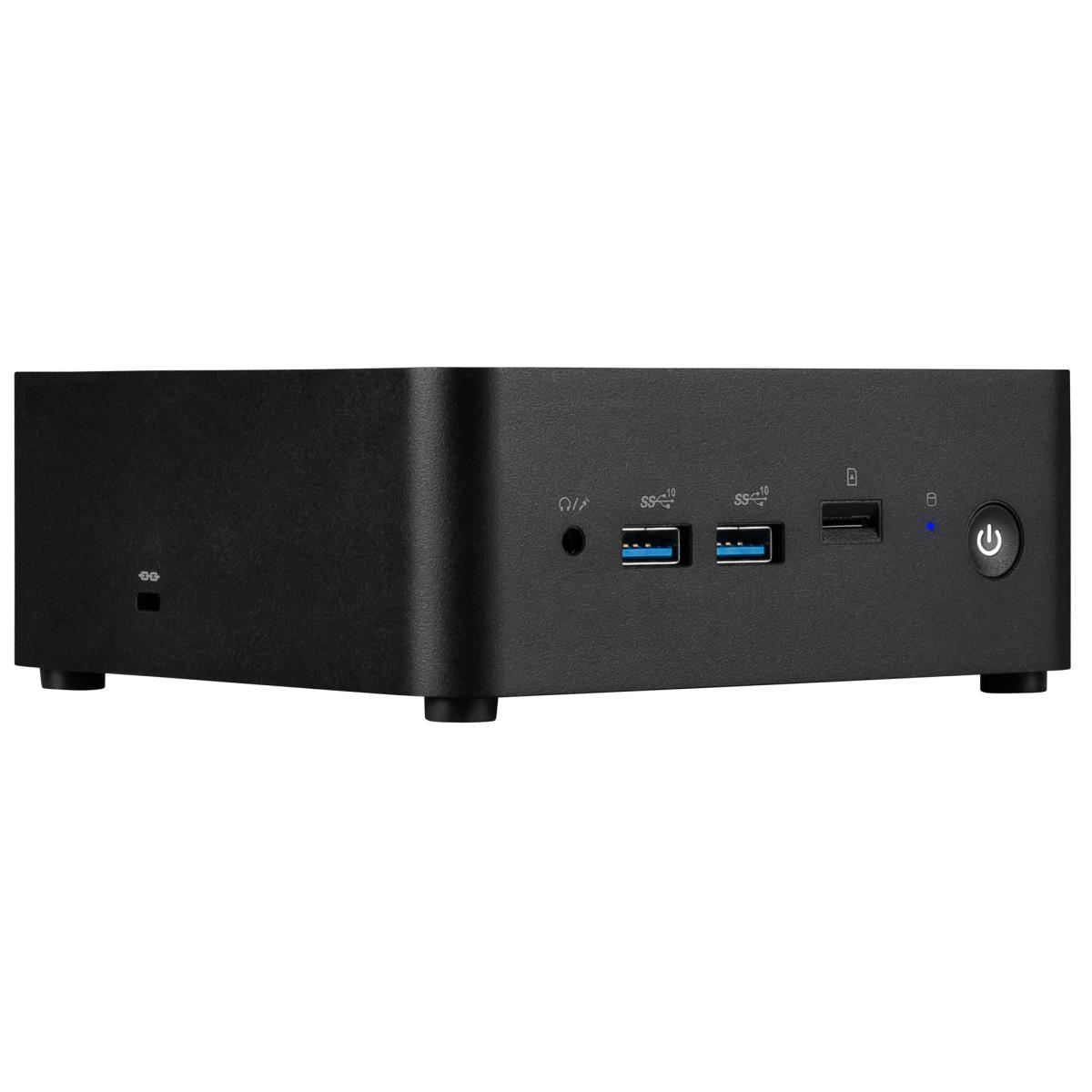

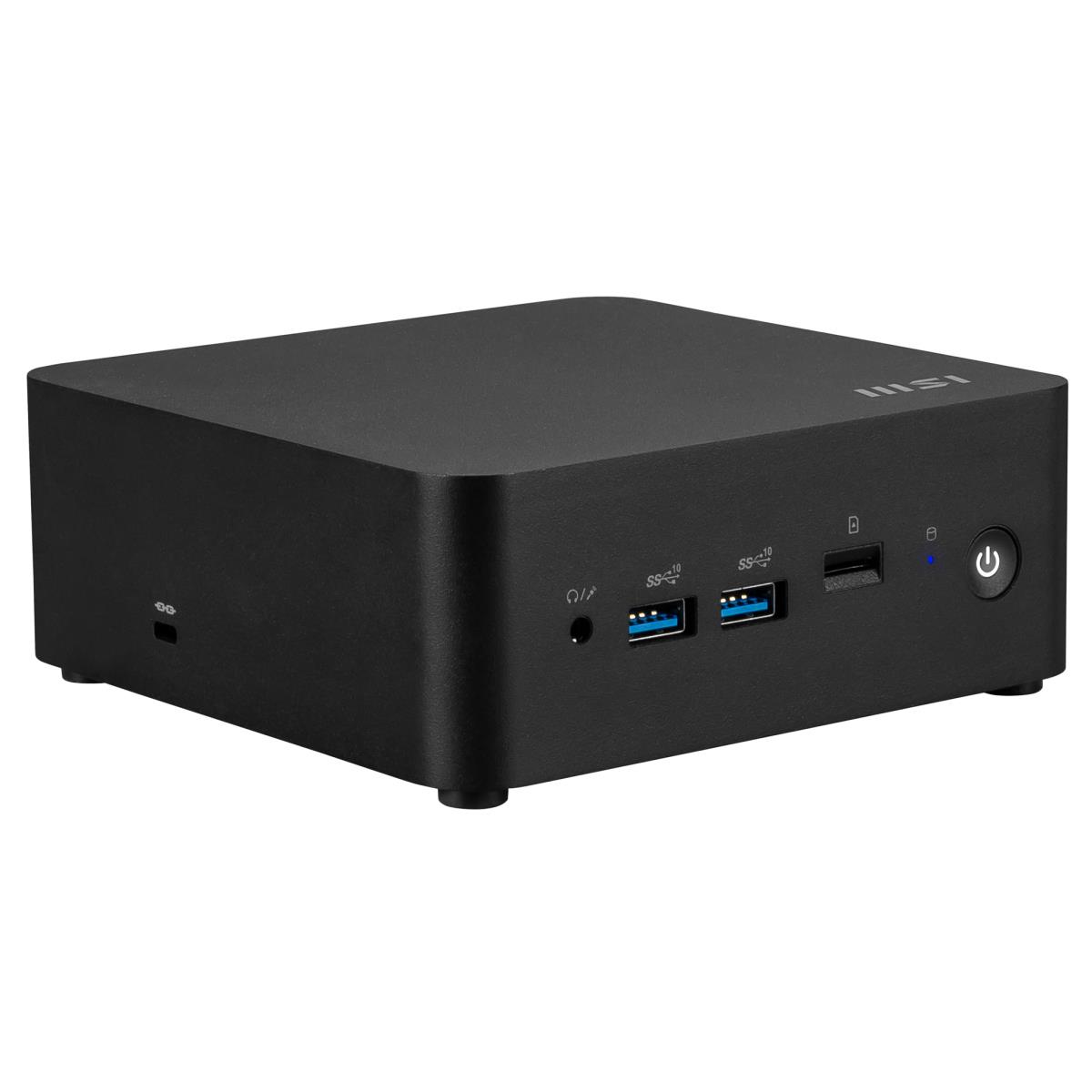

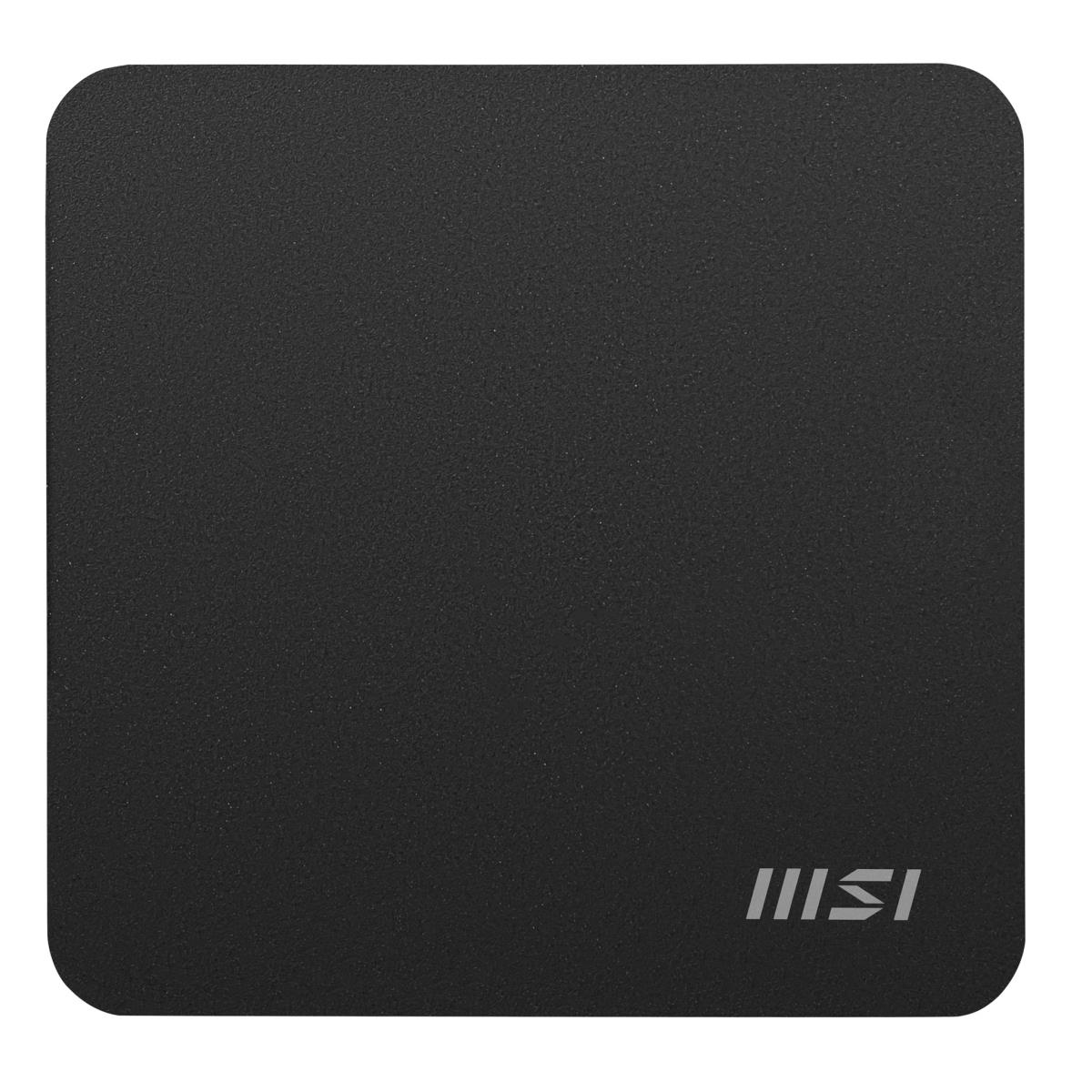

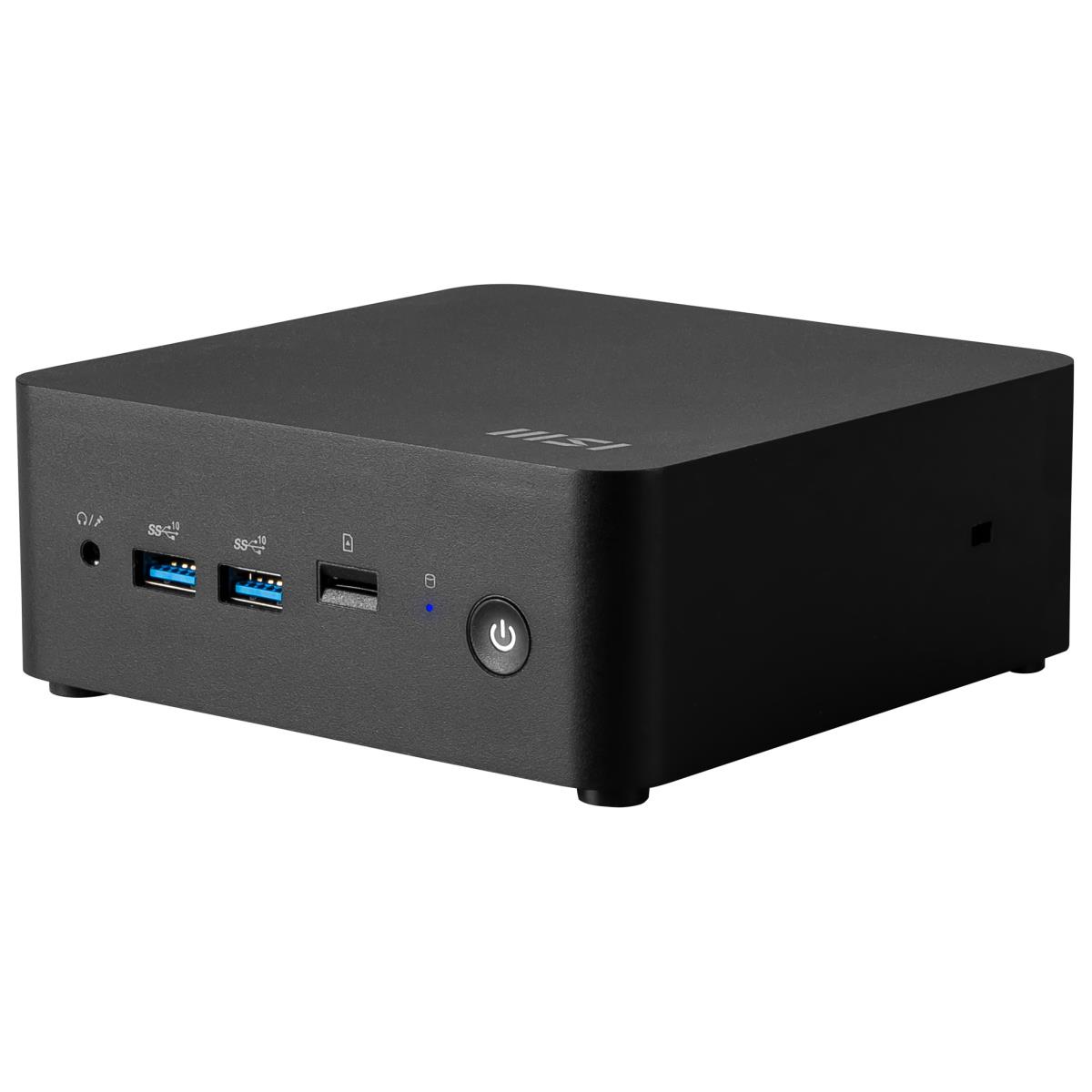

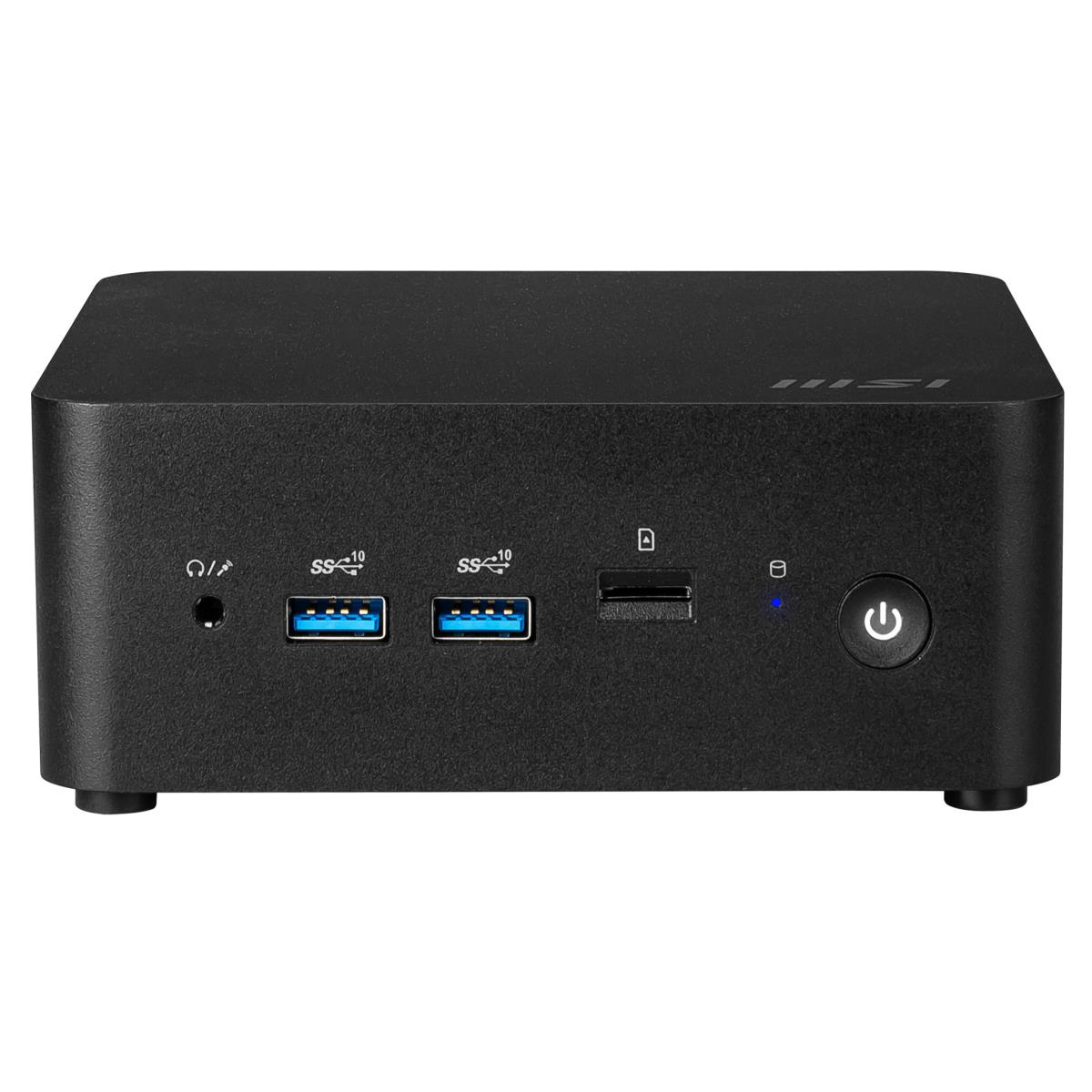

Cubi NUC 1m-003eu - i3 100u - 8GB Ram - 512b SSD - Win11 Pro
ITCurry #: 8632A405 | Article #: CUBINUC1M003EU
slide 2 of 15
Related products
slide 7 to 11 of 14
Product Information
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core 3 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 100U |
| Processor cores | 6 |
| Processor threads | 8 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 2 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Number of processors supported | 1 |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Memory | |
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Supported memory types | DDR5-SDRAM |
| Storage | |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Network | |
| Ethernet LAN | Yes |
| LAN controller | Intel I226-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |

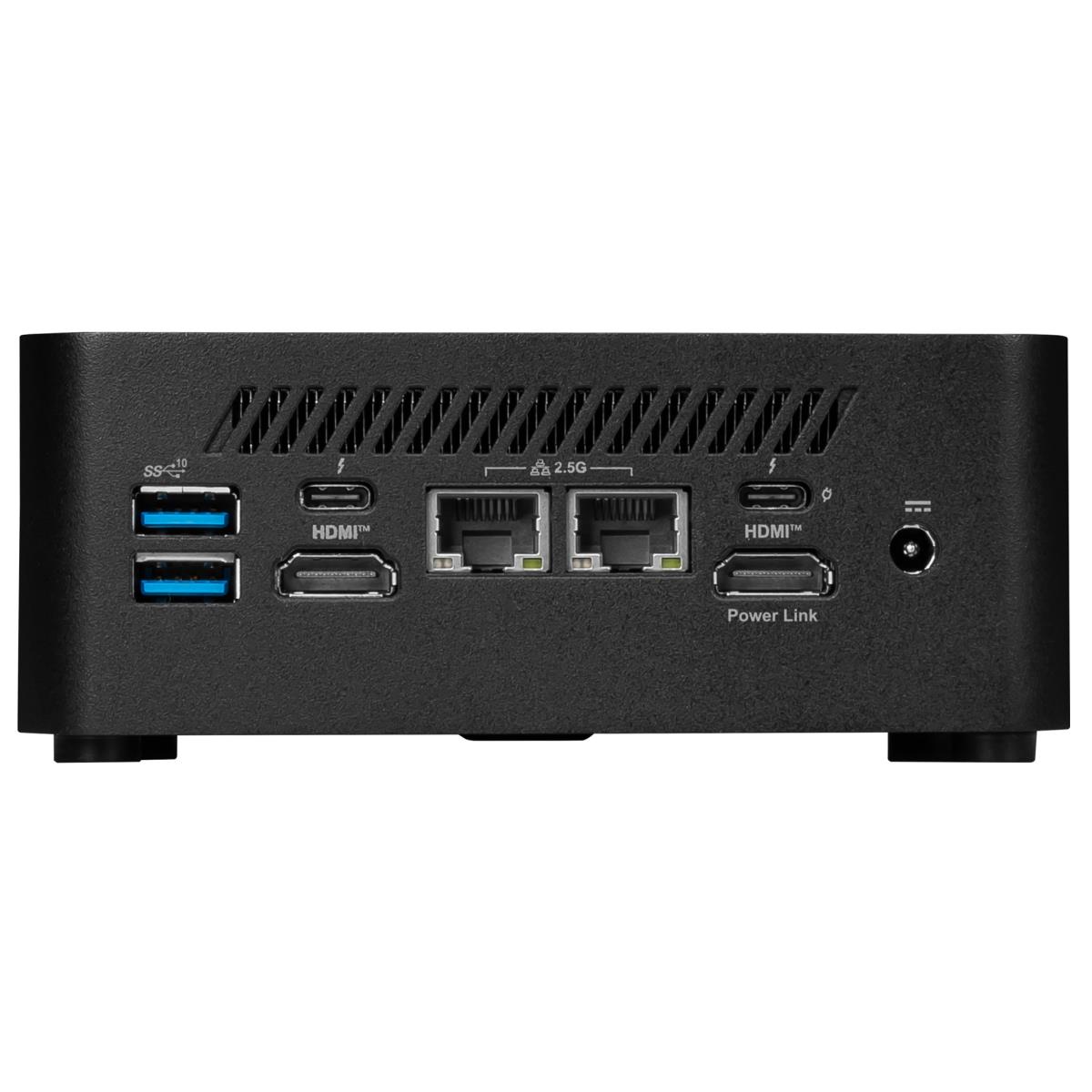

| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Intel© Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DVI port | No |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Microphone in | No |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Design | |
| Chassis type | Mini PC |

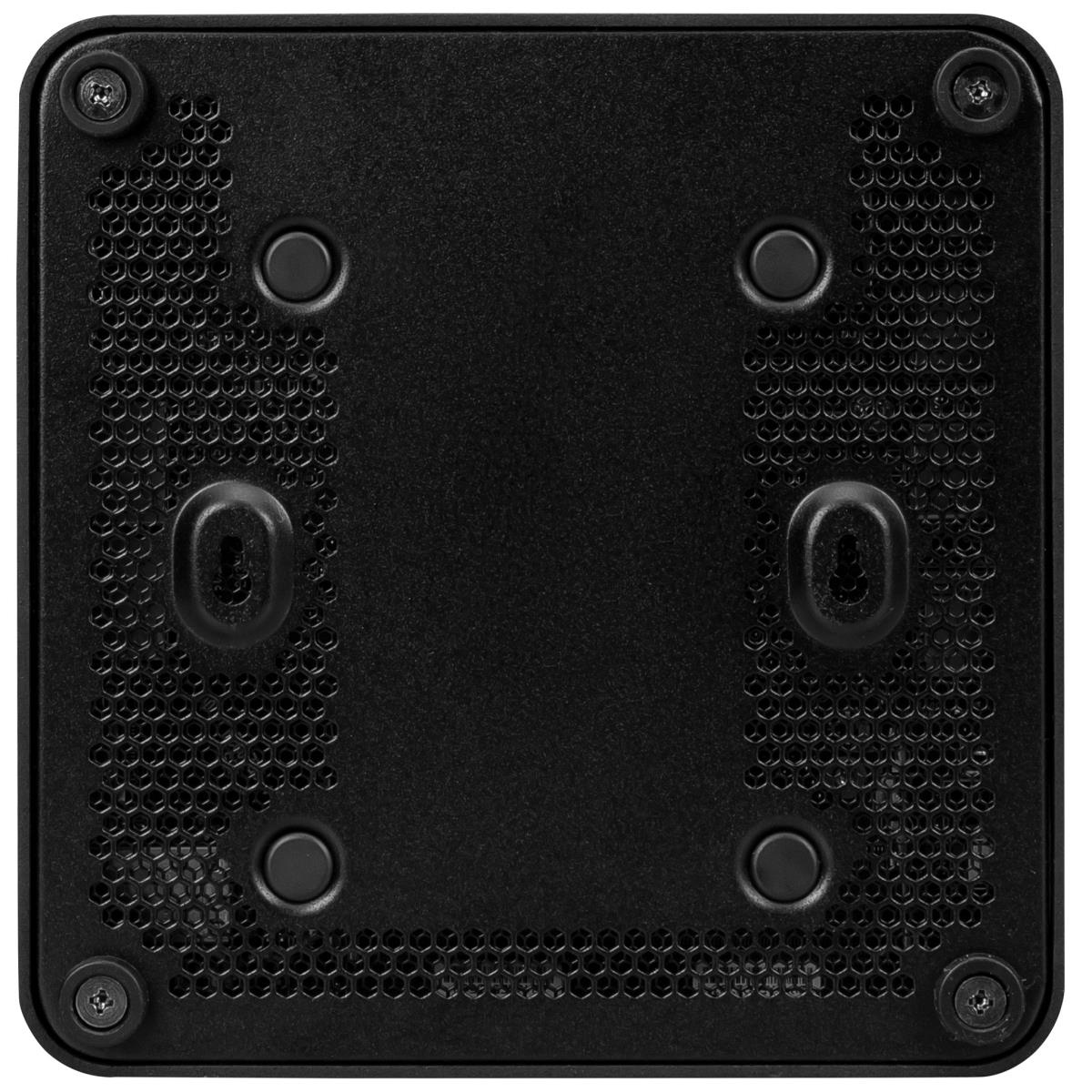

| VESA mounting | Yes |

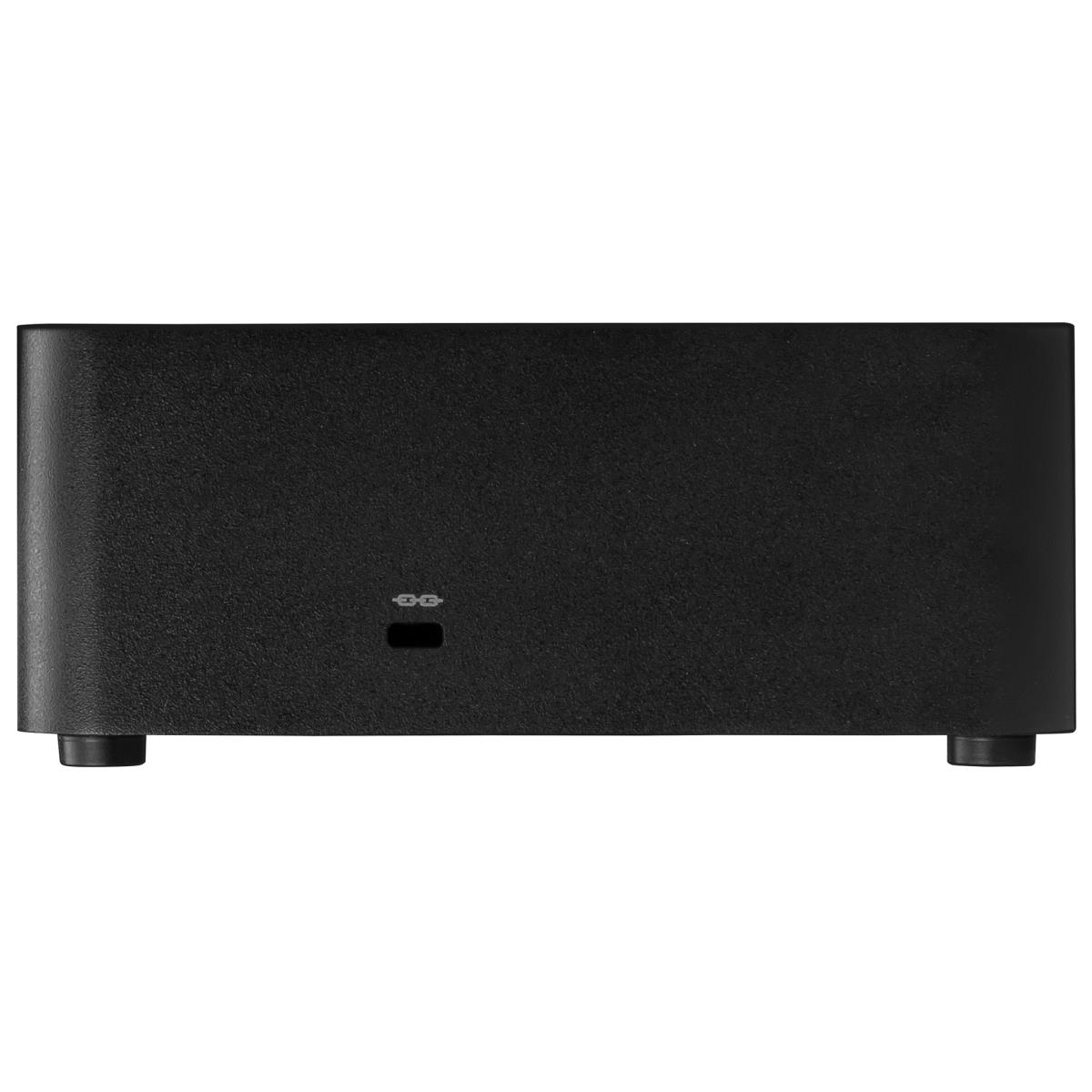

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Housing material | Plastic |
| Performance | |
| Motherboard chipset | Intel SoC |
| Motherboard form factor | NUC |
| Built-in speaker(s) | No |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Product type | Mini PC |
| Software | |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply | 120 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| Weight & dimensions | |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 625 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.45 kg |
| Packaging content | |
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
| Power cord included | Yes |
| Display | |
| Display included | No |
| Other features | |
| Power supply type | External AC adapter |
| Panel mounting interface | 100 x 100 mm |
| Graphics card family | Intel |
| Cooling type | Active |
| Number of displays supported | 4 |
| Number of M.2 (M) slots | 2 |
| Warranty period | 3 year(s) |
| Warranty | |
| Base Warranty | Non Non |
Cubi NUC 1m-003eu - i3 100u - 8GB Ram - 512b SSD - Win11 Pro
430.87
