Cpu Chassis Mag Pano 100r Pz Black
ITCurry #: 8632A472 | Article #: MAG PANO 100R PZ-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The appearance design of the case adopts the MAG series brand symbol lines.

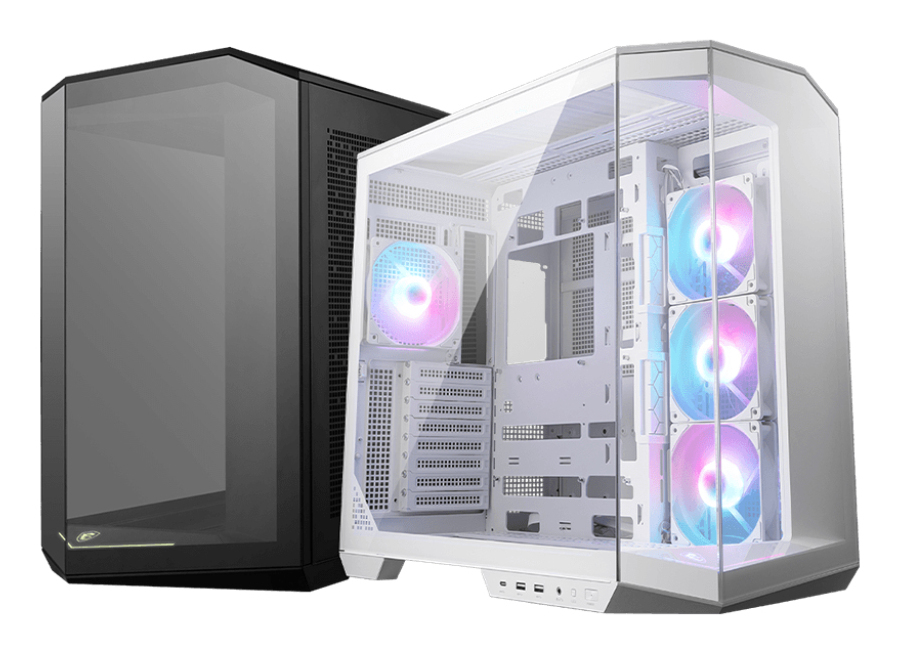

To meet the desire to show the ARGB PC build, the MAG PANO 100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness.
Chamfering Technique
Each piece of 4 mm tempered glass is cut at an angle to minimize every edge gap to make case appearance look more beautiful.
HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.
At the side, supports the flexibility of mounting radiator in a push-pull configuration or the thicker radiator and fans.
EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.
Removable panel design
The front, side and top panels are tool-free to remove, when installing side fans and radiators, there are no obstacles to hinder your progress.
| Design | |
| Form factor | Midi Tower |
| Type | PC |
| Product colour | White |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 3 |
| Number of expansion slots | 8 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| On/off button | Yes |
| LED indicators | Yes |
| Maximum CPU cooler height | 16.6 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 20 cm |
| Power supply | |
| Power supply included | Yes |
| Power supply location | Bottom |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Cooling | |
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120,140 mm |
| Side radiator sizes supported | 120,240,360 mm |
| Bottom radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,360 mm |
| Storage | |
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
| VESA mounting | No |
| Weight & dimensions | |
| Width | 290 mm |
| Depth | 518.7 mm |
| Height | 482 mm |
| Warranty | |
| Base Warranty | Non Non |
