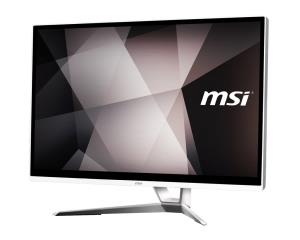

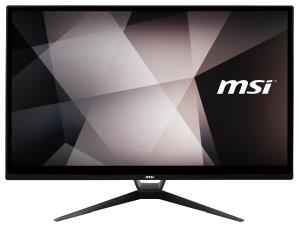

Aio Pro 22xt 10m 448eu White - 22in - i3 10100 - 8GB Ram - 256GB SSD - Win11 Pro With 2 Years Warranty
ITCurry #: 86329080 | Article #: PRO 22XT 10M-448EU-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
ENHANCE YOUR VIEWING EXPERIENCE WITH IPS GRADE PANEL
PRO 22X Series is equipped with IPS Grade Panel which not only instantly optimizes the screen colors and brightness to ensure that you enjoy every scene at its best, but also allows you to have a consistent picture quality with an extremely wide viewing angle vertically as well horizontally of 178 degrees.
NOTHING BUT FOCUS
Go Through Every Corner, Edge & Plane for CAD & APP developers
PRO 22X is equipped with a 10th Generation Intel® Core™ Processors which utilize a power-efficient microarchitecture, advanced process technology and silicon optimizations to deliver faster performance than processors of the previous generation.
NVME PCIE M.2 SSD
Time is very important during your workday. Enjoy a blazing fast system boot up and insanely quick loading of applications and data to save time. The PRO 22X series is equipped with an NVMe PCIe M.2 SSD that delivers speeds up to 2200MB/s which is 5 times faster.
SILENT PRO COOLING SYSTEM
SEPARATE AIR FLOW FOR THE HOTTEST KEY COMPONENTS
The MSI PRO 22X is equipped with a special cooling system, Silent PRO Cooling. Part of this system is a Server Grade Thermal Module that handles the cooling of different components within the system. Besides that we put the most important key components on the top side so warm air can easily move out and we separate the air flow to make sure the system's temperature stays perfectly under control for a cool and silent operation.
MORE STABILIZED MONITOR PANEL
FLICKERING / DRY EYE / EYESTRAIN / READING GLASSES
Thanks to MSI Anti-Flicker technology, a stable output current for the monitor is provided. It will help against dry eyes, eyestrain, and lowers the chance to need reading glasses in the future.
5-WAY NAVIGATOR OSD CONTROL
The World’s First All-in-One PC with 5-Way Navigator for an easy OSD Control
EASY MAINTENANCE DESIGN
With the HDD Rapid Upgrade Design, maintaining or upgrading your 2.5" storage on PRO 22X will not be a nightmare any more.
VESA MOUNTABLE
Hook up the PRO 22X anywhere you’d like with its VESA mount support. Take it completely off your table/workspace, or mount it as a display.
SEE MORE,
DO MORE
With the external output ports (HDMI), PRO 22X allows you to extend a second screen to pre-view your professional working data.
With the second display, PRO 22X allows you to increase working efficiency with more possibilities in a large variety of situations.
COUNTLESS OF SUCCESSFUL B2B PROJECTS
Over the past years, MSI has successfully supported Countless of commercial projects, including government tenders, restaurant & hotel facilitation, shopping mall navigation projects, school & university developments and professional office projects.
| Display | |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Tilt angle range | -5 - 15ø |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© CoreT i3 |
| Processor generation | 10th gen Intel© CoreT i3 |
| Processor model | i3-10100 |
| Processor frequency | 3.6 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 4 |
| Processor cache | 6 MB |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory form factor | DIMM/SO-DIMM |
| Storage | |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | NVMe, PCI Express |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Graphics | |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel© UHD Graphics 630 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Dual Band Wireless-AC 3168 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Design | |
| Product colour | White |
| Performance | |
| Product type | All-in-One PC |
| Market positioning | Business |
| Motherboard chipset | Intel H410 |
| Software | |
| Operating system installed | Windows 11 Home |
| Processor special features | |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
| AC adapter power | 120 W |
| Weight & dimensions | |
| Width (with stand) | 500 mm |
| Depth (with stand) | 210 mm |
| Height (with stand) | 370 mm |
| Weight (with stand) | 5.82 kg |
| Package weight | 8.35 kg |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
| Warranty | |
| Base Warranty | Non Non |
