M9120 Pci-e X16
ITCurry #: 34002284 | Article #: M9120-E512F-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The Matrox M9120 PCIe x16 ATX graphics card renders pristine image quality with dual monitor support at resolutions up to 1920x1200 (digital), or 2048x1536 (analog) for an exceptional multi-display user experience. Armed with 512MB of graphics memory and advanced desktop management, the M9120 drives business, government, and industrial applications with extraordinary performance on two high-resolution monitors in both independent and stretched desktop modes. It offers optimal Windows Vista Aero support (WDDM mode), and can be paired with a second Matrox M-Series graphics card if additional outputs are required.

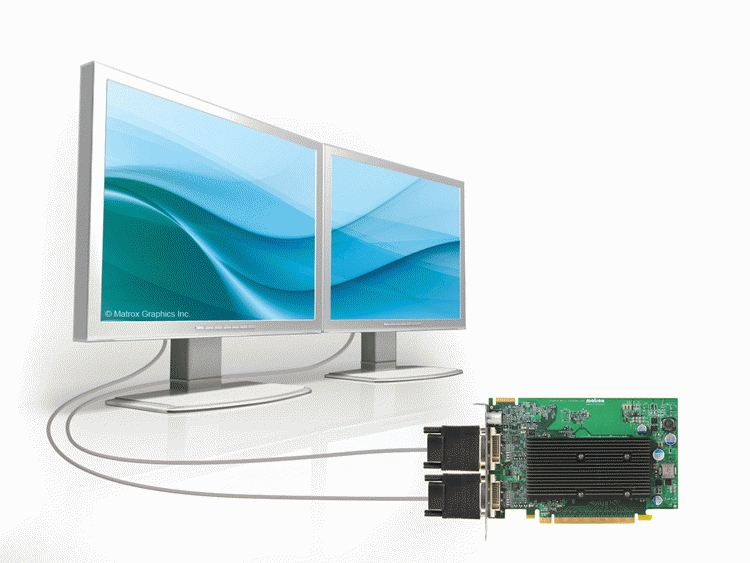

High-resolution dual monitor support
Up to 1920 x 1200 digital; 2048 x 1536 analog per output
Native PCI express x16 performance
Maximum bandwidth to ensure best performance
512 MB of memory
For enhanced performance in demanding multi-monitor applications
ATX form factor
Optimal support for Windows® Vista
Aero (WDDM mode), XP, among other OS platforms
Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
Joined graphics card mode
Allows for use of an additional Matrox M-Series graphics card, to increase total monitor support
Wide enterprise flexibility
Unified driver package compatible with other Matrox products
Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
Global sales and technical support
Hardware Included
Matrox M9120 PCIe x16 graphics card (with factory-installed ATX bracket)
Two DVI-I-to-HD15 connector adapters
Software Included
Matrox display drivers for Microsoft Windows Vista and XP
Matrox PowerDesk desktop management software
| Processor | |
| CUDA | No |
| Graphics processor family | Matrox |
| Maximum resolution | 2048 x 1536 pixels |
| Parallel processing technology support | Not supported |
| Maximum analog resolution | 2 x 2048 pixels |
| Maximum digital resolution | 2 x 1920 pixels |
| Maximum displays per videocard | 2 |
| Memory | |
| Graphics card memory type | GDDR2 |
| Memory bus | 128 bit |
| Ports & interfaces | |
| Interface type | PCI Express x16 |
| Dual VGA | Yes |
| Video in | N |
| DVI-D ports quantity | 2 |
| DVI-I ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
| DVI ports quantity | 2 |
| Performance | |
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | No |
| OpenGL version | 2.0 |
| Dual Link DVI | Yes |
| Full HD | Yes |
| Dual DVO | Yes |
| Design | |
| Cooling type | Passive |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Certification | EMC Certifications: Class B ROHS & WEEE compliant |
| System requirements | |
| Windows operating systems supported | Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | No |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64 |
| Weight & dimensions | |
| Length | 168 mm |
| Depth | 19 mm |
| Height | 111 mm |
| Packaging content | |
| Bundled software | Matrox PowerDesk display driver & desktop management software |
| Other features | |
| Mac compatibility | No |
| HDMI | No |
| Compatible operating systems | Microsoft Windows 7 (32/64bit)*, Microsoft Windows XP (32/64bit)*, Microsoft Windows Vista (32/64bit)*, Microsoft Windows Server 2003/2008 (32/64bit)*, See website for details Linux (www.matrox.com/graphics/en/products/graphics_cards/m_series/linux_distributions.html) |
| Graphics card family | Matrox |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
