Matrox ConvertIP SRH
Single-channel RJ45 HDMI-to-IP transmitter/receiver

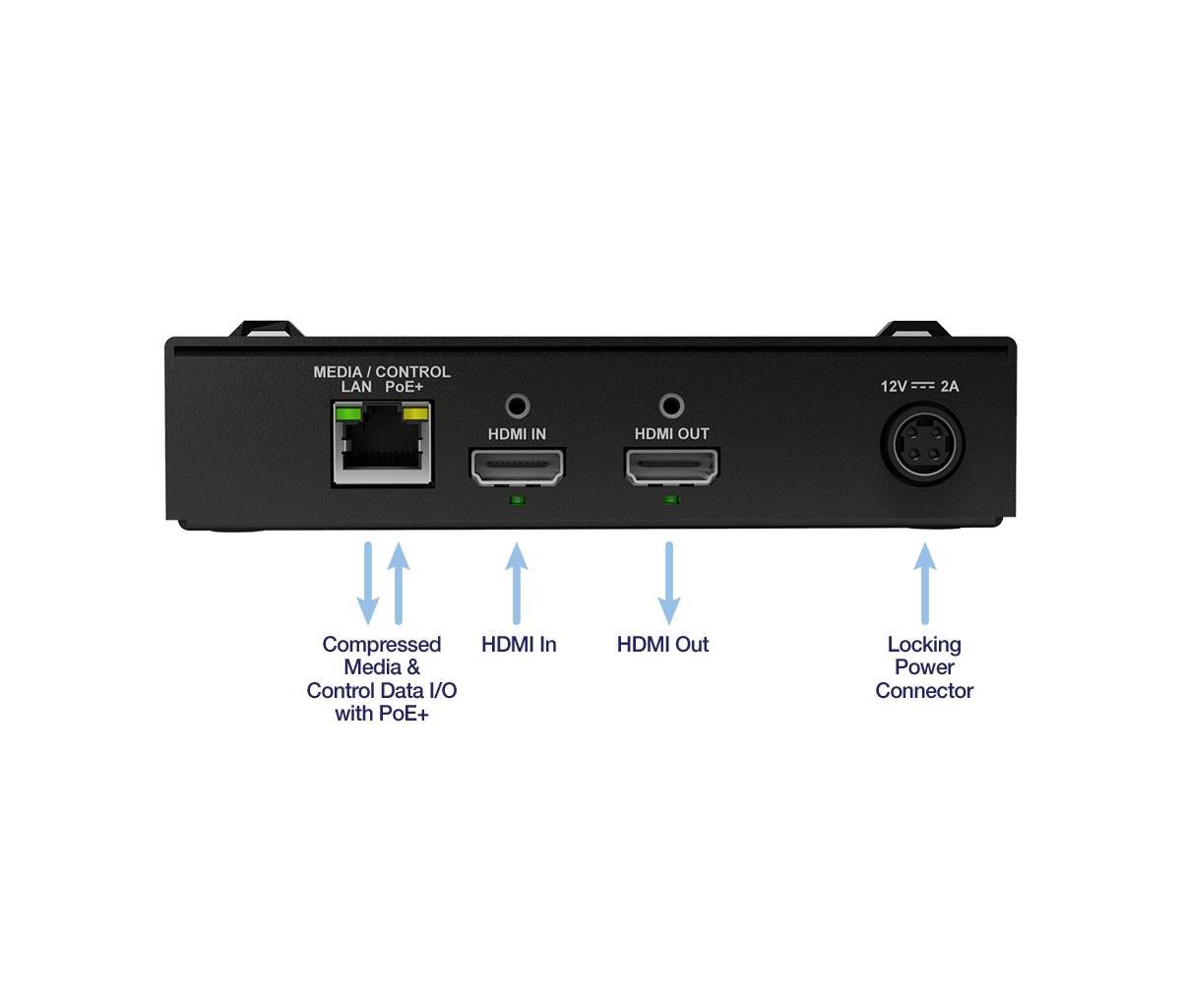

Matrox ConvertIP SRH is a compact, standalone ST 2110 and IPMX transmitter/receiver device. Featuring one RJ45 port, ConvertIP SRH is designed for 1G AV workflows and is optimal for an ultra-low latency experience. The device can deliver power over Ethernet through its RJ45 connection, or it can be powered through an optional power supply unit. Both can be used simultaneously to deliver power redundancy.
Key features
• HDMI I/O
• Multi-network support
• 1x RJ45 1G network support
• Fanless design for quiet cooling
• Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)
• Optional bracket for VESA mounting behind monitors
• Optional 1 RU rack shelf that holds two appliances
• Optional fault-tolerant, hot-swappable, and rack-mountable power supply
Benefits
• Transmit or receive signals from a single device
• Low latency with exceptional 4K image quality
• Colibri codec for high-quality transmission of compressed media
• Optional JPEG XS codec license for uncompressed media
• IPMX ready
• ConvertIP Command Center complimentary web interface for managing ConvertIP devices
• Optional Matrox ConductIP software license for discovery and routing
• Compact form factor mounts easily to the back of a monitor
| Features | |
| Converter type | Active video converter |
| Housing material | Metal |
| Video | |
| Supported chroma subsampling | 4:2:2, 4:4:4, 4:2:0 |
| Colour space supported | RGB, YUV |
| Maximum refresh rate | 60 Hz |
| Ports & interfaces | |
| DC-in jack | Yes |
| Power | |
| Input voltage | 12 V |
| Power consumption (typical) | 18 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 øC |
| Weight & dimensions | |
| Width | 138 mm |
| Depth | 181 mm |
| Height | 36 mm |
| Weight | 665 g |
| Other features | |
| Firmware upgradeable | Yes |
| Warranty | |
| Base Warranty | Non Non |
