Logi Dock Flex (939-002180)
ITCurry #: 31908519 | Article #: 939-002180-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

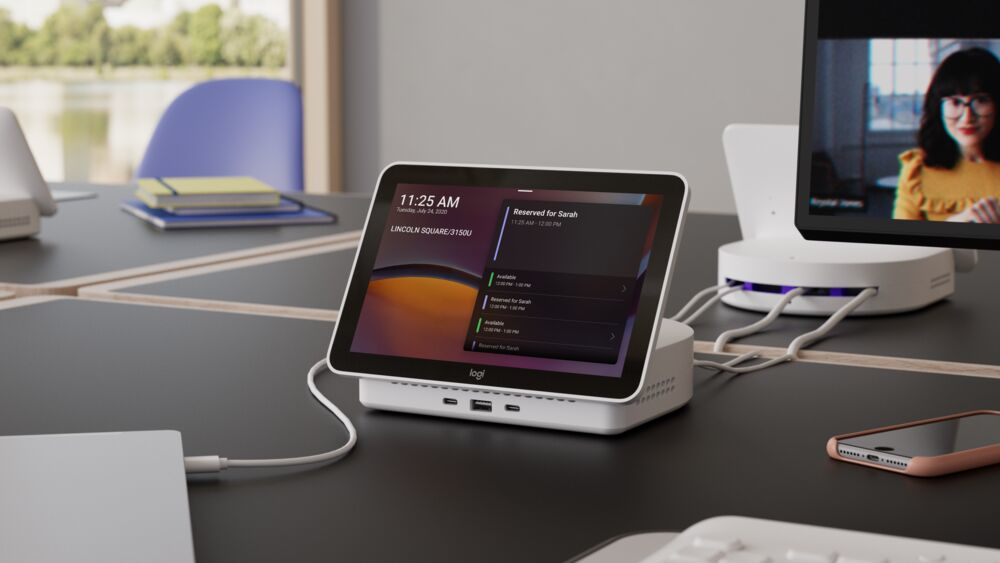

Logi Dock Flex managed docking station made for desk booking
Logi Dock Flex is a managed docking station that enables easy desk booking for employees and a greater ability to manage shared desks across locations.

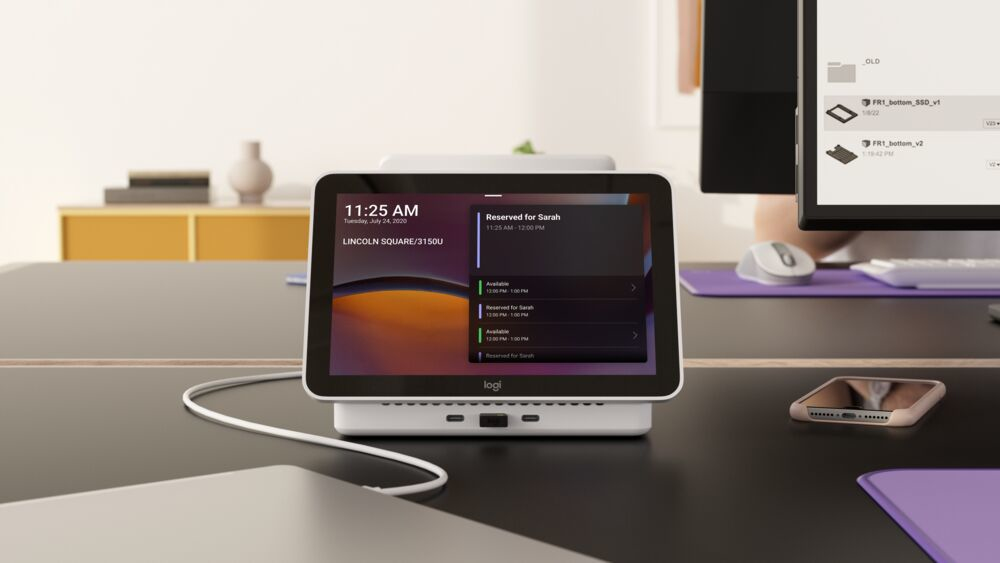

This multi-purpose dock enables a simple way to deploy desk booking. The 8” screen indicates desk availability at a glance, to help employees understand which desks are free to use and which are booked (and by whom).
Designed for full connectivity, Logi Dock Flex includes ports for 6 USB peripherals, dual 4K displays, Gigabit Ethernet, and charges laptops up to 100w of power with no special drivers required. By using a single USB-C cable, employees easily connect their laptops and gain immediate access to all desk peripherals. Locked-in cable management keeps cables securely attached and desks free from clutter.
Monitor and manage Logi Dock Flex remotely using compatible software such as Logitech Sync, Zoom Device Management, or Microsoft Teams Admin Center.
| Display | |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Display technology | IPS |
| LED backlight | Yes |
| Viewing angle | 85ø |
| Display brightness | 300 cd/mý |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 5 |
| Fingerprint resistant | Yes |
| Design | |
| Housing colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Ambient light sensor | Yes |
| Oleophobic coating | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Built-in microphone | No |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | 128-bit AES |
| Ports & interfaces | |
| USB port | Yes |
| RJ-45 ports quantity | 1 |
| USB Type-C ports quantity | 4 |
| USB 2.0 Type-A ports quantity | 3 |
| Power | |
| Power source type | DC |
| Weight & dimensions | |
| Width | 201 mm |
| Depth | 177 mm |
| Height | 141 mm |
| Weight | 1 kg |
| Packaging content | |
| Cables included | AC, USB Type-C |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -40 - 75 øC |
| Warranty | |
| Base Warranty | Non Non |
