Digital Signage - 98um5k-b - 98in - 3840 X 2160 (uhd)
ITCurry #: 3182A035 | Article #: 98UM5K-B.AEUQ-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

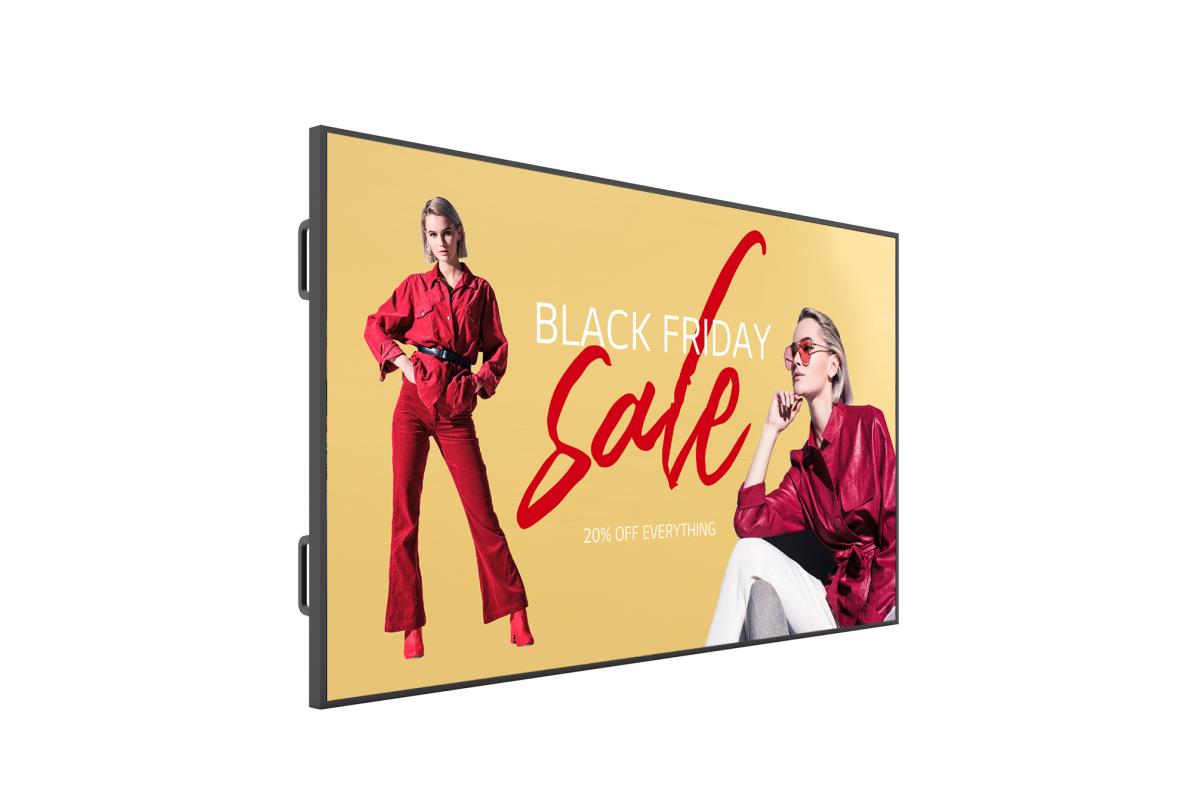

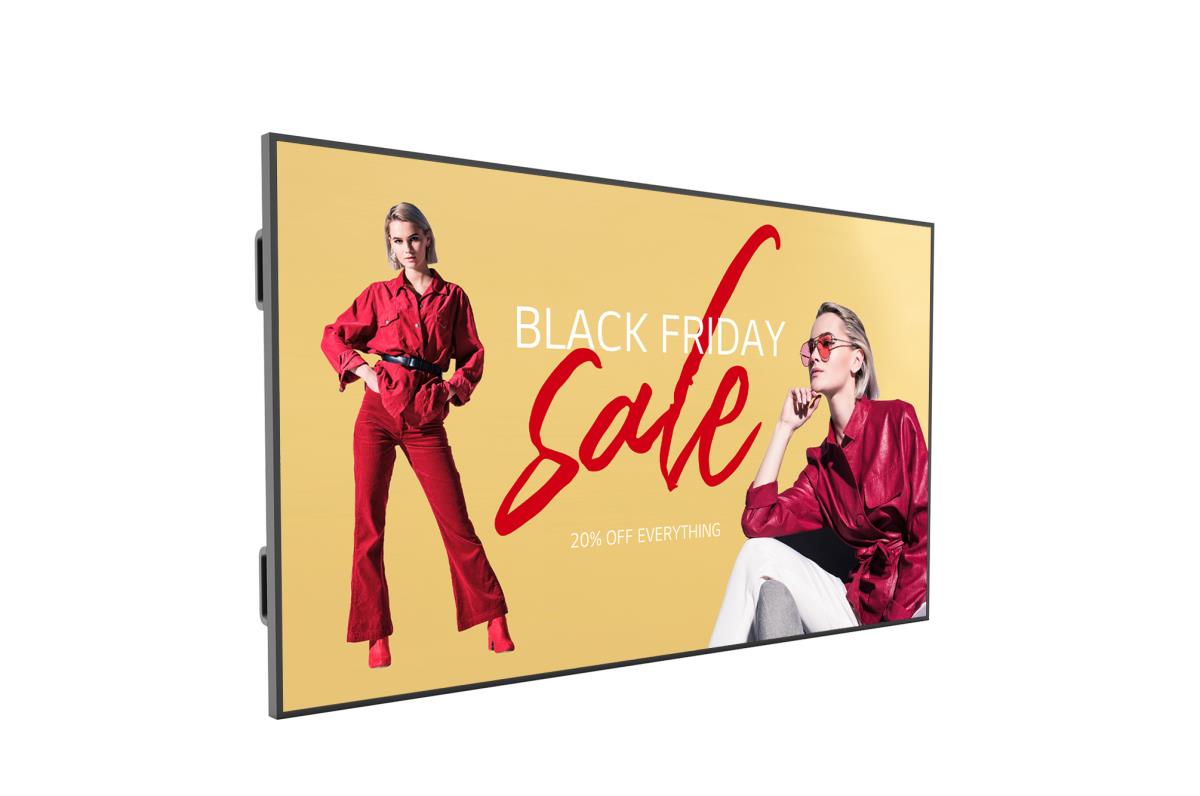

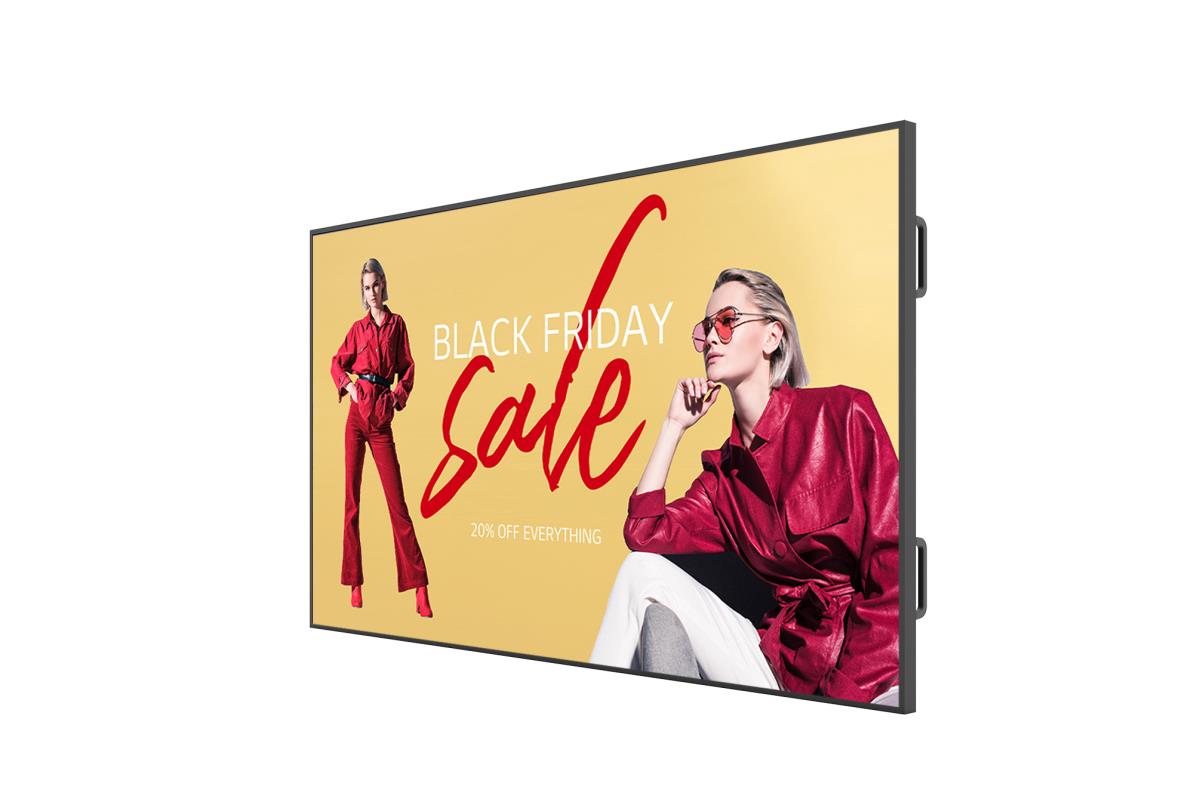

UHD Large Screen Signage Display with LG webOS Platform
Super High Resolution
Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.
Adequate Brightness Level
The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.
High-Performance with webOS
LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.
Built-in Speaker
Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

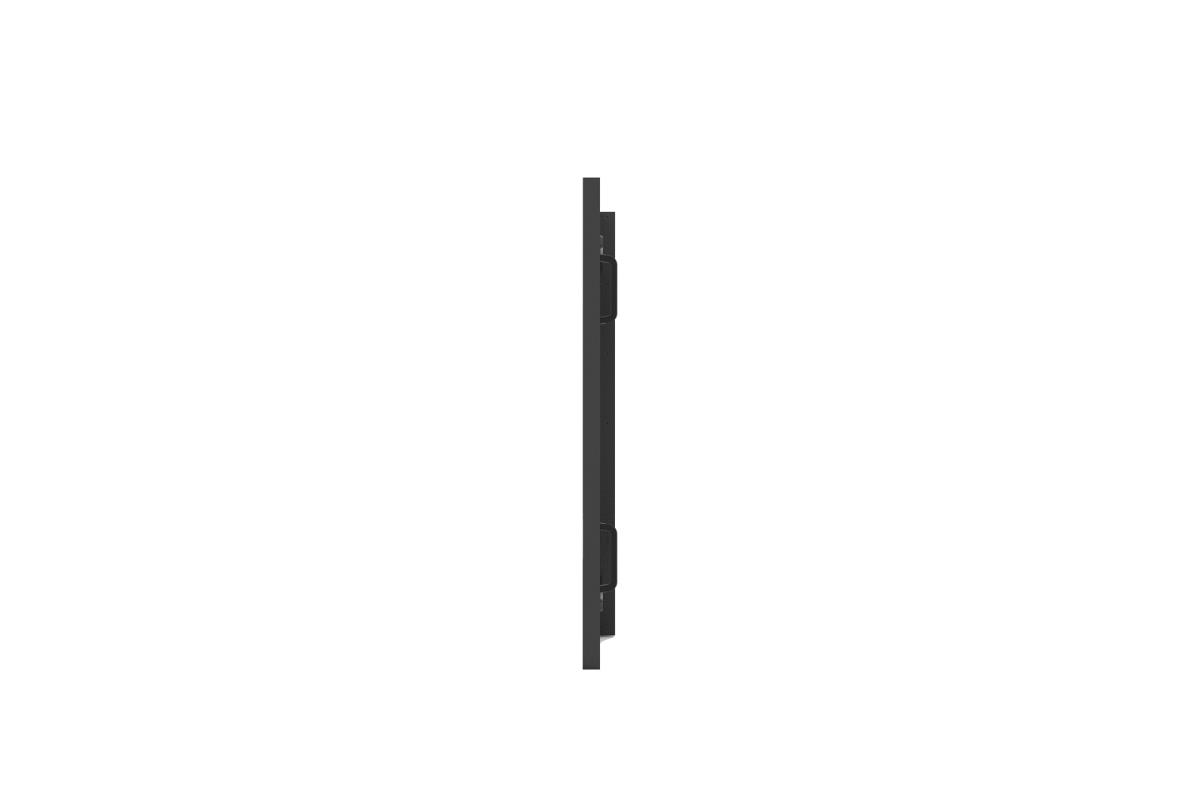

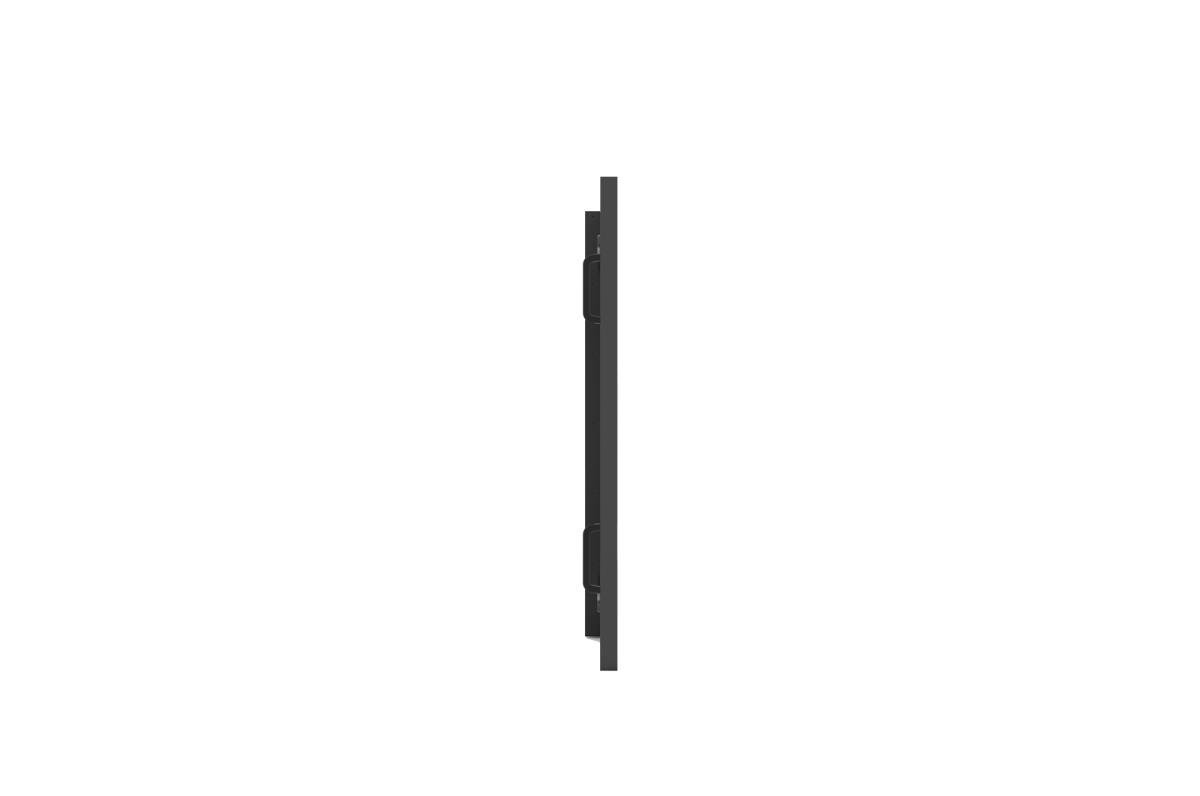

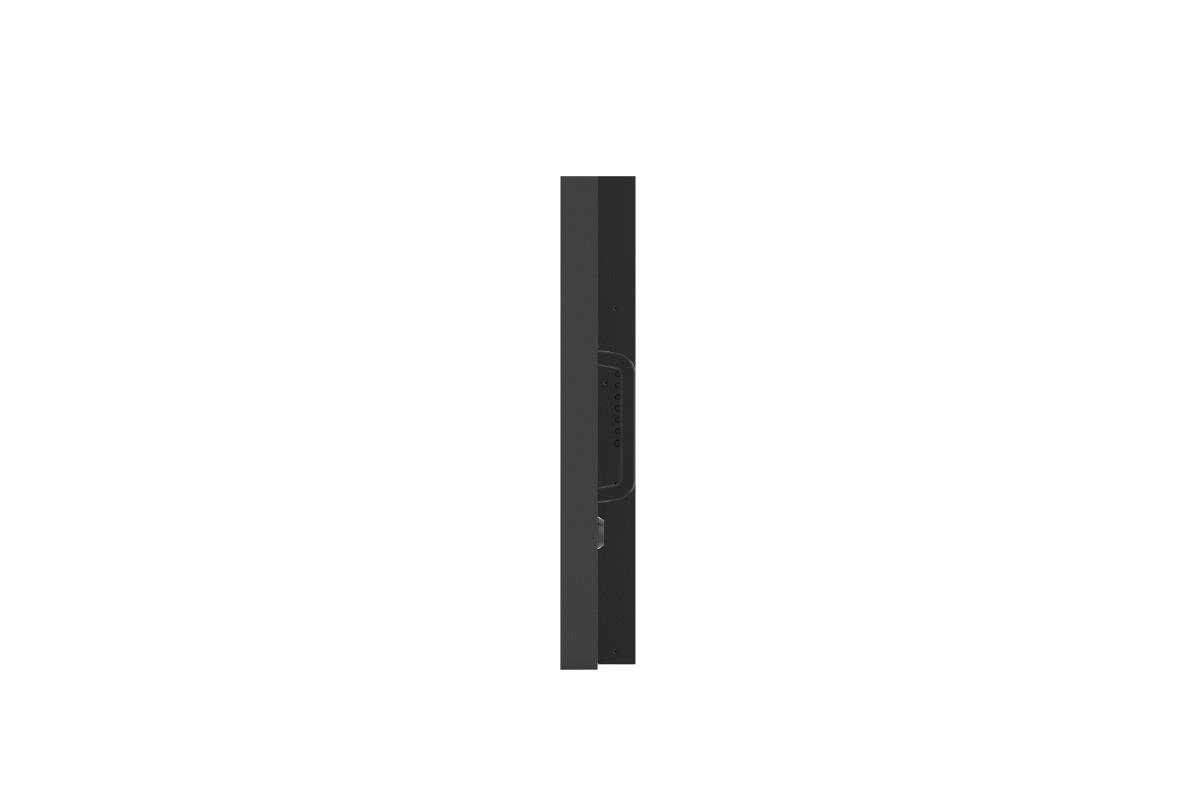

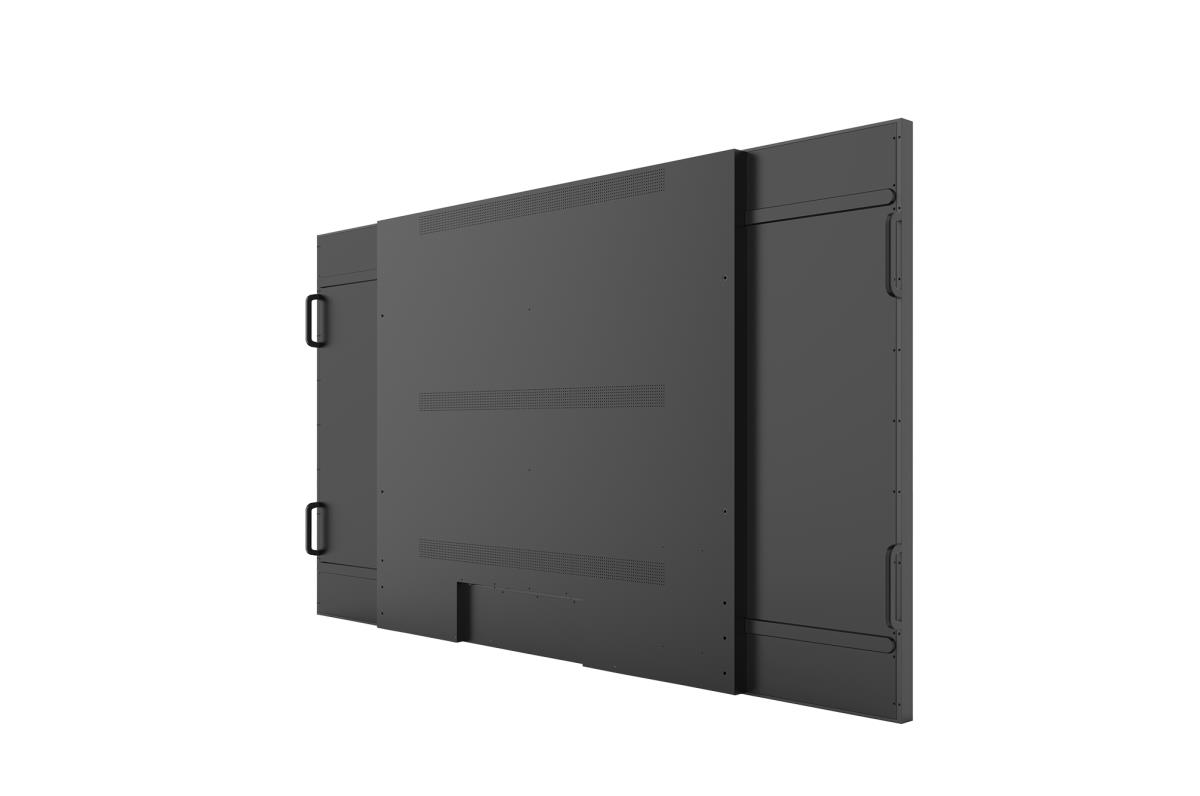

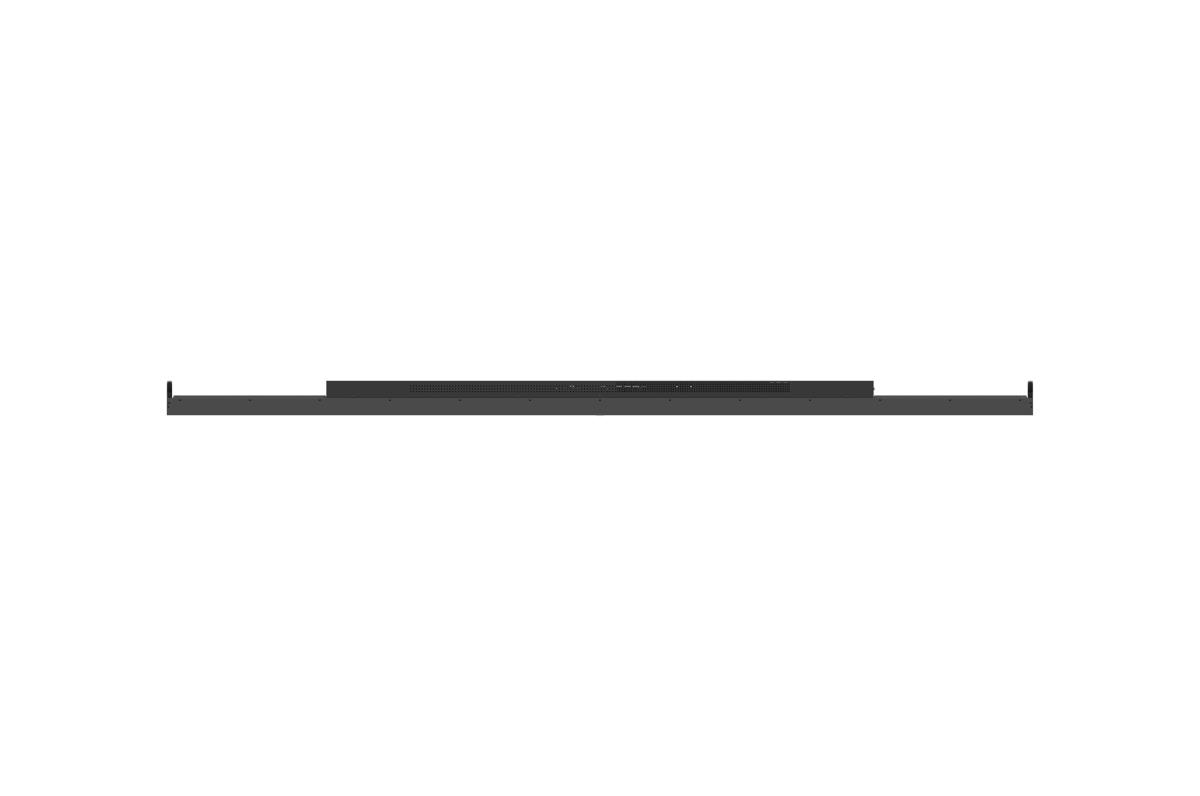

Slim Design
Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.
Compatible with AV Control System
The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
| Display | |
| Panel type | ADS |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display diagonal | 2.49 m (98") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 200000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Panel life | 30000 h |
| Colour depth | 8 bit |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB version | 2.0 |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Bezel width (bottom) | 1.7 cm |
| Bezel width (side) | 1.7 cm |
| Bezel width (top) | 1.7 cm |
| Performance | |
| Purpose | Commercial |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| Automatic brightness control | Yes |
| HDCP version | 1.4/2.2/2.3 |
| Power | |
| Power consumption (typical) | 430 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 560 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Computer system | |
| Internal memory | 16 GB |
| Operating system installed | Web OS |
| Operating system version | 6.0 |
| Weight & dimensions | |
| Display width | 2198 mm |
| Display depth | 79.5 mm |
| Display height | 1253 mm |
| Display weight | 78 kg |
| Packaging data | |
| Package width | 2455 mm |
| Package depth | 288 mm |
| Package height | 1458 mm |
| Package weight | 105 kg |
| Packaging content | |
| Remote control included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Operating relative humidity (H-H) | 10 - 80% |
| Technical details | |
| Real Time Clock (RTC) | Yes |
| Other features | |
| Audio input | 1 |
| Audio output | 1 |
| Power consumption (PowerSave) | 301 W |
| Plug and Play | Yes |
| Warranty | |
| Base Warranty | Non Non |
