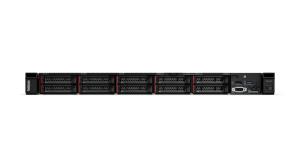

ThinkSystem SR630 V2 - Silver 4309Y - 32GB Ram - Option 2.5in; Open bay; 2x 480GB 5300 M.2; 1x M.2 SATA RAID - 750W Titanium
ITCurry #: M852SW51 | Article #: 7Z71A068EA
slide 1 of 1
Related products
slide 7 to 11 of 14
Product Information
Built for business, with business-critical versatility
The versatile, highly reliable 1U ThinkSystem SR630 V2 2P rack server is designed to handle hybrid data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4309Y |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 12 MB |
| Number of processors installed | 1 |
| Maximum number of SMP processors | 2 |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Storage | |
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| Optical drive type | No |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Rack mounting | Yes |
| Redundant fans support | Yes |
| Performance | |
| Performance management | XClarity Enterprise |
| Noise level | 56 dB |
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server 2016 Microsoft Windows Server 2019 Microsoft Windows Server 2022 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.2 Red Hat Enterprise Linux 8.3 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 Xen SP2 VMware ESXi 6.7 U3 VMware ESXi 7.0 U2 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 øC |
| Storage relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 773 mm |
| Height | 43 mm |
| Warranty | |
| Base Warranty | Non Non |
ThinkSystem SR630 V2 - Silver 4309Y - 32GB Ram - Option 2.5in; Open bay; 2x 480GB 5300 M.2; 1x M.2 SATA RAID - 750W Titanium
5170.86
