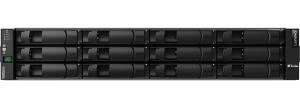

ThinkSystem DE120S 2U12 LFF Expansion Enclosure 12 bays
ITCurry #: M852NX89 | Article #: 7Y63A003EA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Abstract
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000H Hybrid Storage Array and consider its use in their solutions.
Introduction
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).
Did you know?
The ThinkSystem DE4000H scales up to 2.3 PB of raw storage capacity, and it offers block storage connectivity with support for 10 Gb iSCSI or 4/8/16 Gb FC, and 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC at the same time.
For the ThinkSystem DE4000H, customers can change the host port protocol from FC to iSCSI or from iSCSI to FC for the SFP+ host ports built into the controller (base host ports), or the universal SFP+ host ports on the host interface card (HIC ports), or for all SFP+ base and universal HIC ports.
| Storage | |
| Storage drives installed | No |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 12 |
| Storage drive size | 3.5" |
| Supported storage drive interfaces | SAS |
| RAID levels | 0, 1, 3, 5, 6, 10 |
| Hot-swap drive bays | Yes |
| Ports & interfaces | |
| USB connectivity | Yes |
| Design | |
| Chassis type | Rack (2U) |
| Product colour | Black |
| LED indicators | Status |
| Performance | |
| Device class | Small & Medium Business |
| Power | |
| Power supply unit (PSU) capacity | 913 W |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Hot-swap PSU | Yes |
| Weight & dimensions | |
| Width | 447 mm |
| Depth | 483 mm |
| Height | 85 mm |
| Weight | 27.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 40 øC |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -10 - 50 øC |
| Storage relative humidity (H-H) | 10 - 90% |
| Warranty | |
| Base Warranty | Non Non |
