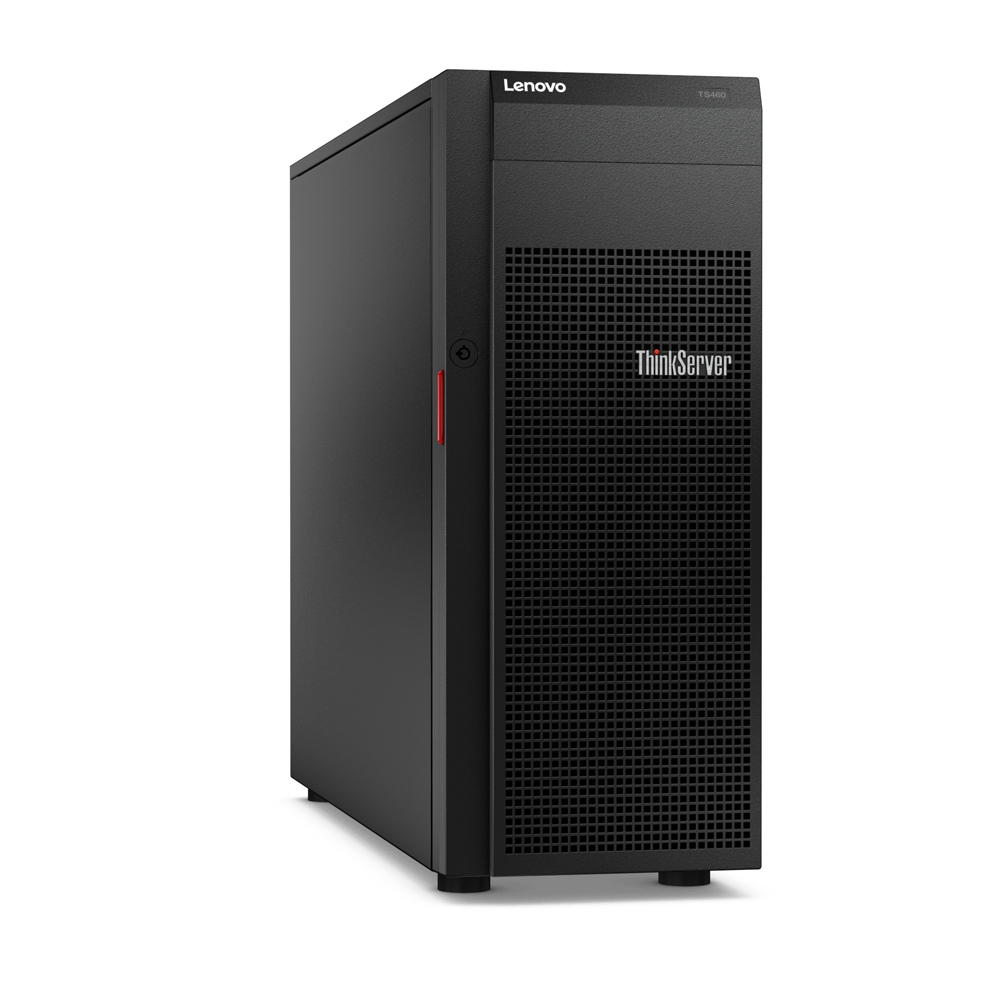

ThinkServer TS460 E3 1230 v5 8GB 4x3.5in HS DVD 450W Gold
ITCurry #: M852GS72 | Article #: 70TT000AEA-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Flexible and Scalable
The Lenovo ThinkServer TS460 offers flexibility in configuration: a choice of processors, including enterprise-class Intel® Xeon® E3-1200 Processor v5 series, as well as Core® i3 and Pentium® processors. Up to 64GB of ECC 2133MHz DDR4 UDIMM memory capacity enables you to run larger workloads, complete them faster, and virtualize for more efficient server usage.
Storage options include combinations of 5.25-inch optical/tape drives, 3.5-inch HDDs, and 2.5-inch HDDs/SSDs, plus support for an M.2 SSD. The 64TB of hot-swap SAS/SATA storage capacity is the industry’s largest for an entry tower server. The TS460 is ideal for storage-intense workloads and supports all major server operating systems for complete flexibility.
Enterprise Quality and Manageability
Enterprise-quality features include an IPMI 2.0-compliant ThinkServer Management Module (TMM), WebUI support, Lenovo XClarity software for easy centralized management, and a dedicated Ethernet port for systems management.
Availability and security options include hot-swap drives; 6Gb and 12Gb hardware RAID; hot-swap/redundant power; ECC memory; multiple 1Gb/10Gb Ethernet adapters with failover support; internal LTO tape, RDX cartridges, and rewritable DVDs for backup; and an optional TPM module.
Remote/Branch Office Use
The TS460 is optimized for remote office/branch office (ROBO) use. Its office-quiet acoustics and compact size (suitable for deskside or under-desk deployment) are perfect for an office environment, and the combination of energy-efficient processors, 1.2V DDR4 memory, and 80 PLUS Gold (up to 92% efficient) power supplies saves you money and helps the environment.
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel© Xeon© E3 v5 |
| Processor model | E3-1230V5 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 8 GT/s |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor threads | 8 |
| Processor operating modes | 64-bit |
| Stepping | R0 |
| Bus type | DMI3 |
| Processor codename | Skylake |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
| Memory voltage supported by processor | 1.35 V |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Processor code | SR2LE |
| Scalability | 1S |
| Embedded options available | No |
| Graphics & IMC lithography | 14 nm |
| Processor series | Intel Xeon E3-1200 v5 |
| Conflict-Free processor | Yes |
| Memory | |
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4 |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Storage | |
| HDD interface | Serial ATA III, Serial Attached SCSI (SAS) |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5,3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Supported RAID controllers | RAID520i |
| Hot-swap | Yes |
| Optical drive type | DVDñRW |
| Graphics | |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2400 |
| Network | |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | Tower (4U) |
| Rack mounting | Yes |
| Performance | |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server & Hypervisor 2012R2 & 2016, Microsoft Windows Storage 2012R2 & 2016, VMware Vsphere (ESXi), Red Hat Enterprise Linux Server |
| Processor special features | |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel© Wireless Display (Intel© WiDi) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel© Hyper Threading Technology (Intel© HT Technology) | Yes |
| Intel© Turbo Boost Technology | 2.0 |
| Intel© Quick Sync Video Technology | No |
| Intel© InTruT 3D Technology | No |
| Intel© Clear Video HD Technology (Intel© CVT HD) | No |
| Intel© InsiderT | No |
| Intel© AES New Instructions (Intel© AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel© Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel© OS Guard | Yes |
| Intel Clear Video Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel© Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel 64 | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Processor ARK ID | 88182 |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
| Number of main power supplies | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | -40 - 60 øC |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Certificates | |
| Certification | RoHS, GREENGUARD |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
| Warranty | |
| Base Warranty | Non Non |
| Weight & dimensions | |
| Width | 173 mm |
| Depth | 593 mm |
| Height | 443.5 mm |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Other features | |
| Integrated BMC with IPMI | Yes |
