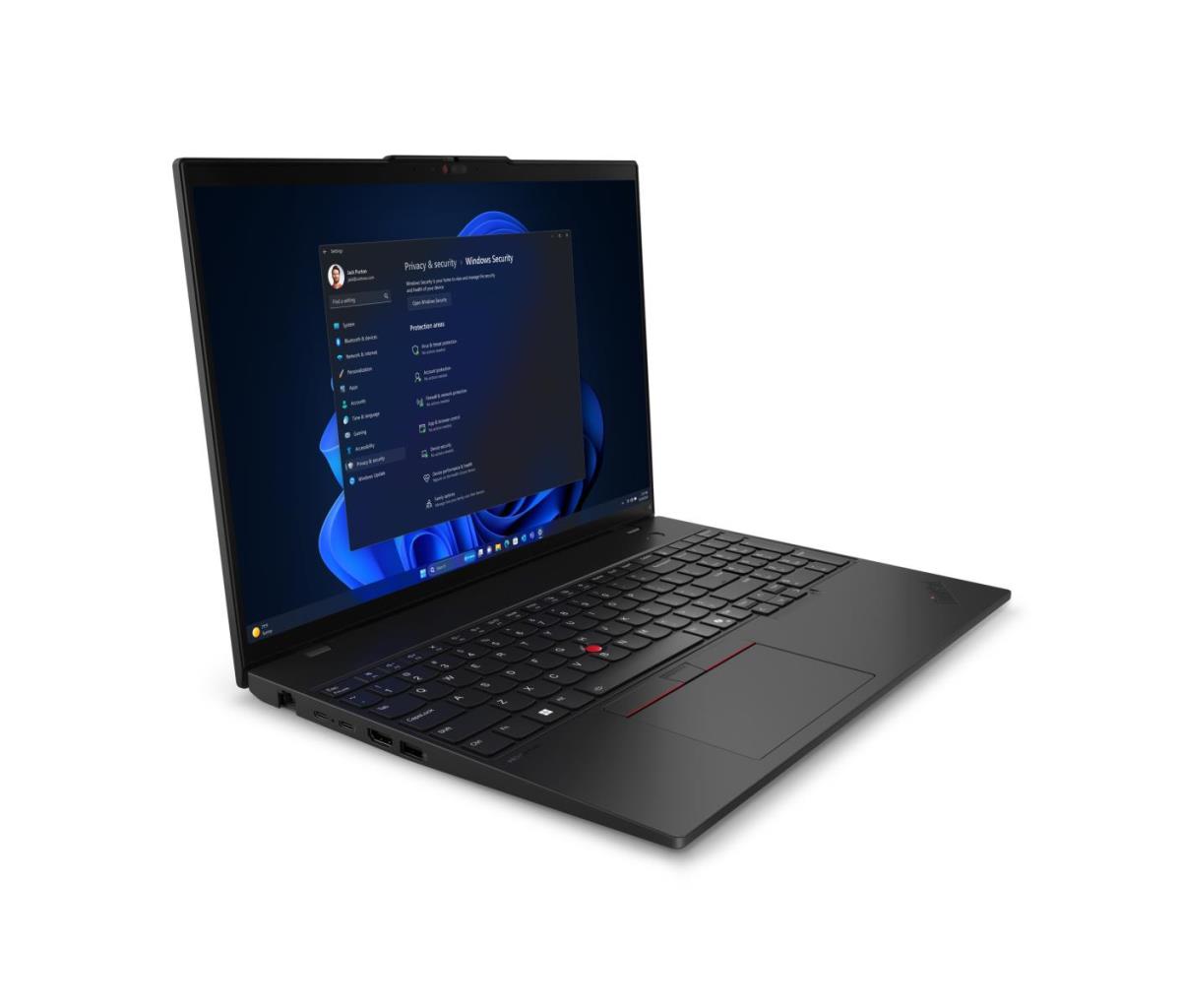

ThinkPad L16 Gen 1 (Intel) - 16in - Core Ultra 7 155U - 16GB Ram - 1TB SSD - Win11 Pro - 3 Year Onsite - Qwerty US/Int'l
ITCurry #: M852UD75 | Article #: 21L3003AMH-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Focused on Performance & Productivity
Powered by Intel® Core™ Ultra processors, the first generation of the 16" ThinkPad L16 laptop taps into AI-assisted productivity like never before. Enjoy optimized performance with workloads pushed to dedicated AI engines, which means you can conveniently multitask — even when unplugged— moving from app to app, without worrying about depleting the battery. Bump up performance even more when you choose Intel vPro®, which delivers multilayer security, reliable stability, and complete management for IT.
Increased Use of Recycled Materials
Even with all its productivity-enhancing features, this ThinkPad was designed with recycling in mind. We used recycled post-consumer content (PCC) in various components, including 90% in the speaker enclosure, 90% in the battery compartment, and 90% in the power adapter. Keycaps use 70-80% PCC recycled plastic, while the keyboard frame relies on 60% PCC. The bottom cover uses 50% PCC and the display uses 50%. Plus, the packaging is 100% plastic-free and Forest Stewardship Council® (FSC) certified.
Power Collaborations on Dazzling Display
Dive into smart digital collaboration with our vibrant display options. Revel in the vast screen real estate, offering an immersive meeting platform. Prioritizing your eye health, we have even dialed down blue light emissions. Your collaborations are not just online, they are on-point and larger-than-life as you look picture-perfect in every video call. Plus, the conversations are crystal clear with suppressed background noise, thanks to Dolby Voice® and bigger speakers boosting the audio experience with Dolby Audio™.

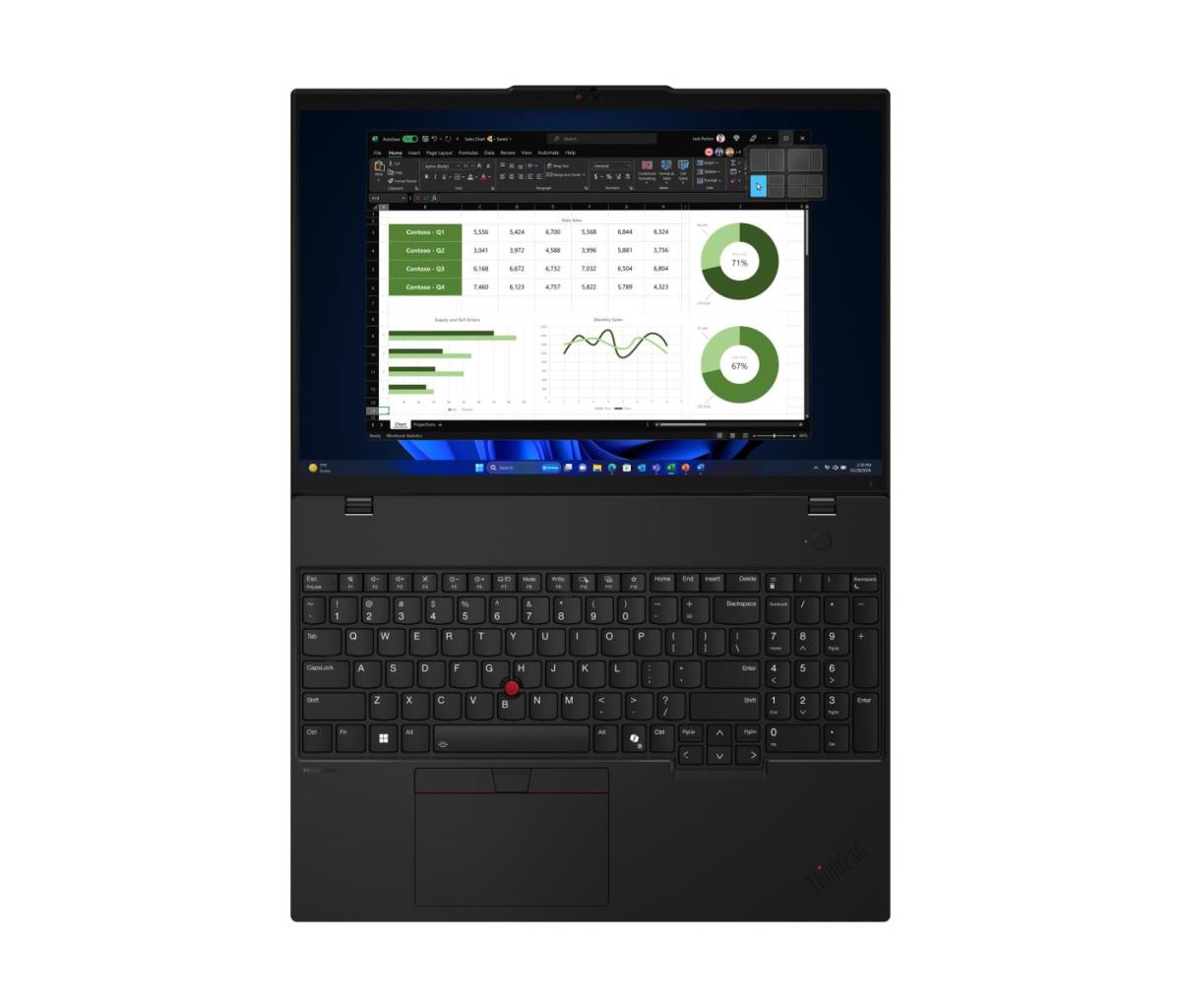

You Spoke. We Listened.
We’ve redesigned the legendary ThinkPad keyboard, making it even better! Tactile markings on significant keys and an LED Braille dome to indicate the power port make it easier for visually impaired people to correctly identify. We swapped the locations of the Ctrl and Fn keys. And the TrackPad is now 115mm / 4.53". Our iconic red TrackPoint still lets you navigate — double tap to open the customizable quick settings menu to optimize audio-video settings (TPQM). We’ve also improved air intake and venting, resulting in a thermal design that increases performance.
Enterprise-Grade Security
Access the ThinkPad L16 laptop securely with the fingerprint reader or zero-touch facial recognition using the optional infrared camera. The added protection of ThinkShield, our suite of hardware and software components, also includes discrete Trusted Platform Module (dTPM), Microsoft Secured-core PC enablement (on select models), and a self-healing BIOS. Choose the Intel vPro® platform with multilayer security like integrated Intel® Hardware Shield to steer clear of cyberattacks and ransomware. With ThinkPad, you can trust that we’ve got you covered.
Engineered to Endure With Easy Upgrades
The ThinkPad L16 laptop makes it easy to replace and repair your system with convenient customer replaceable units (CRUs), even if you have no tech expertise! In fact, for its ease of maintenance and remarkable do-it-yourself serviceability, this laptop boasts an industry-leading 9/10 on the iFixit Repairability Score. So, whether your goal is to upgrade components down the road or extend the lifecycle of your device with a simple repair, you can trust our support services to keep your system — and by default, your business — up and running.
Specifications may vary depending upon region / model.
| Design | |
| Colour name | Black |
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Housing material | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Display | |
| Display diagonal | 40.6 cm (16") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | WUXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display brightness | 300 cd/mý |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Maximum refresh rate | 60 Hz |
| Contrast ratio (typical) | 1000:1 |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel© CoreT Ultra (Series 1) |
| Processor model | 155U |
| Processor cores | 12 |
| Processor threads | 14 |
| Processor boost frequency | 4.8 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.2 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 15 W |
| Maximum turbo power | 57 W |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Maximum frequency NPU | 1.4 GHz |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | FP16, FP32, Int8 |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Storage | |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
| Graphics | |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card | No |
| On-board graphics card family | Intel Graphics |
| On-board graphics card model | Intel Graphics |
| Audio | |
| Audio system | Dolby Audio |
| Number of built-in speakers | 2 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 5 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Mobile network connection | No |
| Antenna type | 2x2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer | Intel |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Near Field Communication (NFC) | No |
| WWAN | Upgradable |

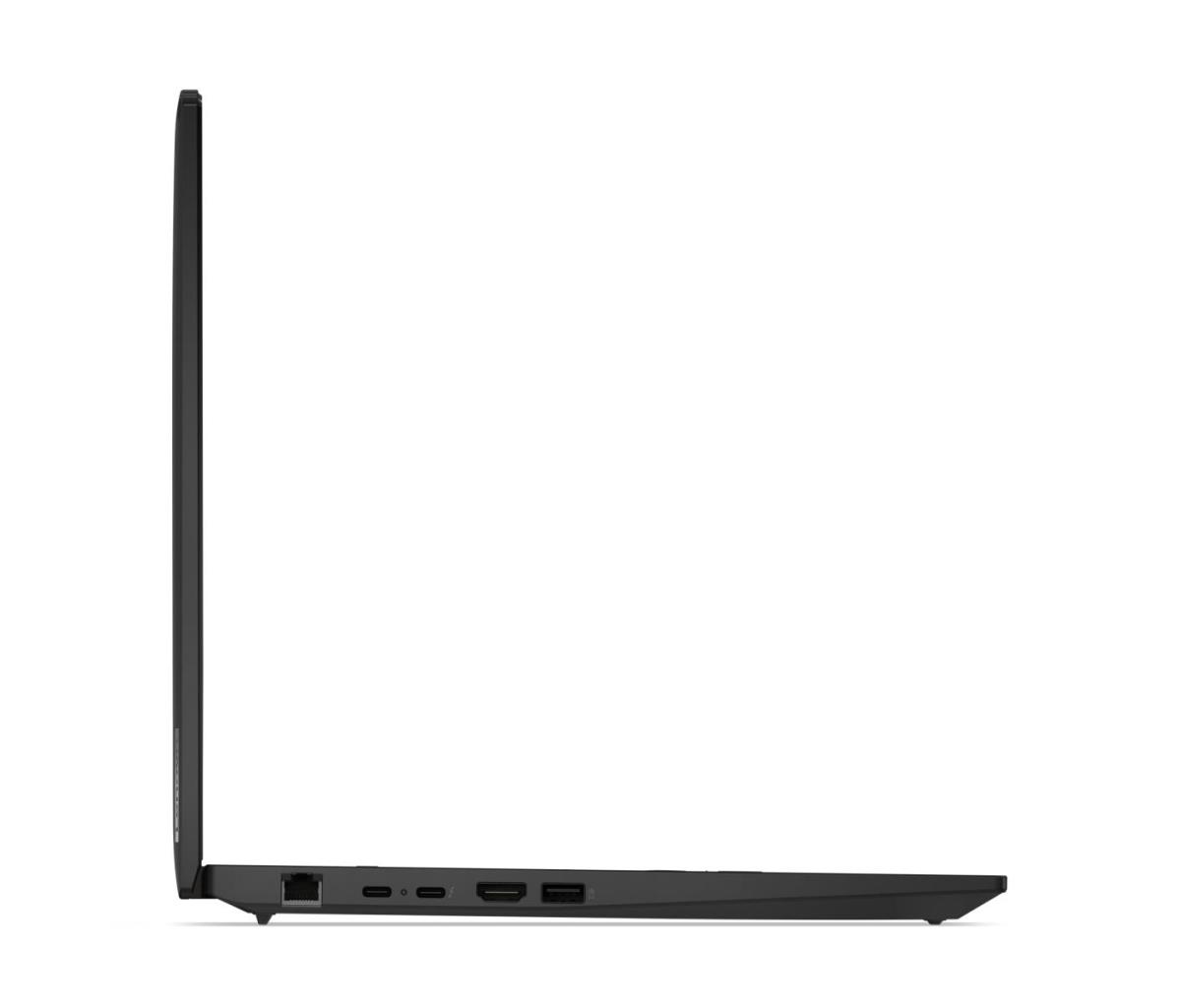

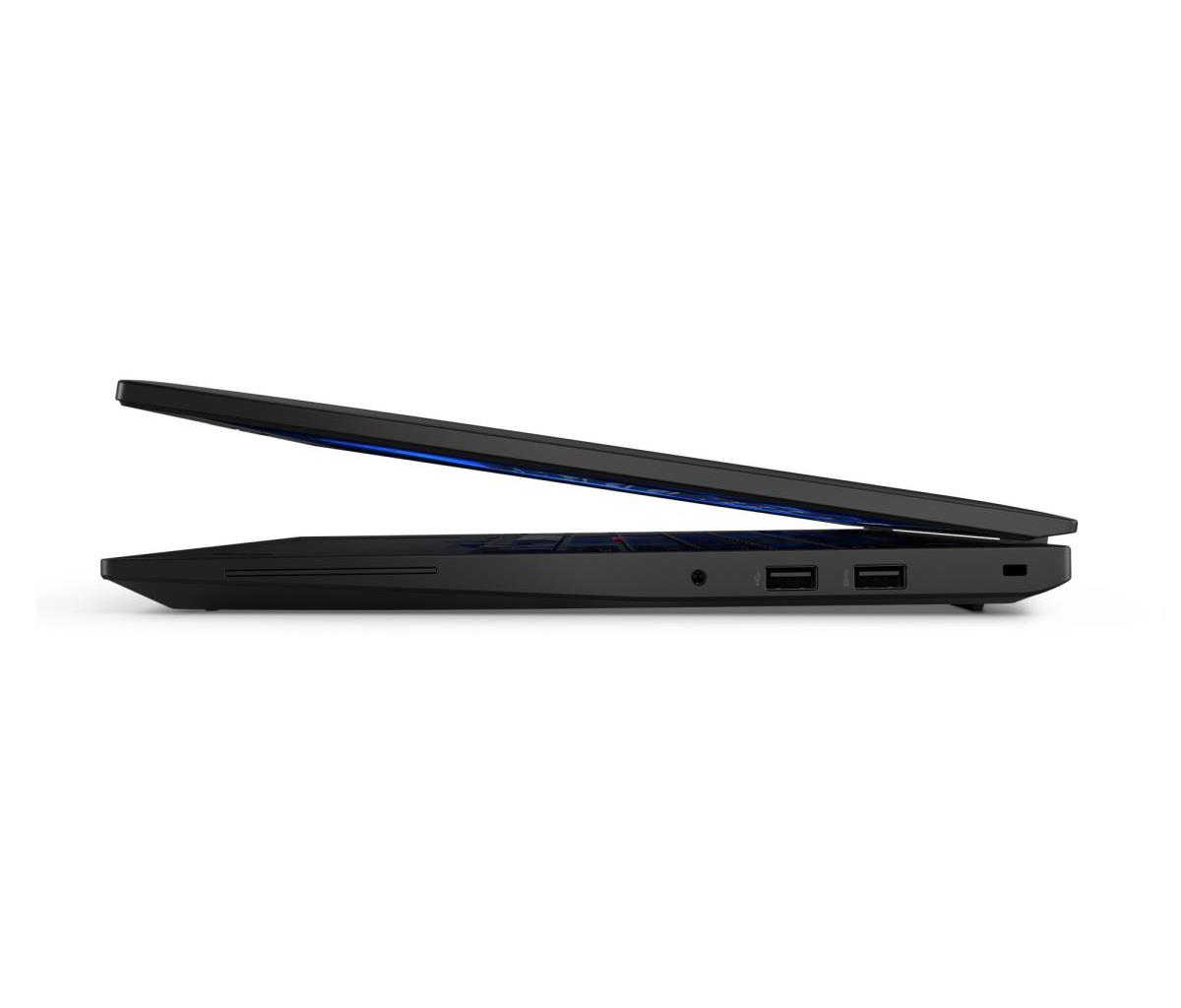

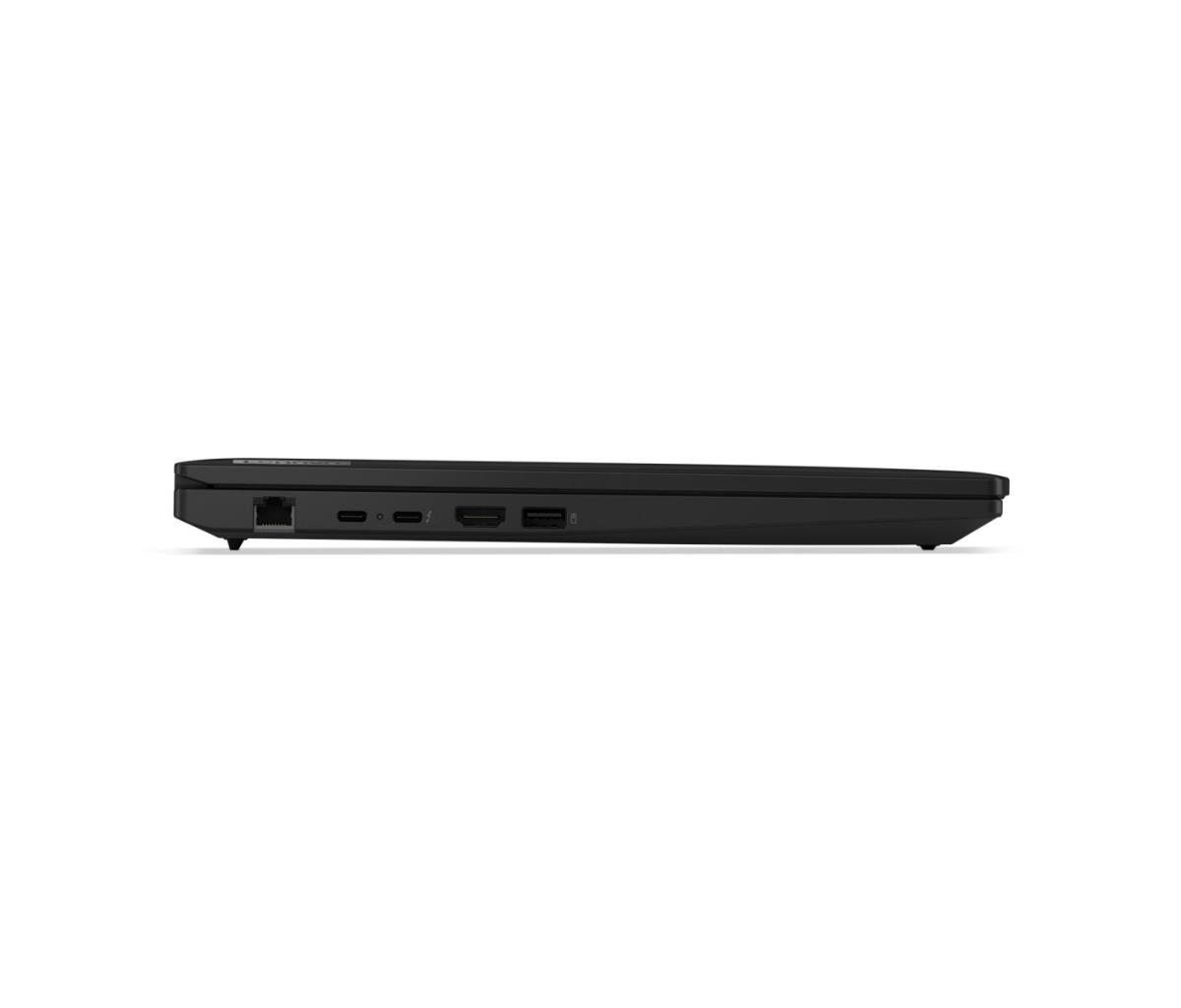

| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 1 |
| Intel© Thunderbolt 4 | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
| Performance | |
| Motherboard chipset | Intel SoC |
| Keyboard | |
| Pointing device | ThinkPad UltraNav |
| Keyboard language | English |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Spill-resistant keyboard | Yes |
| Software | |
| Operating system architecture | 64-bit |
| Operating system language | Dutch, French, English, Italian, German |
| Operating system installed | Windows 11 Pro |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 57 Wh |
| Fast charging | Yes |
| Power | |
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 1 A |
| USB Power Delivery (USB PD) | Yes |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Password protection | Yes |
| Password protection type | BIOS, Power on, Supervisor |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 øC |
| Storage temperature (T-T) | 5 - 43 øC |
| Operating relative humidity (H-H) | 8 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Maximum shipping altitude | 3048 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | ErP Lot 6 ErP Lot 26 MIL-STD-810H |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Gold |
| Weight & dimensions | |
| Width | 357.2 mm |
| Depth | 253.4 mm |
| Height | 20.8 mm |
| Weight | 1.77 kg |
| Warranty | |
| Base Warranty | Non Non |
