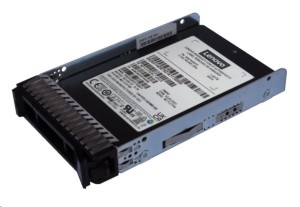

SSD ThinkSystem 5400 MAX 480GB 2.5in SATA 6Gb Mixed Use HS
ITCurry #: M852RS39 | Article #: 4XB7A82289-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The ThinkSystem 5400 MAX Mixed Use SATA 6Gb SSDs are advanced data center SSDs optimized for mixed read-write performance and endurance. These self-encrypting SSDs (SEDs) are based on the Micron 5400 MAX platform and are available in capacities ranging from 480GB to 3.84TB. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide provides essential presales information to understand the 5400 MAX SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 5400 MAX SSDs and consider their use in IT solutions.
| Features | |
| SSD form factor | 2.5" |
| SSD capacity | 480 GB |
| Interface | Serial ATA III |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 58000 IOPS |
| Read latency | 170 æs |
| Write latency | 36 æs |
| S.M.A.R.T. support | Y |
| Hot-swap | Y |
| Mean time between failures (MTBF) | 3000000 h |
| Certification | Micron Green Standard Built with sulfur resistant resistors CE (Europe): EN 55032 Class B, RoHS UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS FCC: CFR Title 47, Part 15 Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438 Class B and CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRA (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: compliance with EU WEEE directive 2012/19/EC TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: approval to EN55032/EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) |
| Power | |
| Power consumption (read) | 2.5 W |
| Power consumption (write) | 3.1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating shock | 1500 G |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Warranty | |
| Base Warranty | Non Non |
