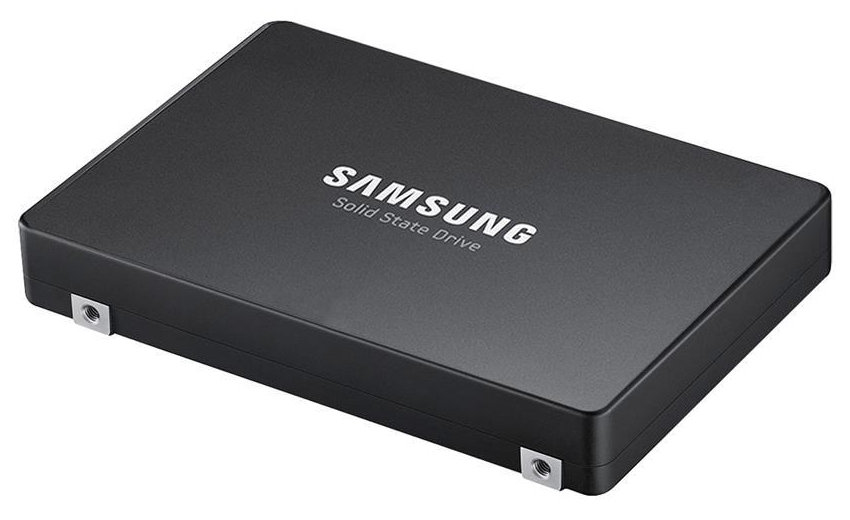

SSD ThinkSystem 2.5" U.3 PM1743 7.68TB Read Intensive NVMe Pci-e 5.0 x4 HS
ITCurry #: M852XE56 | Article #: 4XB7A82368-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The ThinkSystem PM1743 Read Intensive NVMe PCIe 5.0 SSDs, available in capacities up to 15.36TB, are general-purpose yet high-performance NVMe PCIe Gen 5 SSDs. Available in both 2.5-inch and E3.S EDSFF form factors, they are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide provides essential presales information to understand the PM1743 SSDs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
| Features | |
| SSD capacity | 7.68 TB |
| SSD form factor | 2.5" |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| Memory type | V-NAND |
| Component for | Server |
| Hardware encryption | Yes |
| Random read (4KB) | 2500000 IOPS |
| Random write (4KB) | 300000 IOPS |
| Read latency | 60 æs |
| Write latency | 20 æs |
| S.M.A.R.T. support | Yes |
| ECC | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2500000 h |
| Drive writes per day (DWPD) | 1 |
| Certification | cUL CE TUV-GS CB CE (EU) BSMI (Taiwan) KC (South Korea) VCCI (Japan) RCM (Australia) FCC (USA) / IC (Canada) |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 190 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
| Warranty | |
| Base Warranty | Non Non |
