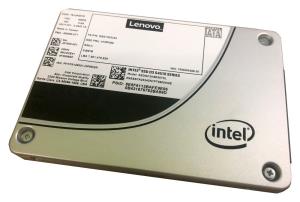

The Intel S4500 Entry SATA solid-state drives (SSDs) for Lenovo servers use Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4500 SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4500 SSDs and consider their use in IT solutions.
Features | |
SSD form factor | 2.5" |
SSD capacity | 240 GB |
Interface | Serial ATA III |
Component for | Server/workstation |
Data transfer rate | 6 Gbit/s |
Read speed | 500 MB/s |
Write speed | 190 MB/s |
Random read (4KB) | 69000 IOPS |
Random write (4KB) | 16000 IOPS |
Read latency | 36 æs |
Write latency | 36 æs |
Mean time between failures (MTBF) | 2000000 h |
Power | |
Power consumption (write) | 2.6 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 øC |
Operating relative humidity (H-H) | 5 - 95% |
Operating vibration | 2.17 G |
Operating shock | 1000 G |
Maximum operating altitude | 3050 m |
Weight & dimensions | |
Width | 70 mm |
Depth | 100 mm |
Height | 7 mm |
Weight | 66 g |
Logistics data | |
Harmonized System (HS) code | 84717070 |
Other features | |
Product colour | Silver |
Warranty | |
Base Warranty | Non Non |
