Basic Power distribution unit ( rack-mountable ) AC 200-240 V 1-phase input: IEC 309
ITCurry #: M852EV85 | Article #: 00YJ777-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

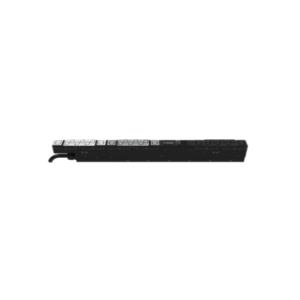

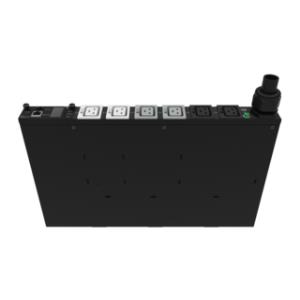

The Lenovo zero-U (0U) Basic power distribution units (PDUs) are the ideal solutions when you need flexible, reliable, easy-to-deploy power distribution with branch circuit protection to minimize downtime. These rack-dense units distribute power to up to 42 outlets. The 0U PDUs are designed to be installed vertically in the rear channel or side pockets of a Lenovo rack, thereby not consuming any horizontal rack space.
This product guide provides essential presales information to understand the 0U Basic PDUs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about 0U Basic PDUs and consider their use in IT solutions.
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 42 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| Cable length | 3 m |
| Power | |
| Nominal input voltage | 200 - 240 V |
| Maximum current | 32 A |
| Load capacity | 7680 VA |
| Number of phases | 1 |
| Weight & dimensions | |
| Width | 52 mm |
| Depth | 66 mm |
| Height | 1689 mm |
| Weight | 4 kg |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 øC |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | |
| Base Warranty | Non Non |
