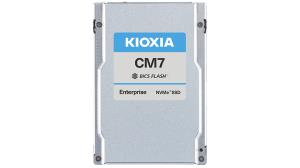

SSD - Enterprise Cm7-r X121 - 15.3TB - Pci-e U.3 - Bics Flash Tlc Sie
ITCurry #: X2132267 | Article #: KCMYXRUG15T3-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
Enterprise NVMe™ Read Intensive SSD
KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.
Features | |
NVMe version | 2.0 |
Security algorithms | FIPS 140-3 |
SSD form factor | 2.5" |
SSD capacity | 15.4 TB |
Interface | PCI Express 5.0 |
Memory type | BiCS FLASH TLC |
NVMe | Yes |
Component for | PC/Laptop |
Hardware encryption | Yes |
Data transfer rate | 128 Gbit/s |
Read speed | 14000 MB/s |
Write speed | 7000 MB/s |
Random read (4KB) | 2400000 IOPS |
Random write (4KB) | 300000 IOPS |
Mean time between failures (MTBF) | 2500000 h |
Drive writes per day (DWPD) | 1 |
Protection features | Shock resistant, Vibration proof |
Power | |
Operating voltage | 12 V |
Power consumption (max) | 25 W |
Power consumption (standby) | 5.5 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 73 øC |
Storage temperature (T-T) | -40 - 85 øC |
Maximum operating temperature | 73 øC |
Operating relative humidity (H-H) | 5 - 95% |
Operating vibration | 2.17 G |
Operating shock | 1000 G |
Weight & dimensions | |
Width | 69.8 mm |
Depth | 100.4 mm |
Height | 15 mm |
Weight | 130 g |
Warranty | |
Base Warranty | Non Non |
