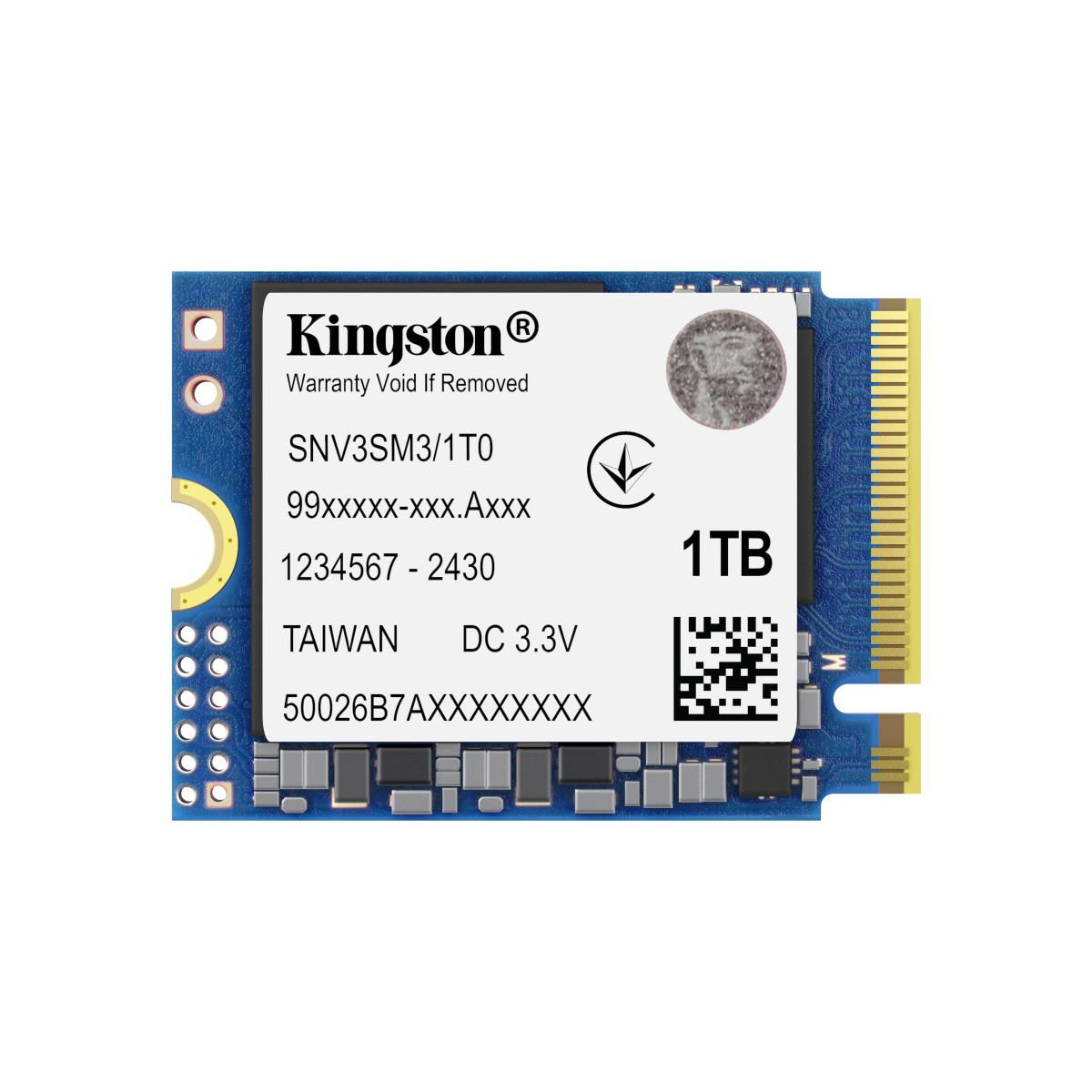

SSD - Nv3 - 1TB - Pci-e 4.0 X4 Nvme - M.2 2230
ITCurry #: 2935H835 | Article #: SNV3SM3/1T0-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
For high-speed, low-power storage needs
Kingston’s NV3 PCIe 4.0 NVMe SSDs are next-gen storage solutions powered by a Gen 4x4 NVMe controller, delivering read/write speeds of up to 6,000/5,000MB/s*. They come in both compact, single-sided M.2 2280 (22x80mm) and 2230 (22x30mm) sizes to expand storage in small-form-factor systems like laptops and handheld gaming consoles*****. They offer lower power consumption and reduced heat, optimising your system's performance without compromising value. Available in capacities from 500GB– 4TB** to give you all the space you need for applications, documents, photos, videos, games and more.
Gen 4x4 NVMe PCIe performance
Upgrade your system with read/write speeds up to 6,000/5,000MB/s*.
Small size, big performance
NV3 2280 and 2230 easily integrate into thin laptops and ultra-small PCs with M.2 connectors and limited space.
Increased storage space
Available in a variety of high capacities up to 4TB**, providing ample space to store files, videos, documents, and games with room to spare.
Store more, play more
With NV3 2230 upgrade compatible handheld gaming systems to get in the game faster*****.
| Features | |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D NAND |
| Component for | Notebook/Game console |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Read speed | 6000 MB/s |
| Write speed | 4000 MB/s |
| PCI Express interface data lanes | x4 |
| Mean time between failures (MTBF) | 200000 h |
| TBW rating | 320 |
| Weight & dimensions | |
| Width | 30 mm |
| Depth | 22 mm |
| Height | 2.3 mm |
| Weight | 2.8 g |
| Packaging data | |
| Package width | 101.6 mm |
| Package depth | 8.13 mm |
| Package height | 114.3 mm |
| Package weight | 12.16 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Non-operating vibration | 20 G |
| Logistics data | |
| Country of origin | China, Taiwan |
| Master (outer) case width | 120.7 mm |
| Master (outer) case length | 171.4 mm |
| Master (outer) case height | 114.3 mm |
| Master (outer) case gross weight | 389.82 g |
| Products per master (outer) case | 25 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
