Product Information

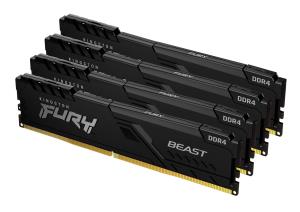

HyperX HX432C16FB4AK4/64 is a kit of four 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 64GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| CAS latency | 16 |
| Internal memory | 64 GB |
| Memory layout (modules x size) | 4 x 16 GB |
| Internal memory type | DDR4 |
| Memory clock speed | 3200 MHz |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| Memory voltage | 1.35 V |
| Module configuration | 2048M x 64 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Extreme Memory Profile (XMP) version | 2.0 |
| Programming power voltage (VPP) | 2.5 V |
| Cooling type | Heatsink |
| Lead plating | Gold |
| Backlight | Yes |
| Backlight colour | Red/Green/Blue |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 øC |
| Storage temperature (T-T) | -40 - 85 øC |
| Weight & dimensions | |
| Width | 133.3 mm |
| Depth | 7 mm |
| Height | 41.2 mm |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Warranty | |
| Base Warranty | Non Non |
