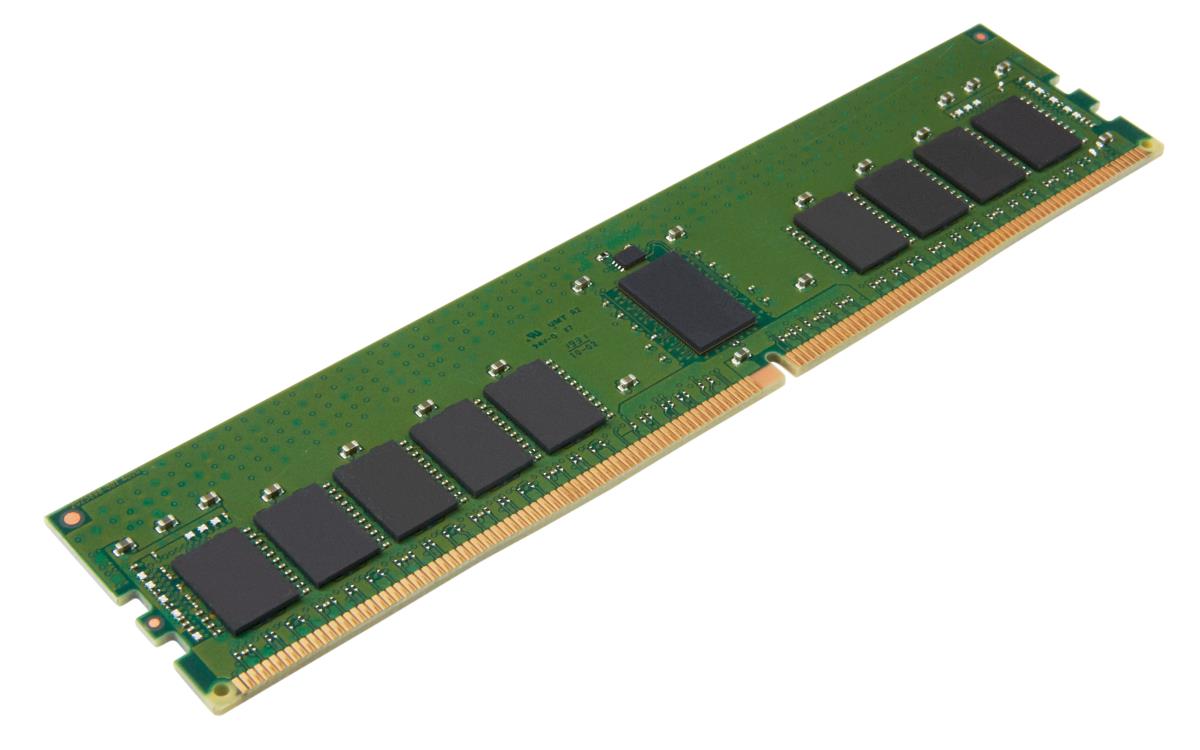

32GB Ddr4 3200mt/s ECC Reg Cl22 DIMM 2rx8 Hynix C
ITCurry #: 2935H620 | Article #: KSM32RD8/32HC
slide 2 of 3
Related products
slide 7 to 11 of 14
Product Information
Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.
| Warranty | |
| Base Warranty | Non Non |
| Features | |
| Buffered memory type | Registered (buffered) |
| On-Die ECC | Yes |
| CAS latency | 22 |
| Internal memory | 32 GB |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory type | DDR4 |
| Memory data transfer rate | 3200 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | No |
| Memory ranking | 2 |
| Memory voltage | 1.2 V |
| Module configuration | 4096M x 72 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| SPD profile | Yes |
| Programming power voltage (VPP) | 2.5 V |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 øC |
| Storage temperature (T-T) | -55 - 100 øC |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 133.3 mm |
| Height | 31.2 mm |
32GB Ddr4 3200mt/s ECC Reg Cl22 DIMM 2rx8 Hynix C
102.21
