128GB Ddr5 5600mt/s ECC Reg Cl36 DIMM (kit Of 8) Renegade Pro Xmp
ITCurry #: 2935H140 | Article #: KF556R36RBK8-128-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information

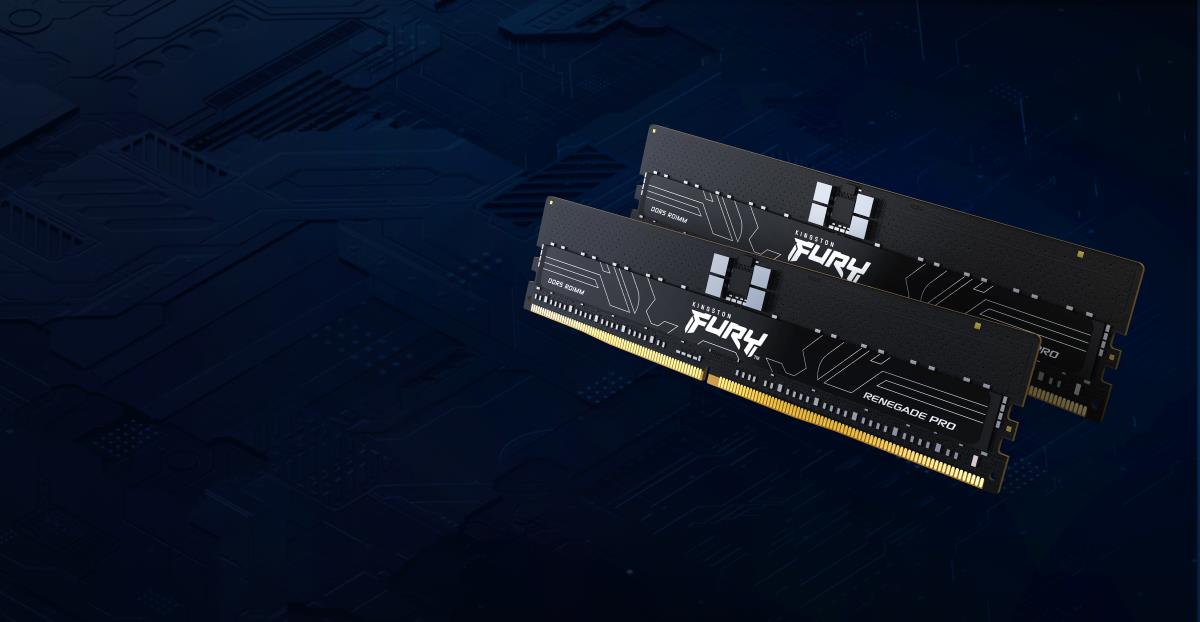

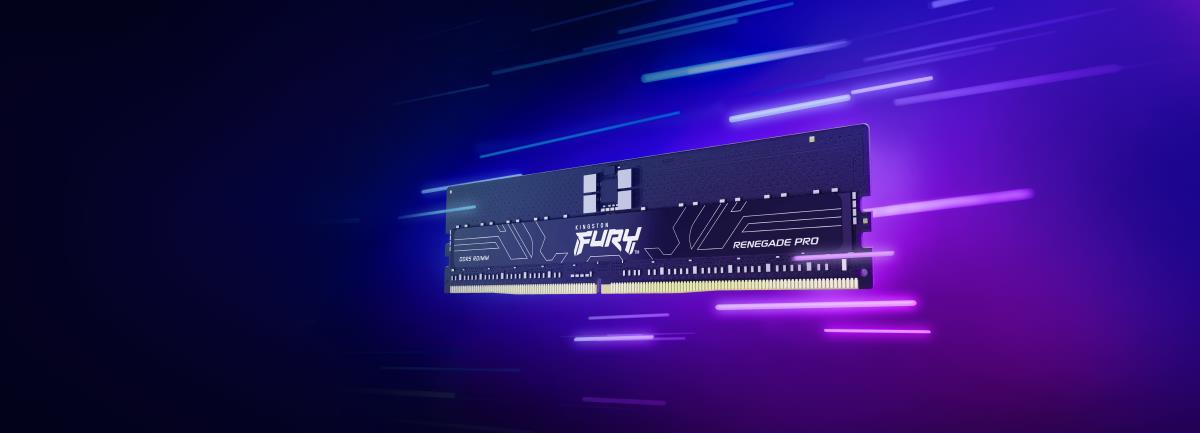

With over three decades of building reliable, high quality memory modules for the world’s largest data centers, Kingston proudly introduces a new line of overclockable server-class memory, Kingston FURY™ Renegade Pro DDR5 RDIMM. To meet the computing demands of next-gen Intel® or AMD workstation and high-end desktop platforms requiring the use of DDR5 Registered DIMMs, Kingston FURY Renegade Pro DDR5 RDIMM provides creators, engineering and data science professionals with high performance memory normally reserved for gamers, without sacrificing the data integrity features and superior quality grade of Registered DIMMs.
DDR5 Registered DIMMs support ECC, capable of detecting and correcting multi-bit errors. This is in addition to On-Die ECC, featured on all DDR5 DRAM components, which perform single bit error detection and correction to mitigate system lockups and data corruption.
Power users can automatically get the most out of their systems with Kingston FURY Renegade Pro DDR5 RDIMM, or choose one of the built-in profiles for optimum timings, speeds, and voltage. Available in single-module capacities up to 32GB, kits of 4 up to 128GB, and kits of 8 up to 256GB.
Overclocking with ECC
Maintain data integrity while pushing the limits of DDR5 performance.
Increased efficiency
With double the banks and burst lengths, keep up with the demands of the latest programs and applications with improved efficiency and lower latencies.
Intel® XMP 3.0 certified
Select one of the built-in profiles to maximise memory performance with advanced pre-optimised timings, speeds and voltage.
AMD EXPO™ Certified
AMD’s Extended Profiles for Overclocking to achieve high performance speeds.
Plug N Play**
Kingston FURY Renegade Pro DDR5 RDIMM modules automatically overclock to the highest listed speed.
| Features | |
| Buffered memory type | Registered (buffered) |
| On-Die ECC | Yes |
| CAS latency | 36 |
| Internal memory | 128 GB |
| Memory layout (modules x size) | 8 x 16 GB |
| Internal memory type | DDR5 |
| Memory data transfer rate | 5600 MT/s |
| Component for | PC/Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| Memory channels | Octa-channel |
| Memory ranking | 1 |
| Memory voltage | 1.25 V |
| Module configuration | 2048M x 80 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| SPD profile | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Country of origin | China, Taiwan |
| Product colour | Black |
| Cooling type | Heatsink |
| Lead plating | Gold |
| JEDEC standard | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 95 øC |
| Storage temperature (T-T) | -55 - 100 øC |
| Technical details | |
| Compliance certificates | RoHS |
| Sustainability | |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width | 133.3 mm |
| Depth | 3.8 mm |
| Height | 31.2 mm |
| Weight | 153.33 g |
| Packaging data | |
| Package width | 104.1 mm |
| Package depth | 167.6 mm |
| Package height | 35.6 mm |
| Package weight | 186.01 g |
| Logistics data | |
| Master (outer) case width | 207 mm |
| Master (outer) case length | 469.9 mm |
| Master (outer) case height | 105.4 mm |
| Master (outer) case gross weight | 2.21 kg |
| Products per master (outer) case | 10 pc(s) |
| Warranty | |
| Base Warranty | Non Non |
