Desktop Board D945gclf (boxd945gclf)
ITCurry #: 27305113 | Article #: BOXD945GCLFFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
103.80
Inc VAT
Ex VAT
Shipping:
Out of Stock. Contact Us!
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Inc VAT
Ex VAT
Out of Stock. Contact Us!
Related products
Product Information

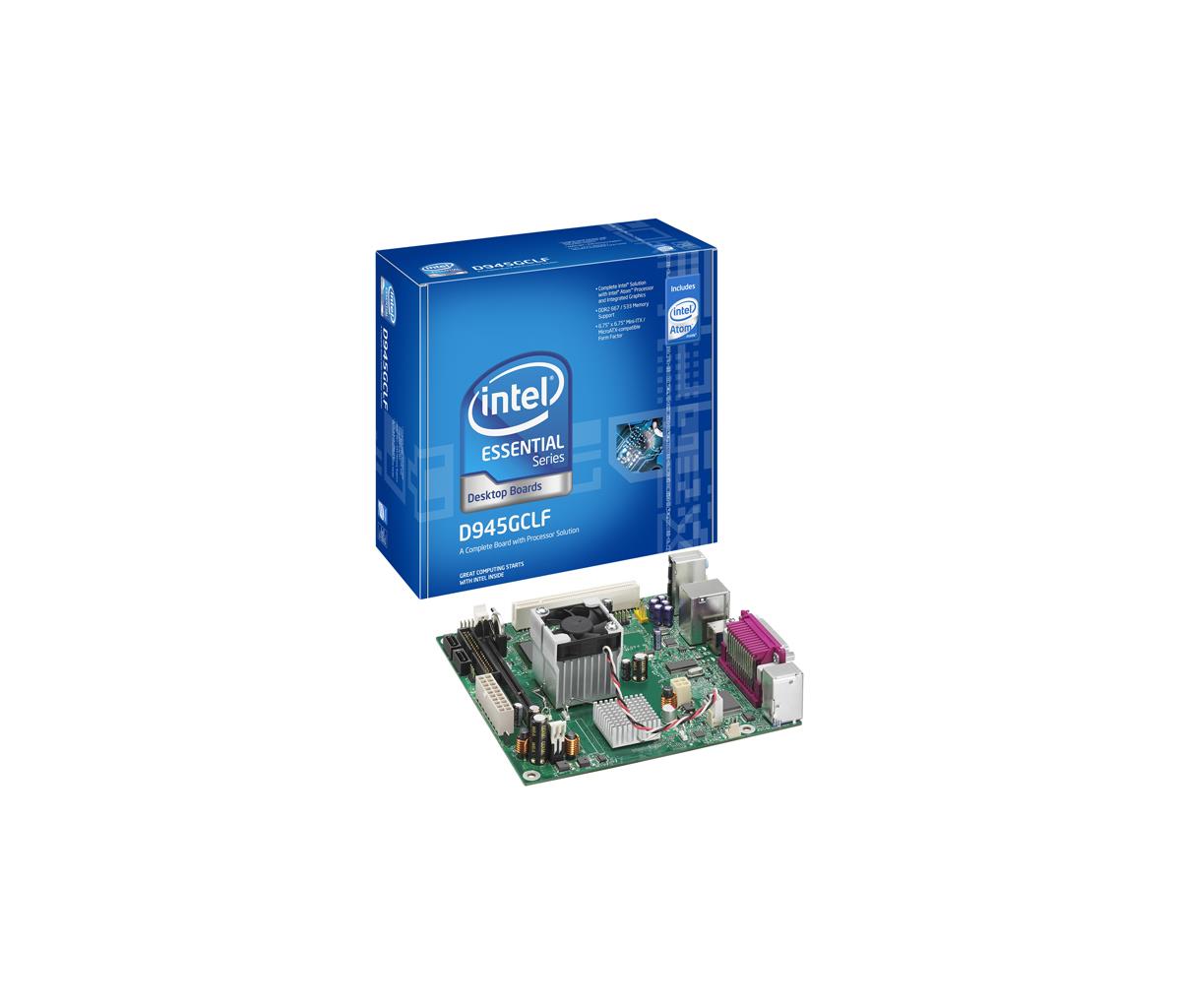

The Intel® Desktop Board D945GCLF is designed to support Internet-centric computing delivering incredible capabilities for the new flexible Mini-ITX form factor.
Featuring the integrated 45nm Intel® Atom™ processor and the Intel® 945GC Express Chipset, this board is an energy-efficient solution for home users as well as for unique vertical market needs. Designed with Intel's leading edge 45nm Hi-k metal gate processor, this board delivers incredible opportunities to communicate, listen, watch, play, and learn via Internet connectivity.
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | Socket 945 |
| Processor system buses supported | 533 MHz |
| Maximum internal memory supported by processor | 2 GB |
| ECC supported by processor | No |
| Product family | Desktop board |
| Product series | Legacy Intel desktop board |
| Product codename | Little Falls |
| Memory | |
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 1 |
| Memory channels | Single-channel |
| Memory voltage | 1.8 V |
| ECC | No |
| Maximum internal memory | 2 GB |
| Graphics | |
| On-board graphics card | Yes |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Total number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| Network | |
| Networking features | 10/100 Mbits/sec |
| Features | |
| Motherboard chipset | Intel© 82945GC |
| Audio chip | Realtek ALC662 |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Motherboard chipset ID | 34505 |
| Market segment | Desktop |
| Processor special features | |
| Intel© Anti-Theft Technology (Intel© AT) | No |
| Intel Dual Display Capable Technology | No |
| Trusted Platform Module (TPM) | No |
| Intel Trusted Execution Technology | No |
| Intel Remote PC Assist Technology (RPAT) | No |
| Intel Quiet System Technology (QST) | No |
| Intel© Matrix Storage Technology (Intel© MST) | No |
| Intel Client Initiated Remote Access (CIRA) technology | No |
| Intel© Active Management Technology (Intel© AMT) | No |
| Intel© High Definition Audio (Intel© HD Audio) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel© Remote Wake Technology (Intel© RWT) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 øC |
| Operating temperature (T-T) | 0 - 55 øC |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Technical details | |
| Launch date | Q2'08 |
| PCI Support | 1 |
| Product type | Desktop Board |
| Status | Discontinued |
| Maximum memory | 2 GB |
| Supported RAID configuration | N/A |
| Last change | 63903513 |
| Form factor | Mini-ITX |
| Other features | |
| Graphics controller | Intel Graphics Media Accelerator 950 |
| Maximum internal memory | 2048 MB |
| Number of DIMM slots | 1 |
| CPU configuration (max) | 1 |
| Discrete graphics card model | N/A |
| Graphics output | VGA |
| Intel© vProT Platform Eligibility | No |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Export Control Classification Number (ECCN) | 5A992 |
| Motherboard ARK ID | 42490 |
