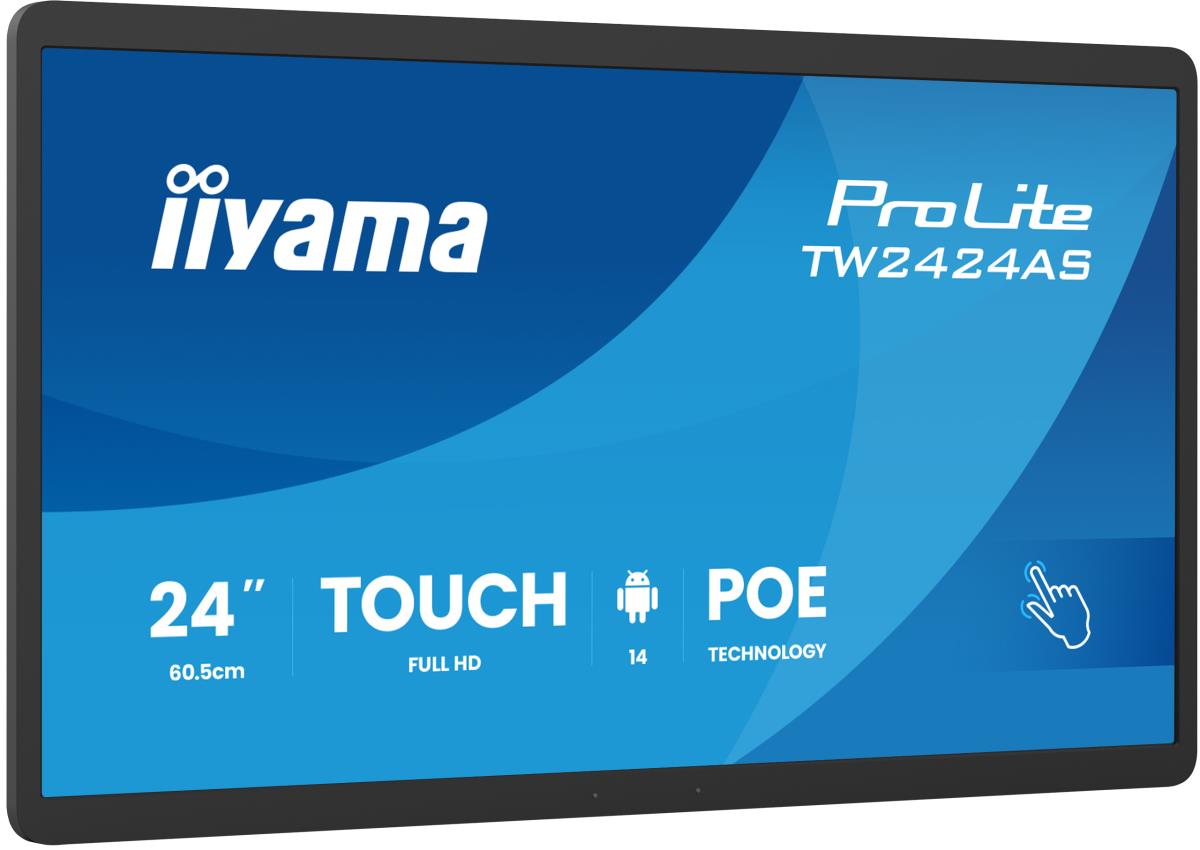

Touch Monitor - ProLite TW2424AS-B3P - 24in - 1920x1080 (FHD) - Black
ITCurry #: 89303571 | Article #: TW2424AS-B3P-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The ProLite TW2424AS-B3P interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 14 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising.
| Display | |
| Panel type | IPS |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 450 cd/mý |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Ports & interfaces | |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 17.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Computer system | |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | Rockchip RK3576 |
| Processor frequency | 1.8 GHz |
| Operating system installed | Android |
| Operating system version | 14 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Weight & dimensions | |
| Width | 550 mm |
| Depth | 28 mm |
| Height | 336 mm |
| Weight | 4.24 kg |
| Width (with stand) | 550 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 336 mm |
| Weight (with stand) | 4.24 kg |
| Packaging data | |
| Package width | 640 mm |
| Package depth | 121 mm |
| Package height | 410 mm |
| Package weight | 6.2 kg |
| Packaging content | |
| Cables included | AC |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Technical details | |
| User controls | Power switch, volume/ button +, volume/ button - |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Other features | |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Audio input | Y |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Built-in microphone | Yes |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Brightness | 450 cd/mý |
| Power supply type | External |
| Cable management | Yes |
| Warranty | |
| Base Warranty | Non Non |
