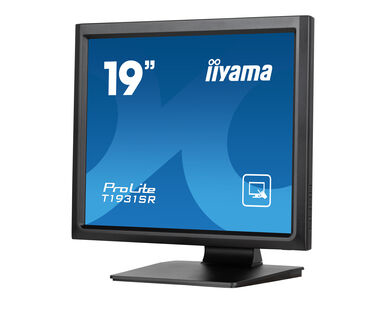

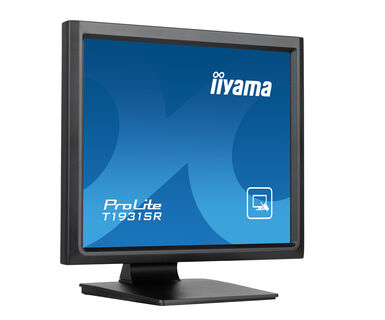

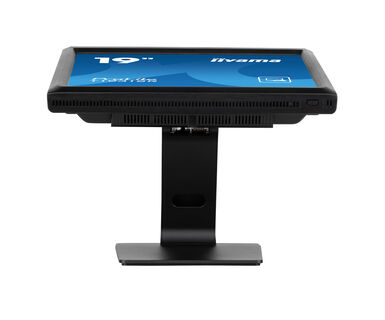

Touch Monitor - ProLite T1931SR-B1S - 19in - 1280x1024 (SXGA) - Black
ITCurry #: 89303247 | Article #: T1931SR-B1S-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The T1931SR-B1S is based on 5-wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display includes both analogue (VGA) and digital inputs (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1931SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
Display | |
Display diagonal | 48.3 cm (19") |
Display resolution | 1280 x 1024 pixels |
HD type | SXGA |
Native aspect ratio | 5:4 |
Display technology | LCD |
Panel type | IPS |
Touchscreen | Yes |
Touchscreen technology | Resistive |
Display brightness (typical) | 250 cd/mý |
Response time | 14 ms |
Screen shape | Flat |
Contrast ratio (typical) | 1000:1 |
Viewing angle, horizontal | 178ø |
Viewing angle, vertical | 178ø |
Display number of colours | 16.7 million colours |
Pixel pitch | 0.293 x 0.293 mm |
Horizontal scan range | 31.5 - 80 kHz |
Viewable size, horizontal | 37.5 cm |
Viewable size, vertical | 30 cm |
Performance | |
NVIDIA G-SYNC | No |
AMD FreeSync | No |
Multimedia | |
Built-in speaker(s) | Yes |
Built-in camera | No |
Number of speakers | 2 |
RMS rated power | 2 W |
Design | |
Market positioning | Business |
Product colour | Black |
International Protection (IP) code | IP54 |
Certification | CE, EAC, RoHS, ErP, WEEE, cULus, VCCI, REACH, UKCA |

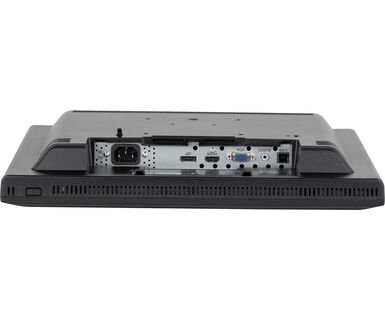

Ports & interfaces | |
Built-in USB hub | No |
USB Touch port | Yes |
USB Touch ports quantity | 1 |
VGA (D-Sub) ports quantity | 1 |
HDMI | Yes |
HDMI ports quantity | 1 |
DisplayPorts quantity | 1 |
HDCP | Yes |
Ergonomics | |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Cable management | Yes |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Height adjustment | No |

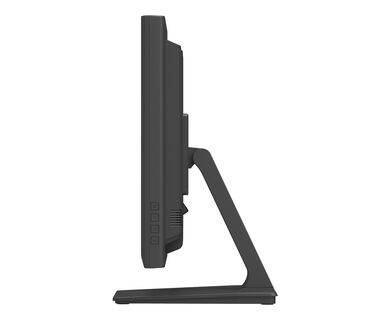

Tilt angle range | 90 - 5ø |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Traditional Chinese, German, English, Estonian, French, Italian, Japanese |
Number of OSD languages | 7 |
Power | |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 13 kWh |
Power consumption (typical) | 20 W |
Power consumption (standby) | 1.5 W |
Power consumption (off) | 0.3 W |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power supply type | Internal |
Energy efficiency scale | A to G |
Packaging content | |
Cables included | AC, Audio, DisplayPort, HDMI, USB |
Quick start guide | Yes |
Weight & dimensions | |
Width (with stand) | 432 mm |
Depth (with stand) | 239.5 mm |
Height (with stand) | 431.5 mm |
Weight (with stand) | 6 kg |
Packaging data | |
Package width | 530 mm |
Package depth | 190 mm |
Package height | 495 mm |
Package weight | 8 kg |
Package type | Box |
Sustainability | |
European Product Registry for Energy Labelling (EPREL) code | 1554894 |
Warranty | |
Base Warranty | Non Non |
