Touch Monitor - ProLite T1521MSC-B2 - 15in - 1024x768 (XGA) - Black
ITCurry #: 89303341 | Article #: T1521MSC-B2-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
15" Projective Capacitive 10pt touchscreen

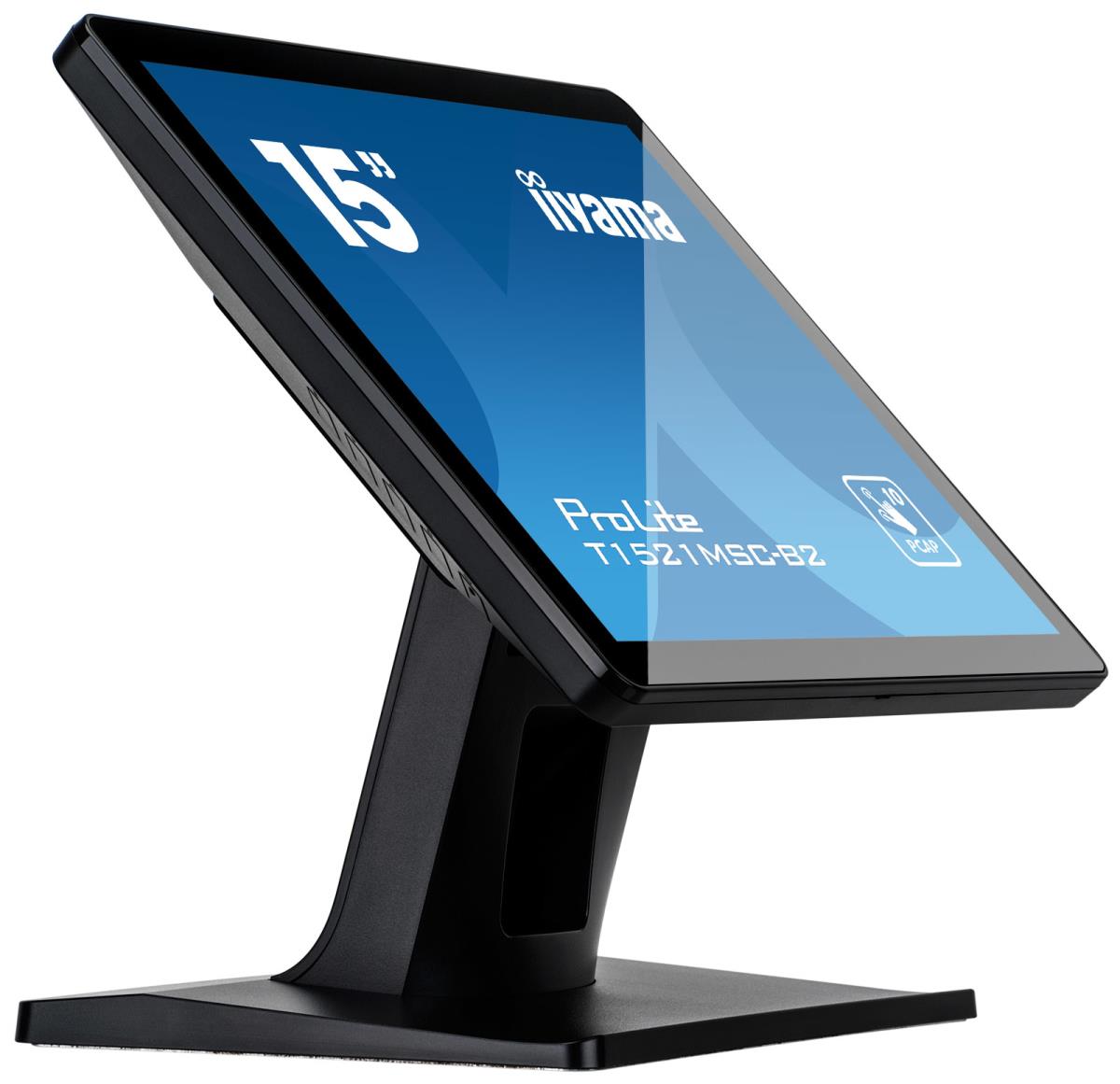

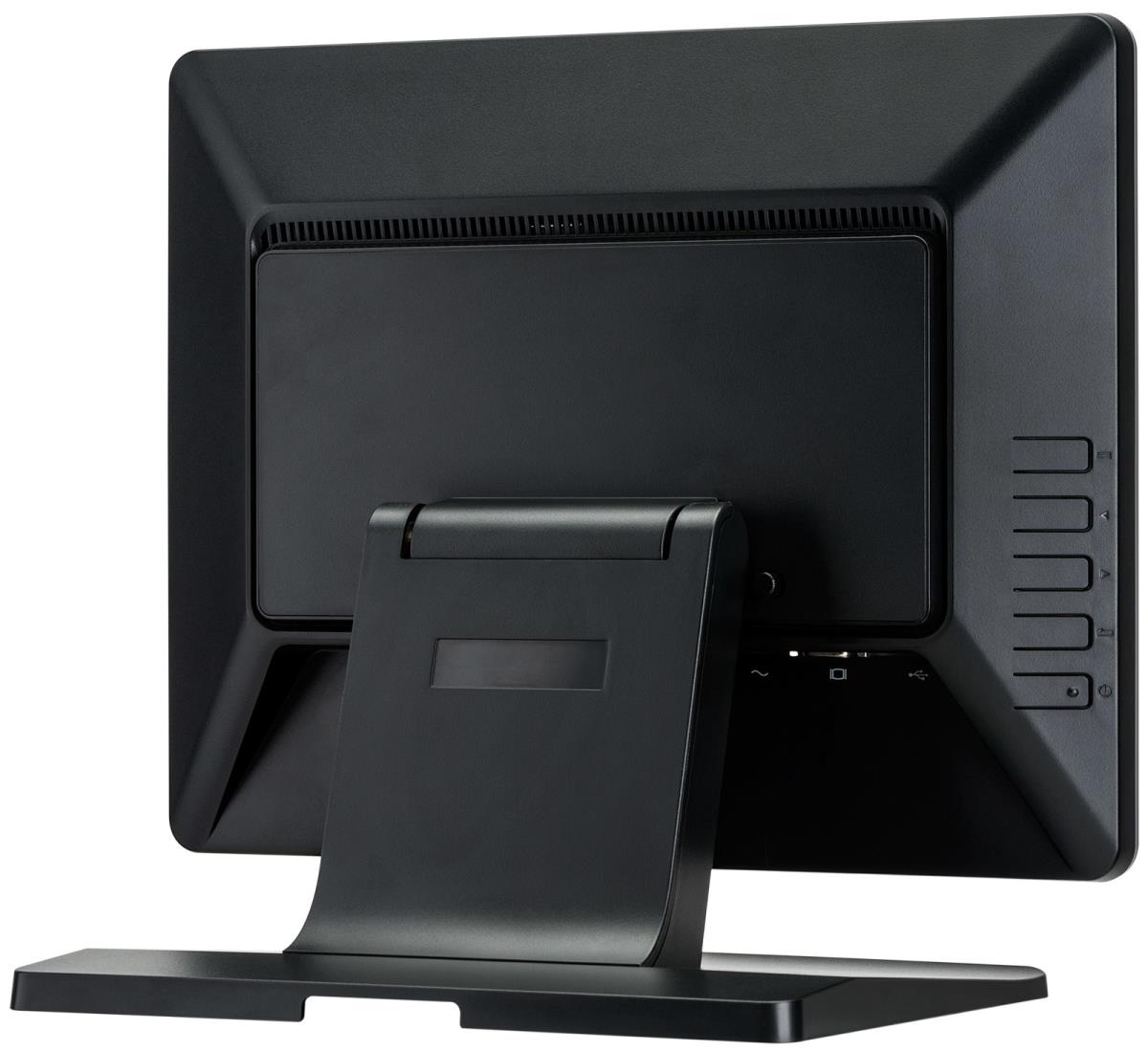

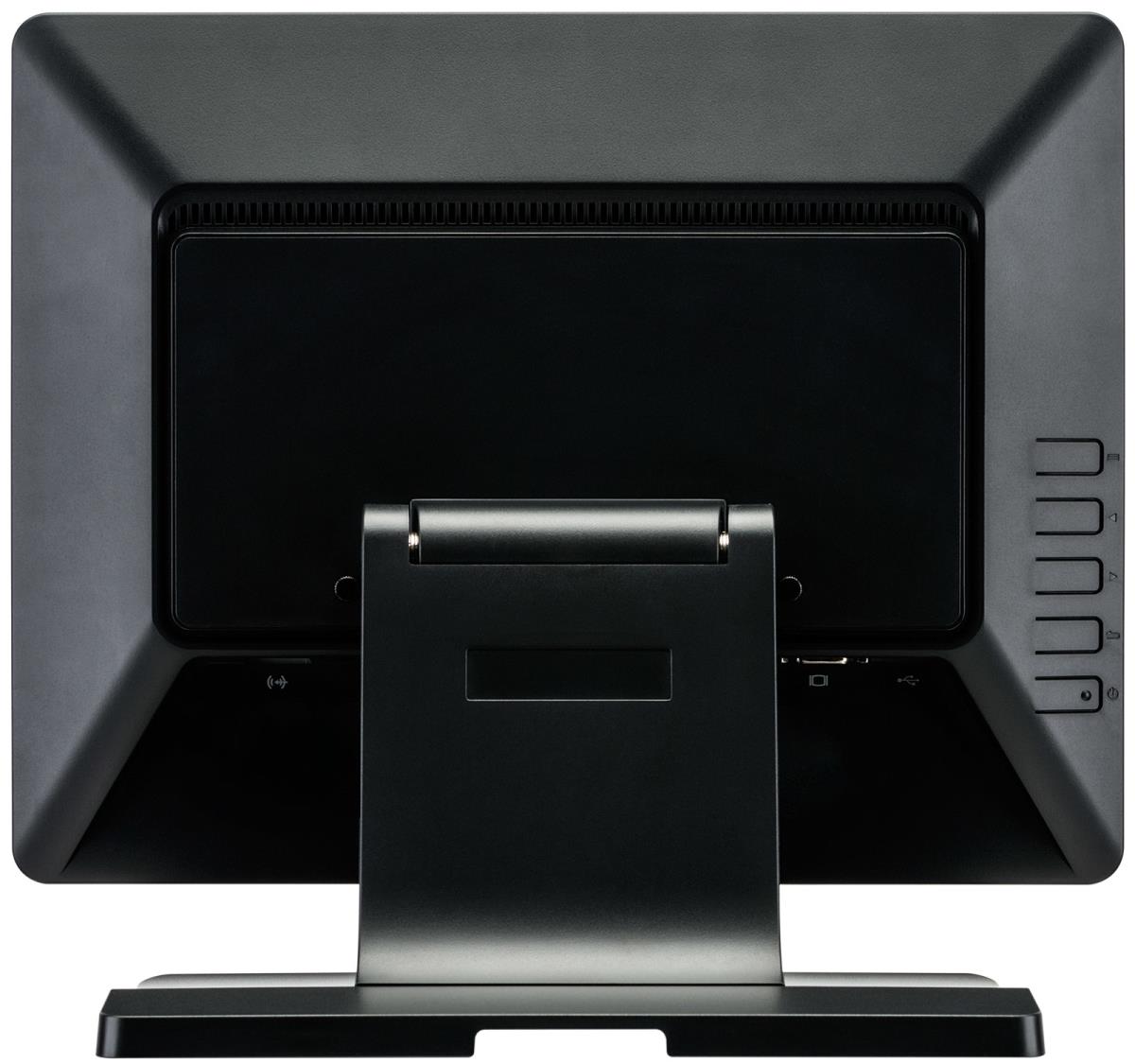

The ProLite T1521MSC-B2 15” touchscreen is based on projected capacitive technology, offering optimal seamless and accurate touch response. Due to its glass overlay, it guarantees high durability, scratch-resistance and perfect picture performance. A solid and steady base supports the touchscreen with an adjustable stand offering up to 70 degree tilt angles. Menu buttons are located on the back of the screen which can be locked to prevent tampering, and includes a handy function to deactivate the touchscreen for cleaning. The ProLite T1521MSC-B2 is an incredibly powerful touch solution, perfect for instore retail purposes.
b>TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the display to any mounting that complies with the VESA standard.
| Display | |
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1024 x 768 pixels |
| HD type | XGA |
| Native aspect ratio | 4:3 |
| Display technology | LED |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen | Yes |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 370 cd/mý |
| Display brightness (typical) | 325 cd/mý |
| Response time | 8 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Contrast ratio (typical) | 800:1 |
| Viewing angle, horizontal | 170ø |
| Viewing angle, vertical | 160ø |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.297 x 0.297 mm |
| Horizontal scan range | 31.4 - 60 kHz |
| Viewable size, horizontal | 22.8 cm |
| Viewable size, vertical | 30.4 cm |
| Display diagonal (metric) | 38 cm |
| DDC/CI | Yes |
| Surface hardness | 7H |
| Performance | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in speaker(s) | Yes |
| Built-in camera | No |
| Design | |
| Market positioning | Business |
| Product colour | Black |
| Feet colour | Black |
| Glass thickness | 1.2 mm |

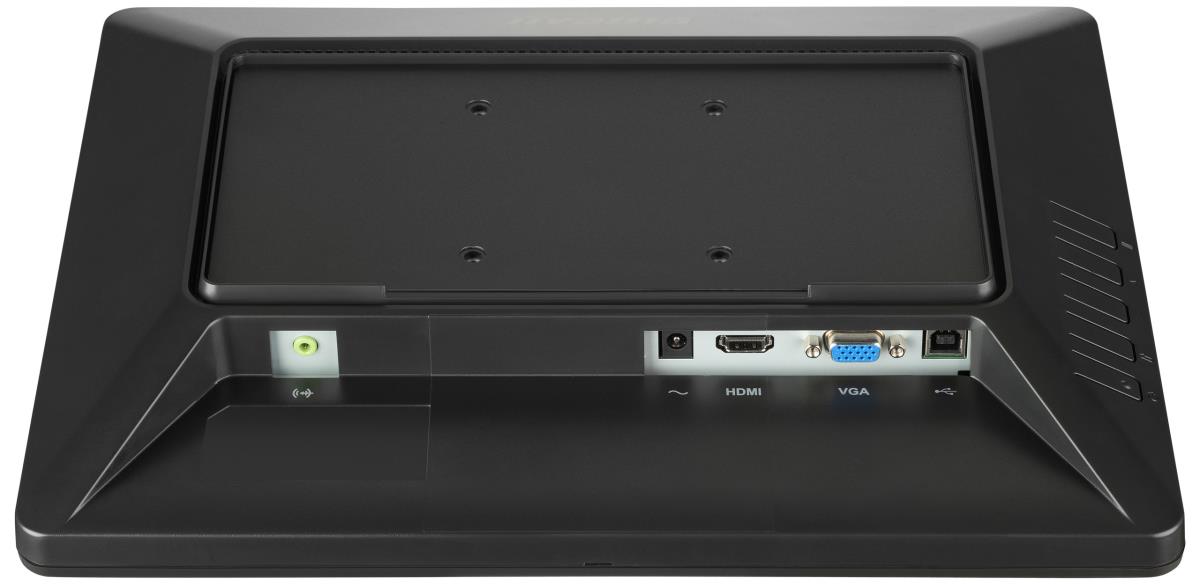

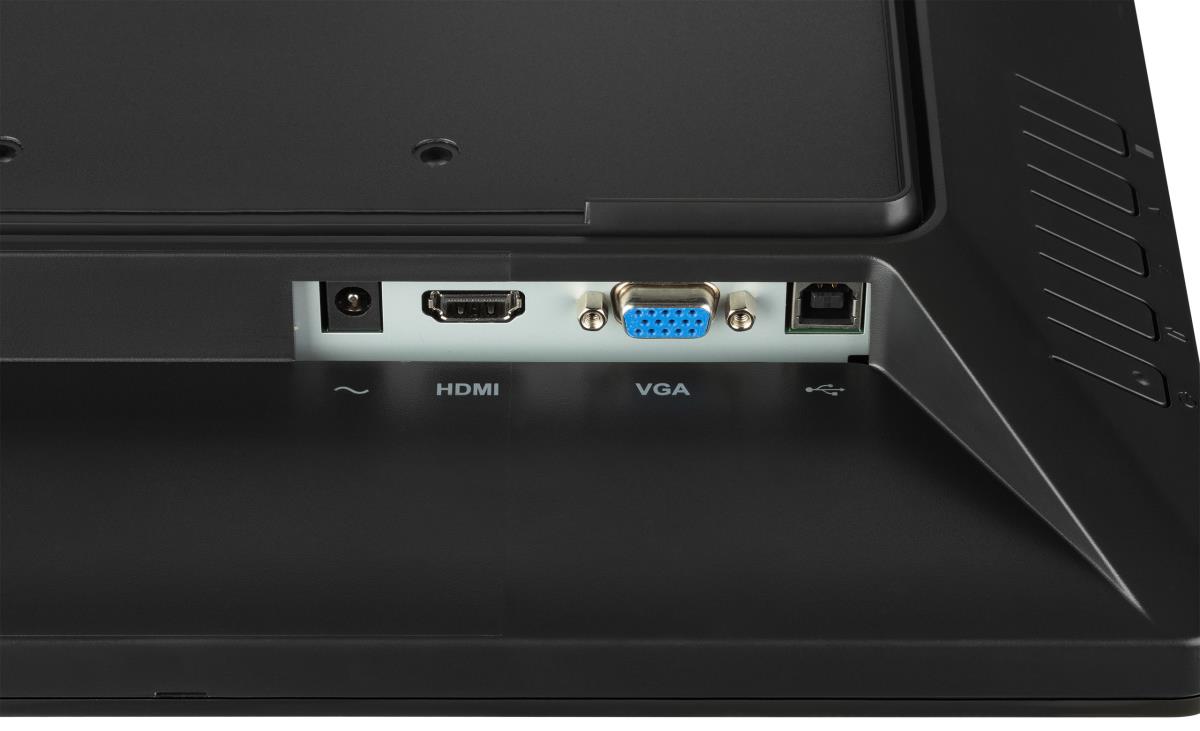

| Ports & interfaces | |
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Ergonomics | |

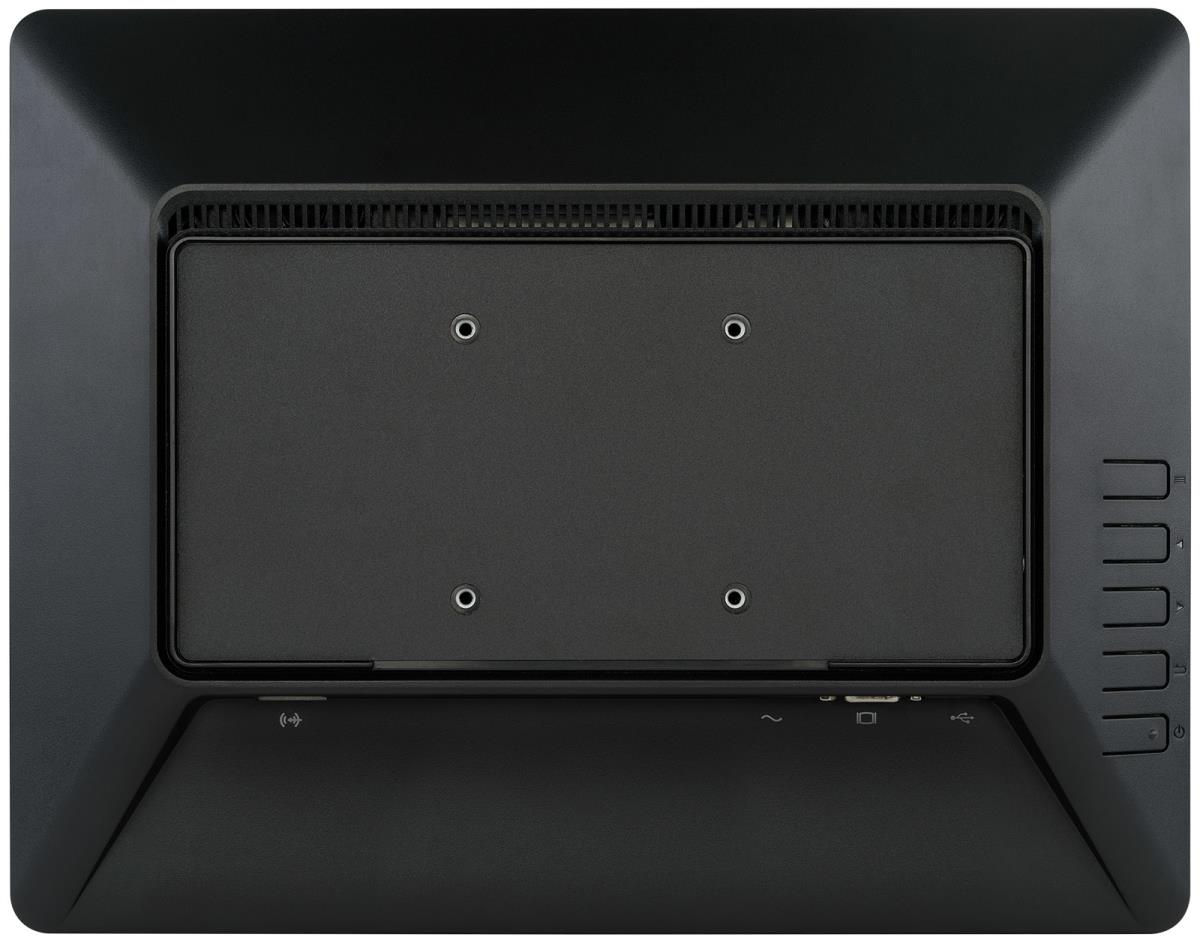

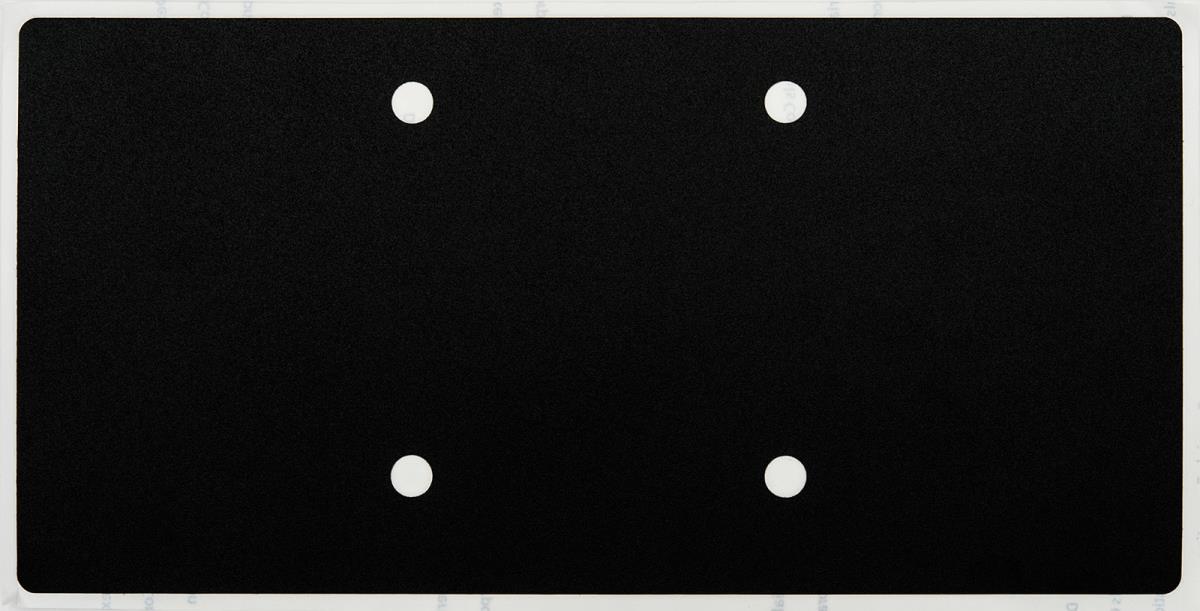

| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable management | Yes |

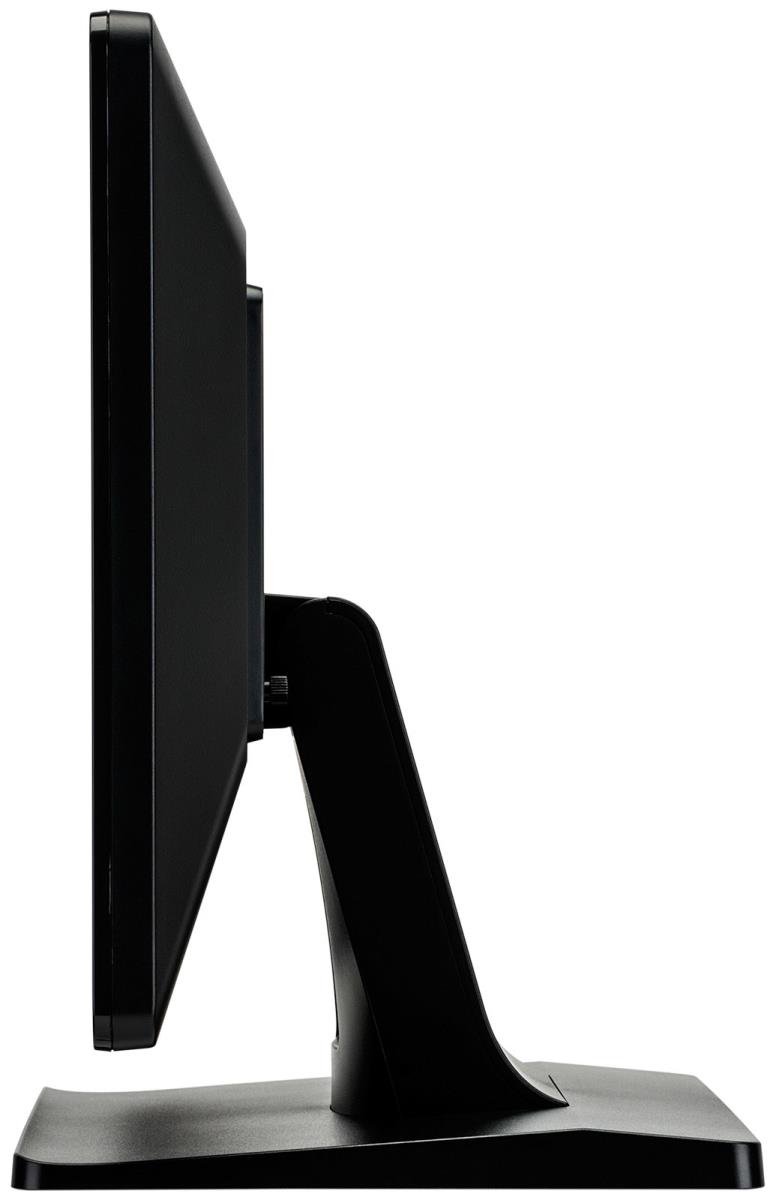

| Tilt adjustment | Yes |

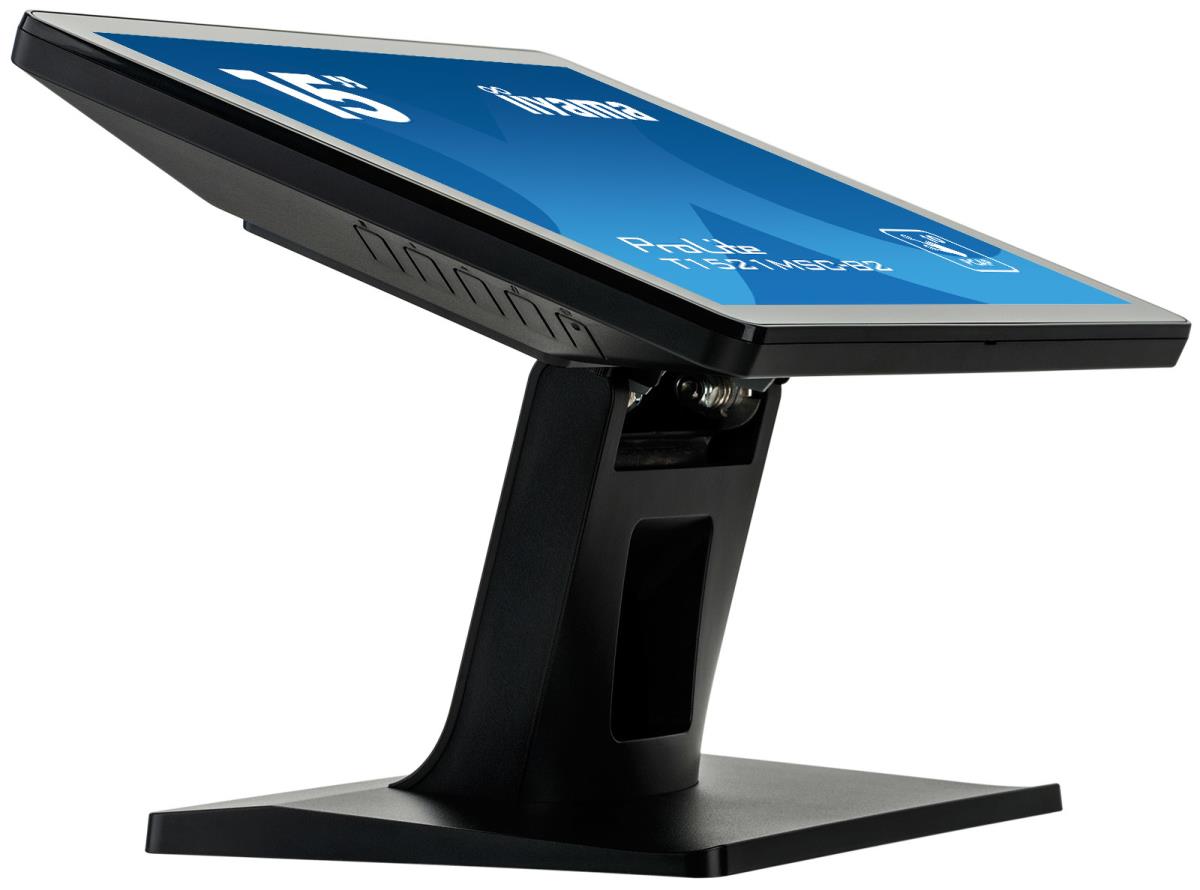

| Tilt angle range | 10 - 70ø |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Russian |
| Number of OSD languages | 8 |
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 1385536 |
| Weight & dimensions | |
| Width (with stand) | 340 mm |
| Depth (with stand) | 198 mm |
| Height (with stand) | 308 mm |
| Weight (with stand) | 3.5 kg |
| Packaging content | |
| Stand included | Yes |

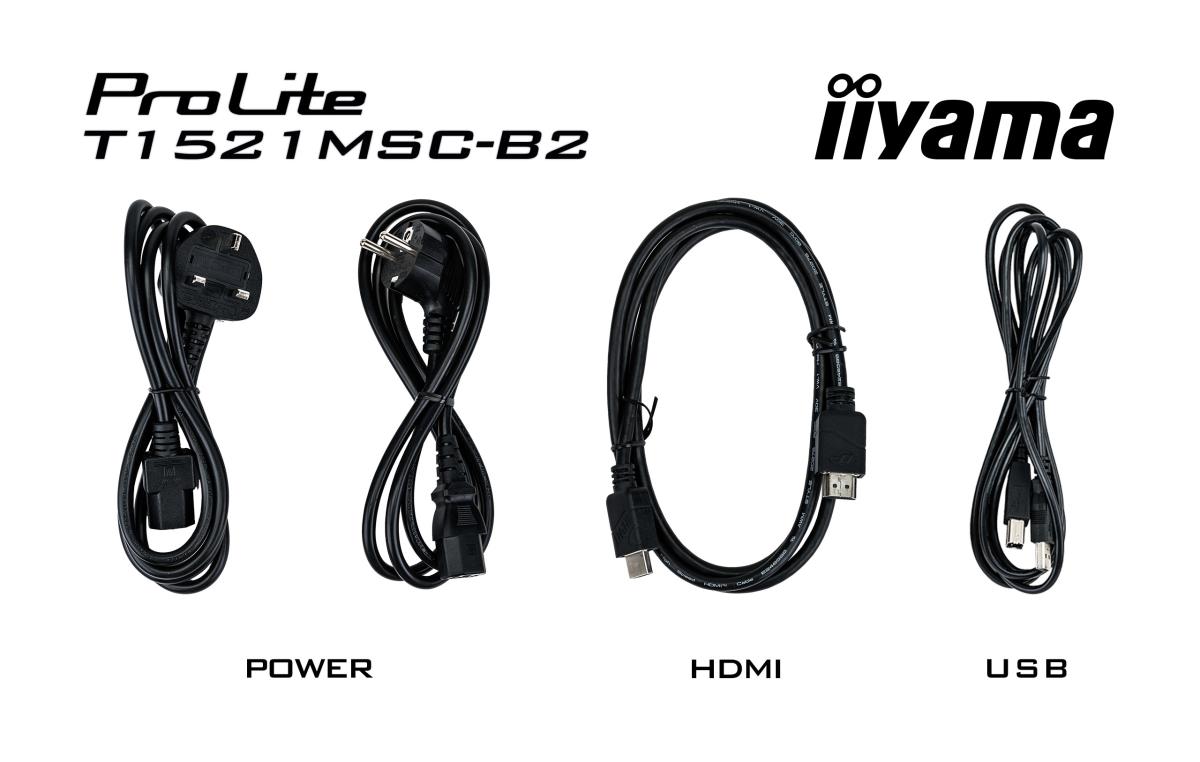

| Cables included | HDMI, Power, USB |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
| International Protection (IP) code | IP65 |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE, cUL |
| Warranty | |
| Base Warranty | Non Non |
