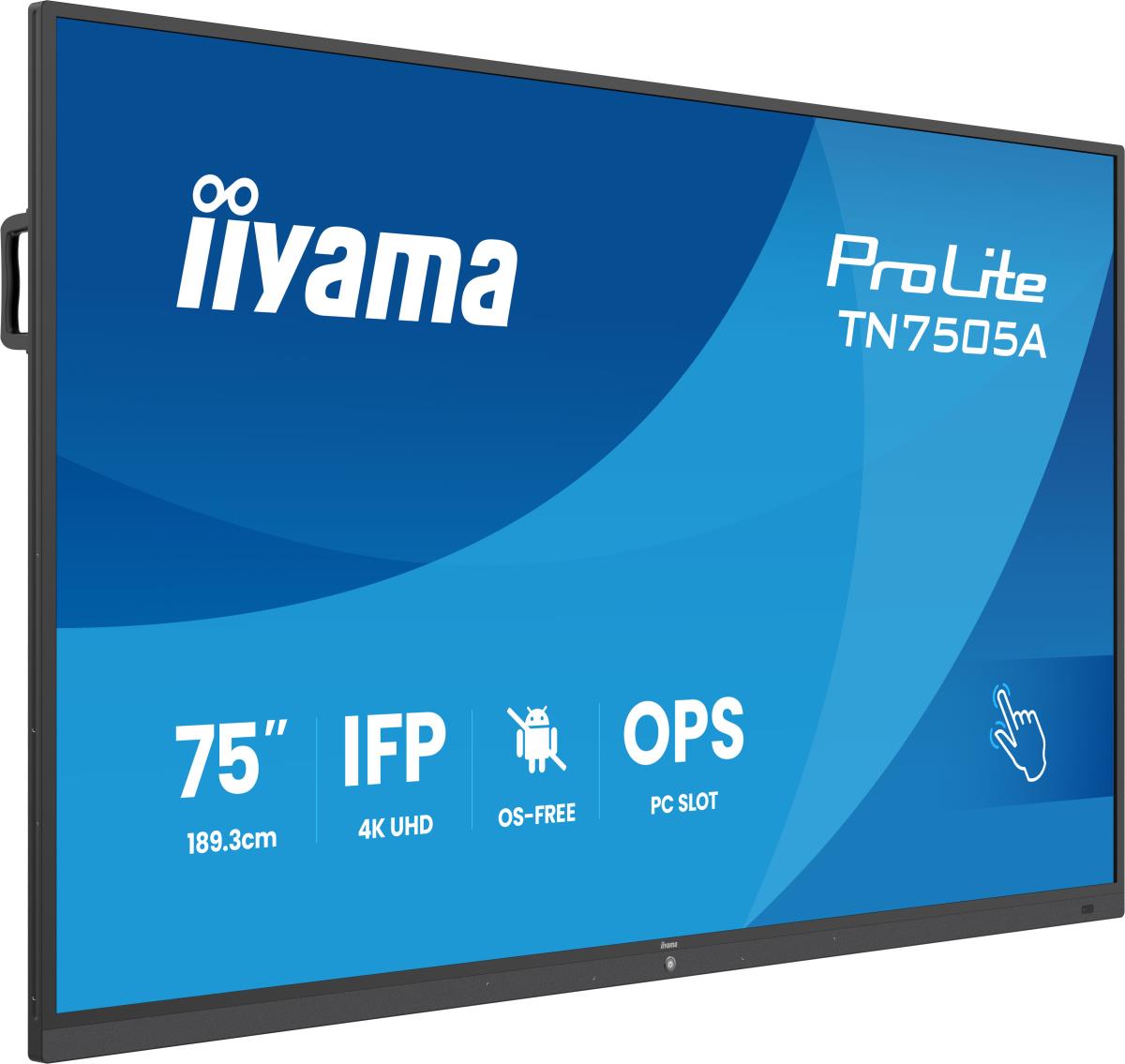

Large Format Display - ProLite TN7505A-B1AG - 75in Touch - 3840x2160 (4K UHD) - Black
ITCurry #: 89303592 | Article #: TN7505A-B1AG-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Related products
Product Information
The ProLite TN7505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN6505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN8605A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
| Display | |
| Panel type | IPS |
| Display diagonal | 189.3 cm (74.5") |
| Display brightness | 500 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display diagonal (metric) | 189.273 cm |
| Horizontal scan range | 30 - 135 kHz |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| USB ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Design | |
| Panel mounting interface | 800 x 400 mm |
| Anti-glare screen | Yes |
| Performance | |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Power | |
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Weight & dimensions | |
| Display width | 1710.2 mm |
| Display depth | 120.4 mm |
| Display height | 1036.3 mm |
| Display weight | 54.5 kg |
| Width | 1710.2 mm |
| Depth | 120.4 mm |
| Height | 1036.3 mm |
| Weight | 54.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Network | |
| Ethernet LAN | Yes |
| Technical details | |
| Audio in (mini jack) | Yes |
| OPS slot | 1 |
| User controls | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TšV mark, UKCA, WEEE |
| Other features | |
| Brightness | 450 cd/mý |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Warranty | |
| Base Warranty | Non Non |
