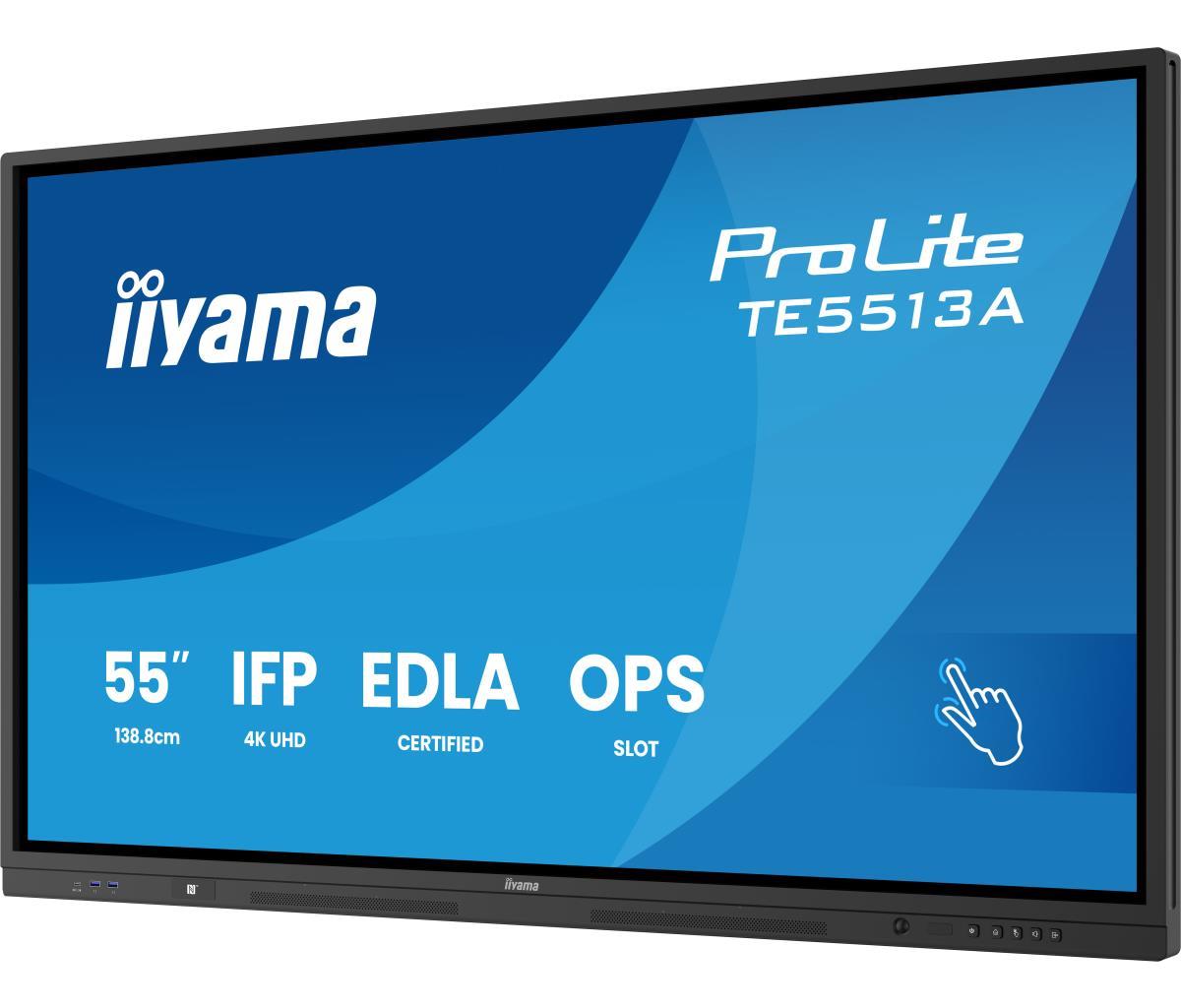

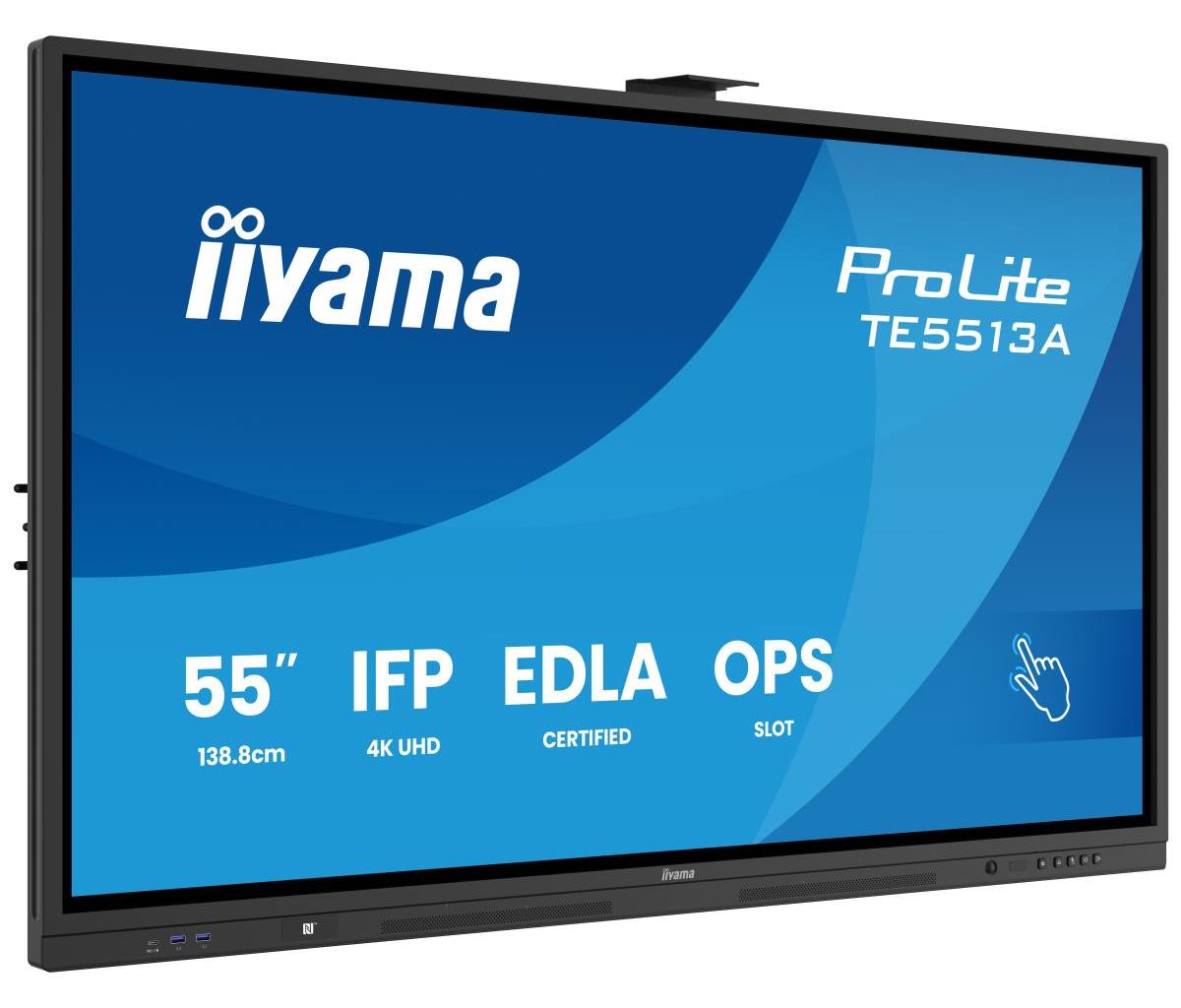

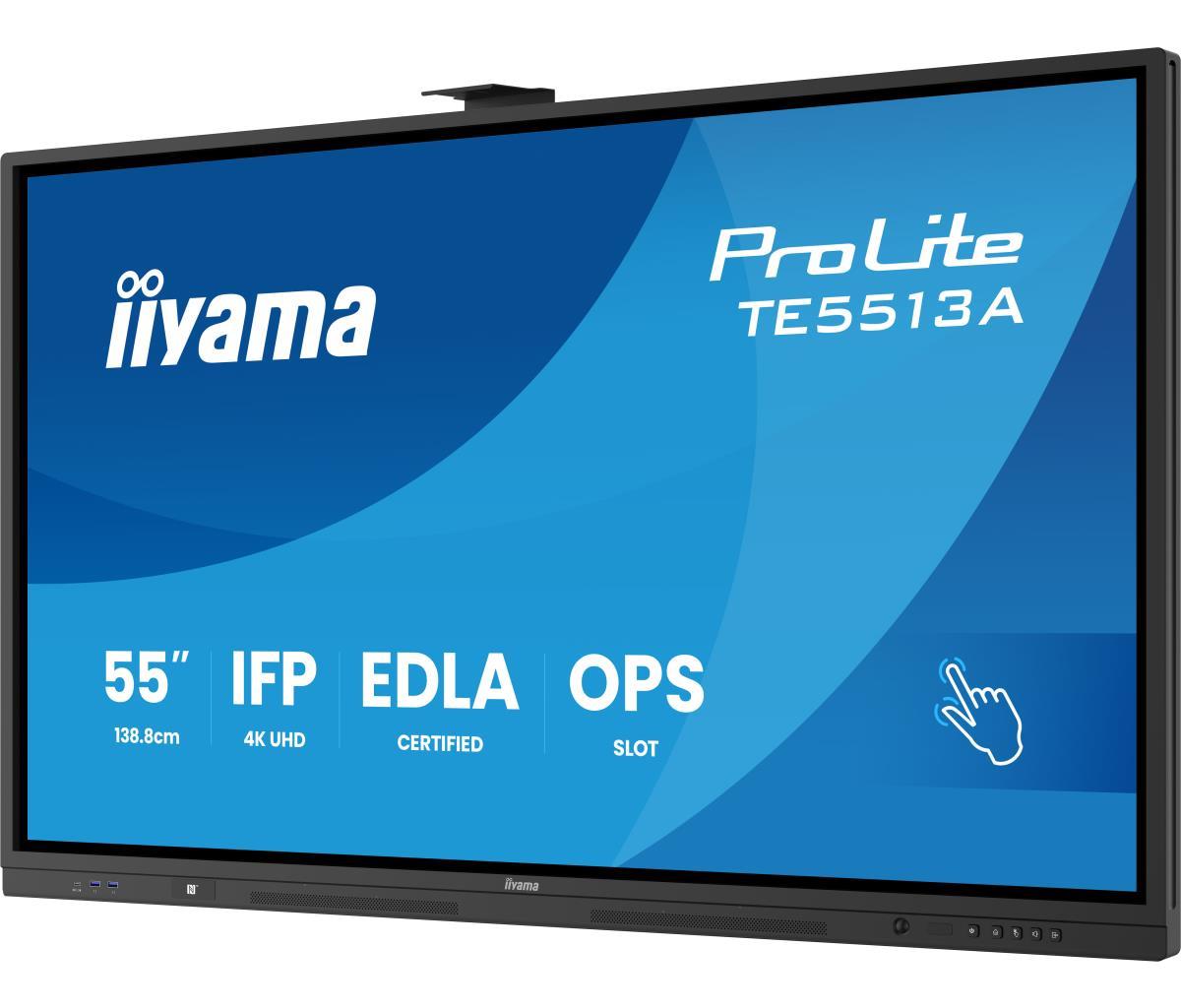

Large Format Display - ProLite TE5513A-B1AG - 55in Touch - 3840x2160 (UHD) - Black
ITCurry #: 89303471 | Article #: TE5513A-B1AGFlash Sale
Less than 5 units remaining
Less than 10 units remaining
Less than 20 units remaining
More than 20 units are available
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} days remaining
{{new Date(new Date(parseInt((dataContainer.PromoDetail.EndDate).split('(')[1].split(')')[0])) - new Date()).getDate()}} day remaining
Price:
919.83
Inc VAT
Ex VAT
Shipping:
Delivery in 3 days
Quantity:
Key Specifications
-
ScreenMemoryWeightProcessorHard DiskSSDScreenResolutionConnectivityMemoryCaseOSScreenTypeSpeed BlackSpeed ColourModelProcessor SpeedForm FactorInternal / ExternalPort CountUplink / mediaMounting
- View All Specs
Bundles
Inc VAT
Ex VAT
Delivery in 3 days
Inc VAT
Ex VAT
Delivery in 3 days
Inc VAT
Ex VAT
Delivery in 3 days
Inc VAT
Ex VAT
Delivery in 3 days
Related products
Product Information

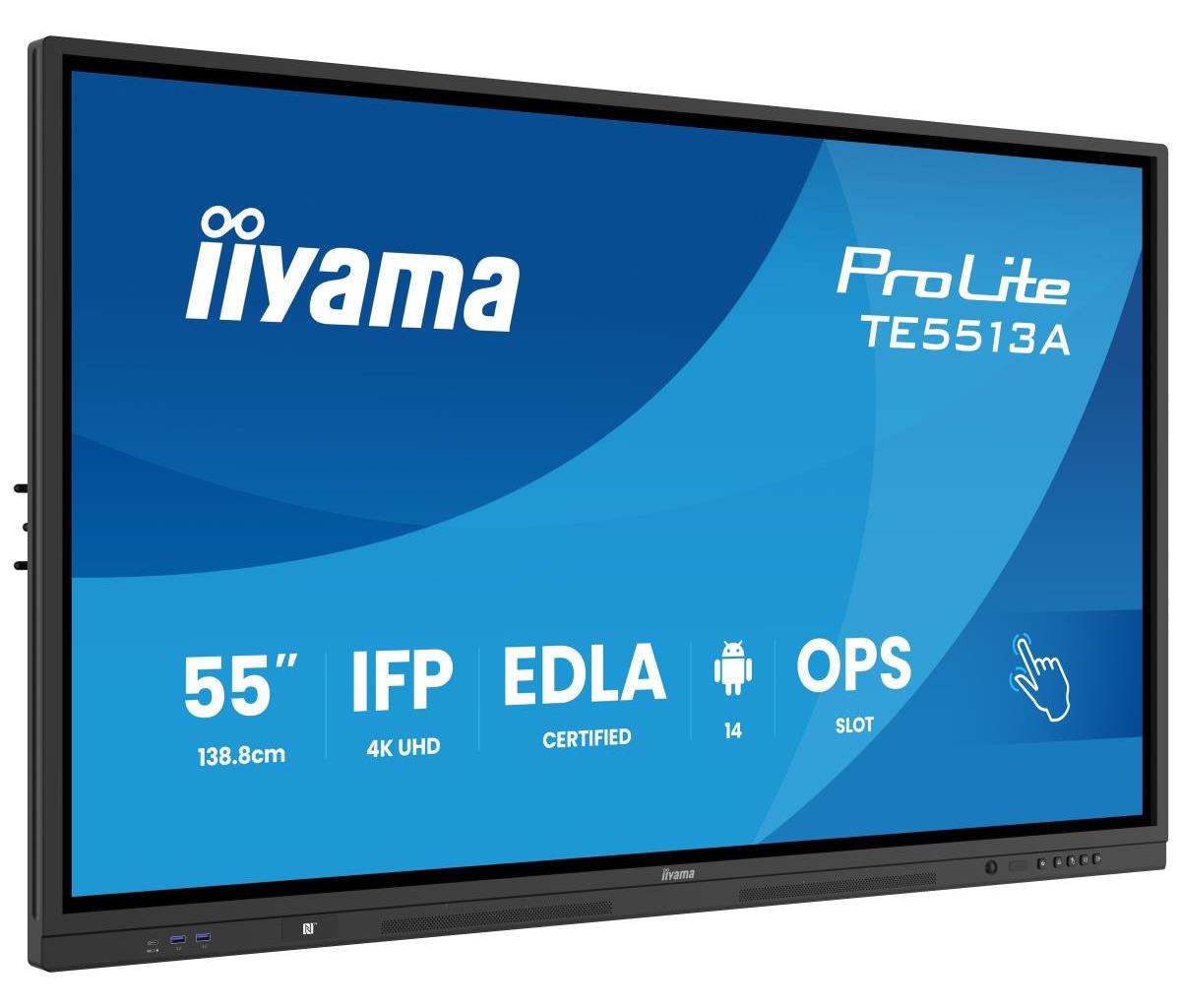

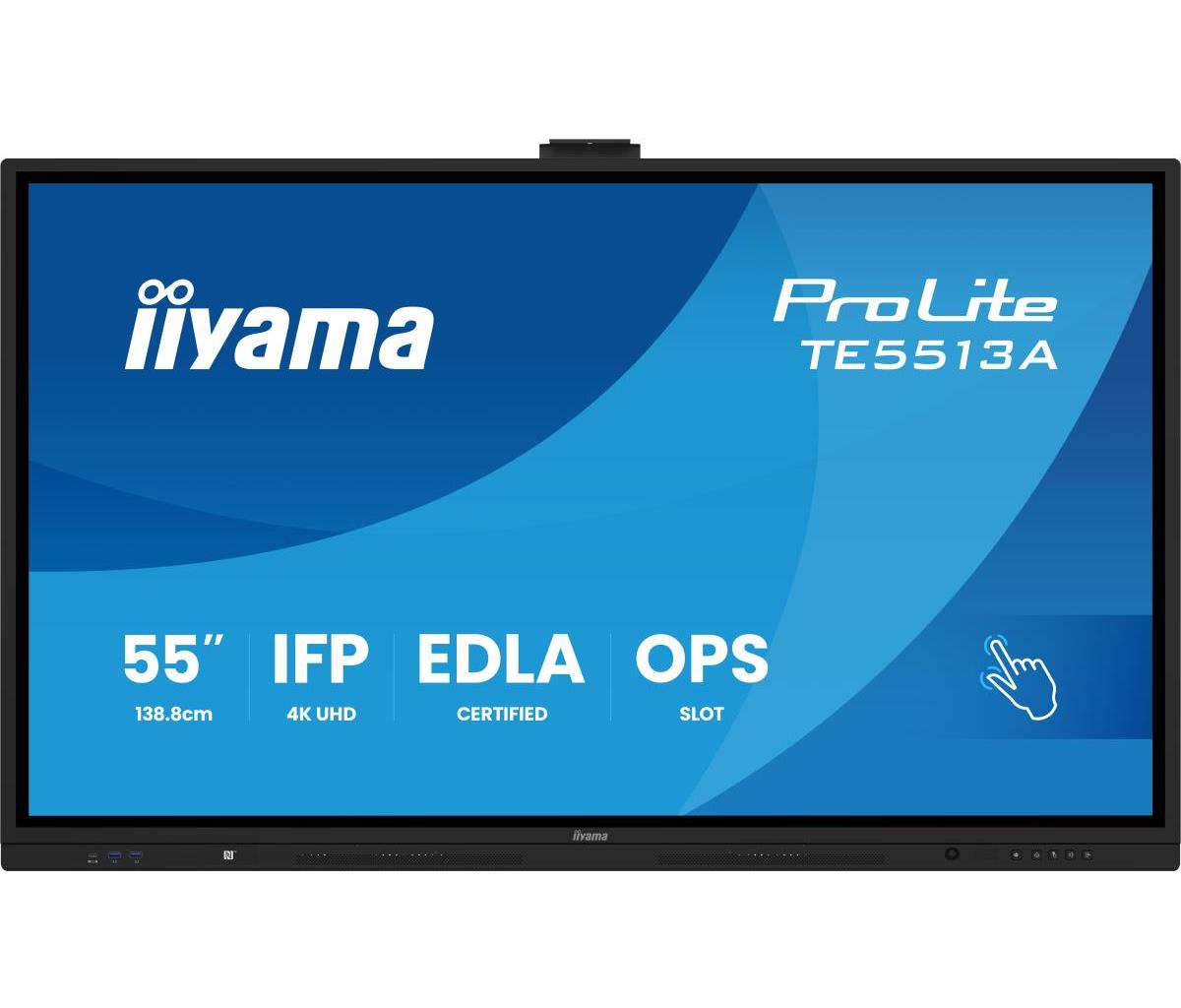

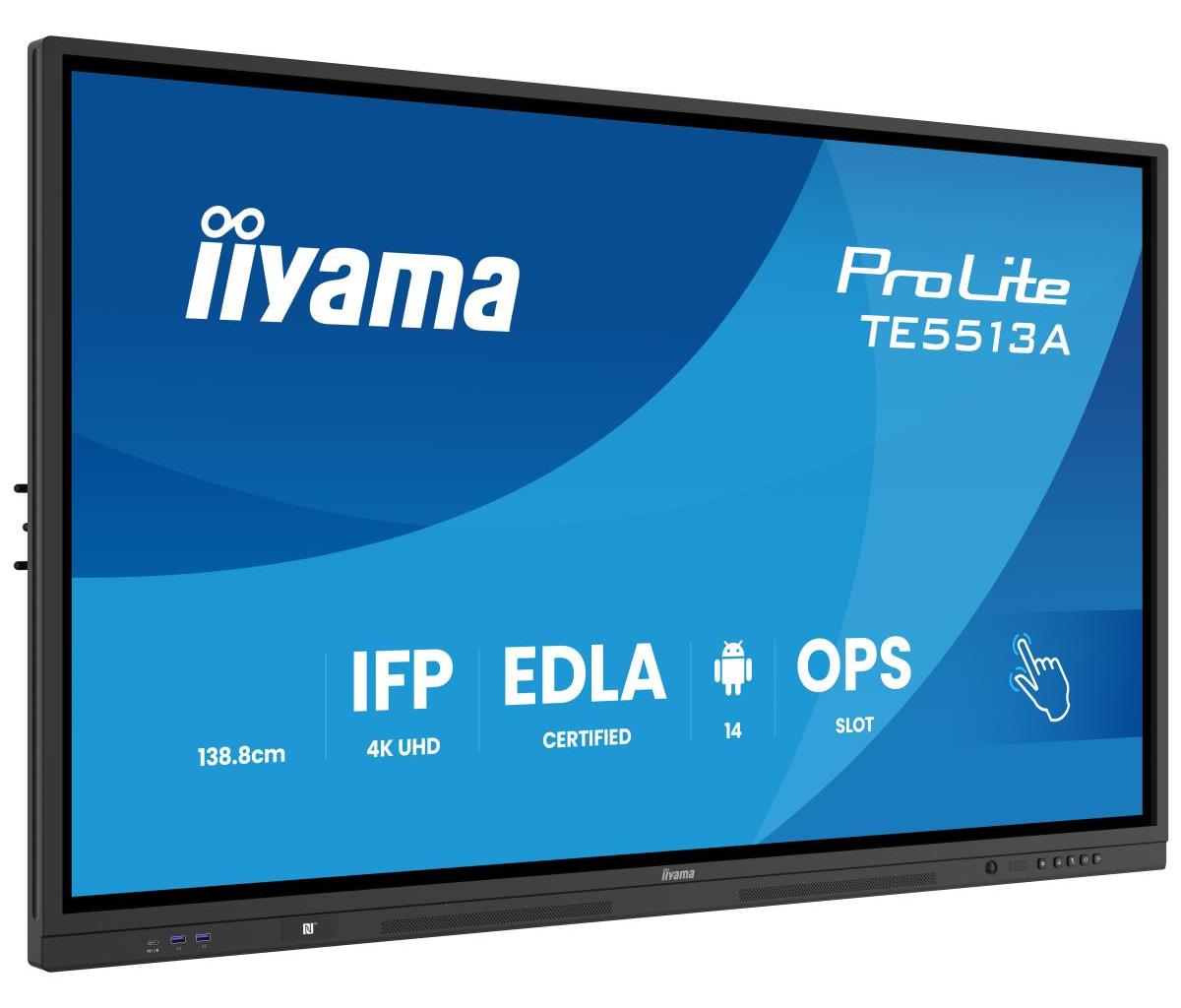

The TE5513A-B1AG is a cutting-edge 4K UHD Google EDLA Certified interactive display that redefines performance and precision. Featuring a Zero-Gap Air Bonding LCD screen to eliminate parallax and with PureTouch-IR+ with Palm Rejection, it ensures smooth, accurate interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6 with Bluetooth 5.0 connectivity, iControl (DMS), iiShare and integrated EShare app (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy added features like a PIR motion sensor for energy efficiency; perfect for workplaces and educational spaces, it fosters collaboration, communication, and progress.
| Display | |
| Panel type | IPS |
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/mý |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | PureTouch-IR |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178ø |
| Viewing angle, vertical | 178ø |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.315 x 0.315 mm |
| Active display area (W x H) | 1210 x 680 mm |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3.2 mm |
| Ports & interfaces | |
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| RS-232C | Yes |
| OPS module slot | Yes |
| Audio Return Channel (ARC) | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 60 W |
| Design | |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Product colour | Black |

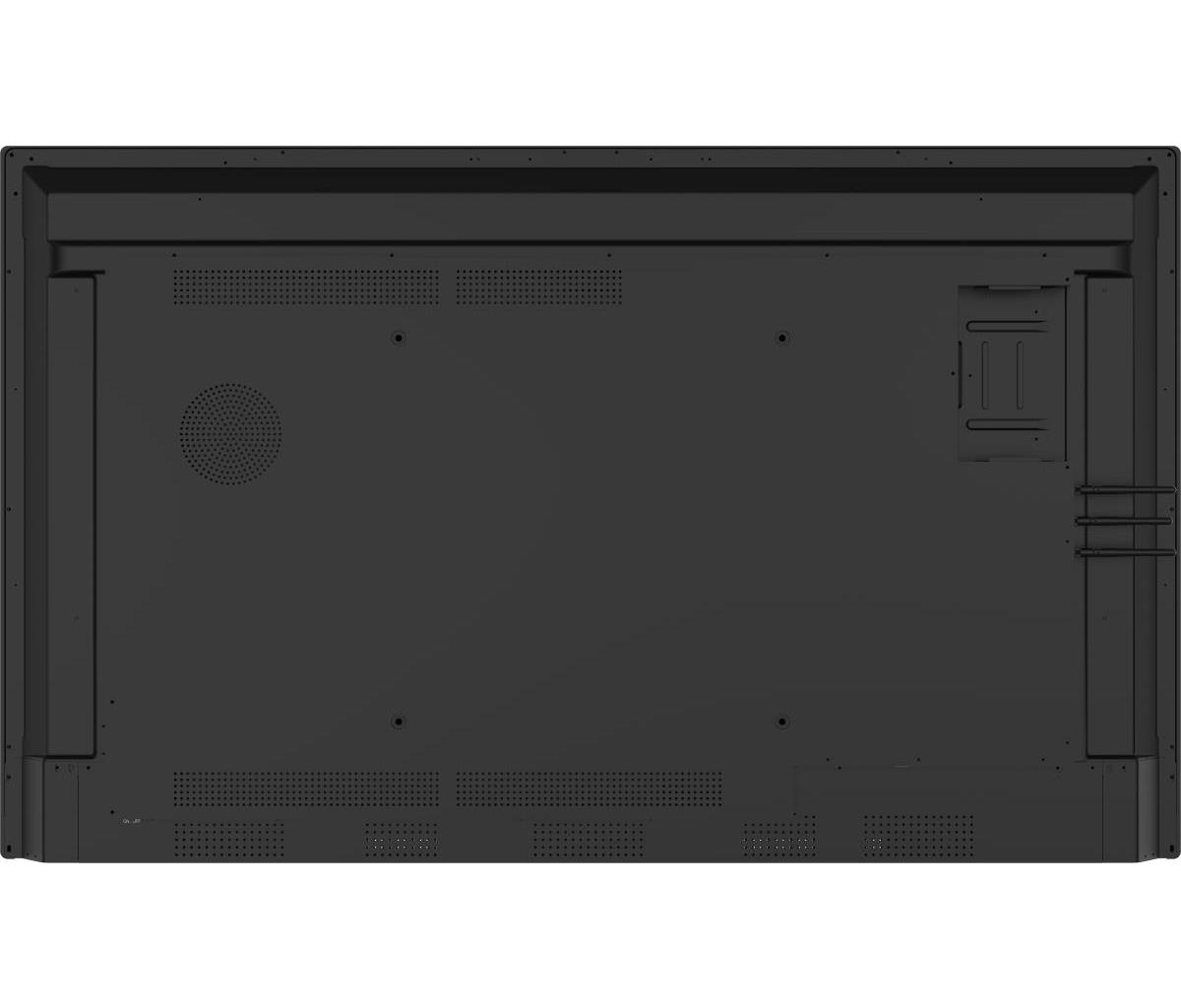

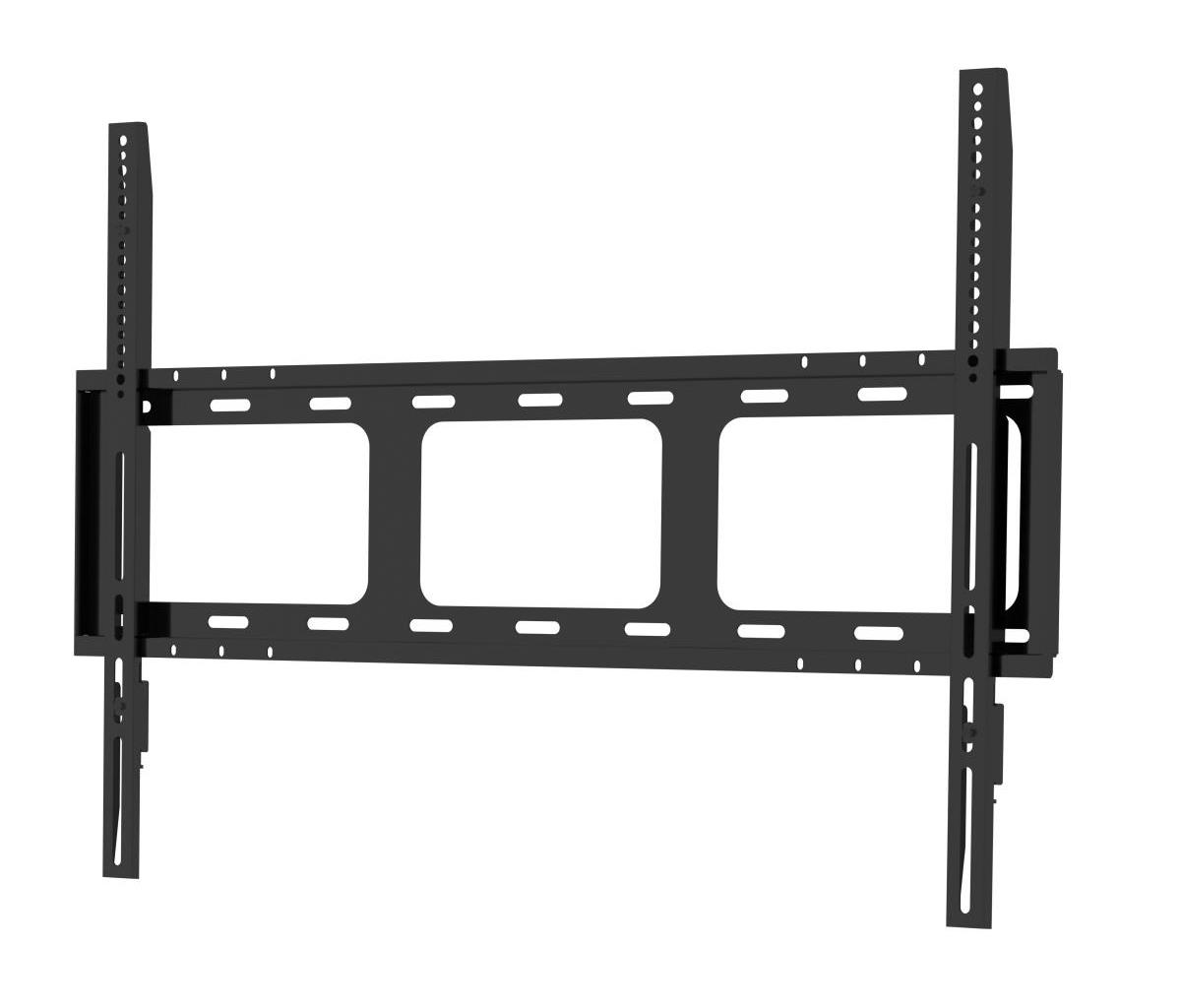

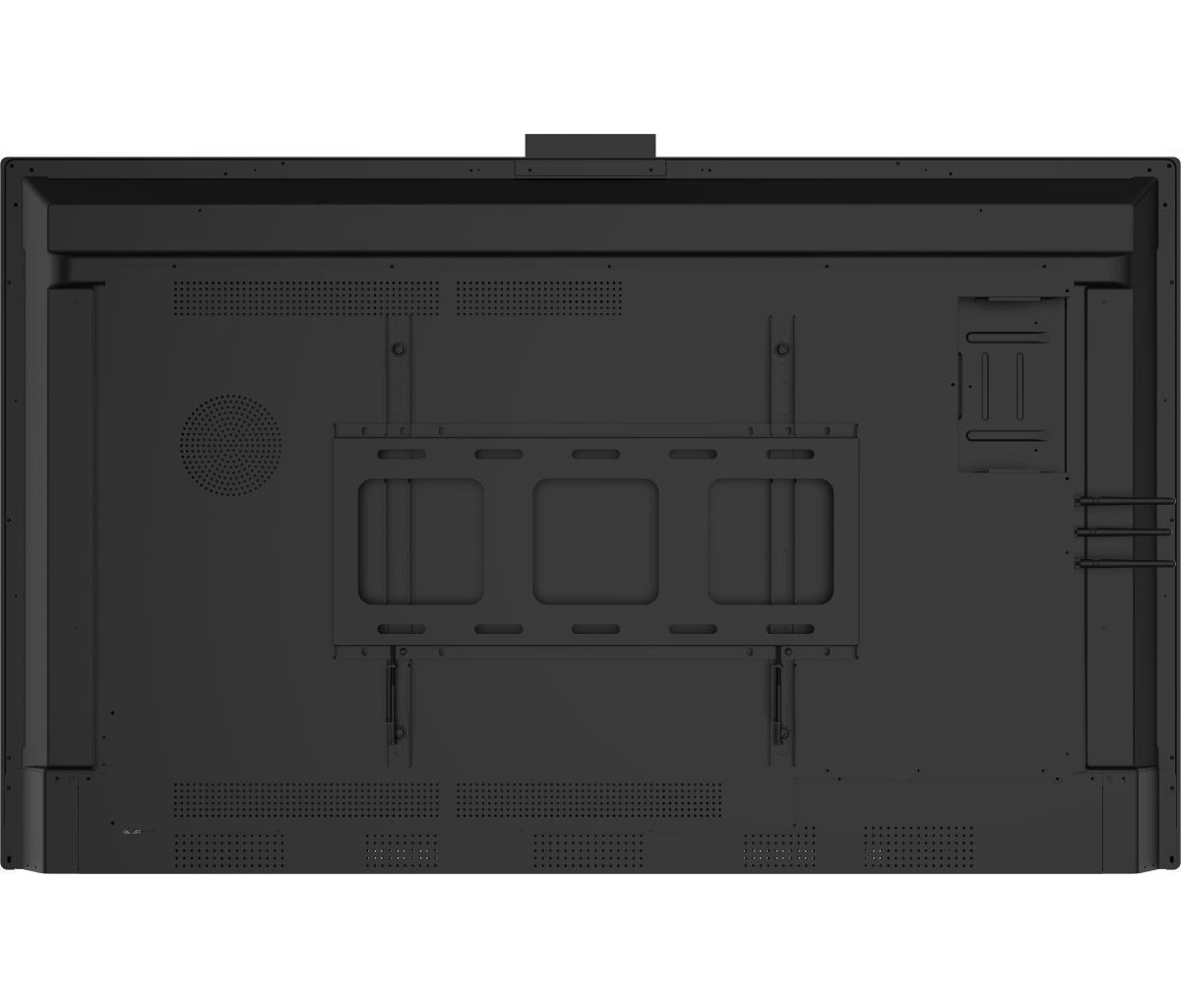

| VESA mounting | Yes |

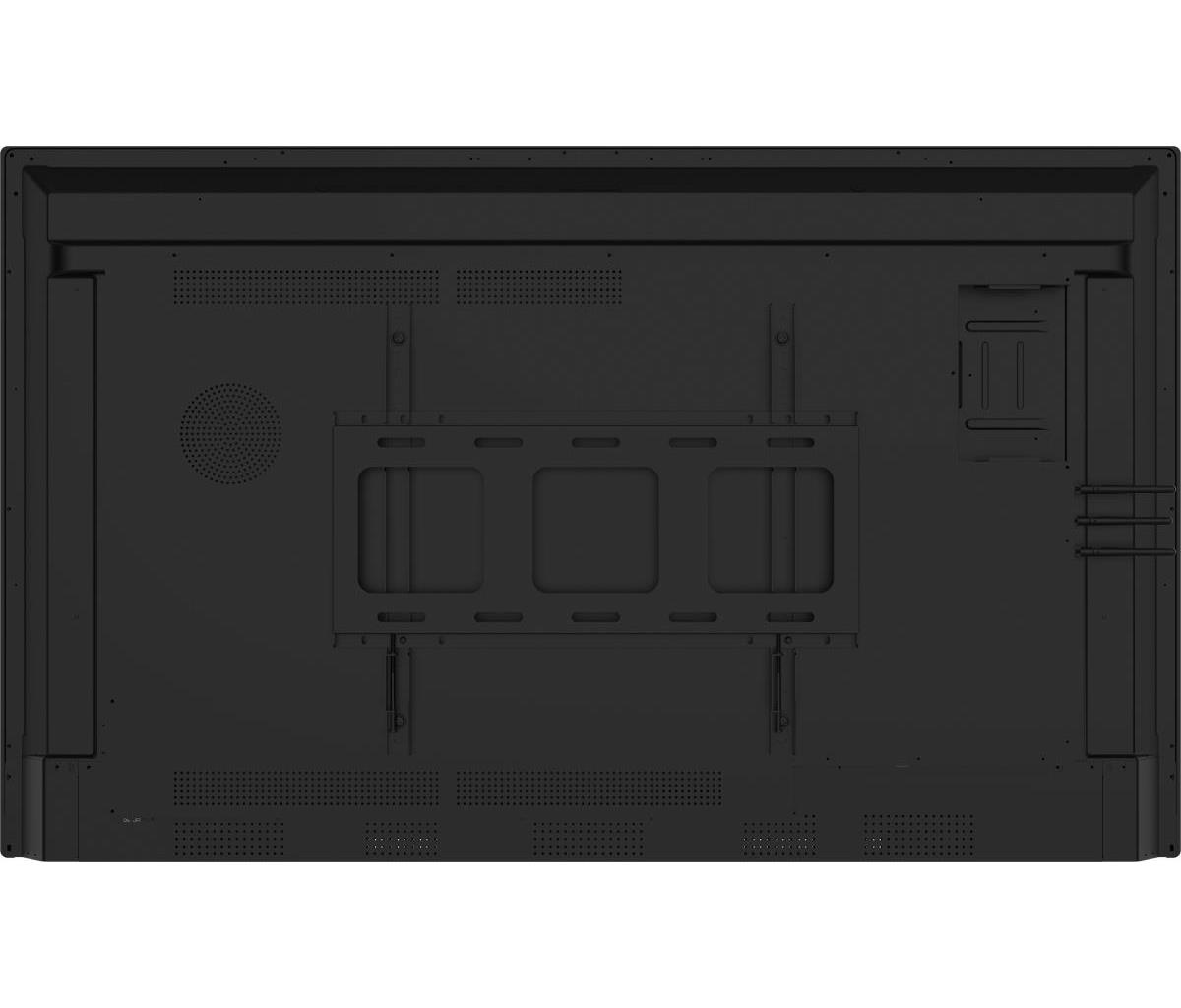

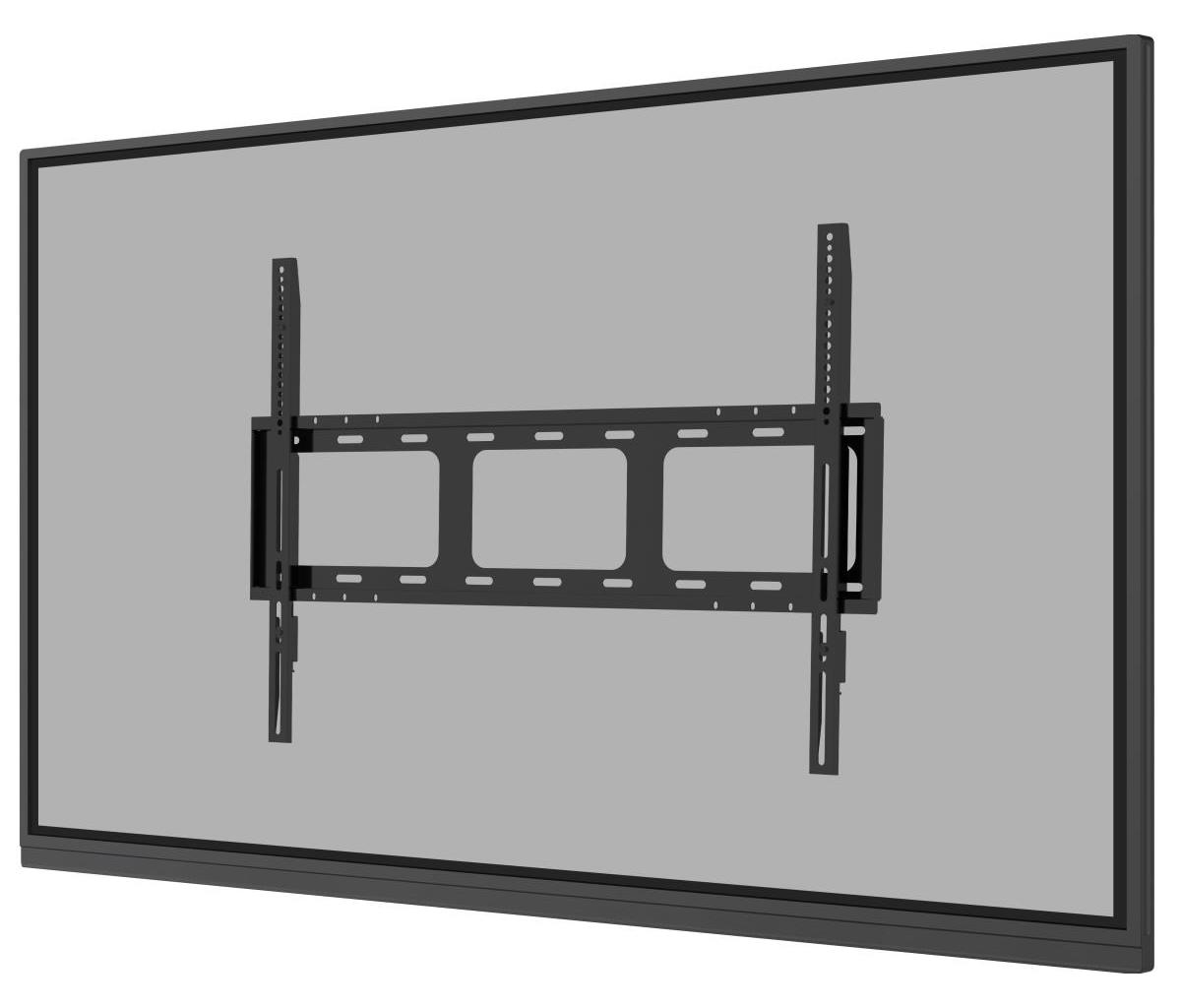

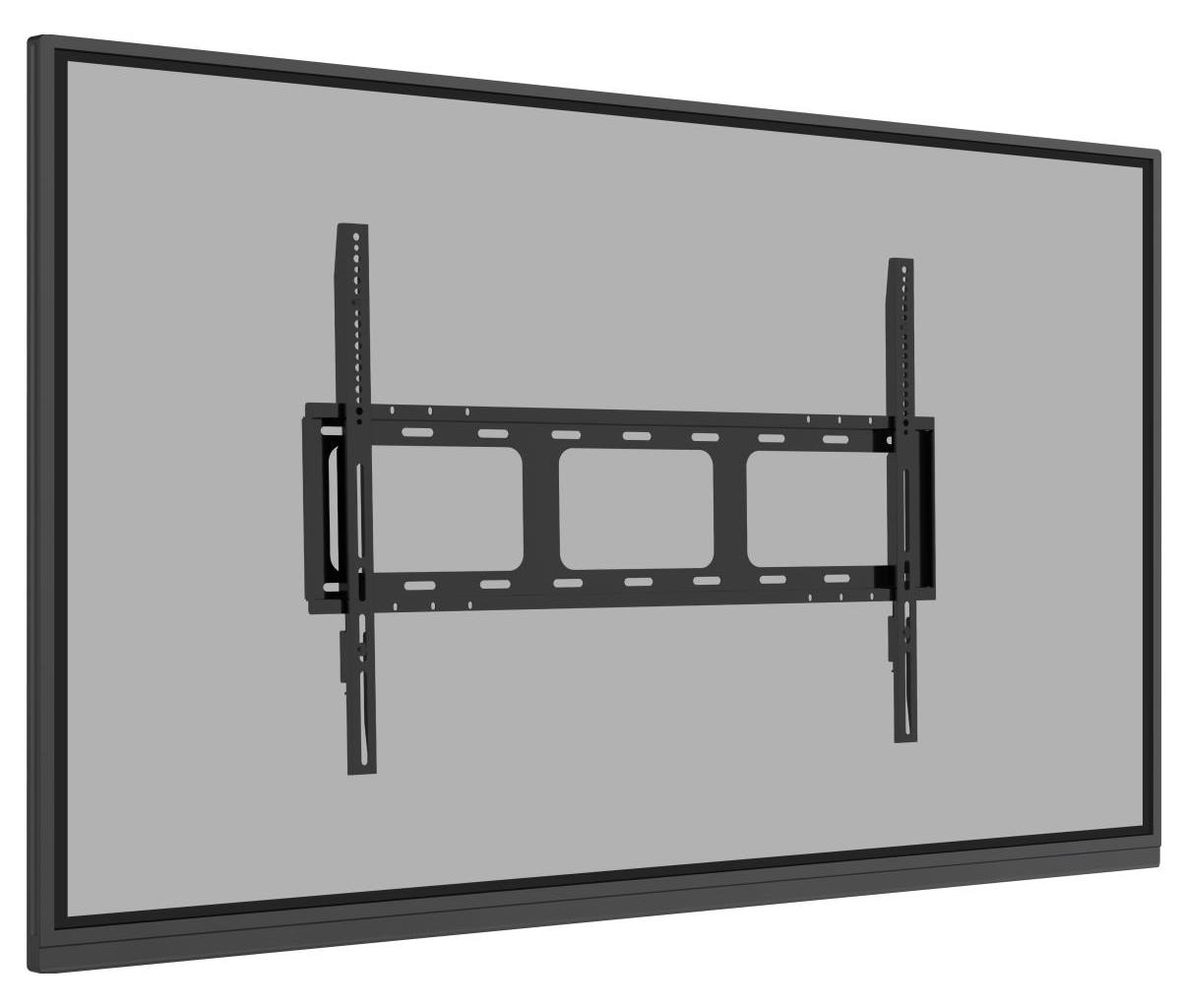

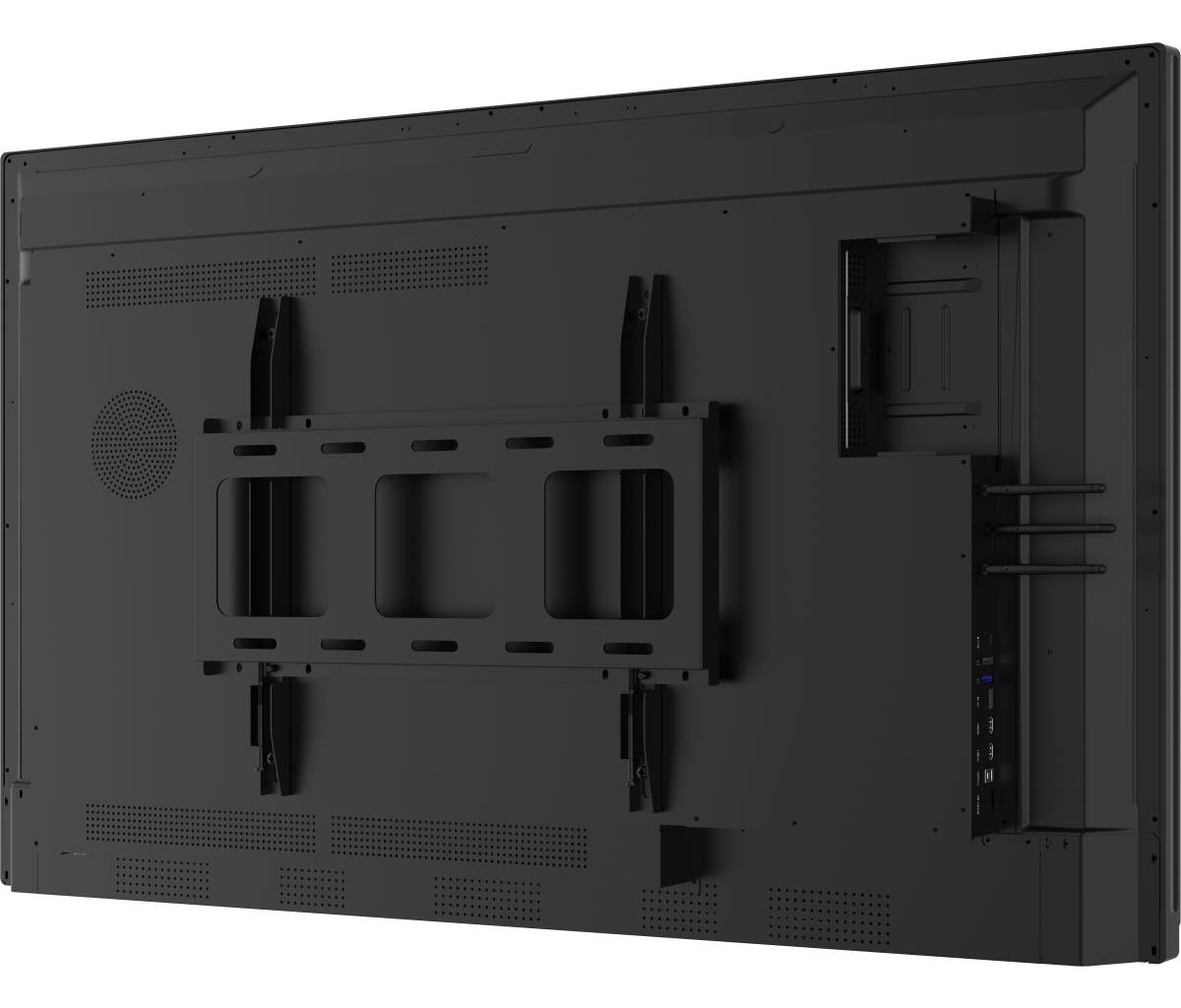

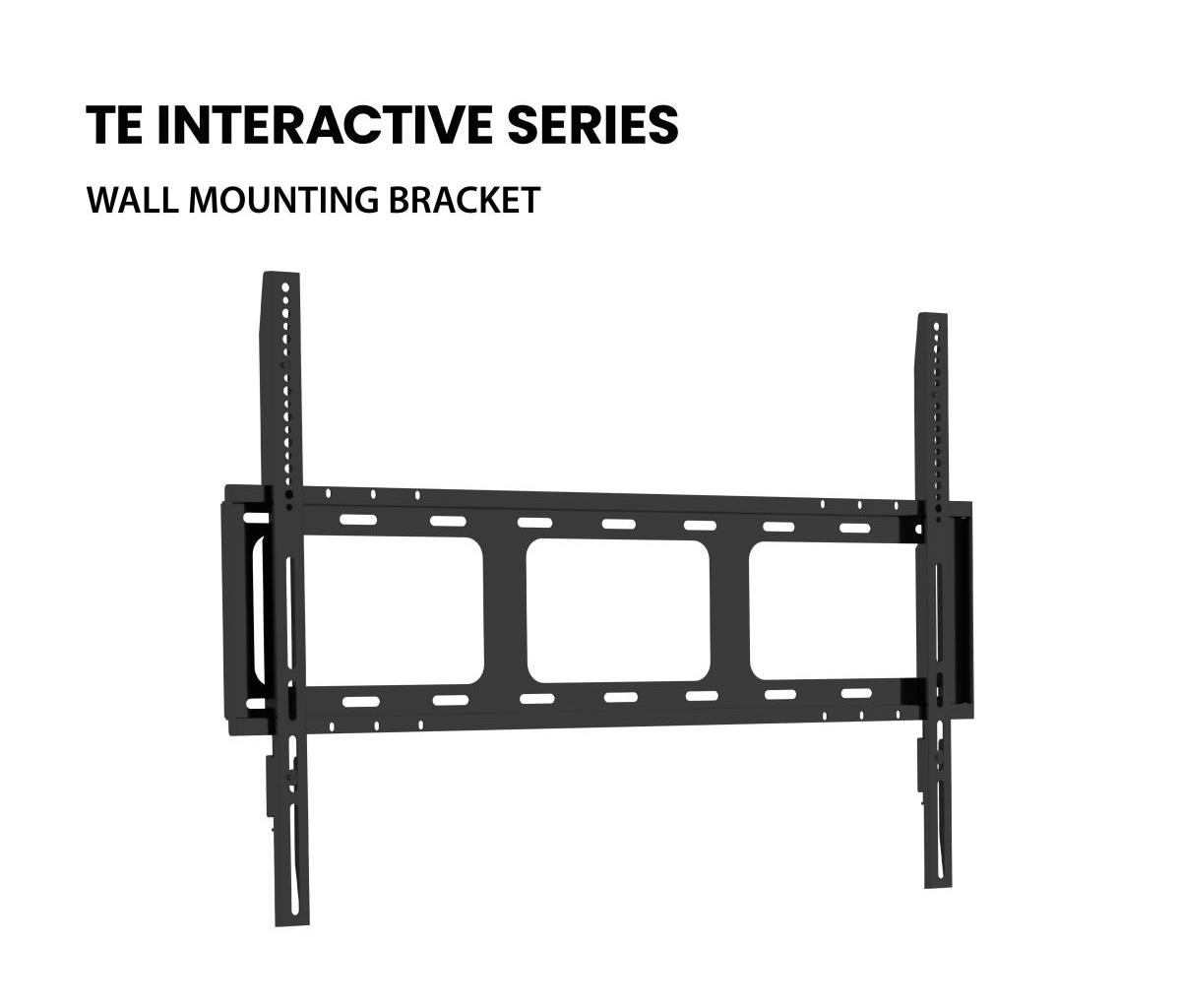

| Panel mounting interface | 400 x 400 mm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Positioning accuracy | 1 mm |
| Performance | |
| Purpose | Education |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | CAT, Czech, Danish, German, English, Spanish, Estonian, Finnish, French, Hungarian, Italian, Lithuanian, LAT, Norwegian, Dutch, Polish, Russian, Swedish, Ukrainian |
| Operating hours (hours/days) | 18/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (typical) | 125 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 125 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A73 |
| Processor frequency | 1.4 GHz |
| Processor cores | 4 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Weight & dimensions | |
| Display width | 1267 mm |

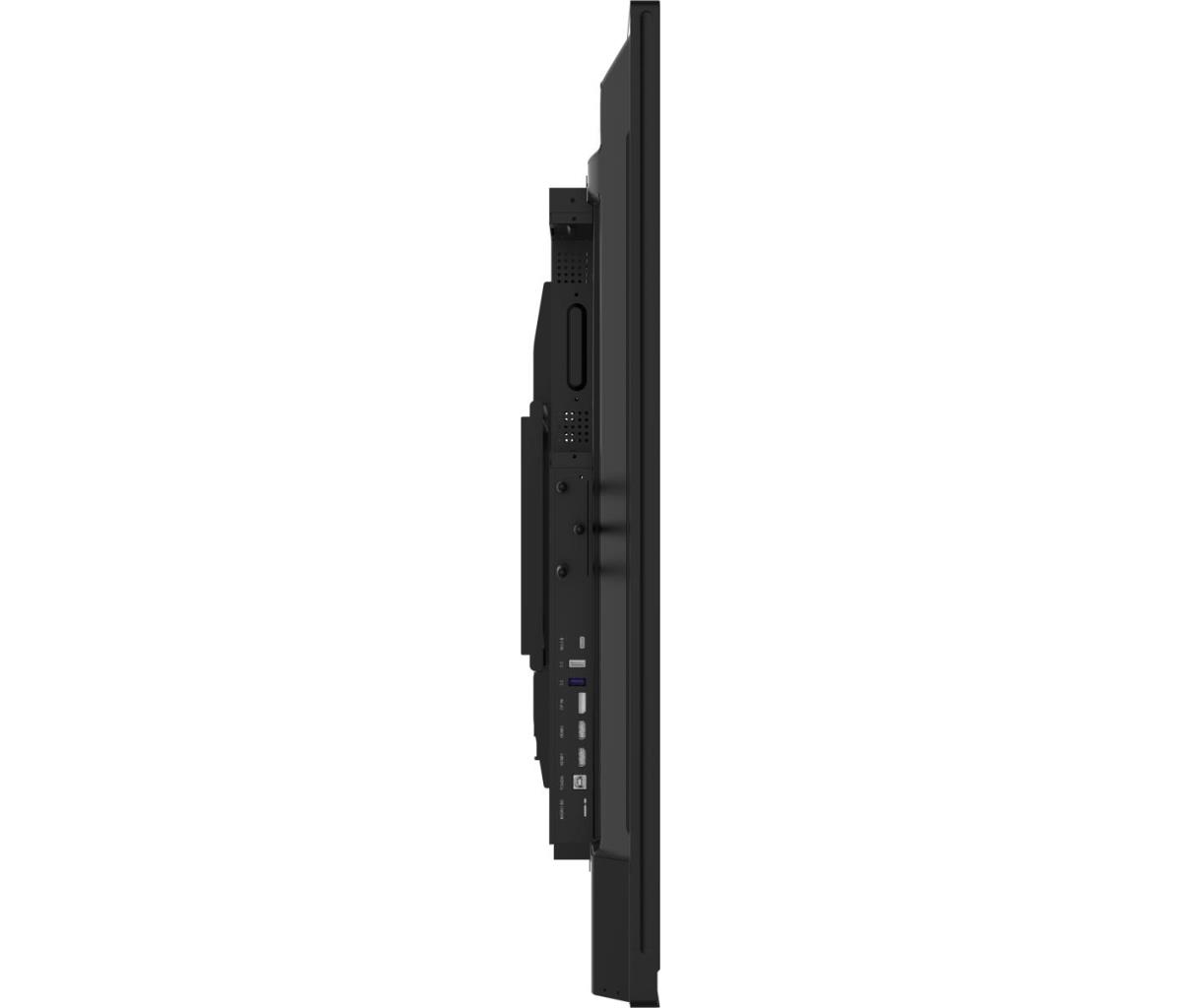

| Display depth | 86 mm |
| Display height | 765.4 mm |
| Display weight | 28.7 kg |
| Width | 1267 mm |
| Depth | 86 mm |
| Height | 765.4 mm |
| Weight | 28.7 kg |
| Packaging data | |
| Package width | 1385 mm |
| Package depth | 185 mm |
| Package height | 865 mm |
| Package weight | 34.8 kg |
| Packaging content | |
| Remote control included | Yes |

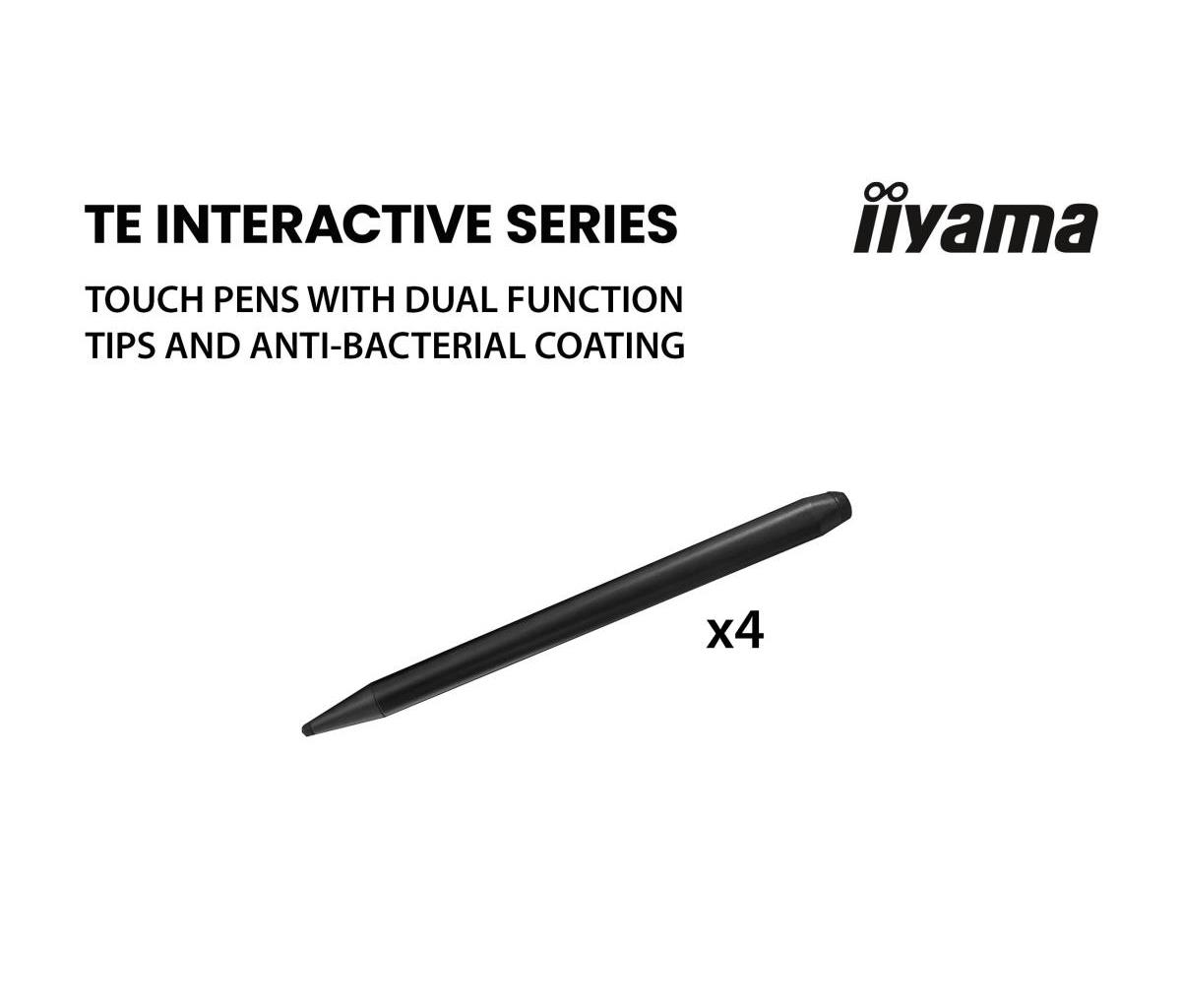

| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Cables included | AC, USB, HDMI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 øC |
| Storage temperature (T-T) | -20 - 60 øC |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Technical details | |
| Audio in (mini jack) | Yes |
| OPS slot | 1 |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode colour temp), settings (wireless & networks, share, device, personal, system) |
| Sustainability certificates | ErP |
| Warranty period | 5 year(s) |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TšV mark, WEEE |
| Other features | |
| Quick start guide | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Power supply type | Internal |
| Warranty | |
| Base Warranty | Non Non |
